1S-16S 3.2-51.2V Li-Fe LiFePO4 Battery Voltage Capacity Led Display Board

LiFePO4 Battery LED Display Board - 1S to 16S Li-Fe Capacity Indicator

Professional battery voltage and capacity LED display board specifically designed for LiFePO4 (Lithium Iron Phosphate) batteries. Supports 1S to 16S configurations (3.2V to 51.2V). Features 5-level blue LED indicator displaying battery capacity from 10% to 100%. Compact size (60mm × 15mm × 2.8mm), ultra-lightweight (17g), and easy to install. Perfect for DIY LiFePO4 battery packs, solar systems, electric vehicles, RVs, marine applications, and any LiFePO4 battery requiring level monitoring.

Key Features

• LiFePO4 Specific: Calibrated for LiFePO4 voltage characteristics
• Wide Voltage Range: Supports 1S to 16S (3.2V to 51.2V)

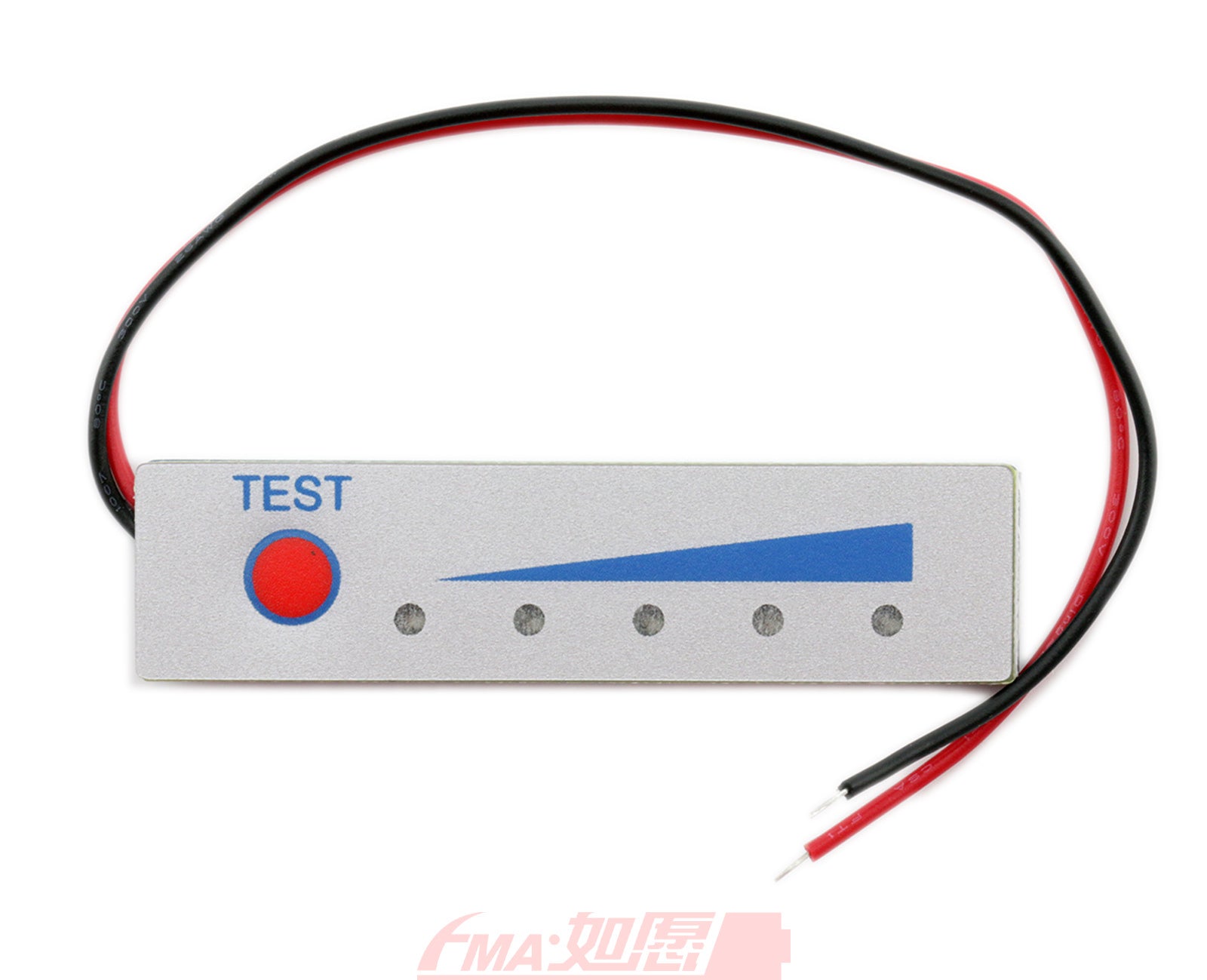

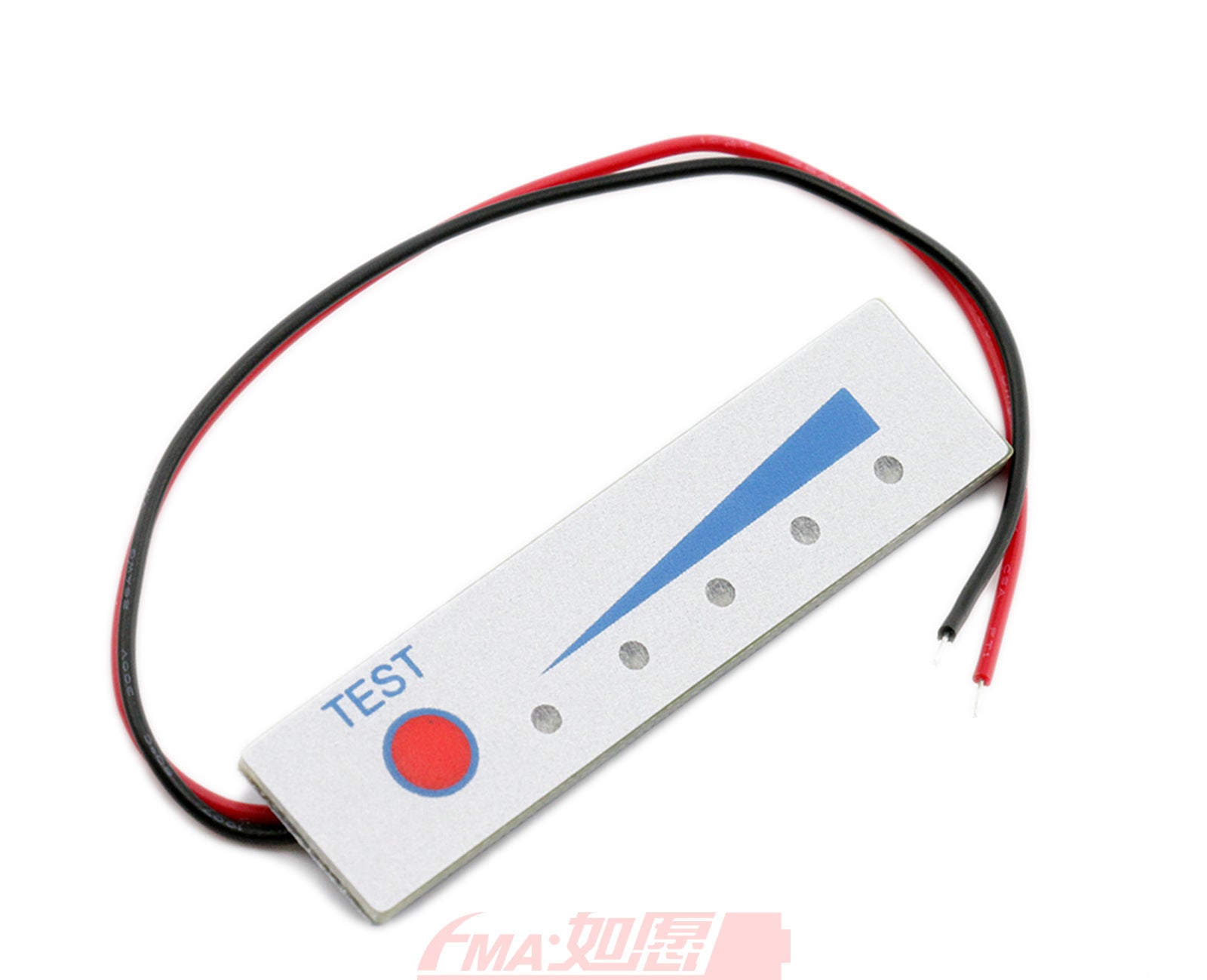

• 5-Level Blue LED Display: Shows 10%, 30%, 50%, 75%, 100% capacity

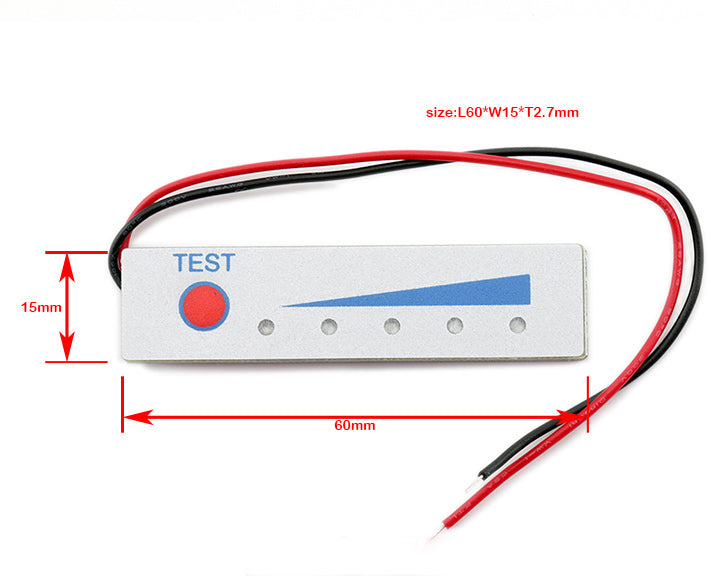

• Compact Size: 60mm × 15mm × 2.8mm - very slim profile
• Ultra-Lightweight: Only 17g
• Easy Installation: Simple wiring, plug-and-play
• Low Power Consumption: Minimal drain on battery
• Clear Visual Feedback: Bright blue LED indicators

Package Contents

• 1× LiFePO4 Battery LED Display Board (configuration as selected)

Technical Specifications

Available Configurations (1S to 16S)

LED Display Levels

Common Applications

• Solar Energy Systems: Solar battery banks and off-grid power
• RV & Marine: RV house batteries, boat batteries
• Electric Vehicles: E-bikes, electric scooters, golf carts
• DIY LiFePO4 Packs: Custom battery pack projects
• 12V/24V/48V Systems: Backup power, UPS systems
• Power Tools: LiFePO4-powered cordless tools
• Energy Storage: Home energy storage systems
• Any LiFePO4 Application: Requiring battery level monitoring

Why LiFePO4-Specific Display?

LiFePO4 vs Li-ion Voltage Difference:

• LiFePO4 nominal voltage: 3.2V per cell
• Li-ion nominal voltage: 3.6V-3.7V per cell
• This display is calibrated for LiFePO4's unique voltage curve
• Using Li-ion display on LiFePO4 will show incorrect capacity
• Accurate capacity indication for LiFePO4 batteries

Installation Instructions

Step 1: Select Correct Configuration

• Count the number of LiFePO4 cells in series (S) in your battery pack
• Order the matching configuration (1S to 16S)
• Verify voltage matches your LiFePO4 battery pack

Step 2: Wiring Connection

• Connect positive (+) wire to battery positive terminal
• Connect negative (-) wire to battery negative terminal
• Ensure correct polarity (reverse polarity may damage the board)
• Use appropriate wire gauge for your application

Step 3: Mounting

• Choose a visible location for easy monitoring
• The slim profile (2.8mm thick) fits in tight spaces
• Mount using adhesive or screws
• Ensure blue LEDs are visible and accessible

Step 4: Testing

• Power on the LiFePO4 battery pack
• Verify blue LEDs illuminate correctly
• Check that display shows appropriate capacity level
• Test at different charge levels to verify accuracy

Why Choose This LiFePO4 LED Display?

1. LiFePO4 Calibrated:

• Specifically designed for LiFePO4 voltage characteristics
• Accurate capacity indication for Li-Fe batteries
• Won't work correctly with Li-ion batteries (use Li-ion version instead)

2. Wide Compatibility:

• Supports 1S to 16S configurations
• Covers voltage range from 3.2V to 51.2V
• Perfect for 12V, 24V, 36V, and 48V LiFePO4 systems

3. Compact & Lightweight:

• Only 60mm × 15mm × 2.8mm - very slim
• Weighs just 17g
• Fits in tight spaces
• Perfect for space-constrained applications

4. Clear Blue LED Display:

• 5-level blue LED display for easy reading
• Bright LEDs visible in various lighting conditions
• Instant battery status at a glance

5. Easy Installation:

• Simple 2-wire connection
• No complex programming required
• Plug-and-play operation
• Low power consumption

Important Notes

⚠️ Safety Precautions:

• ❌ Do not use with Li-ion or LiPo batteries (use Li-ion version instead)
• ❌ Do not connect to wrong voltage configuration
• ❌ Ensure correct polarity when wiring
• ✅ Only use with LiFePO4 (Li-Fe) batteries
• ✅ Select the correct S configuration for your battery
• ✅ Double-check wiring before powering on

Usage Tips:

• The display shows approximate capacity based on LiFePO4 voltage curve
• Accuracy may vary under load vs no-load conditions
• Use as a general indicator, not precision measurement
• LiFePO4 has flatter discharge curve than Li-ion
• Recharge when display shows 30% or lower for battery longevity

Warranty & Support

We stand behind the quality of our products. If you experience any issues with the LED display board, please contact us for support. Always select the correct configuration for your LiFePO4 battery pack and follow installation instructions carefully.
