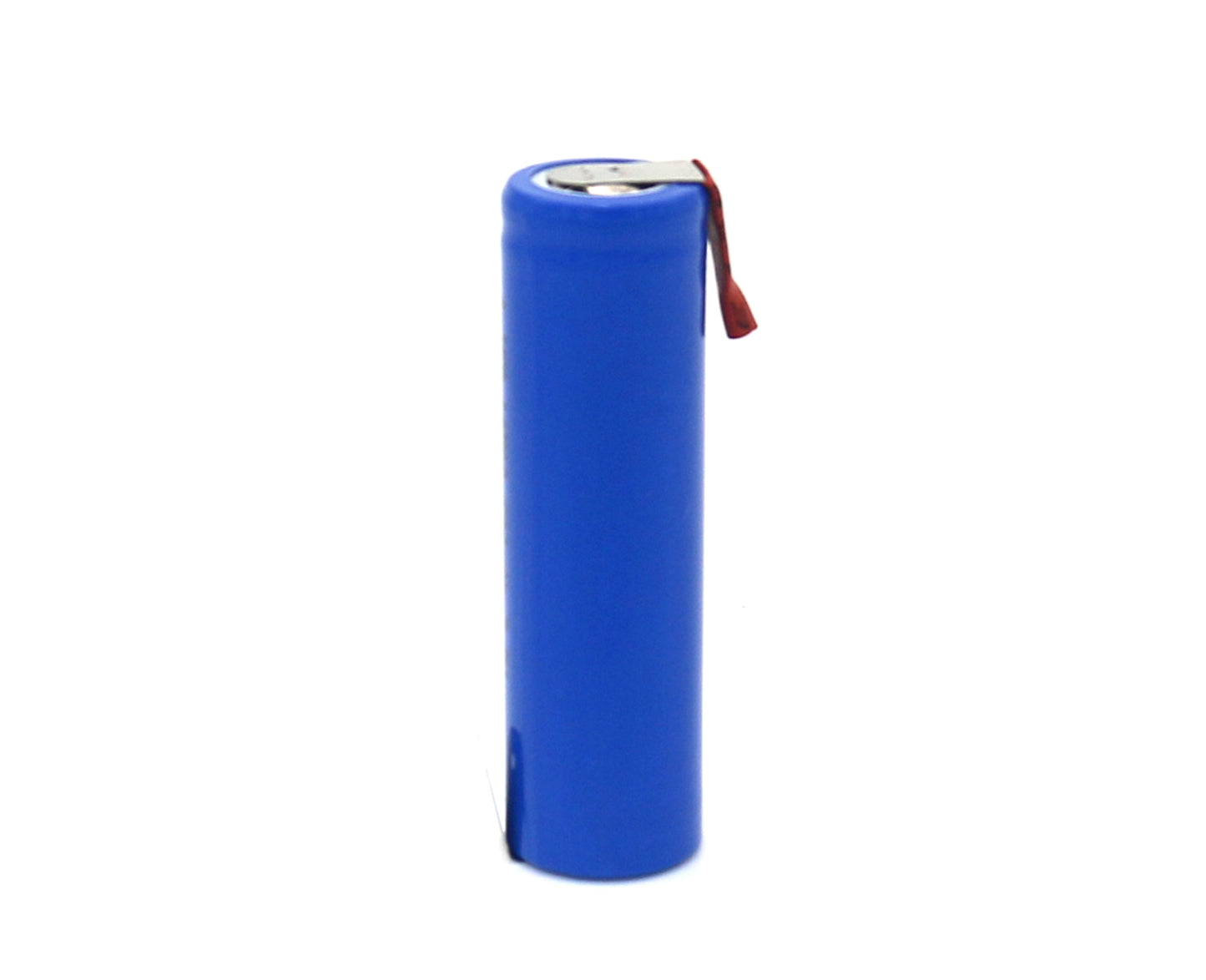

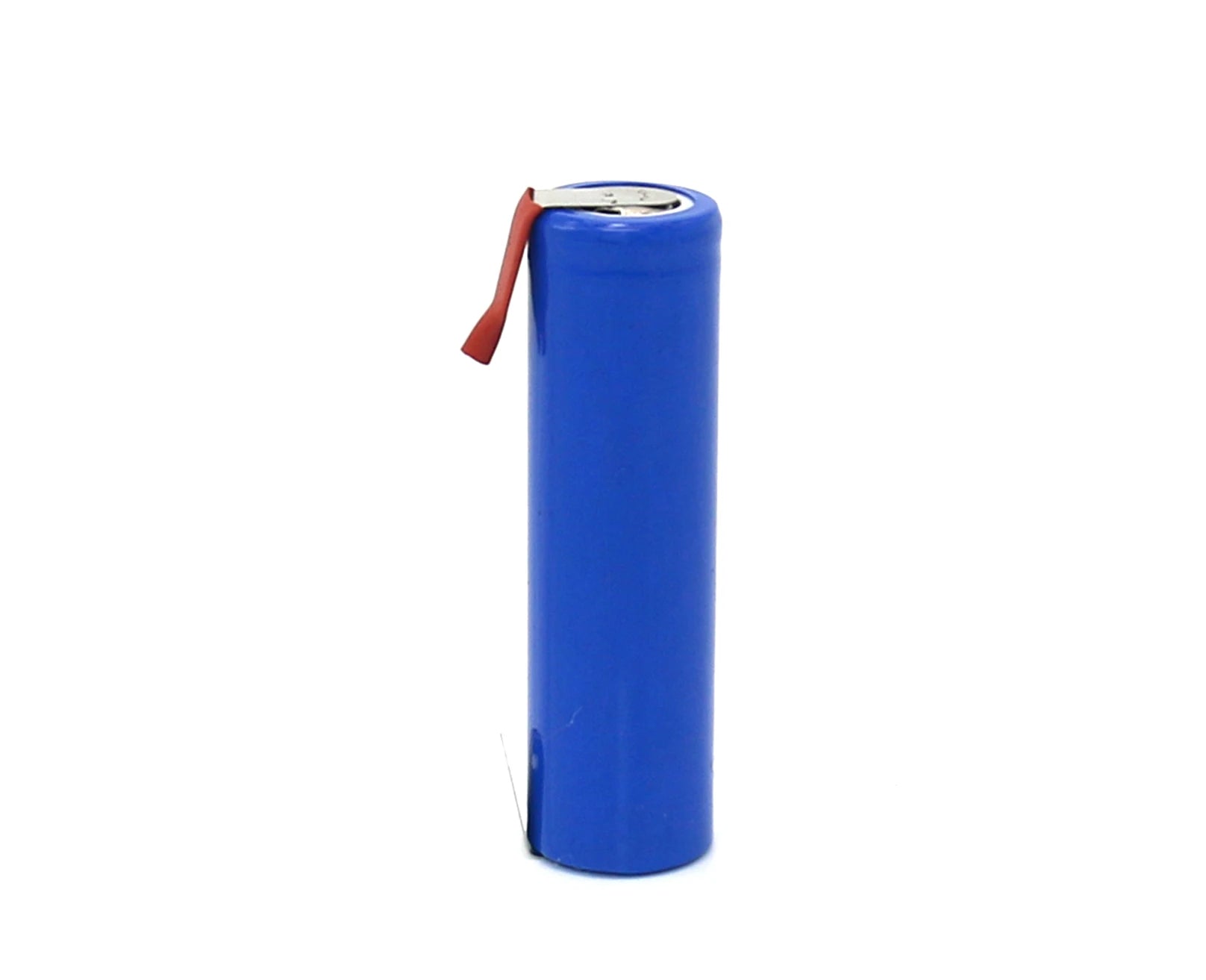

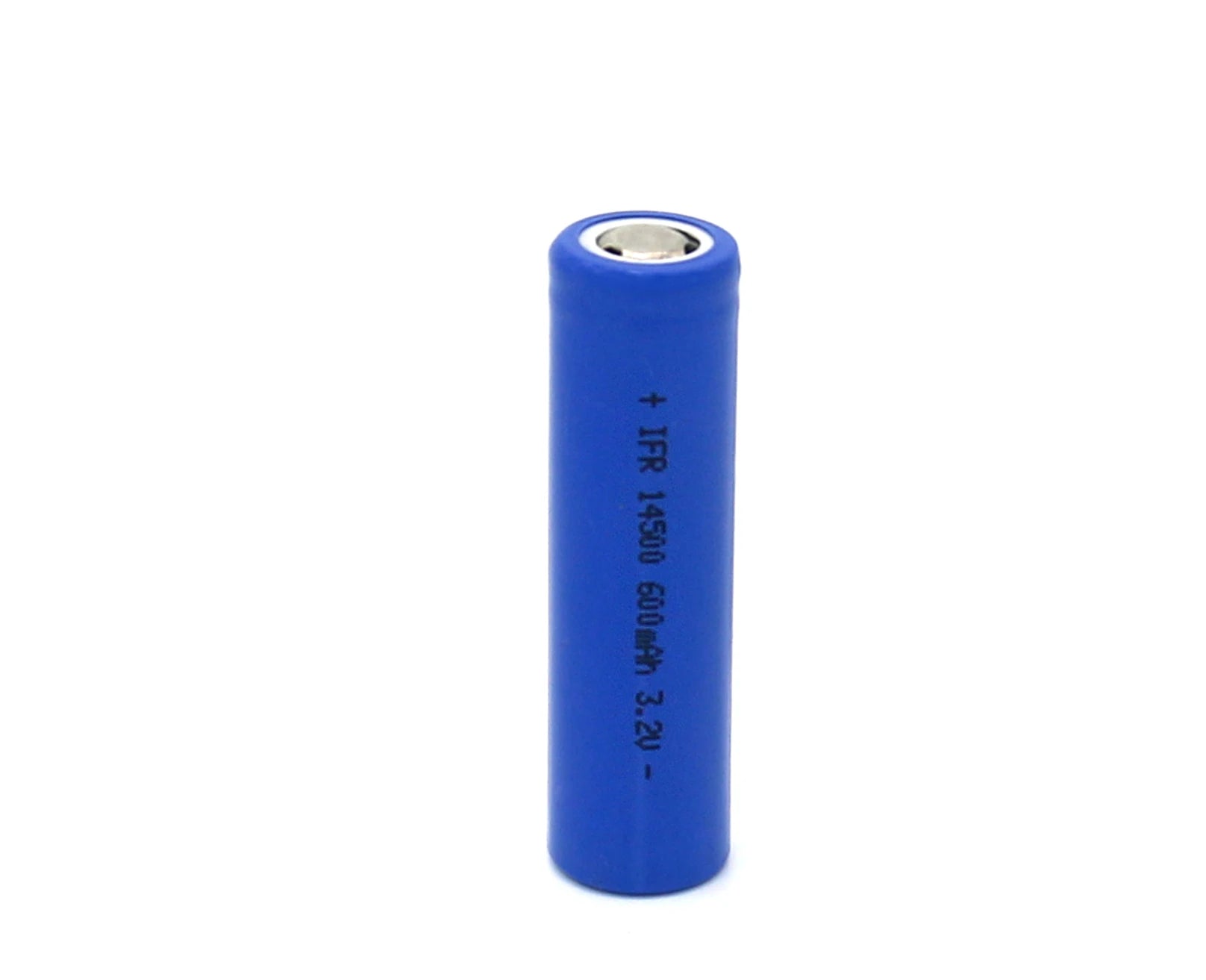

3x AA LiFePO4 Rechargeable Battery Pack - 3.2V 600mAh 14500
Professional-grade 3-pack AA size (14500/IFR14500/IFR14505) Lithium Iron Phosphate (LiFePO4) rechargeable batteries with pre-welded tabs. Available in four tab configurations (Type A, B, C, D) for DIY battery pack assembly. Perfect for cameras, flashlights, Remington razors, and devices requiring 3x AA battery replacement. Features safe LiFePO4 chemistry and long cycle life.
Key Features
- 3-Pack Configuration: Three AA-size batteries for 3.6V-4.8V applications
- Four Tab Types: Type A, B, C, D for flexible battery pack assembly
- AA Size (14500): Standard AA dimensions (14mm × 50mm)
- LiFePO4 Chemistry: Safest lithium battery type
- Pre-welded Tabs: Ready for DIY battery pack assembly
- Long Cycle Life: 2000+ charge cycles
- Lightweight: Only 110g for 3-pack
Package Contents

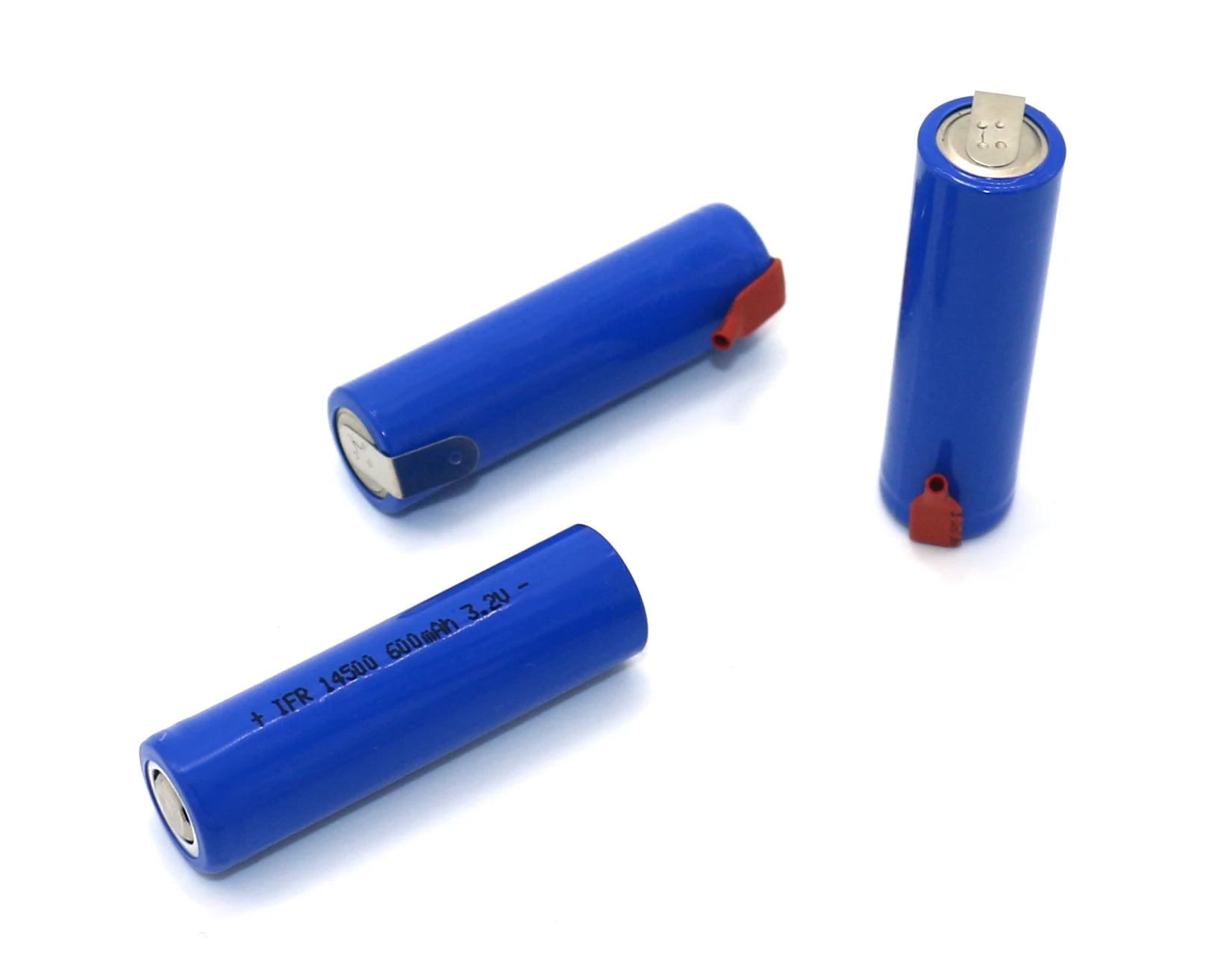

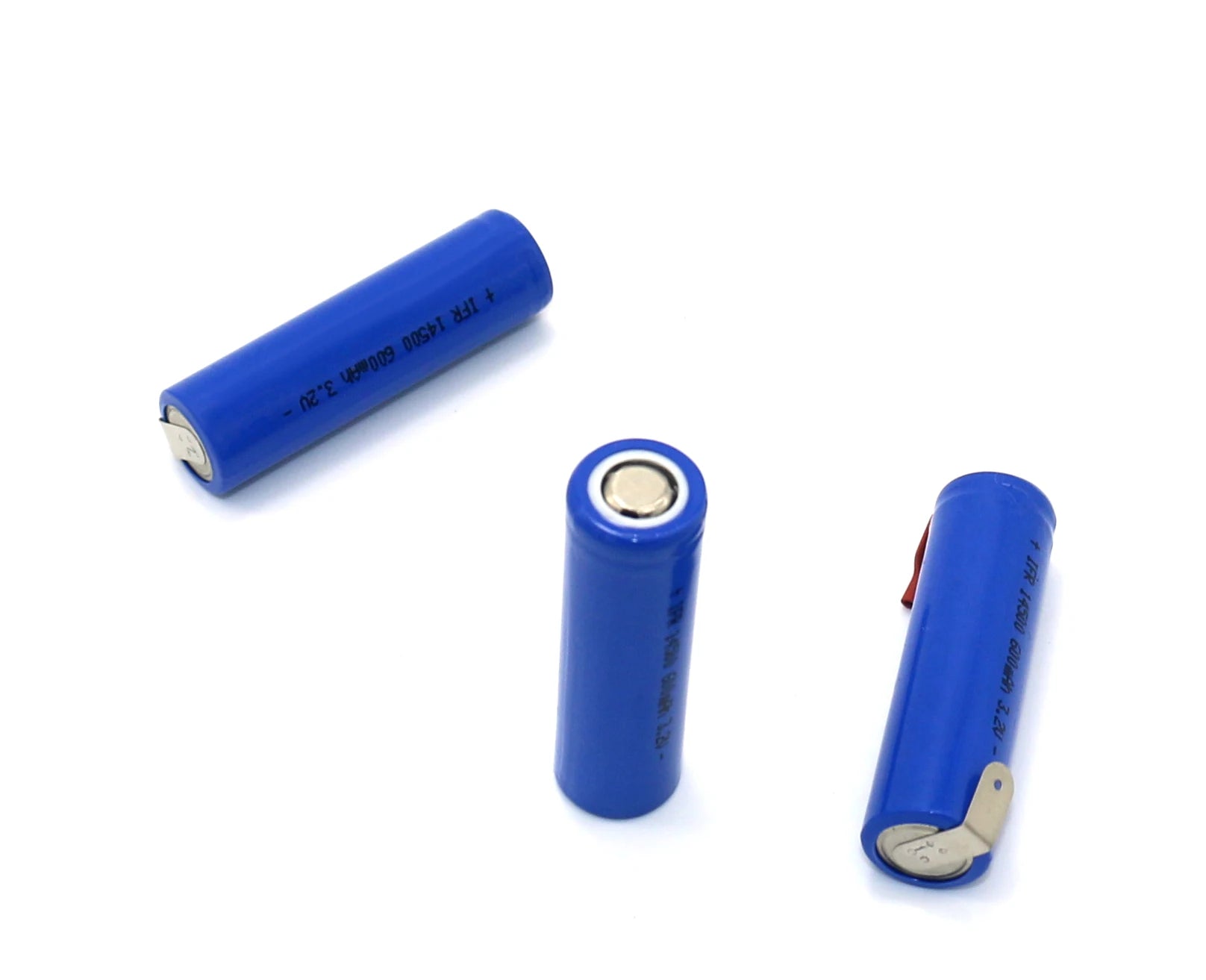

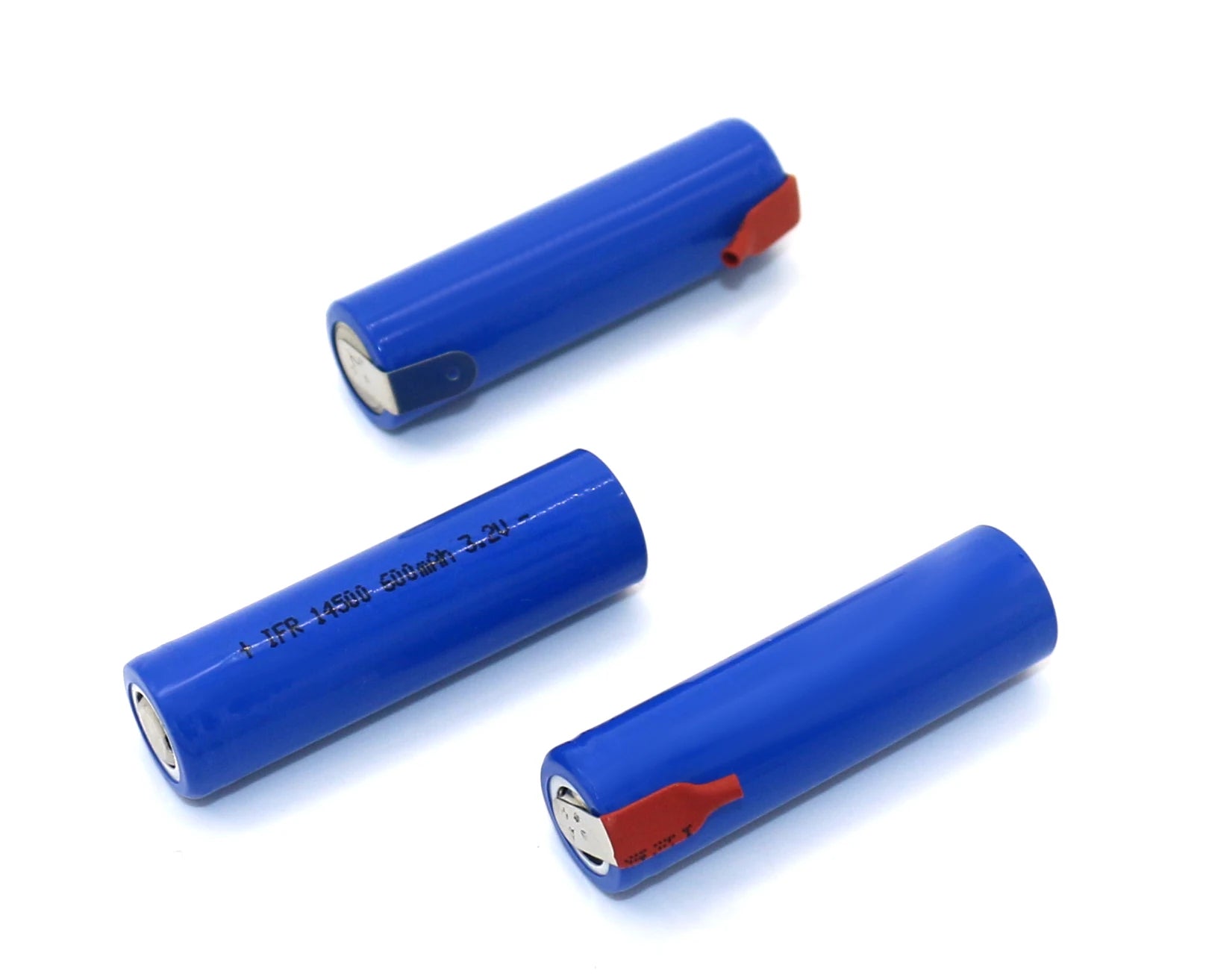

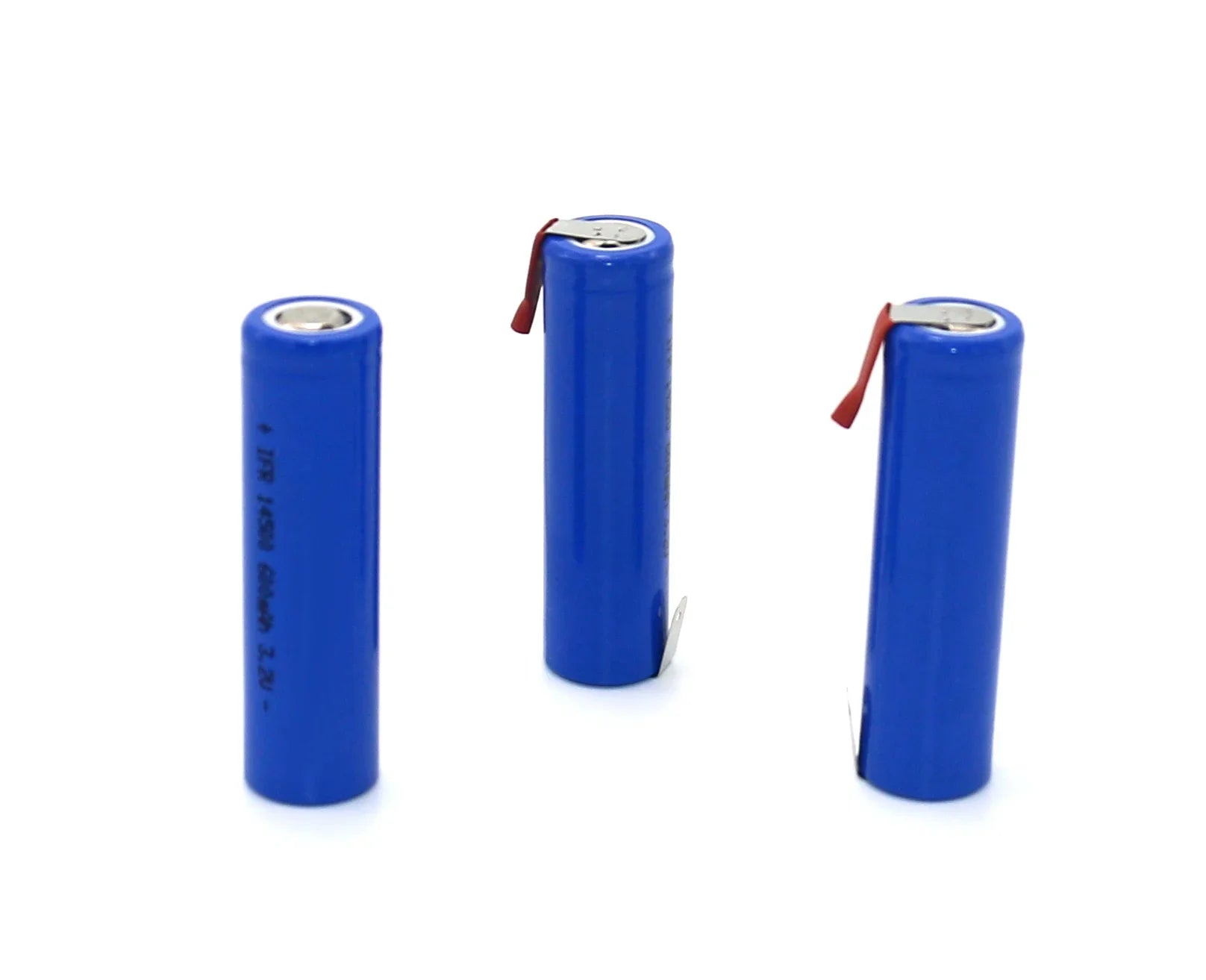

- 3× AA LiFePO4 Batteries (14500) with tabs (tab type as selected)
Technical Specifications
| Cell Size | AA / 14500 / IFR14500 / IFR14505 |
| Nominal Voltage (per cell) | 3.2V |
| Capacity (per cell) | 600mAh |
| Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Cell Dimensions | 14mm (diameter) × 50mm (length) |
| Quantity | 3 cells |
| Weight (3-pack) | ~110g |
| Tab Options | Type A, Type B, Type C, Type D |
| Charge Voltage (per cell) | 3.65V |
| Discharge Cut-off (per cell) | 2.5V |
| Cycle Life | 2000+ cycles |
| Brand | FMA |
| Condition | Brand New |
Four Tab Configuration Options
| Tab Type | Configuration | Best For |
|---|---|---|
| Type A | Standard series tabs | Linear battery pack assembly, standard configurations |

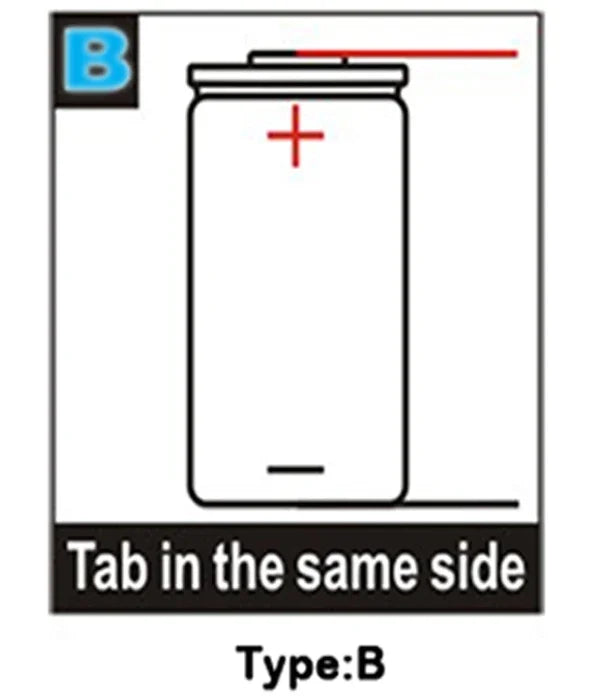

| Type B | Side-by-side tabs | Compact pack designs, parallel connections |

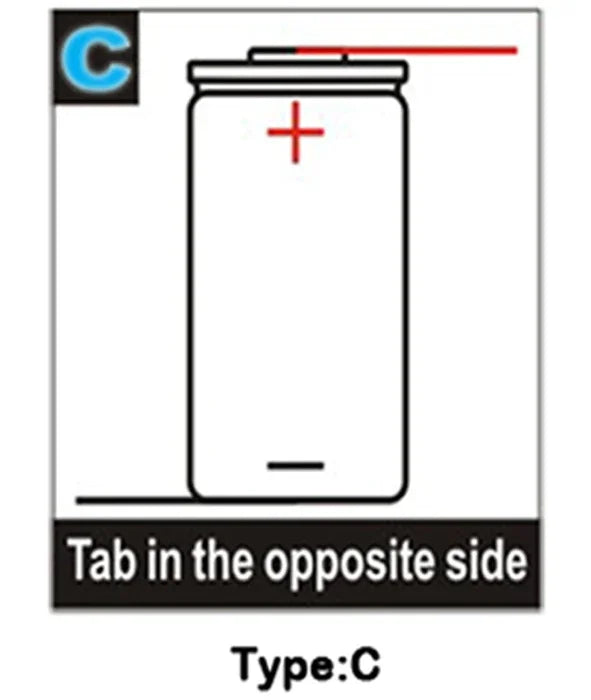

| Type C | Custom orientation tabs | Flexible layouts, custom configurations |

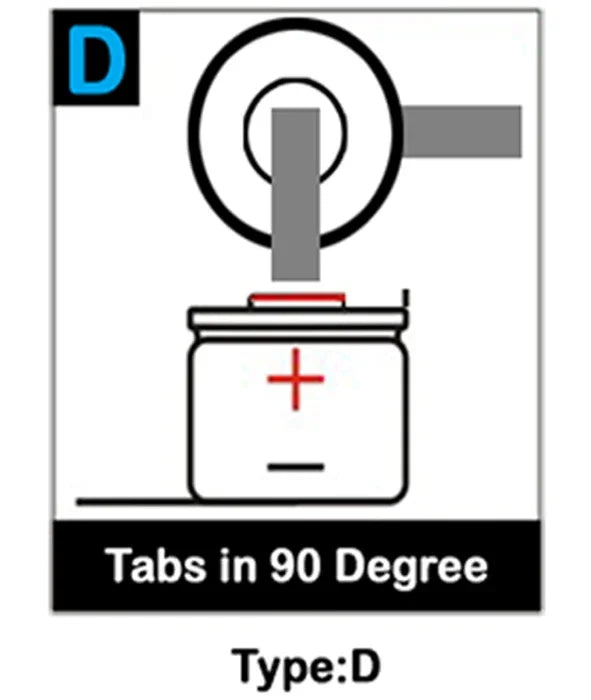

| Type D | Enhanced stability tabs | High-reliability applications, secure connections |
Common Applications
- Cameras: Digital camera battery pack replacement
- Flashlights: High-power LED flashlights
- Remington Razors: Electric shaver battery replacement
- Solar Lights: Garden and pathway solar lights
- Portable Devices: Handheld electronic equipment
- DIY Projects: Custom battery pack assembly
- Emergency Lights: Backup lighting systems
- Wireless Devices: Remote controls and sensors
Why Choose LiFePO4 AA Batteries?
1. Safer Than Standard Lithium:
- LiFePO4 is the safest lithium chemistry
- Excellent thermal stability
- No risk of thermal runaway
- Safe for consumer devices
2. Long Lifespan:
- 2000+ charge cycles vs 300-500 for NiMH
- Lasts 4-6 times longer
- Better long-term value
- Reduces waste
3. Stable Voltage:
- 3.2V nominal (compatible with 3.6V-4.8V devices)
- Consistent performance throughout discharge
- Better than NiMH voltage sag
4. Lightweight:
- Lighter than NiMH batteries
- Reduces device weight
- Better for portable applications
5. Low Self-Discharge:
- ~3% per month vs 15-20% for NiMH
- Holds charge longer in storage
- Ready to use when needed
DIY Battery Pack Assembly Guide
⚠️ Safety Note: Battery pack assembly requires basic electrical knowledge. If unsure, consult a professional.
Common Configurations:
3S Configuration (Series - 9.6V):
- Connect 3 cells in series
- Positive of Cell 1 to Negative of Cell 2
- Positive of Cell 2 to Negative of Cell 3
- Result: 9.6V, 600mAh
- Best Tab Type: Type A or Type C
- Use: Cameras, flashlights, razors
3P Configuration (Parallel - 3.2V):
- Connect all 3 cells in parallel
- All positive tabs together
- All negative tabs together
- Result: 3.2V, 1800mAh
- Best Tab Type: Type B or Type D
- Use: High-capacity single-cell applications
Assembly Steps:
- Plan your configuration (series, parallel, or combination)
- Use spot welding for best results (soldering acceptable with care)
- Connect tabs according to your design
- Add BMS/PCM protection circuit (recommended)
- Insulate with heat-shrink tubing
- Test voltage before final assembly
Charging Information
For 3S Configuration (9.6V pack):
- Use LiFePO4-compatible charger (10.95V for 3S)
- Do NOT use standard NiMH/NiCd chargers
- Recommended charge current: 0.3-0.6A
- Charging time: 1-2 hours
For Individual Cells:
- Charge voltage: 3.65V per cell
- Use appropriate LiFePO4 charger
- Monitor charging process
Safety Information
Assembly: Battery pack assembly requires electrical knowledge. Use proper tools and safety equipment.
Charging: Use only LiFePO4-compatible chargers. Do not use NiMH/NiCd chargers.
Storage: Store at 40-60% charge in cool, dry place.
Operation: Do not short-circuit, puncture, crush, or disassemble cells.
Temperature: Charge: 0-45°C, Discharge: -20-60°C, Storage: -20-35°C.
Disposal: Dispose according to local regulations. LiFePO4 is non-toxic but should be recycled.
BMS Recommended: Use Battery Management System for multi-cell packs to ensure safety.
