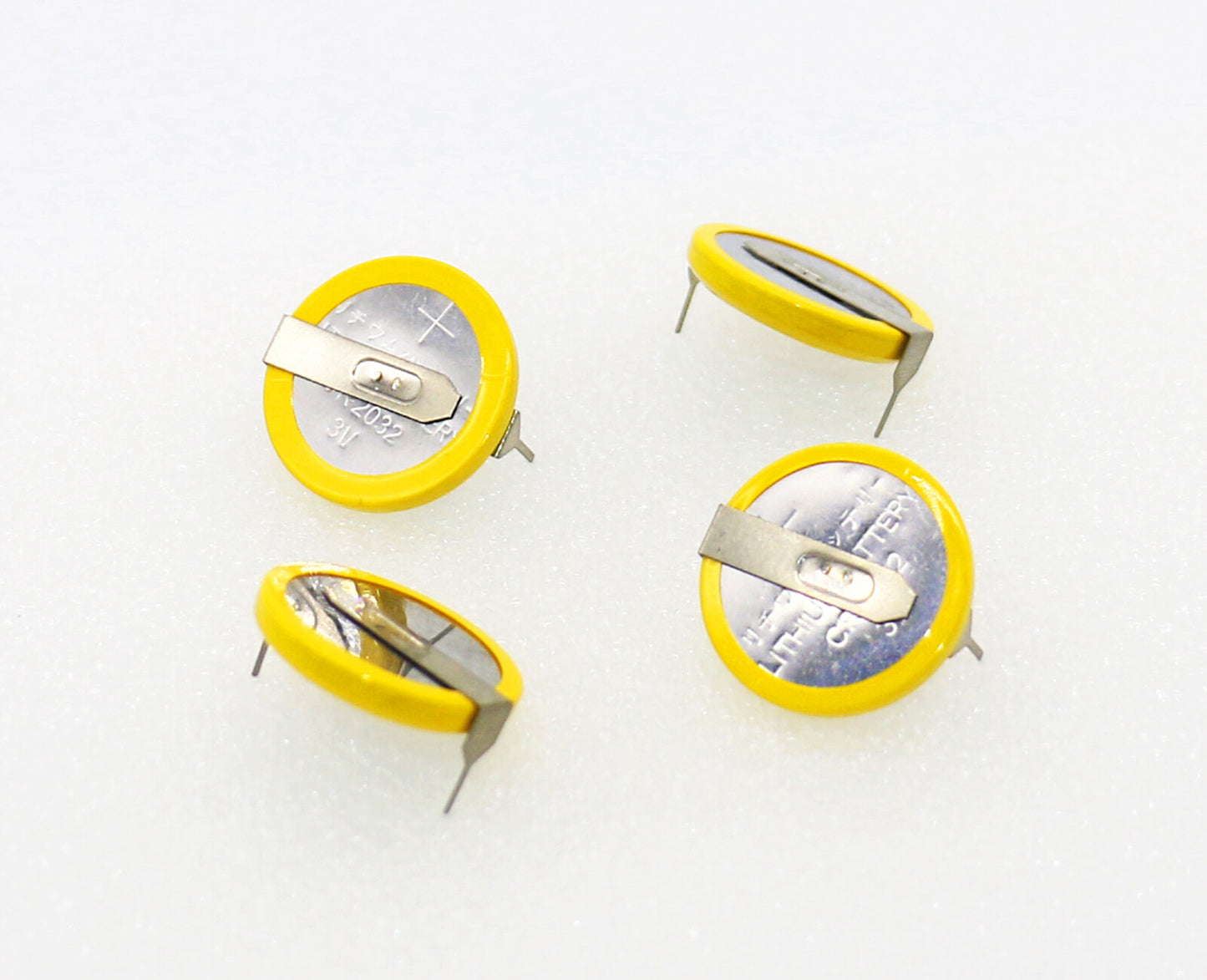

4* Button Coin 3V Primary Battery CR2016 CR2025 CR2032 to Timer PLC Backup Power
4* Button Coin 3V Primary Battery CR2016 CR2025 CR2032 to Timer PLC Backup Power
Couldn't load pickup availability

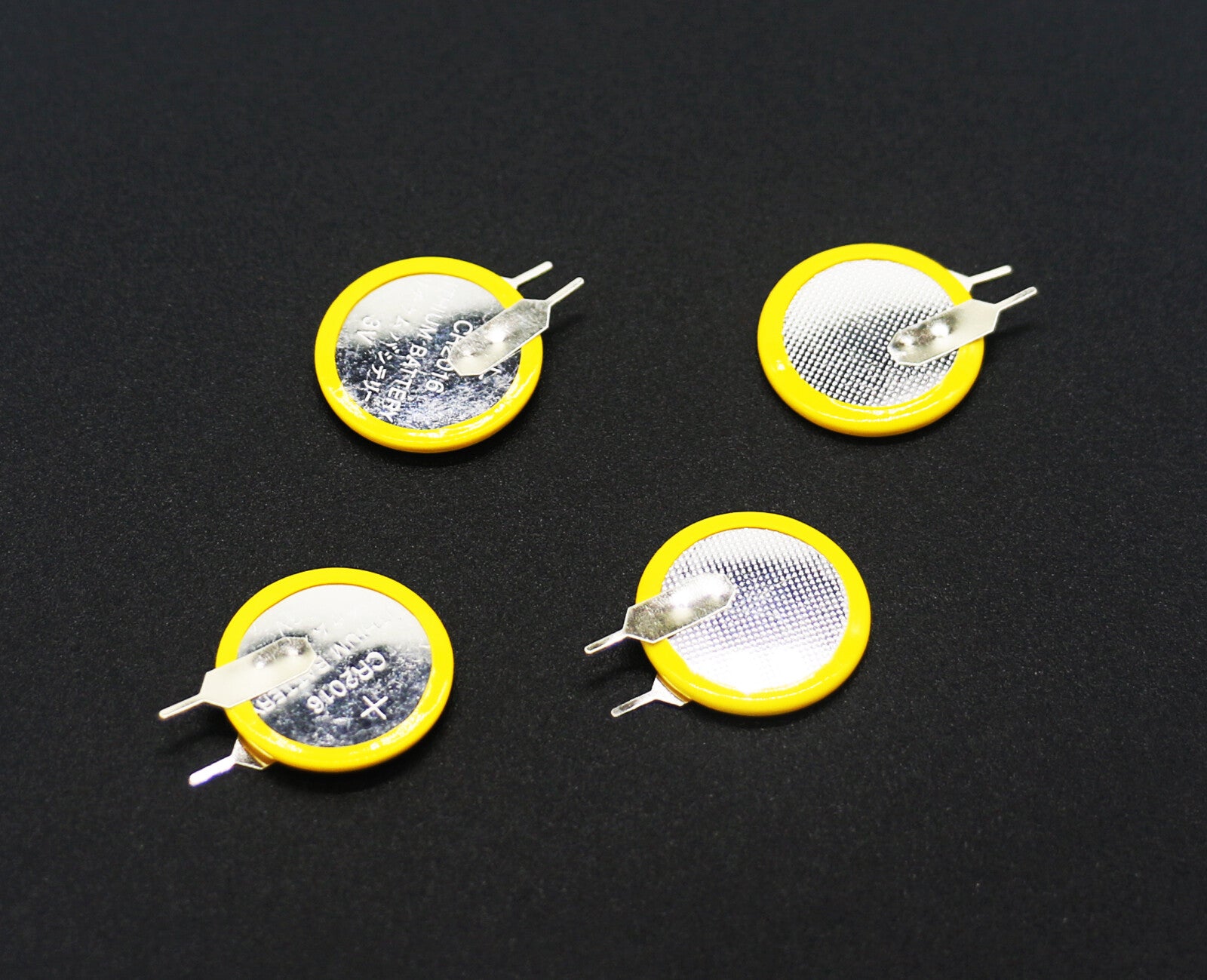

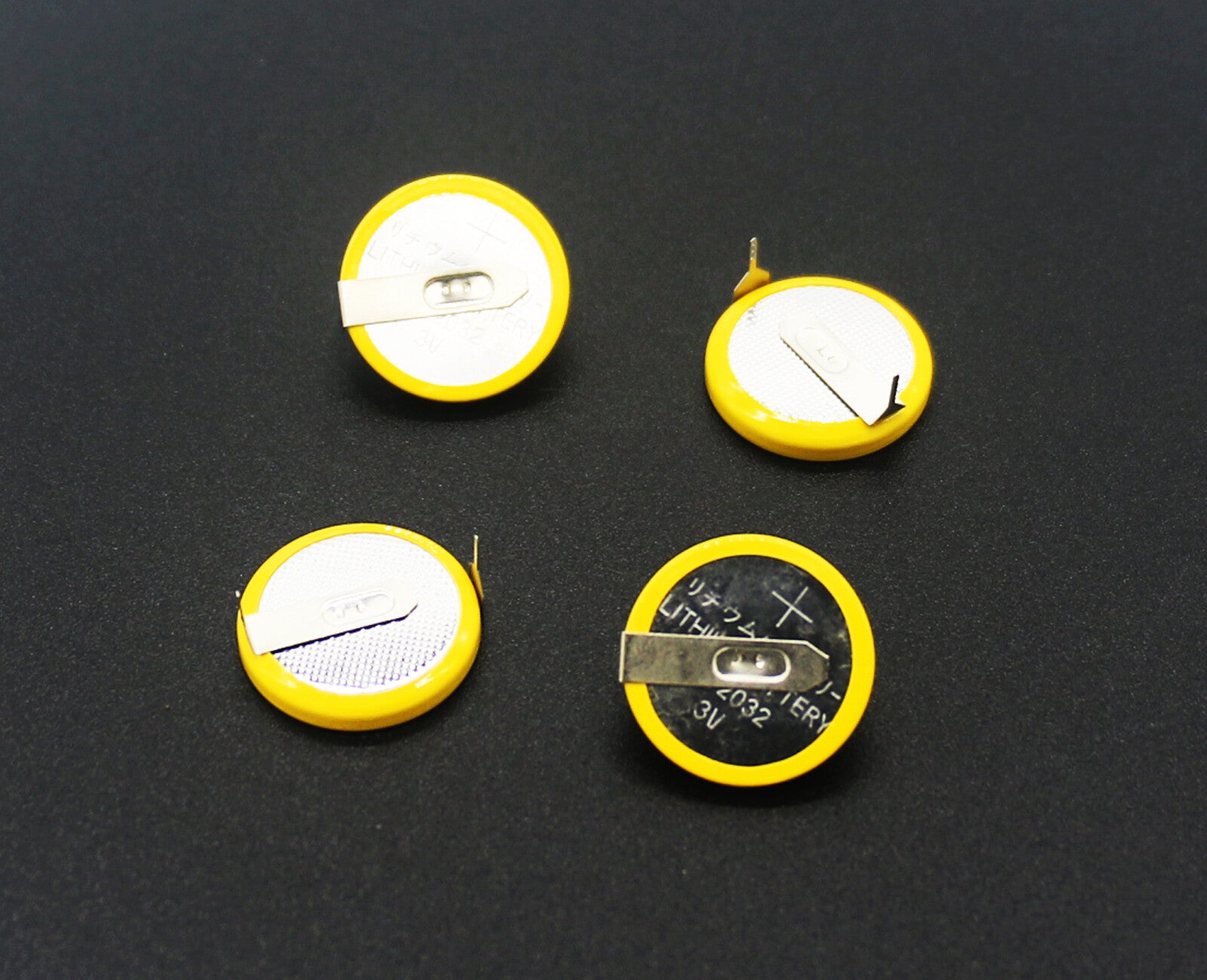

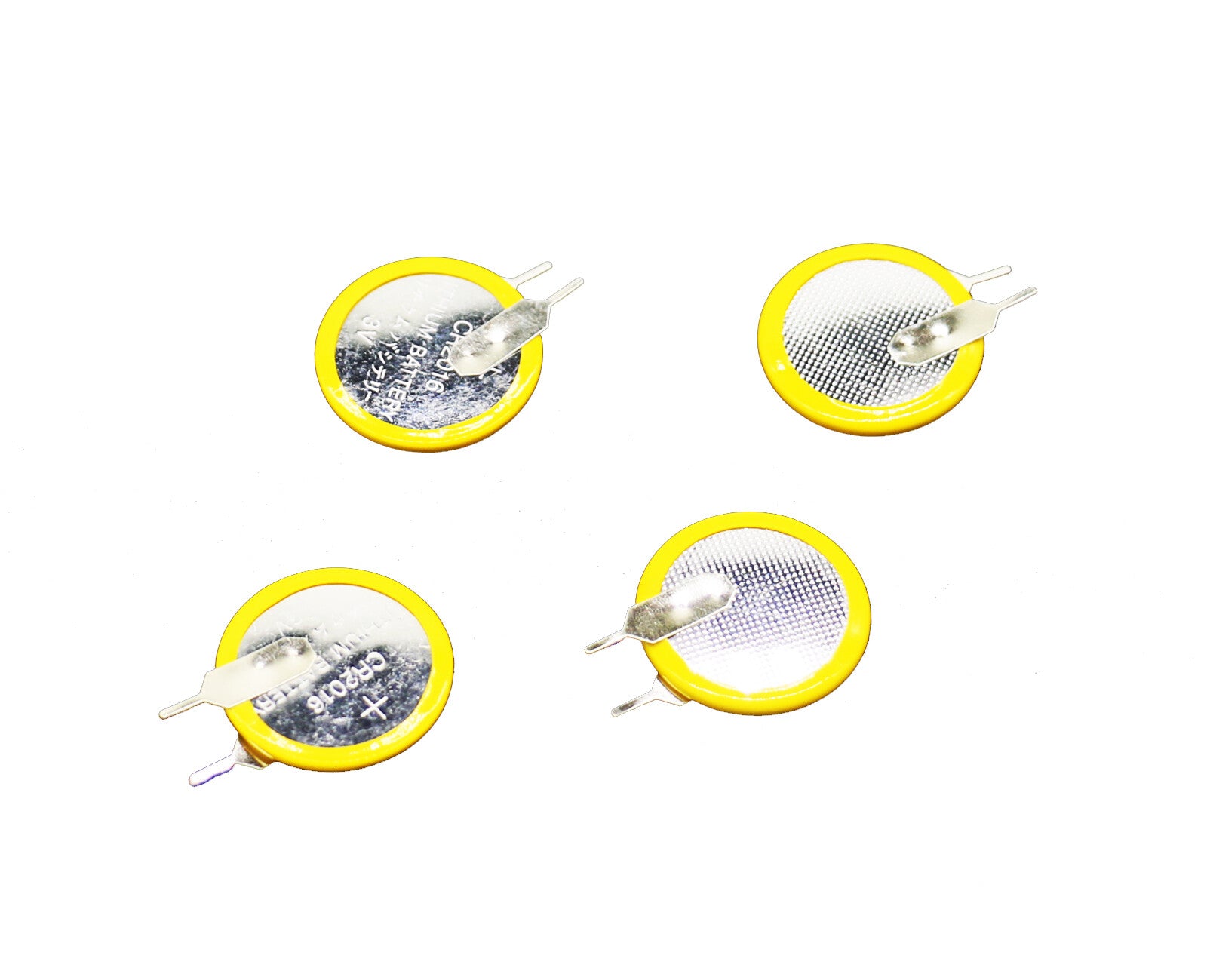

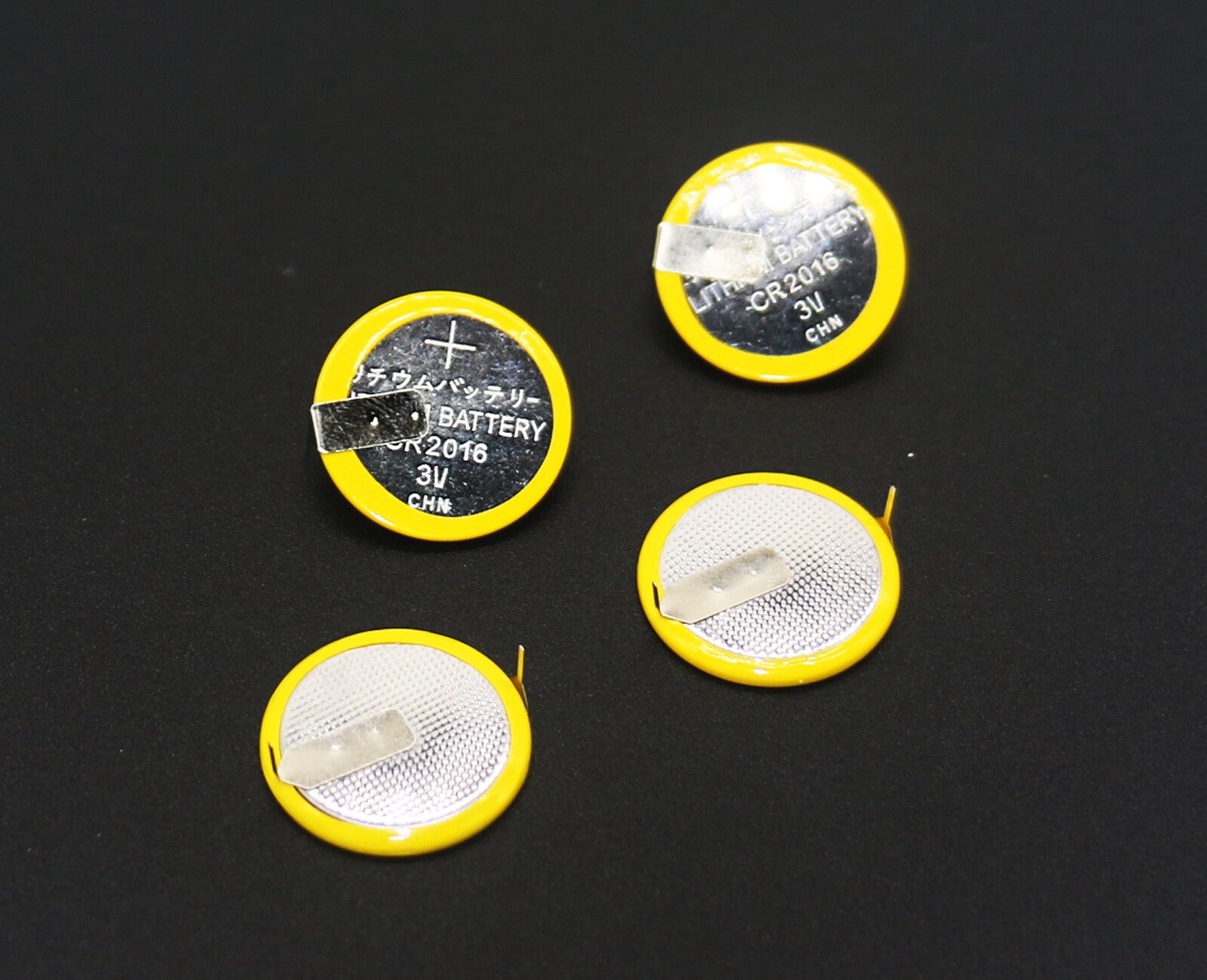

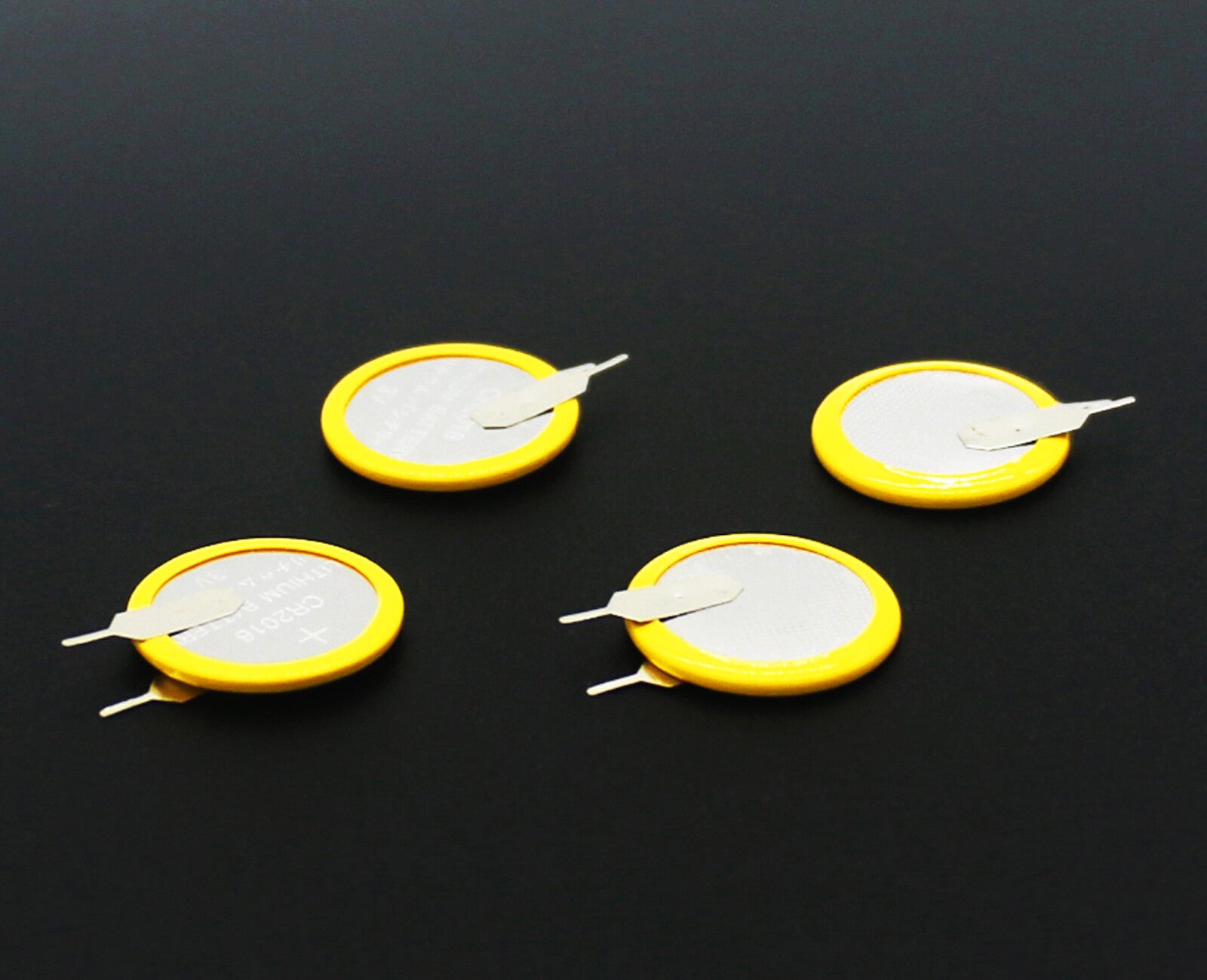

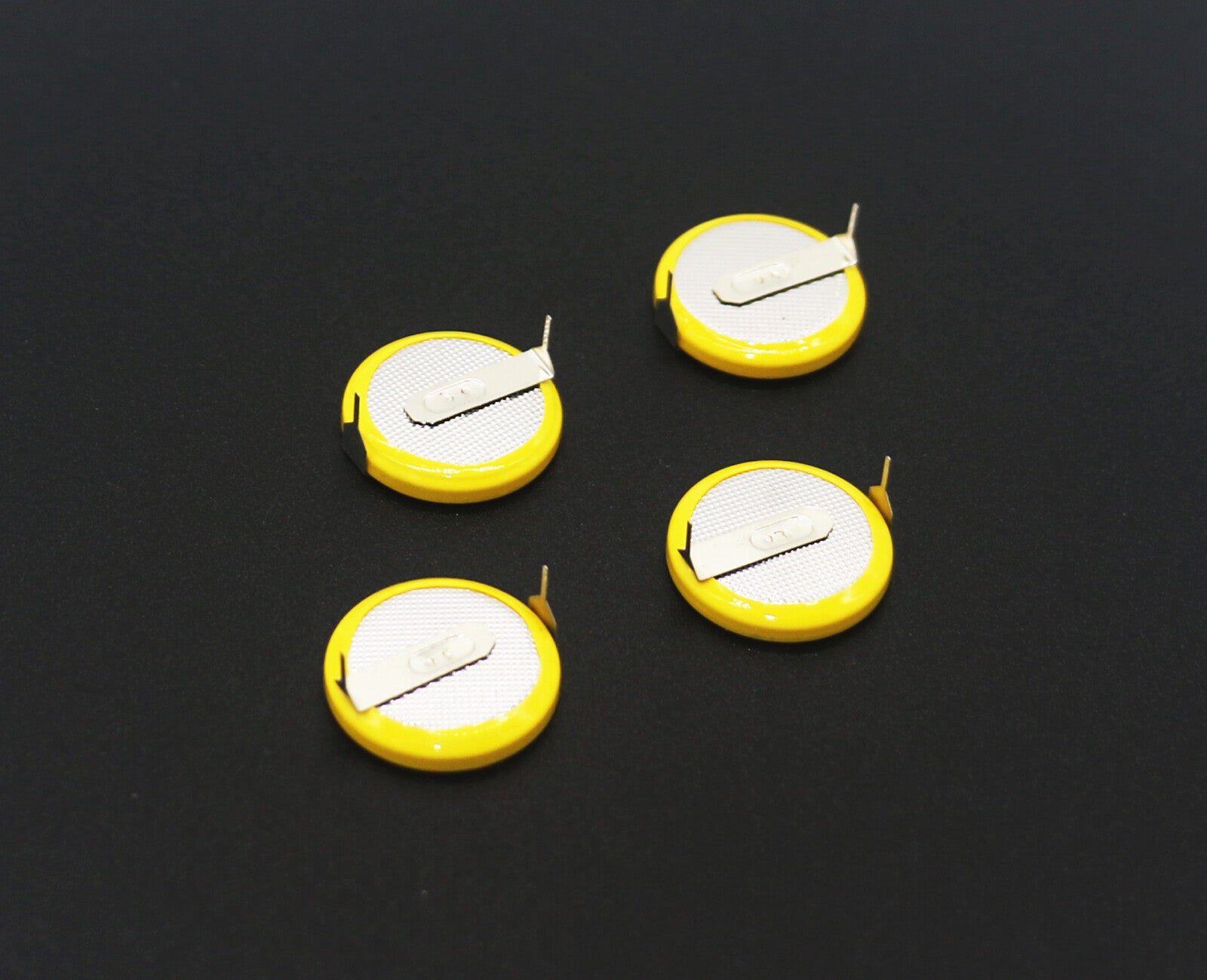

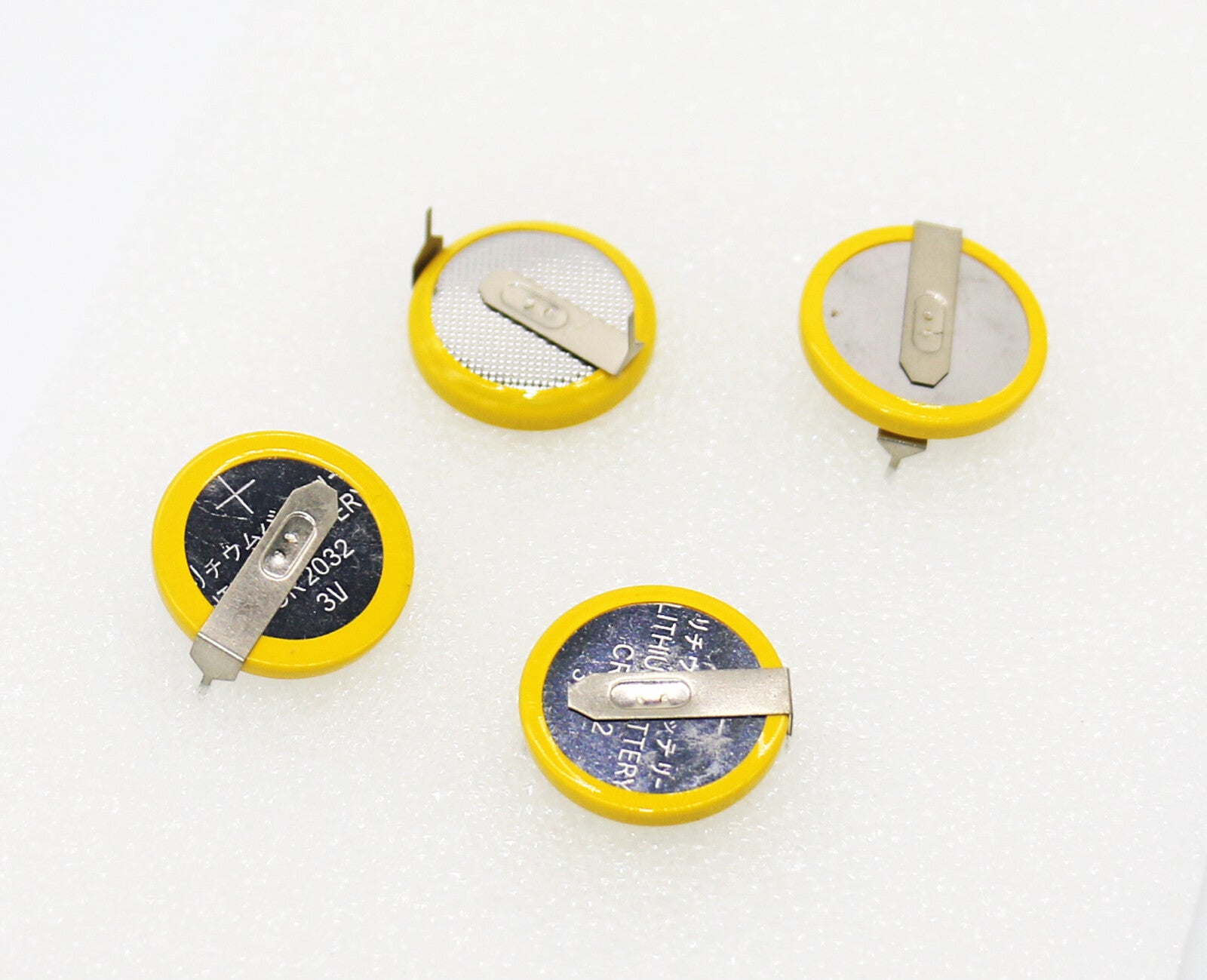

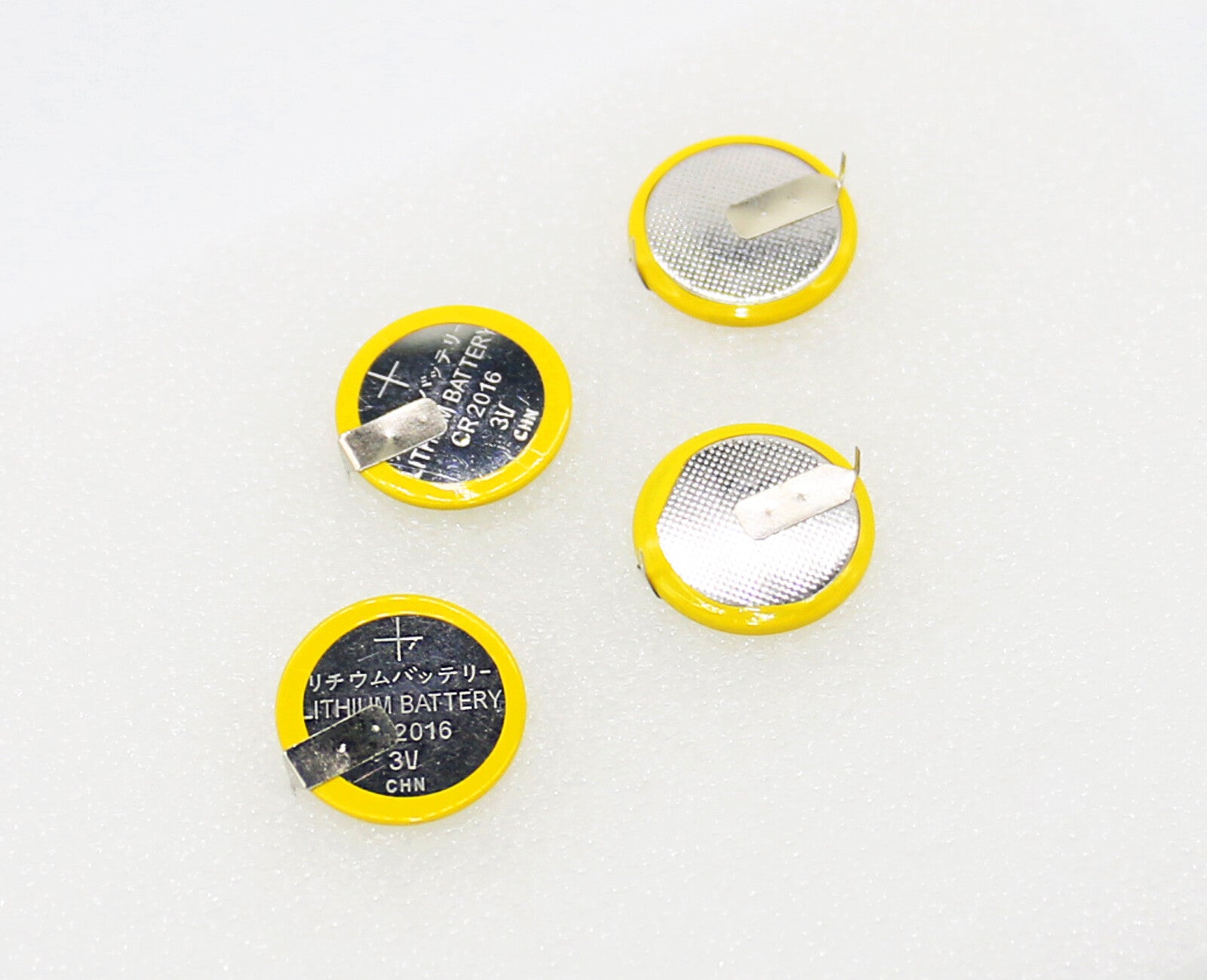

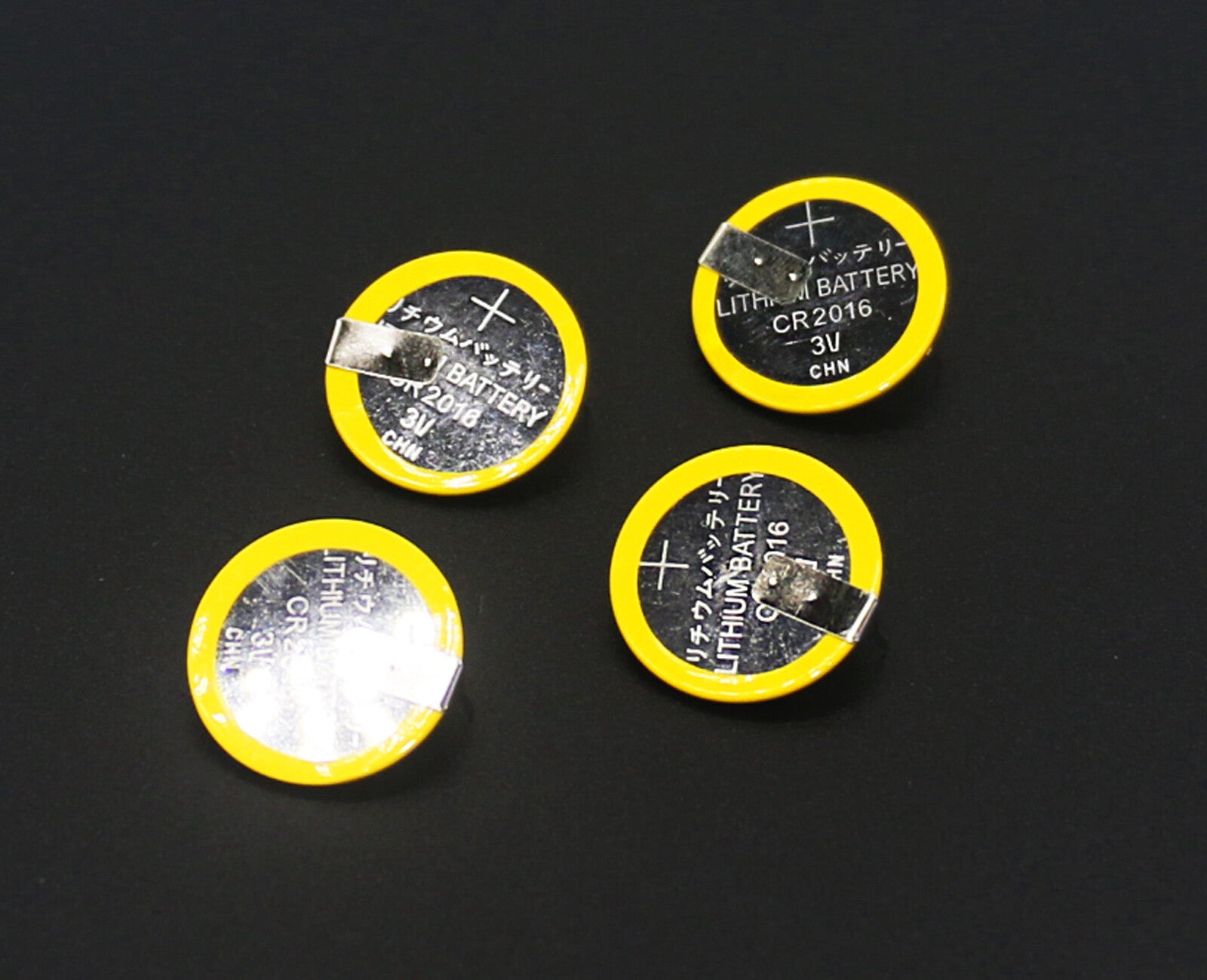

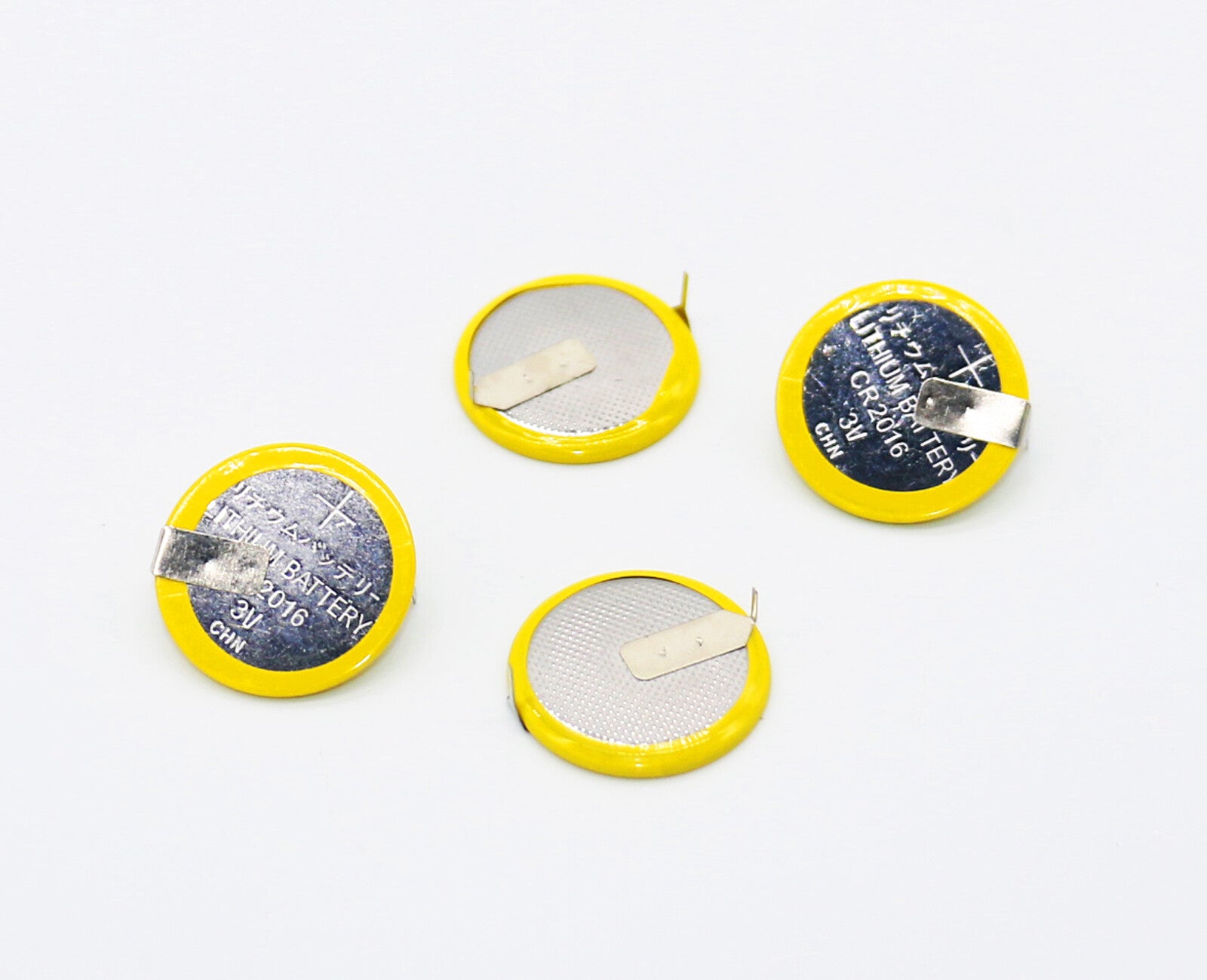

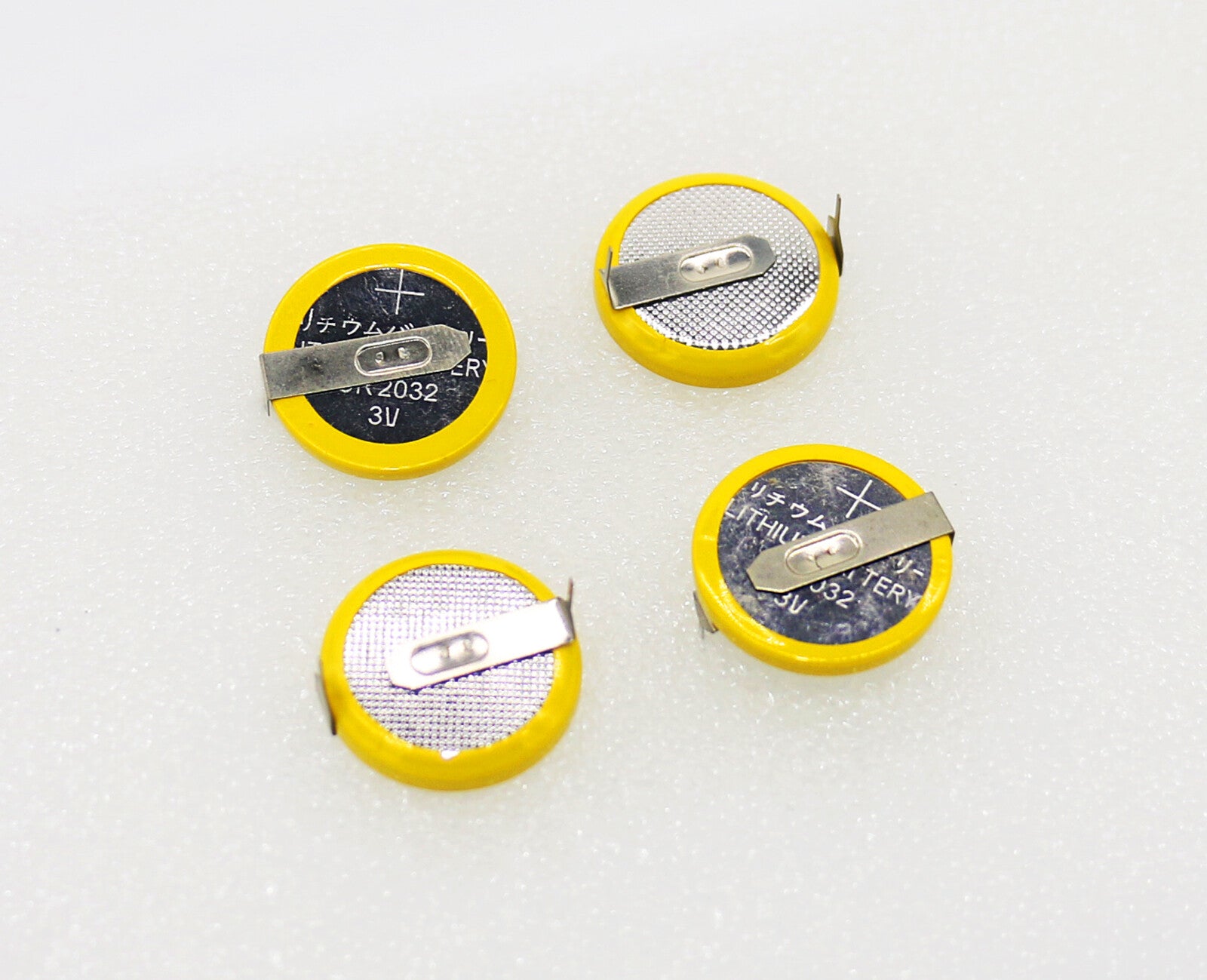

4pcs 3V Lithium Button Coin Battery for Timer PLC Backup Power
Professional 4-piece pack of 3V lithium button coin batteries designed specifically for timers, PLC (Programmable Logic Controller) backup power, and industrial control systems. Available in CR2016, CR2025, and CR2032 models with 2P tab configurations for easy PCB mounting.
Key Features
- Industrial Grade: Designed for timer and PLC backup power applications
- 4-Piece Pack: Convenient quantity for small projects and replacements
- Multiple Models: CR2016, CR2025, CR2032 to fit different devices
- Pre-Welded Tabs: 2P vertical or horizontal tabs for easy PCB soldering
- High Quality: Premium lithium manganese dioxide chemistry
- Long Shelf Life: 5-10 years storage life
- Stable Voltage: Consistent 3V output throughout discharge
- Wide Temperature Range: -20°C to +60°C operating temperature
Package Contents
- 4× 3V Lithium Button Coin Batteries with tabs (model and tab configuration as selected)
Technical Specifications
| Model | Voltage | Diameter | Height | Capacity | Tab Options |
|---|---|---|---|---|---|
| CR2016 | 3V | 20mm | 1.6mm | 90mAh | 2P Vertical, 2P Horizontal |
| CR2025 | 3V | 20mm | 2.5mm | 165mAh | 2P Horizontal |
| CR2032 | 3V | 20mm | 3.2mm | 220mAh | 2P Horizontal |

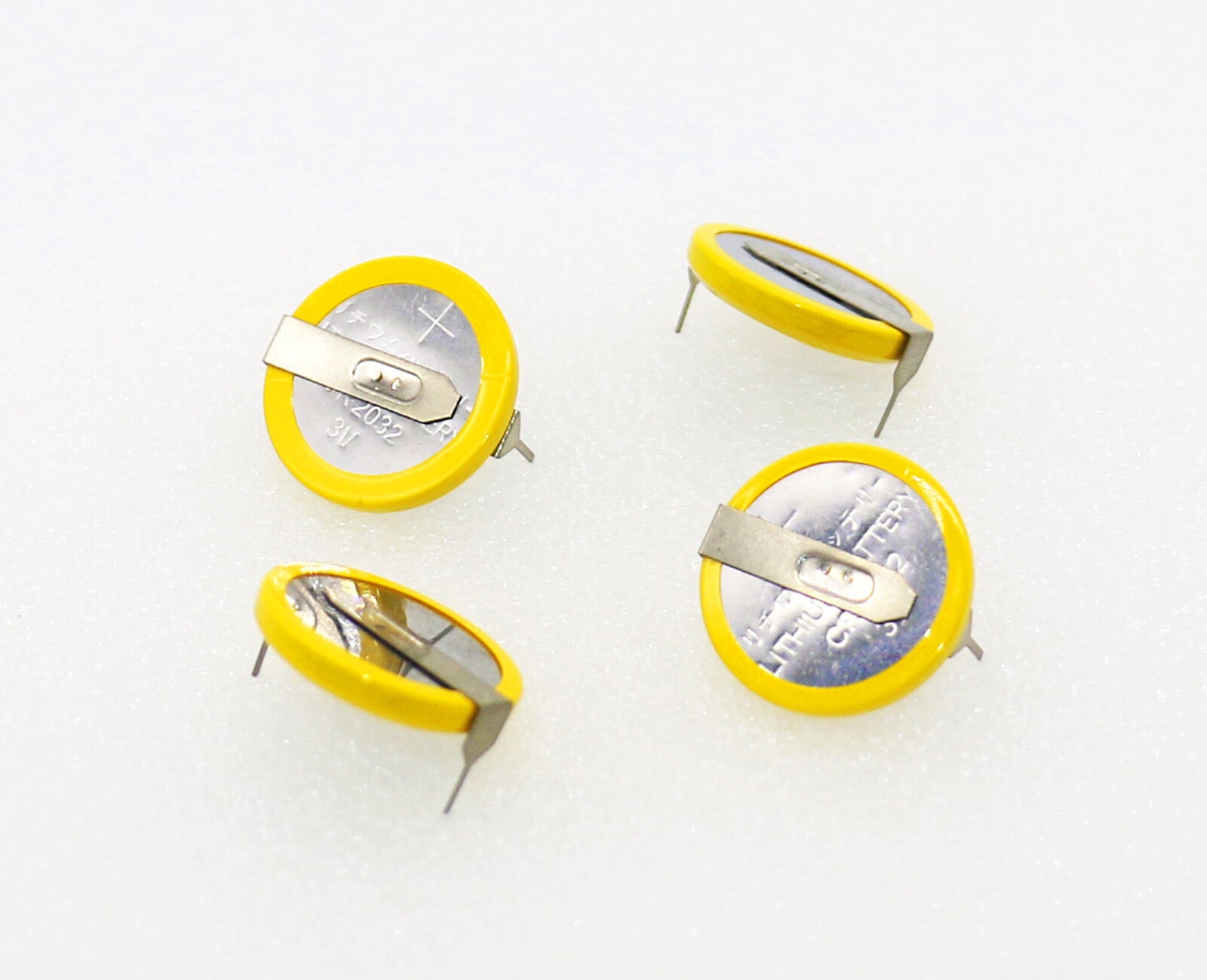

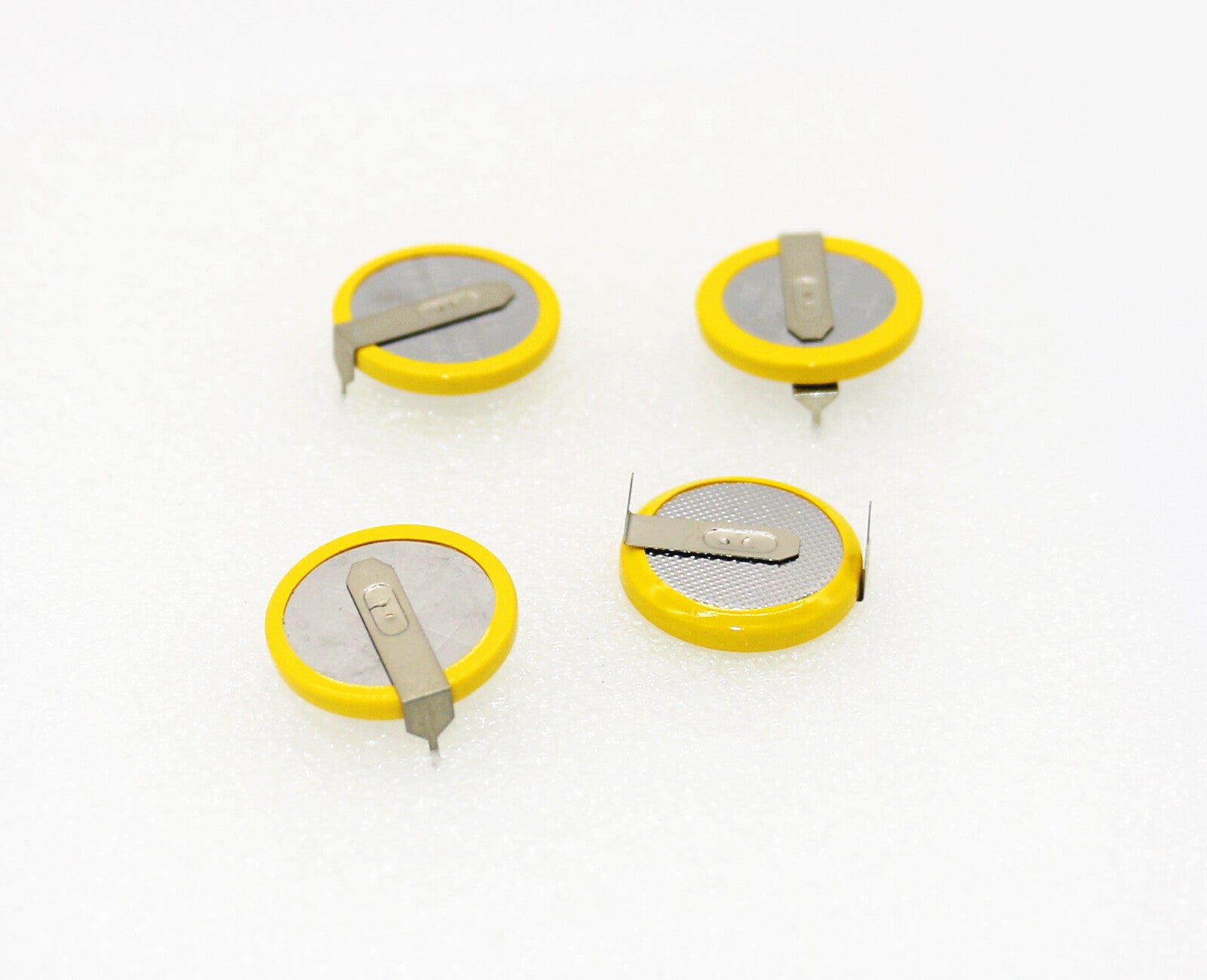

Tab Configuration
| Configuration | Description | Best For |
|---|---|---|
| 2P Vertical | Two tabs welded vertically (top and bottom) | Vertical PCB mounting, compact designs, space-saving layouts |
| 2P Horizontal | Two tabs welded horizontally (side by side) | Horizontal PCB mounting, standard layouts, easy soldering |
Common Applications
- PLC Systems: Backup power for Programmable Logic Controllers
- Timers: Digital and analog timer circuits
- Industrial Control: Control panels and automation systems
- CMOS Backup: Computer motherboards and embedded systems
- Memory Backup: SRAM, RTC (Real-Time Clock) circuits
- Measurement Devices: Meters, gauges, and sensors
- Security Systems: Alarm panels and access control
- Medical Devices: Portable medical equipment
- IoT Devices: Low-power sensors and controllers
Choosing the Right Model
Choose CR2016 if you need:
- Thinnest profile (1.6mm) for ultra-compact designs
- Low-power backup applications
- Space-constrained PCB layouts
- 90mAh capacity sufficient for your application
- Available in both vertical and horizontal tab configurations
Choose CR2025 if you need:
- Medium capacity (165mAh) for extended backup time
- Balance between size and capacity
- Standard 20mm diameter, 2.5mm height
- Horizontal tab configuration for easy PCB mounting
- Most common size for timer and PLC applications
Choose CR2032 if you need:
- Maximum capacity (220mAh) for longest backup time
- Most popular button battery size
- Higher current capability for demanding applications
- Horizontal tab configuration for standard PCB layouts
- Best choice for critical backup power needs
Installation Guidelines
Soldering Tips:
- Use low-temperature soldering (max 260°C)
- Solder quickly (less than 3 seconds per joint)
- Avoid overheating the battery
- Ensure proper polarity: positive (+) side is larger, flat surface
- Negative (-) side has the rim/edge
PCB Mounting:
- Verify tab orientation matches your PCB design
- Clean PCB pads before soldering
- Use flux for better solder joints
- Inspect solder joints for quality
- Test voltage after installation
Why Choose FMA Batteries?
FMA specializes in high-quality primary and rechargeable battery solutions for industrial and professional applications. Our button coin batteries with pre-welded tabs are manufactured to strict quality standards, ensuring reliable performance and long shelf life. Perfect for PLC backup power, timer circuits, and industrial control systems.
Custom Battery Solutions
Need custom tab configurations, different quantities, or special packaging? We offer custom battery pack assembly services. Contact us with your specifications, and we'll create a tailored solution for your application.
Safety Information
⚠️ WARNING - PRIMARY BATTERIES: These are NON-RECHARGEABLE batteries. Do not attempt to recharge.
Storage: Store in cool, dry place away from direct sunlight and heat sources. Keep out of reach of children.
Operation: Do not short-circuit, puncture, crush, or disassemble the battery. Avoid exposure to water or moisture.
Temperature: Operating: -20°C to +60°C, Storage: -20°C to +35°C.
Disposal: Dispose of batteries according to local regulations. Do not incinerate or dispose of in regular trash. Recycle where facilities exist.
Swallowing Hazard: Keep away from children. If swallowed, seek medical attention immediately.
Soldering Safety: Use proper ventilation when soldering. Avoid overheating batteries.
Shipping & Transportation Notice
Hazardous Material: This product contains lithium batteries and is classified as dangerous goods for shipping purposes.
Air Transport Restrictions: Due to international air transport regulations, battery shipments may be subject to additional restrictions and longer transit times.
Packaging Compliance: All shipments comply with UN3090 packaging requirements for lithium metal batteries.
Delivery Time: Battery-containing parcels may experience extended delivery times due to stricter customs inspections and carrier handling procedures.
Documentation: Proper hazardous materials documentation accompanies all shipments to ensure compliance with international shipping regulations.
