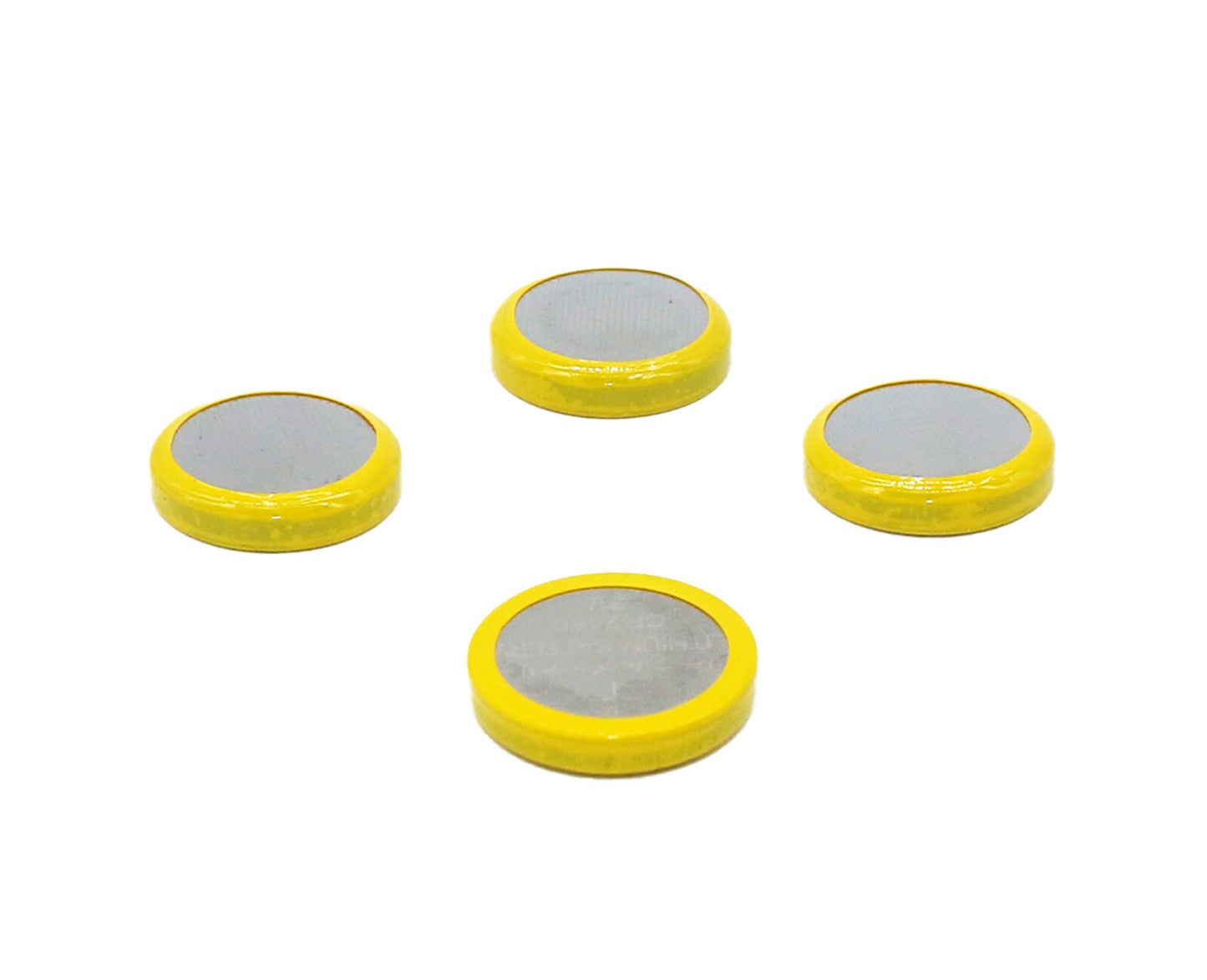

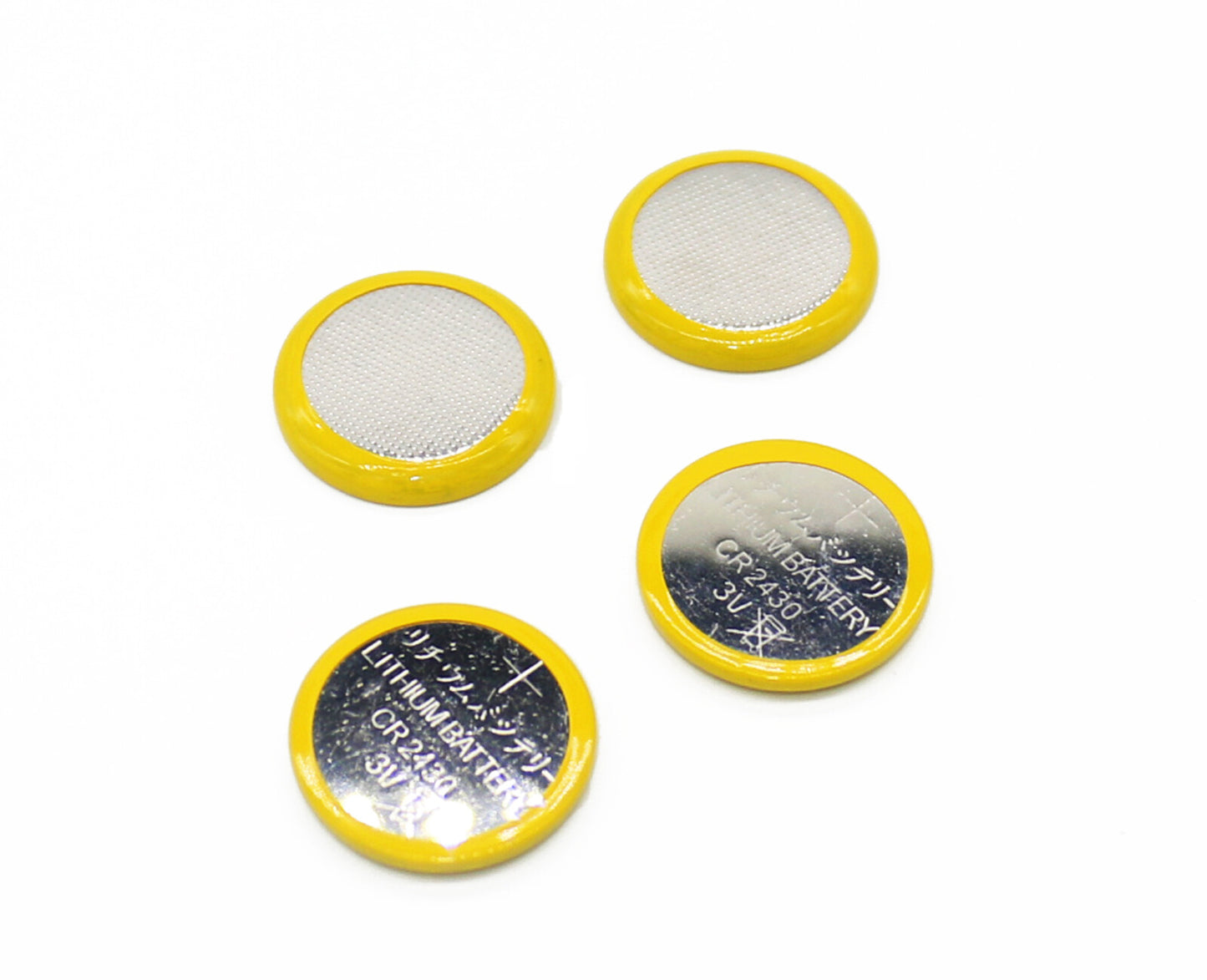

4* Button Coin 3V Primary Battery CR2354 CR2430 CR2450 to Timer PLC Backup Power

4pcs 3V Lithium Button Coin Battery CR2354 CR2430 CR2450 for Timer PLC Backup Power

Professional 4-piece pack of high-capacity 3V lithium button coin batteries designed specifically for timers, PLC (Programmable Logic Controller) backup power, and industrial control systems. Available in CR2354, CR2430, and CR2450 models with multiple tab configurations for versatile PCB mounting options.

Key Features

• High Capacity Models: CR2354 (560mAh), CR2430 (285mAh), CR2450 (620mAh)
• Industrial Grade: Designed for timer and PLC backup power applications
• 4-Piece Pack: Convenient quantity for small projects and replacements

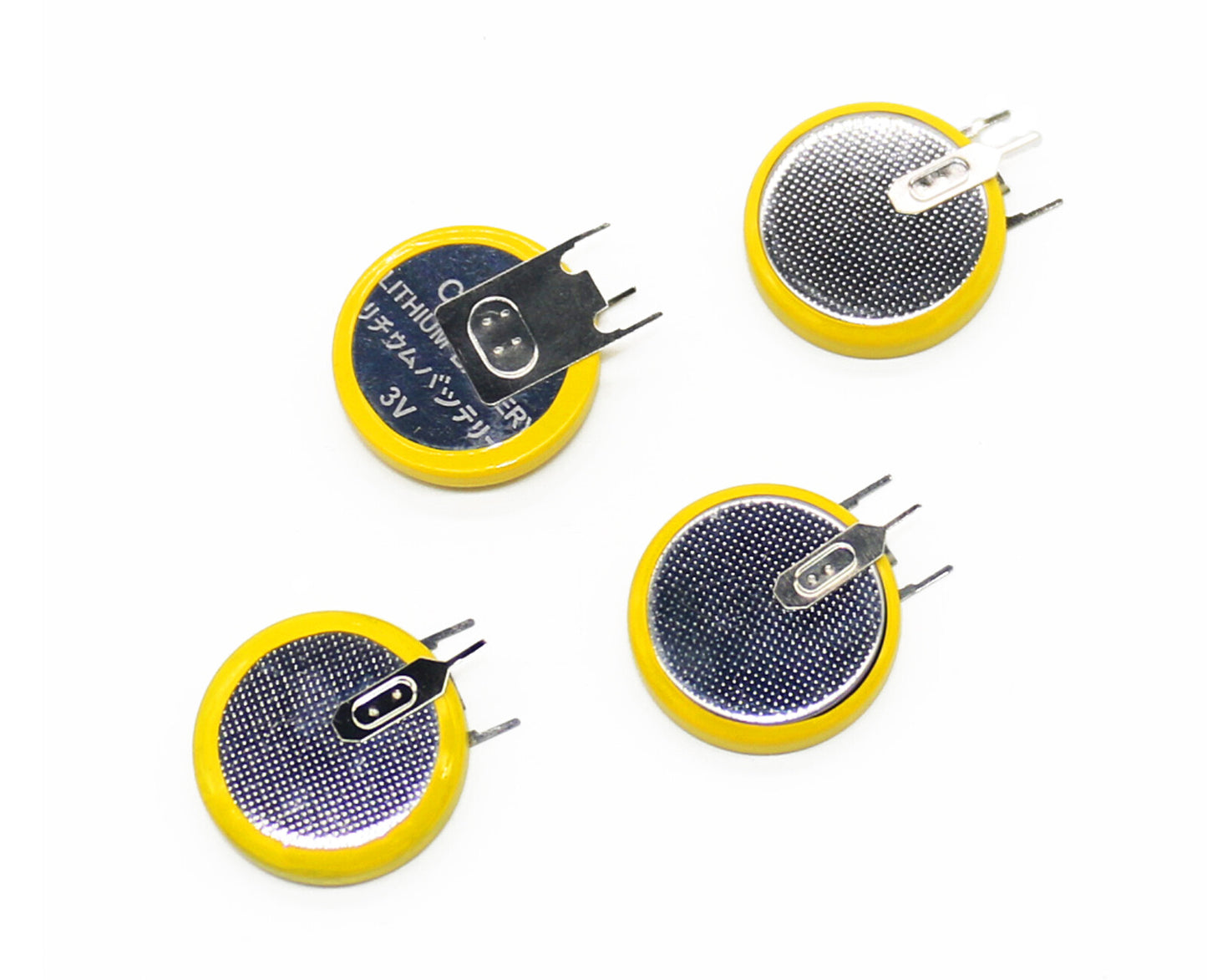

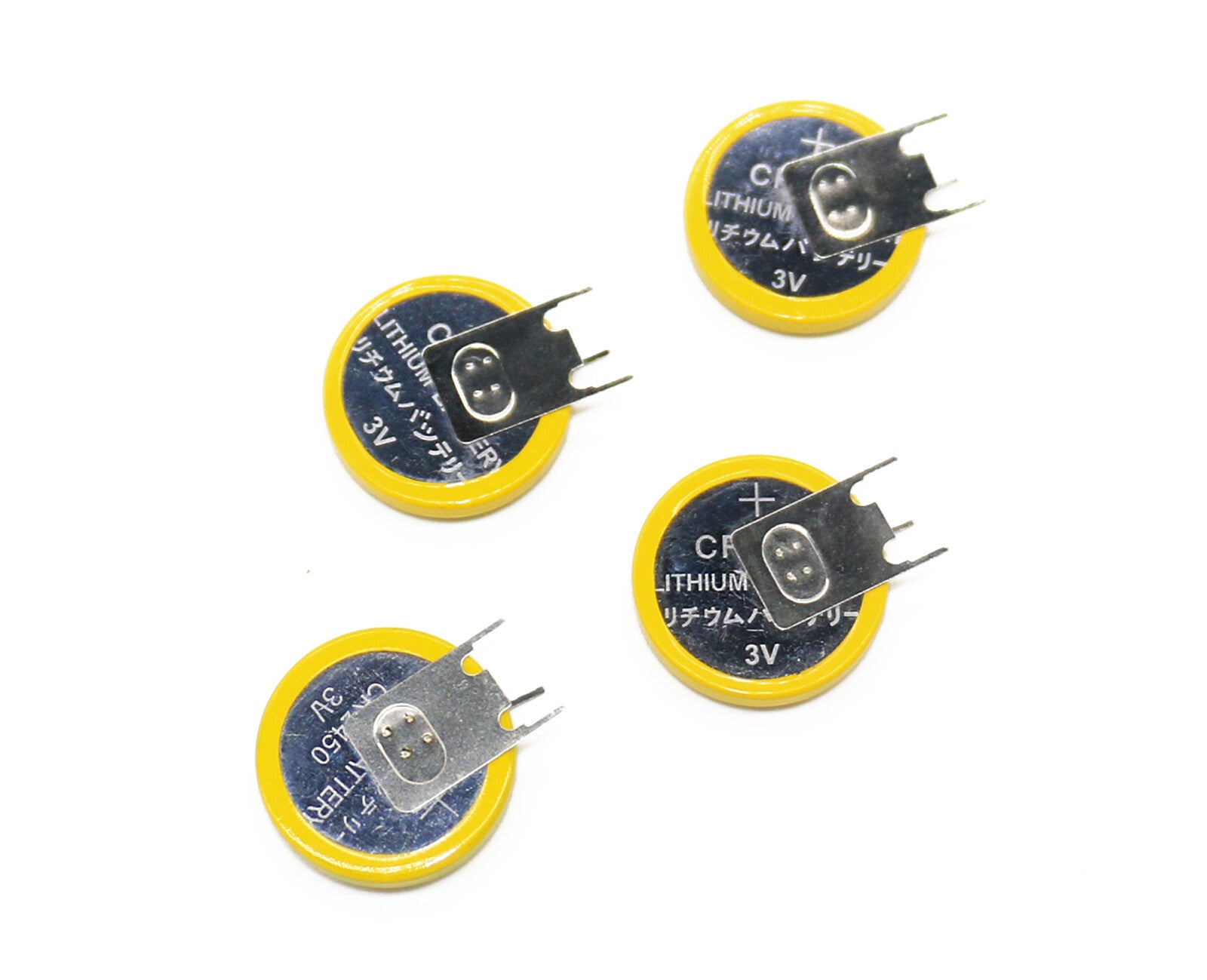

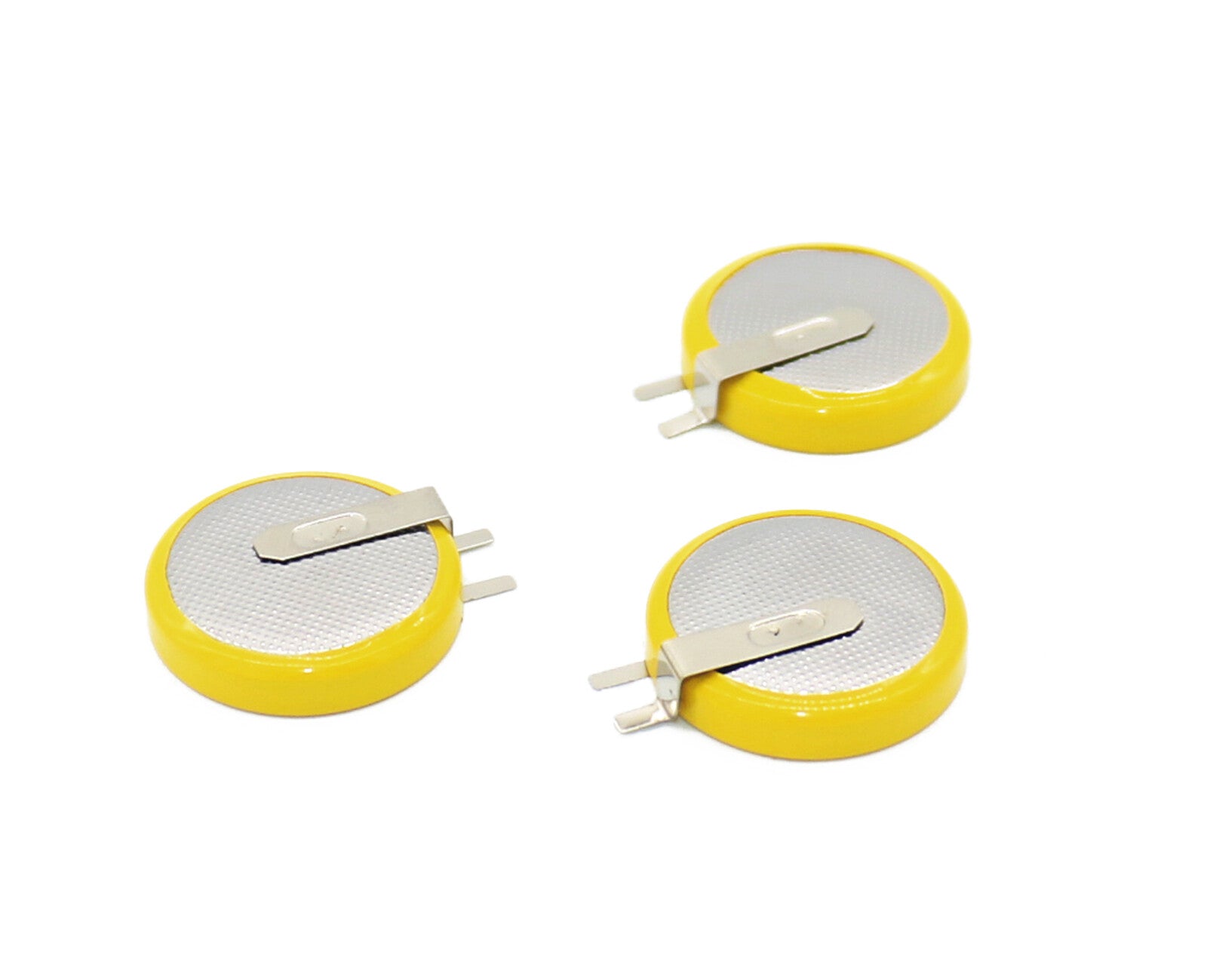

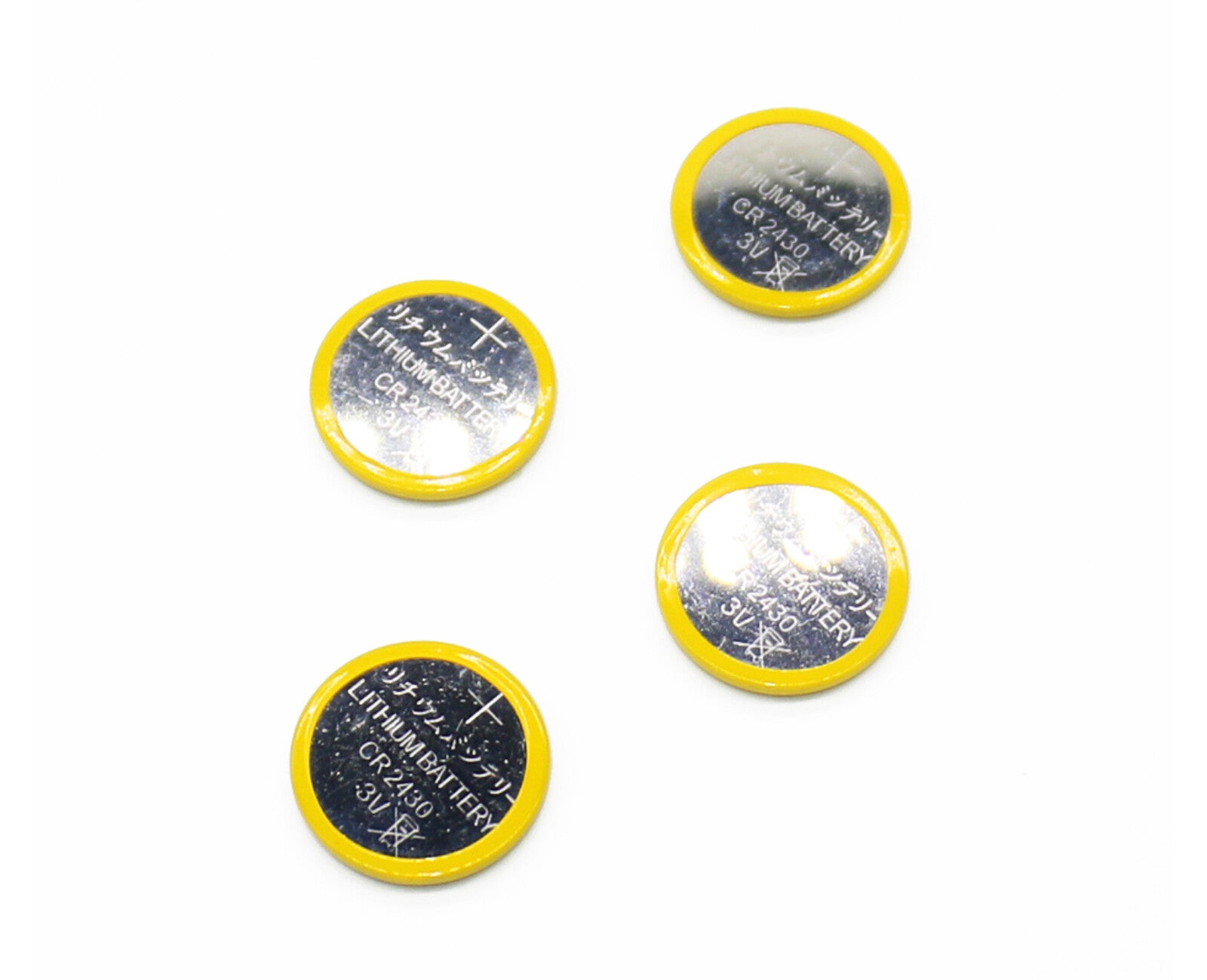

• Multiple Tab Options: No tabs, 2P/3P vertical, 2P horizontal, XHR connector, PVC wrapped
• Premium Quality: Lithium manganese dioxide chemistry
• Long Shelf Life: 5-10 years storage life
• Stable Voltage: Consistent 3V output throughout discharge
• Wide Temperature Range: -20°C to +60°C operating temperature

Package Contents

• 4× 3V Lithium Button Coin Batteries (model and tab configuration as selected)

Technical Specifications

Tab Configuration Options

Common Applications

• PLC Systems: Backup power for Programmable Logic Controllers
• Timers: Digital and analog timer circuits
• Industrial Control: Control panels and automation systems
• CMOS Backup: Computer motherboards and embedded systems
• Memory Backup: SRAM, RTC (Real-Time Clock) circuits
• Measurement Devices: Meters, gauges, and sensors
• Security Systems: Alarm panels and access control
• Medical Devices: Portable medical equipment
• IoT Devices: Low-power sensors and controllers
• Professional Equipment: High-capacity backup power needs

Choosing the Right Model

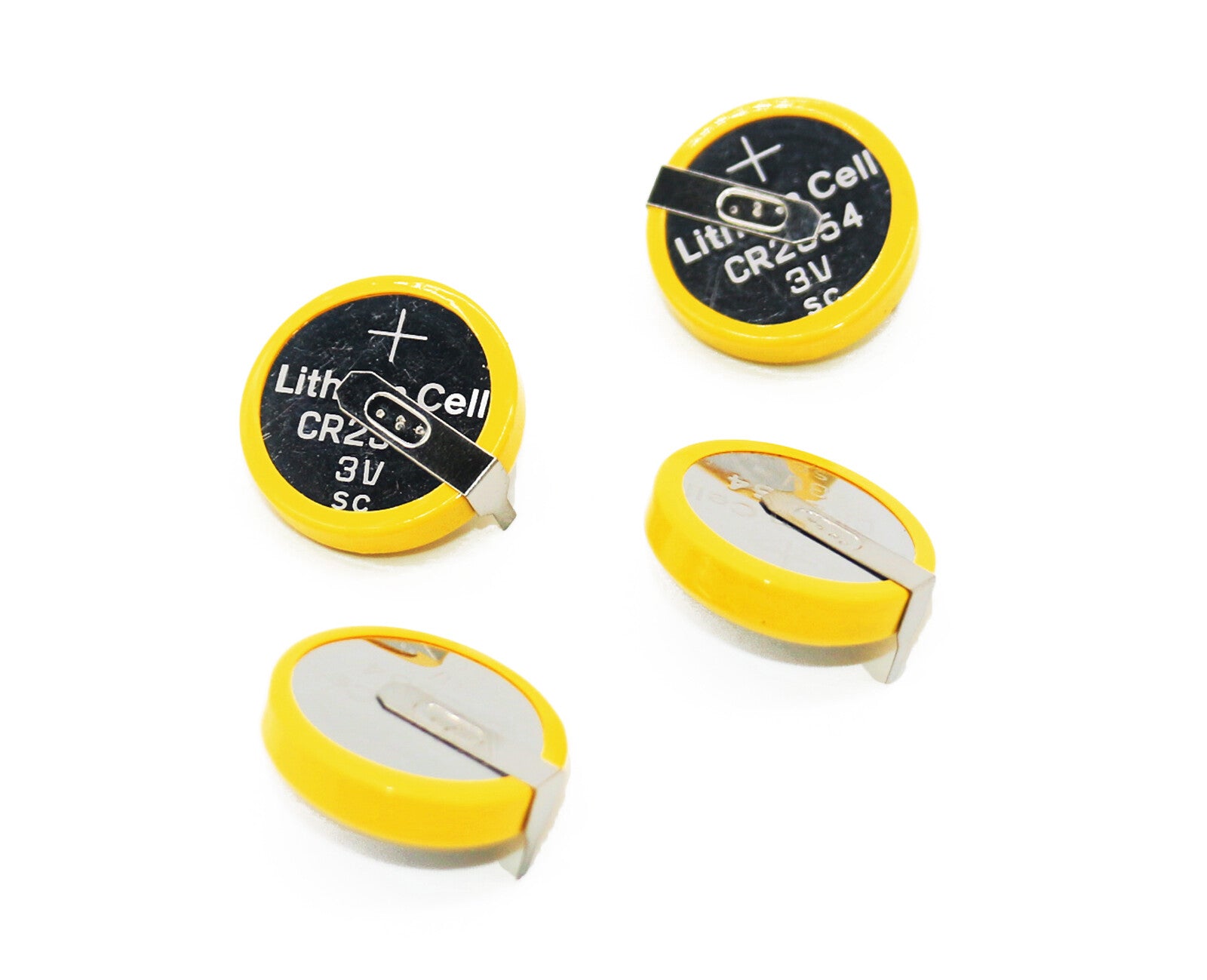

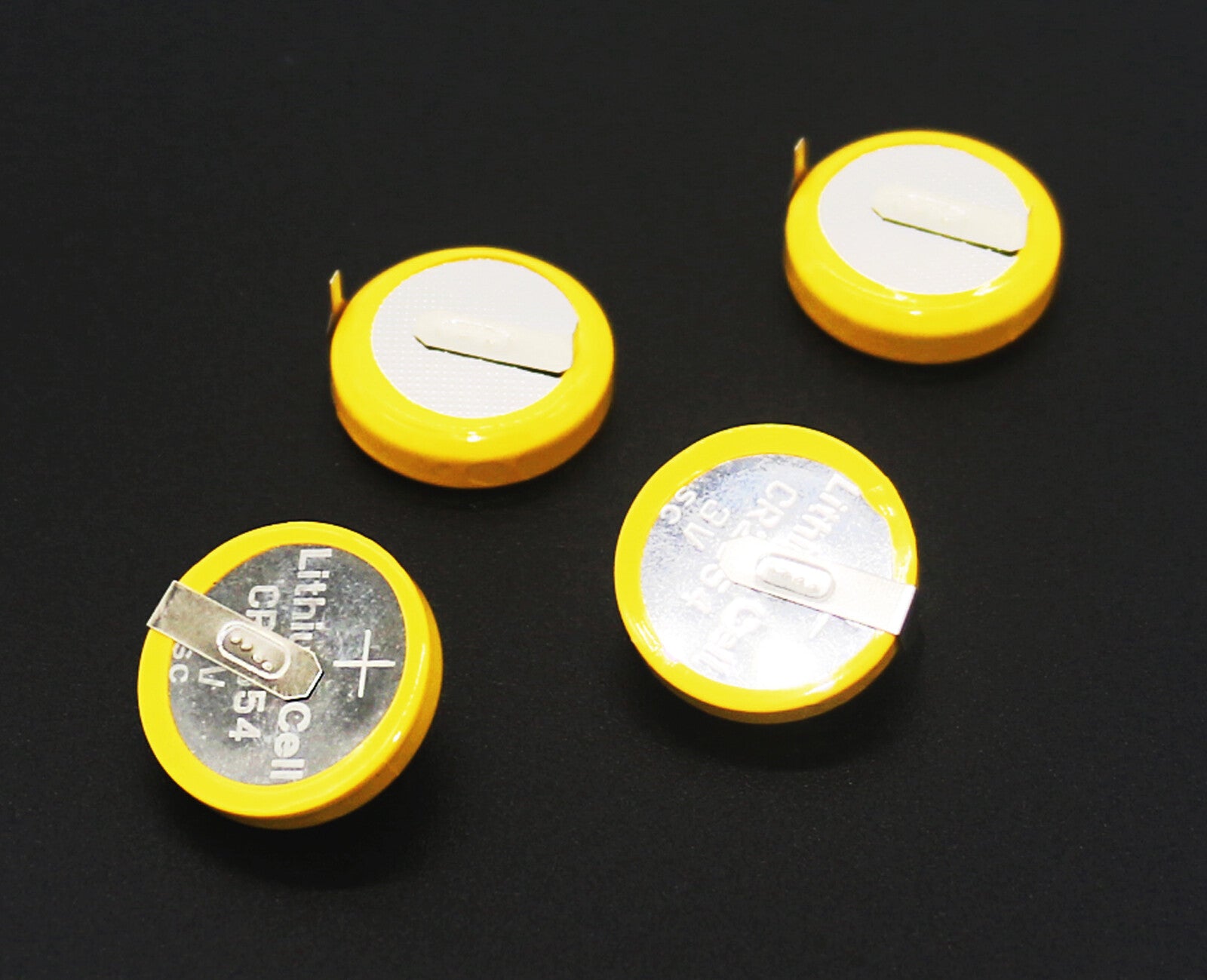

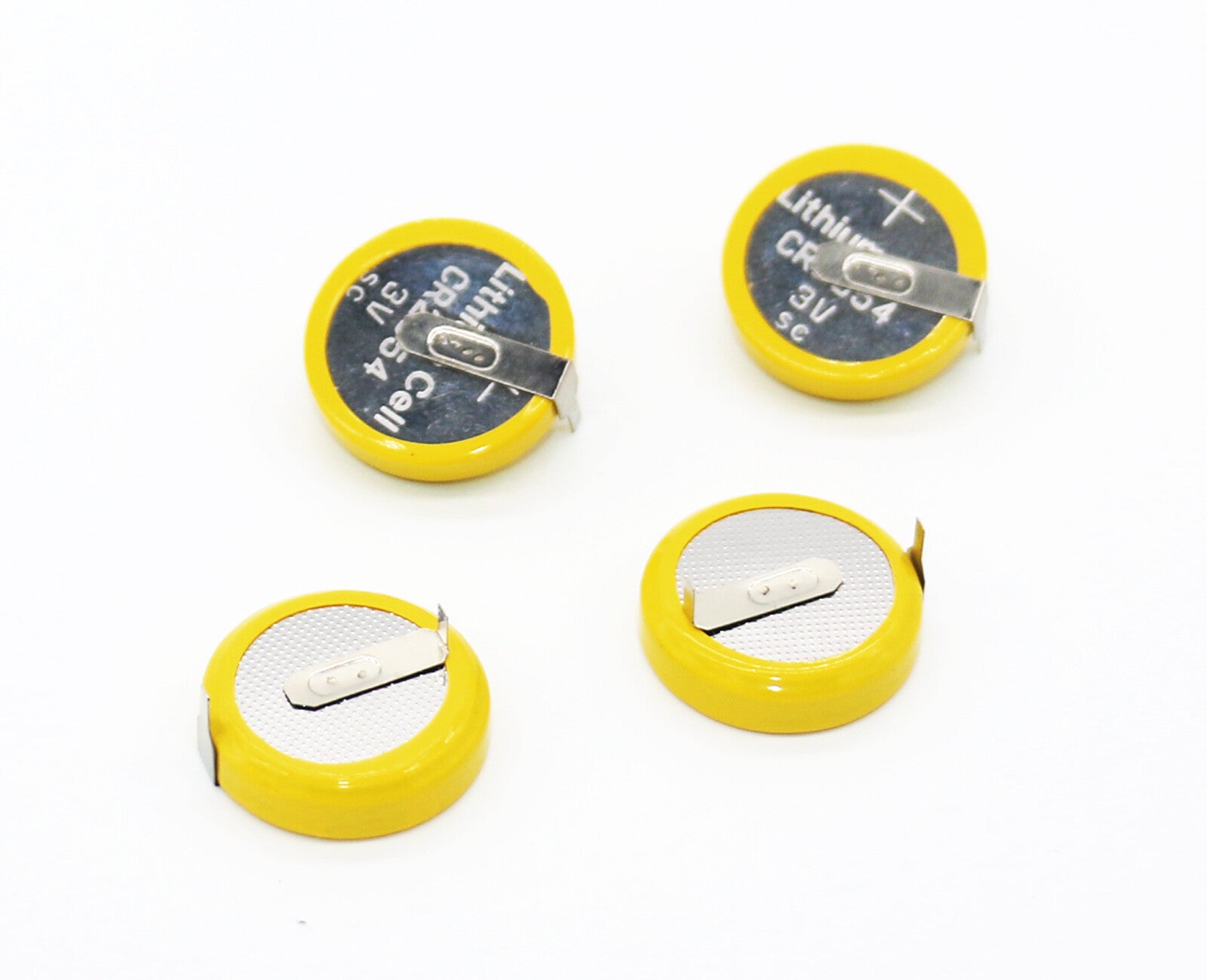

Choose CR2354 if you need:

• High capacity (560mAh) for extended backup time
• 23mm diameter, 5.4mm height
• Excellent for medium to high-drain applications
• 2P horizontal tab configuration for PCB mounting
• Good balance of capacity and size

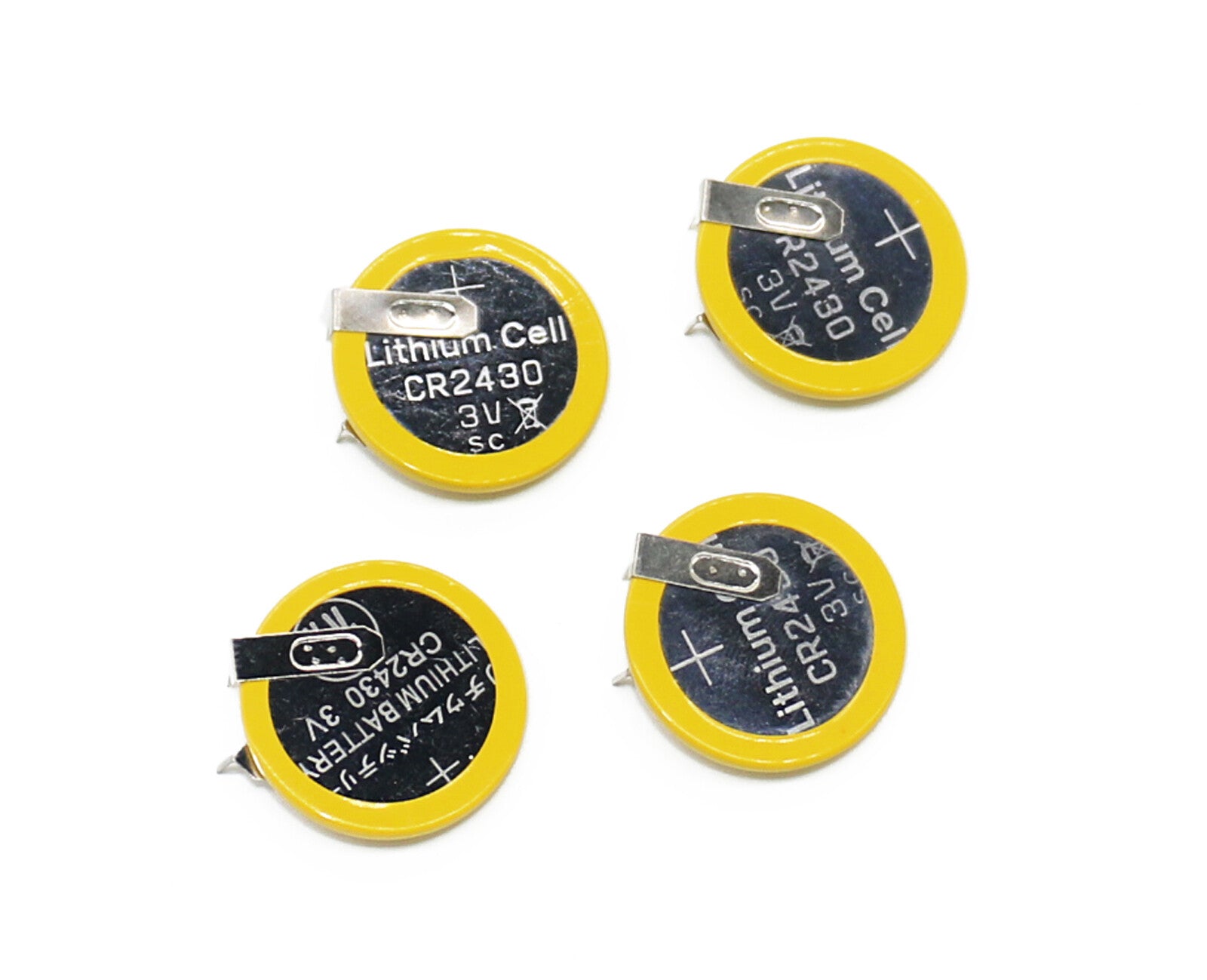

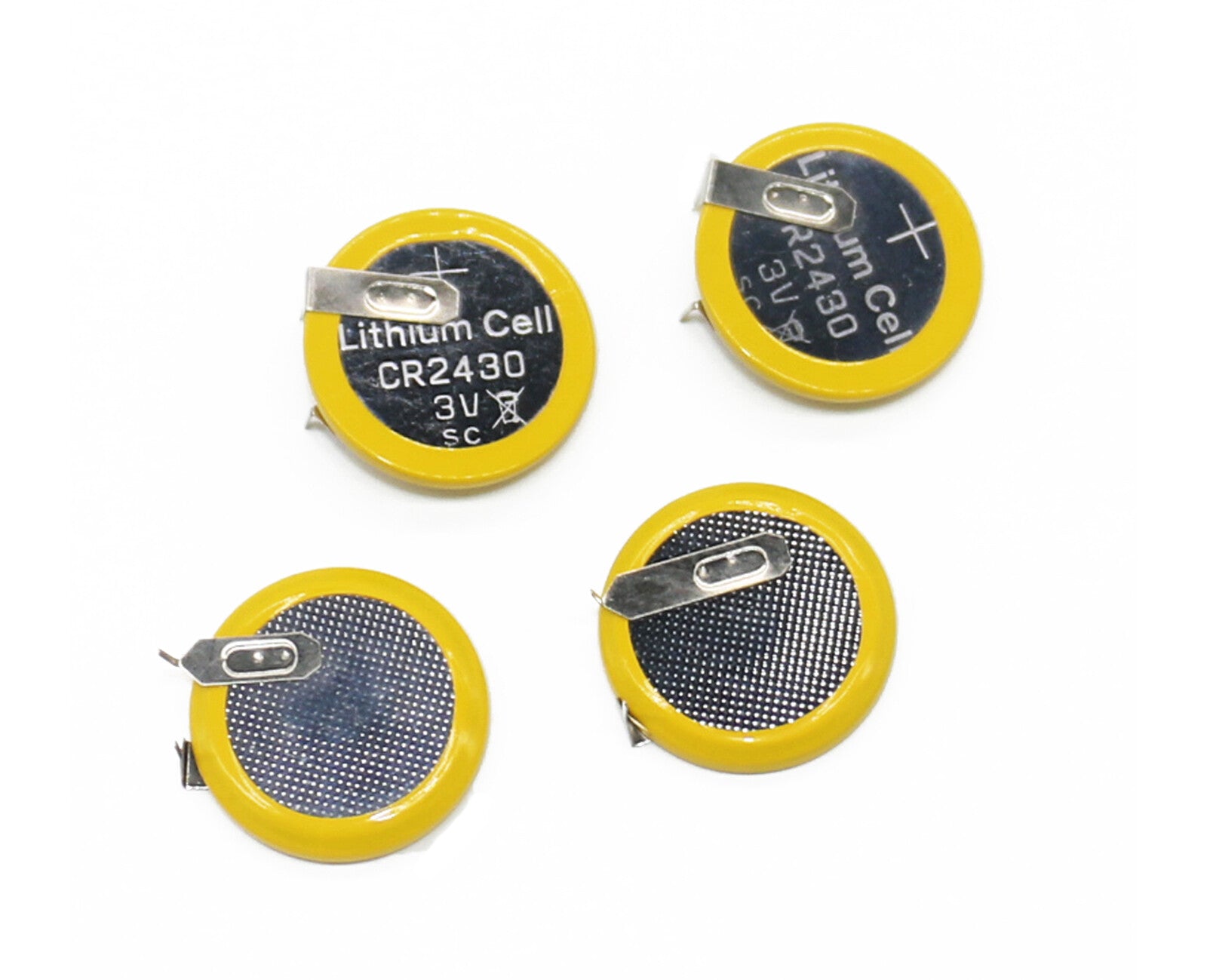

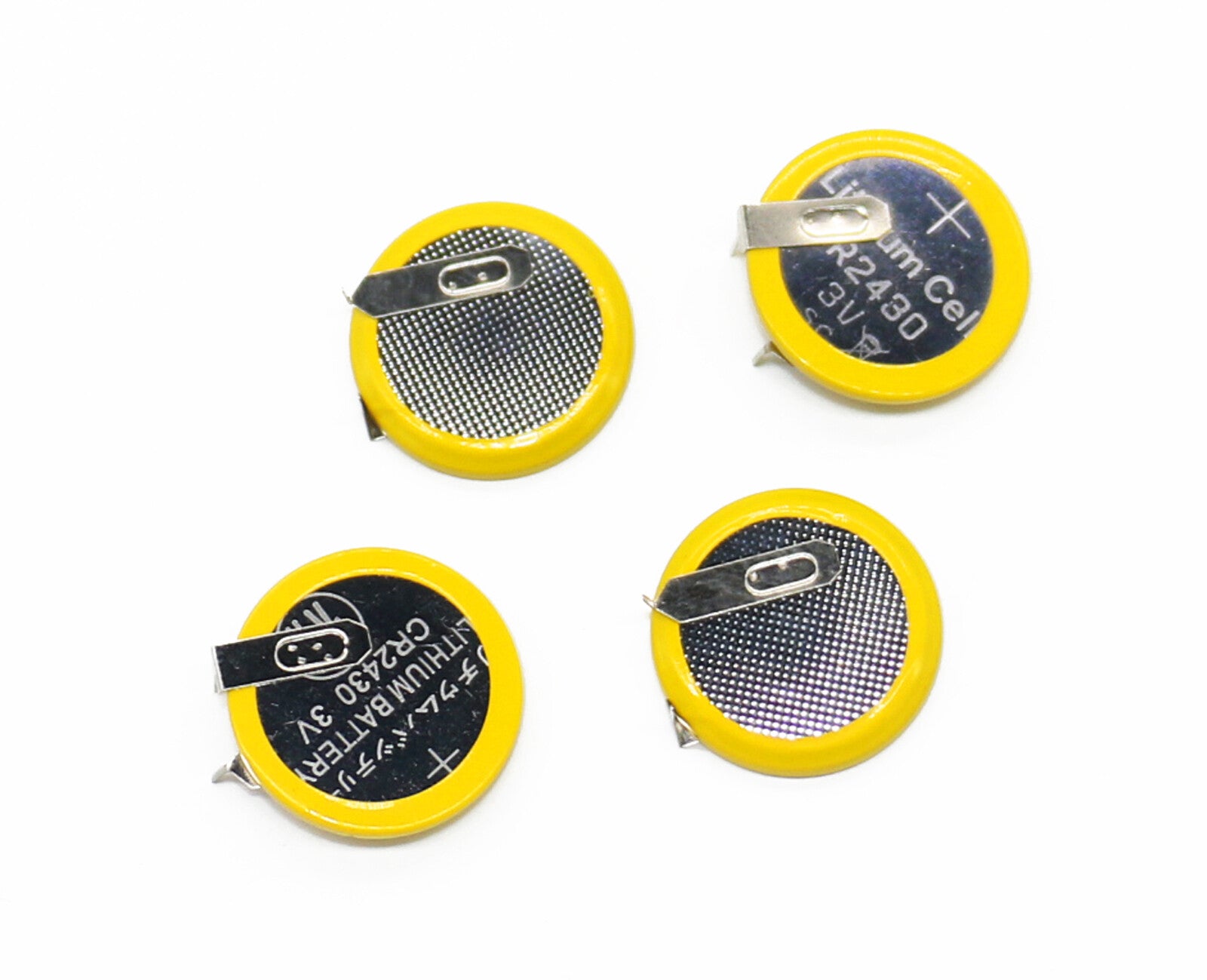

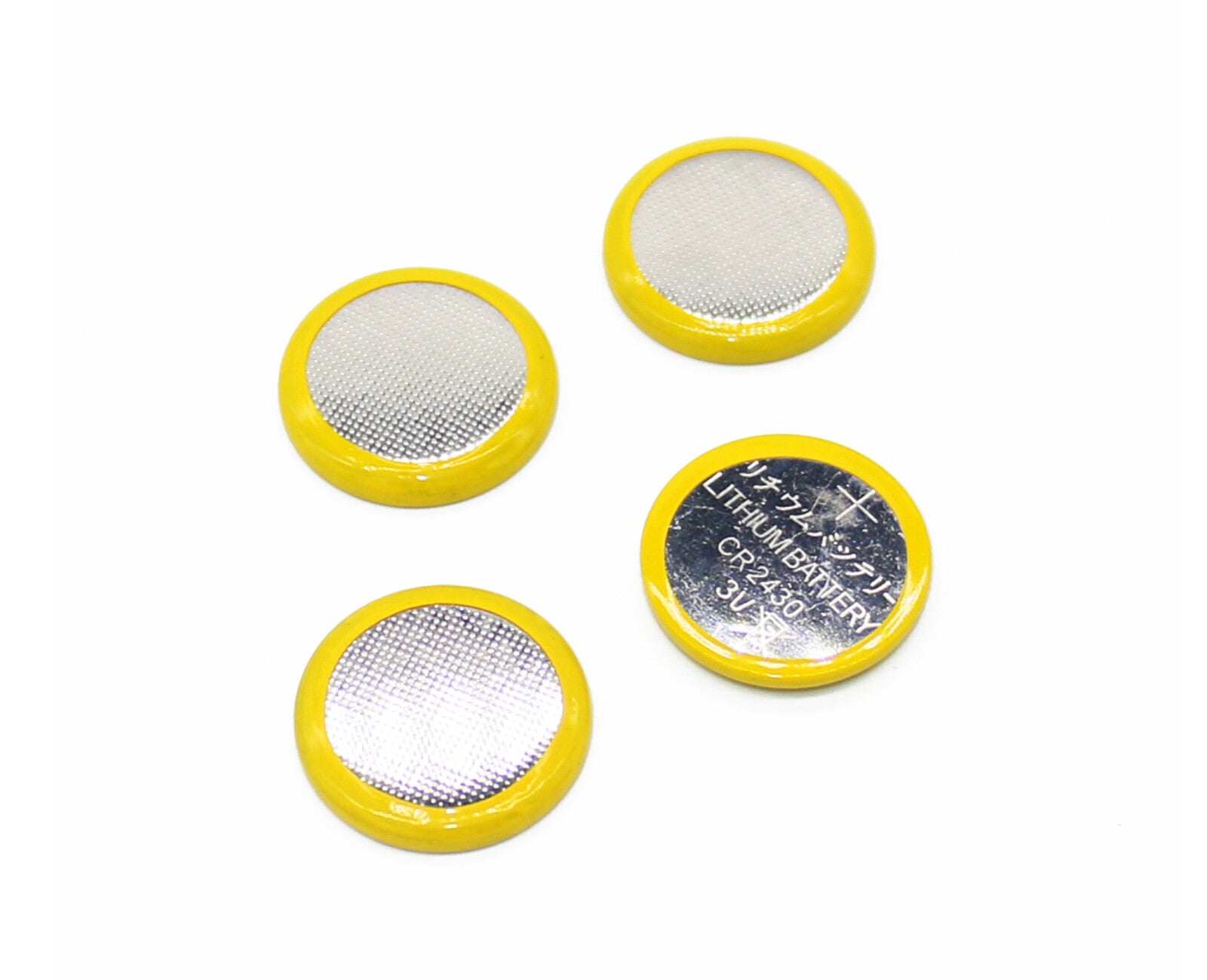

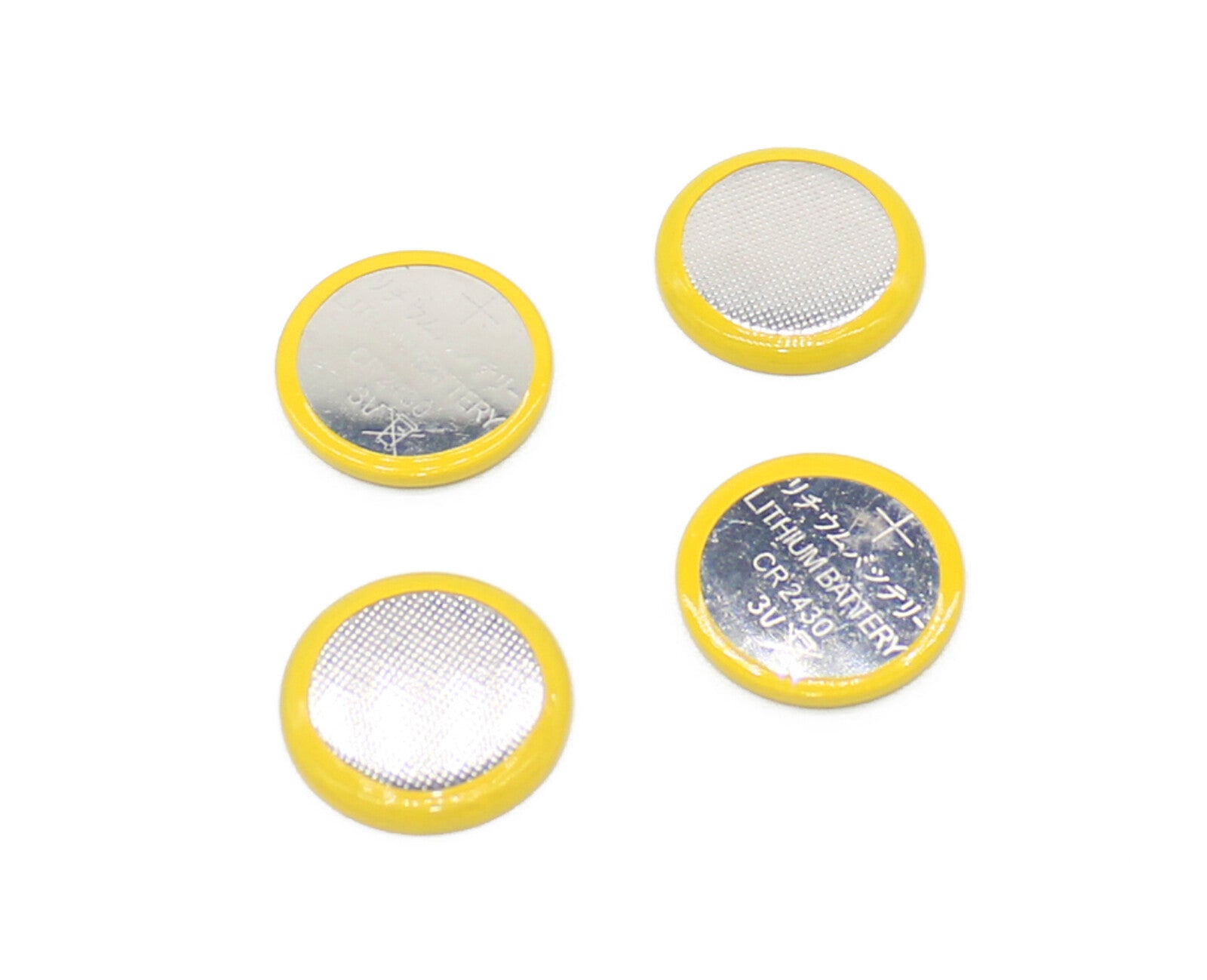

Choose CR2430 if you need:

• Medium capacity (285mAh) for standard backup needs
• 24mm diameter, 3.0mm height (thinner profile)
• Multiple configuration options: no tabs, 2P horizontal, XHR connector
• Versatile for various mounting methods
• Cost-effective solution for moderate power needs

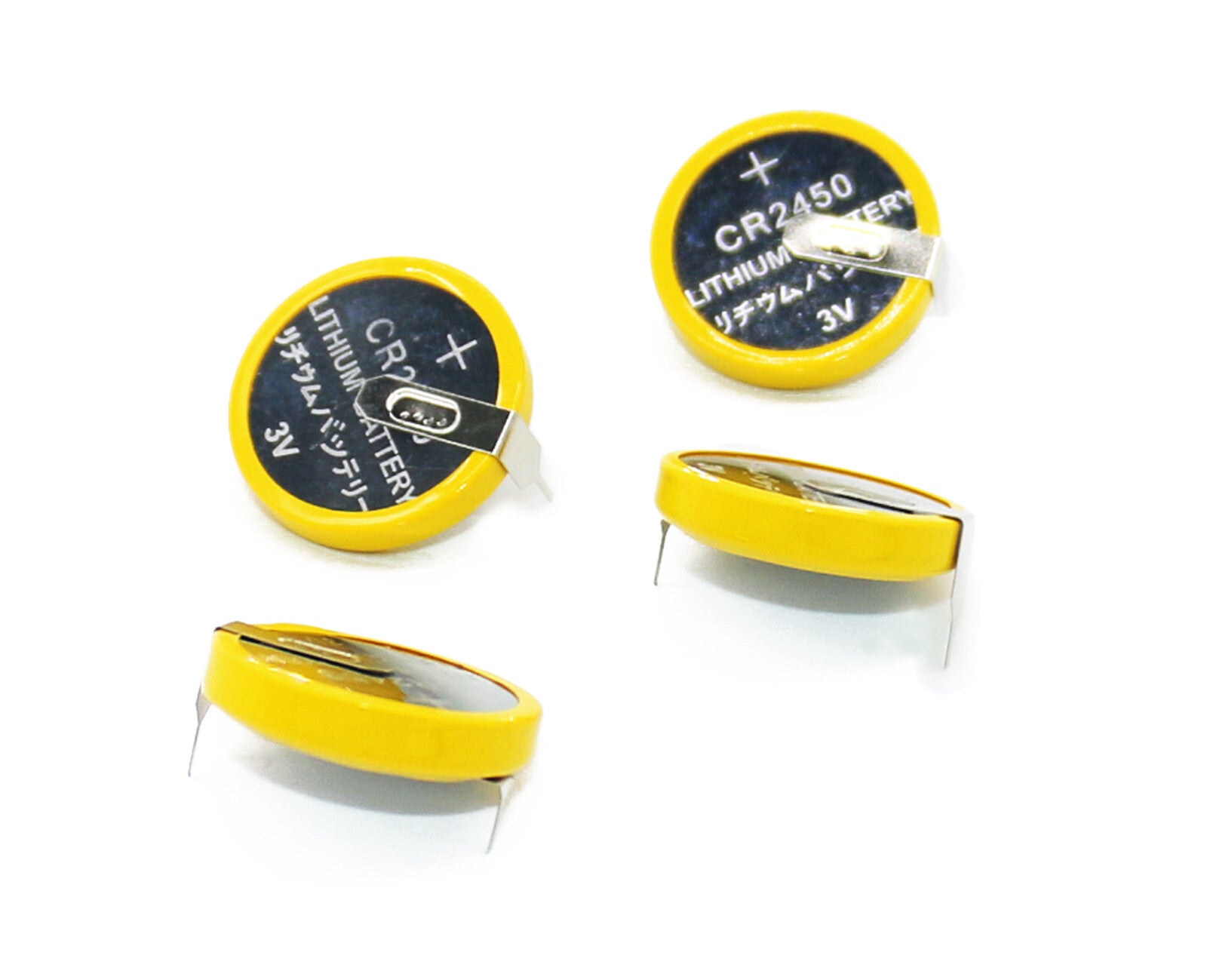

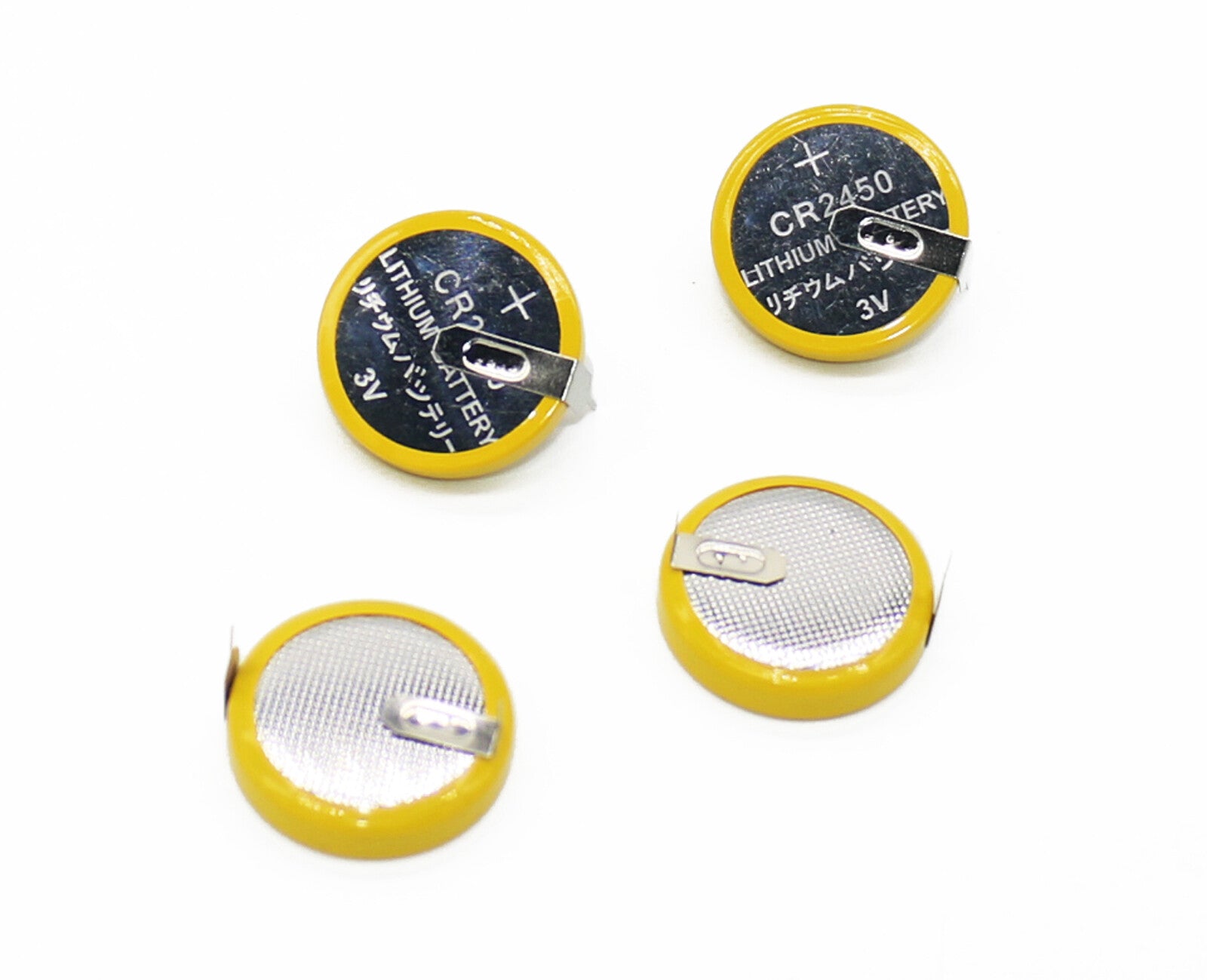

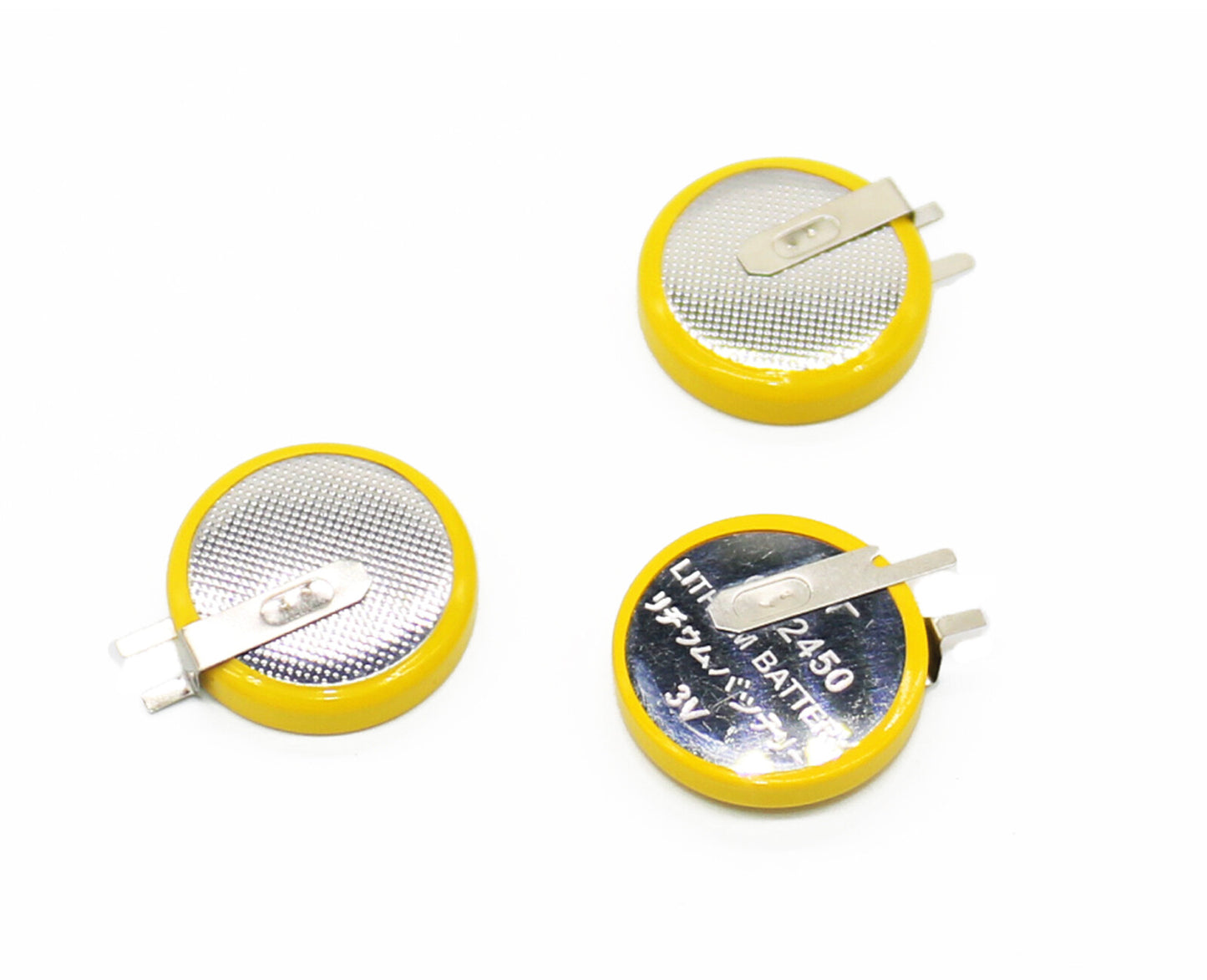

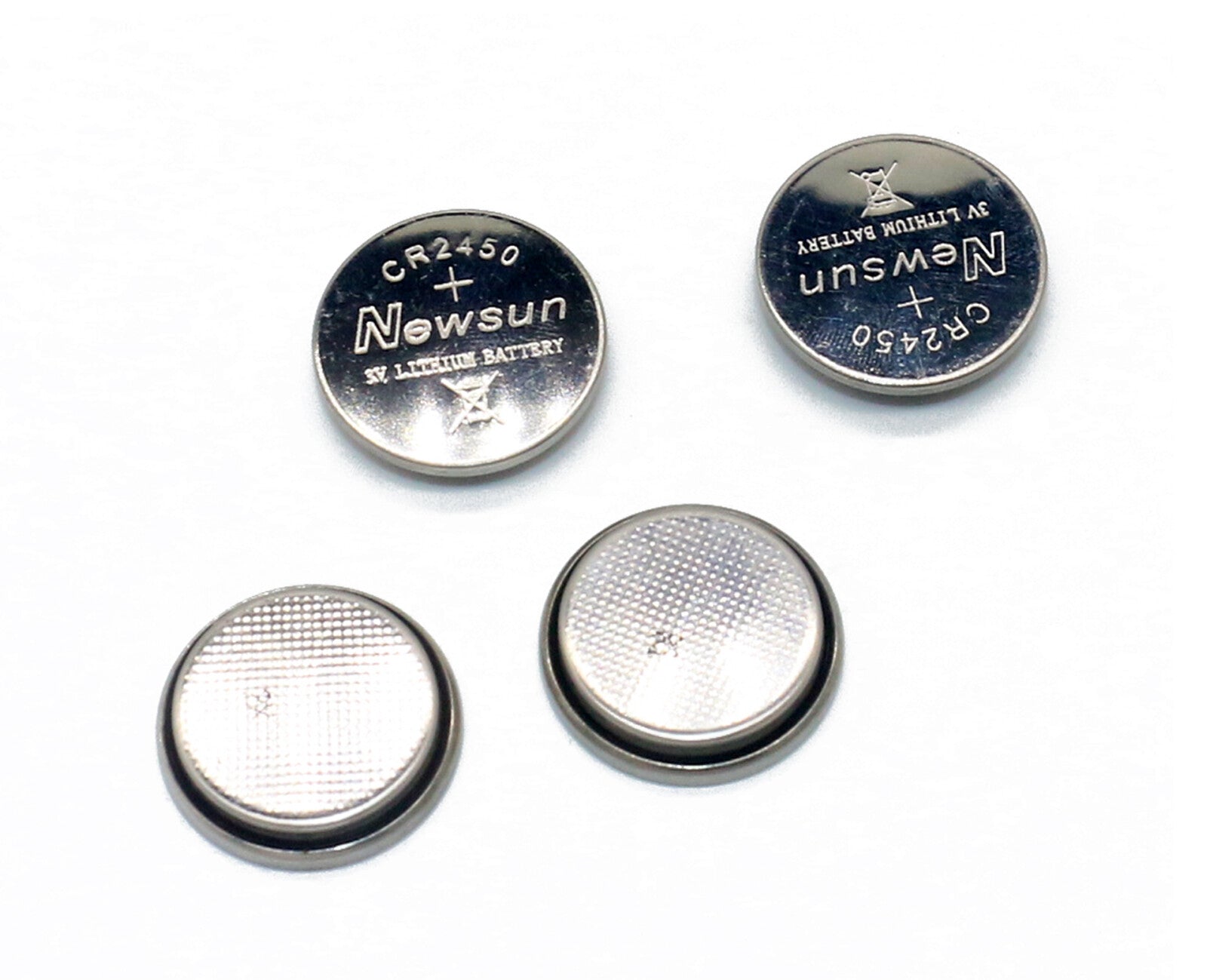

Choose CR2450 if you need:

• Maximum capacity (620mAh) for longest backup time
• 24mm diameter, 5.0mm height
• Most configuration options available
• Best for critical backup power applications
• Highest current capability
• Ideal for demanding industrial applications

Installation Guidelines

For Tabbed Batteries (Soldering):

• Use low-temperature soldering (max 260°C)
• Solder quickly (less than 3 seconds per joint)
• Avoid overheating the battery
• Ensure proper polarity: positive (+) side is larger, flat surface
• Negative (-) side has the rim/edge

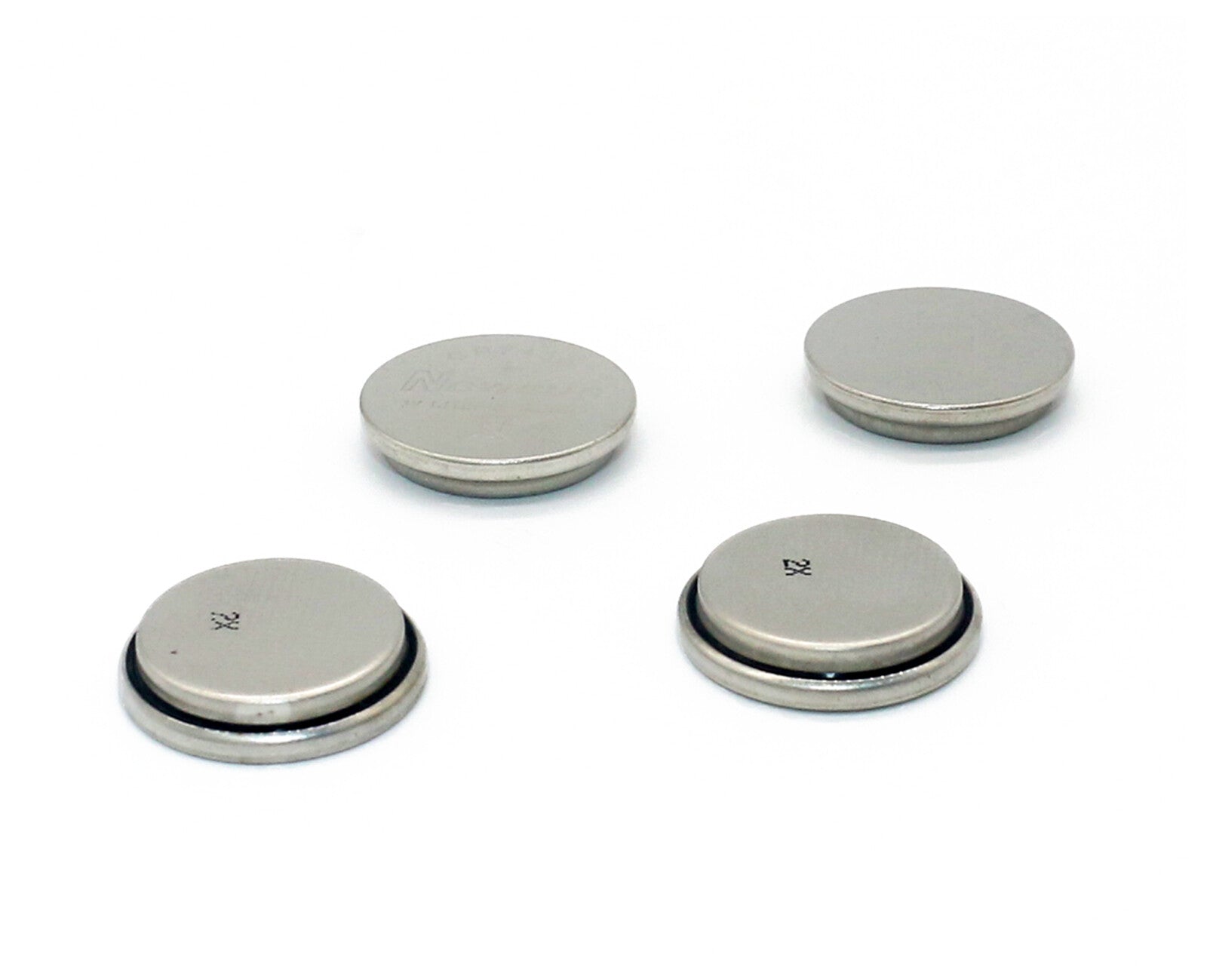

For No-Tab Batteries:

• Use appropriate battery holder or socket
• Ensure correct polarity orientation
• Verify secure contact with holder terminals
• Test voltage after installation

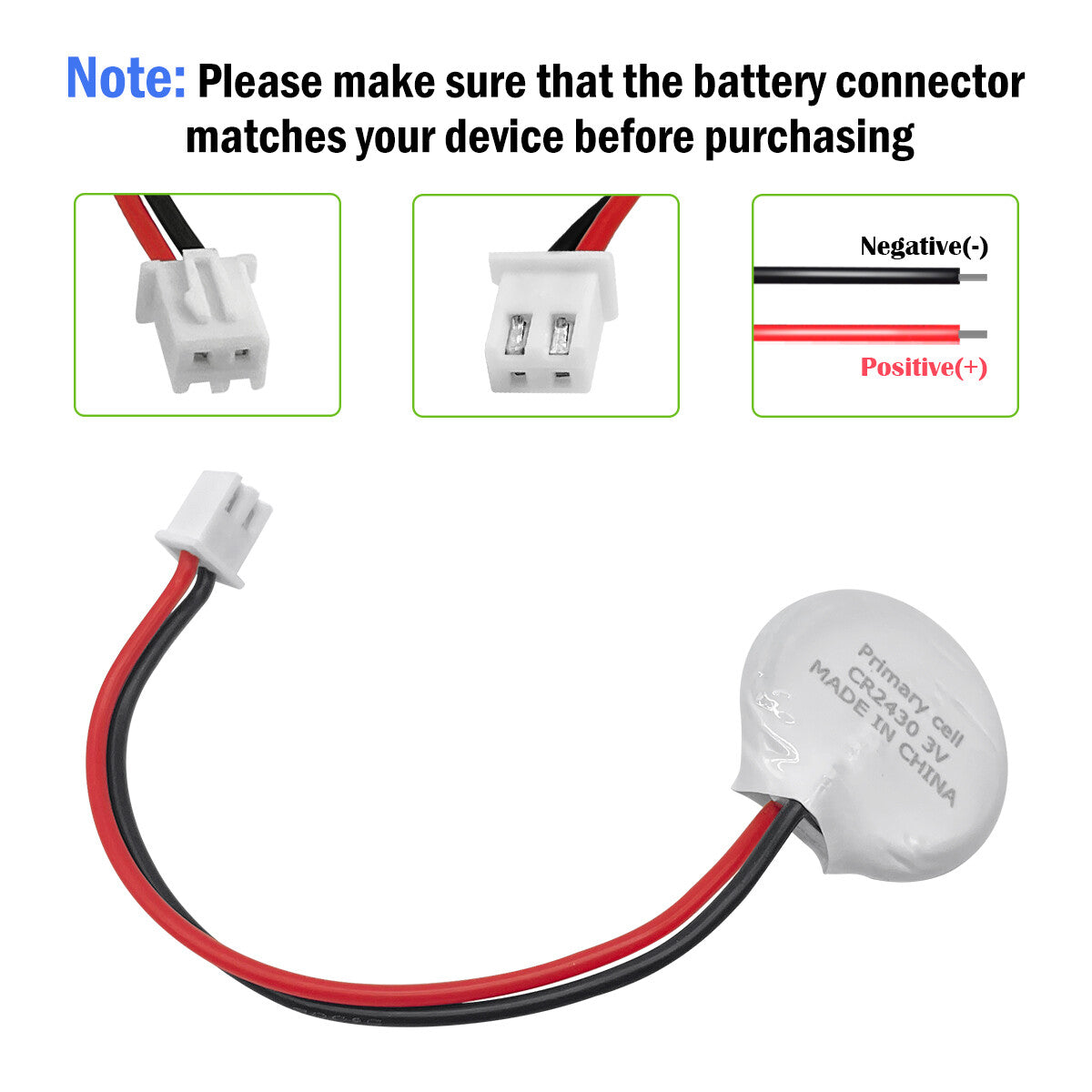

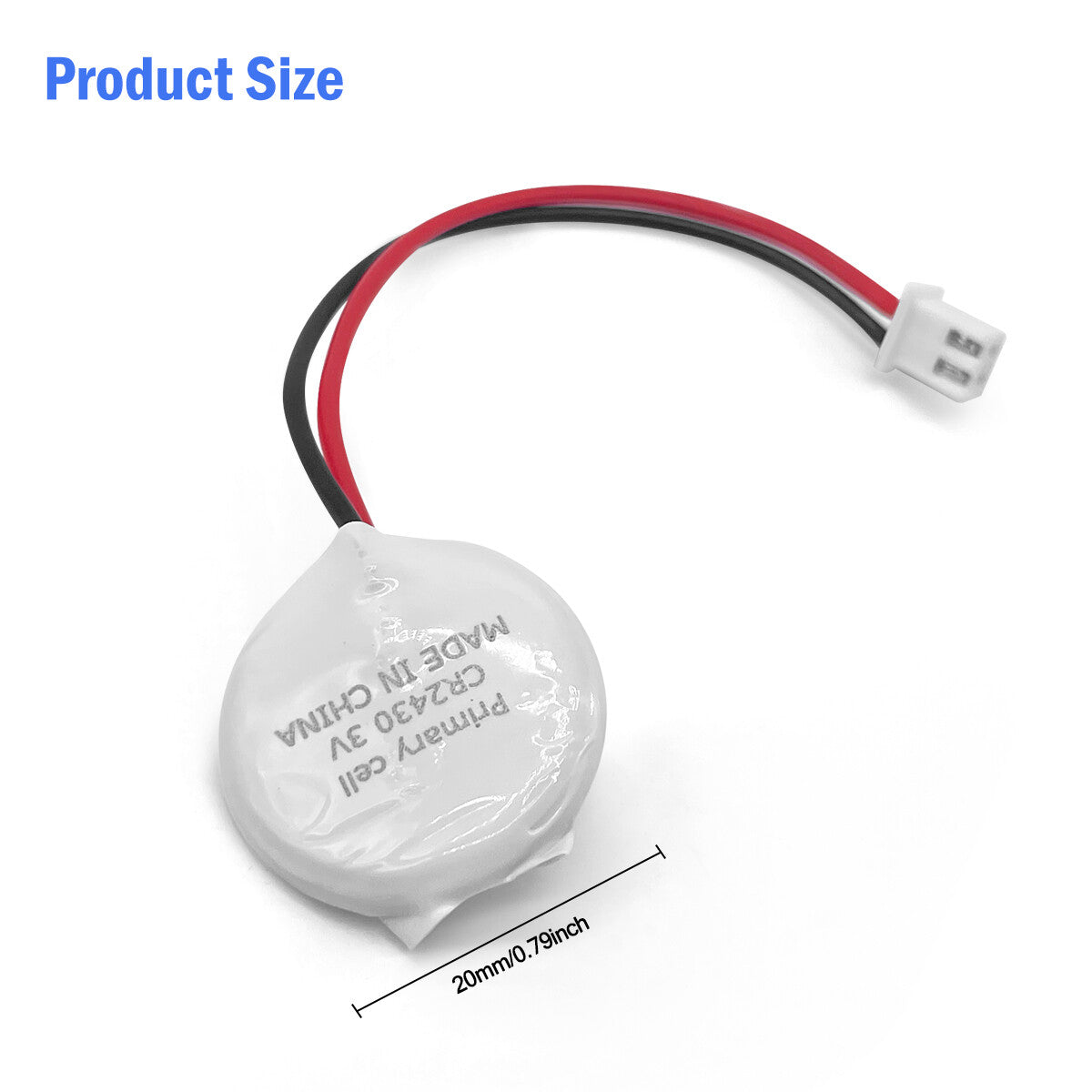

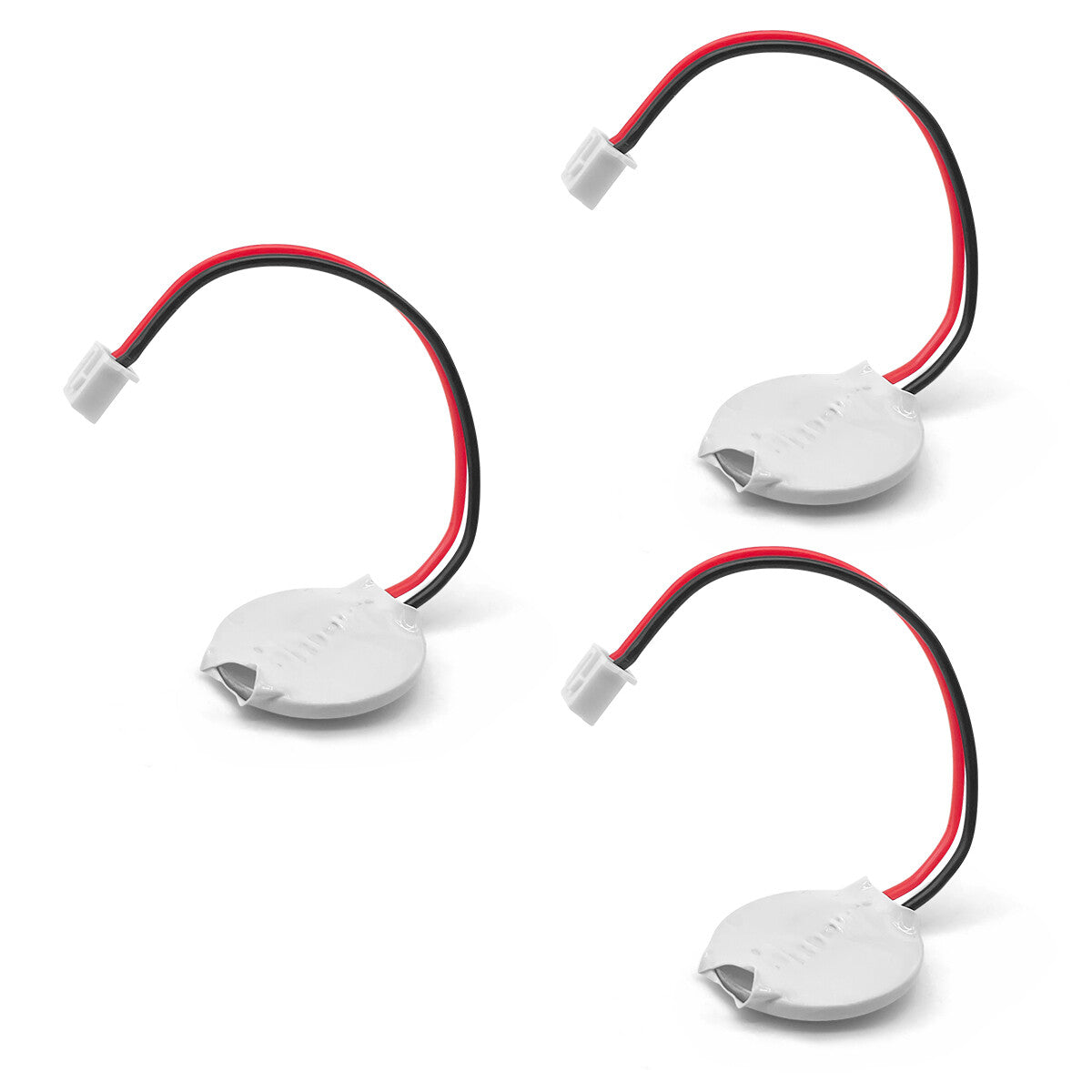

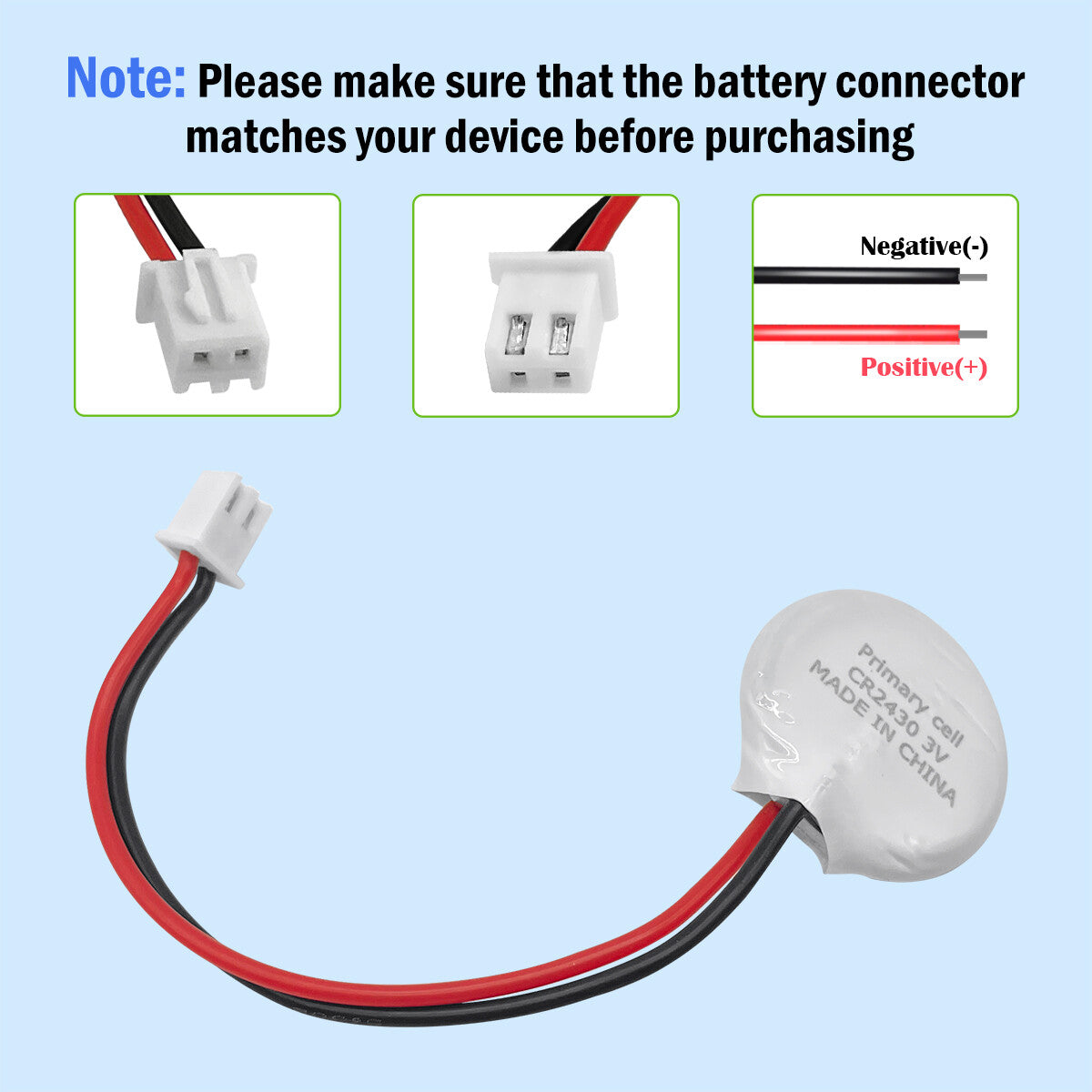

For XHR Connector:

• Simply plug into matching XHR socket
• Verify polarity before connecting
• Ensure secure connection
• No soldering required

Why Choose FMA Batteries?

FMA specializes in high-quality primary and rechargeable battery solutions for industrial and professional applications. Our high-capacity button coin batteries are manufactured to strict quality standards, ensuring reliable performance and long shelf life. Perfect for PLC backup power, timer circuits, and critical industrial control systems.

Custom Battery Solutions

Need custom tab configurations, different quantities, or special packaging? We offer custom battery pack assembly services. Contact us with your specifications, and we'll create a tailored solution for your application.

Safety Information

⚠️ WARNING - PRIMARY BATTERIES: These are NON-RECHARGEABLE batteries. Do not attempt to recharge.

Storage: Store in cool, dry place away from direct sunlight and heat sources. Keep out of reach of children.

Operation: Do not short-circuit, puncture, crush, or disassemble the battery. Avoid exposure to water or moisture.

Temperature: Operating: -20°C to +60°C, Storage: -20°C to +35°C.

Disposal: Dispose of batteries according to local regulations. Do not incinerate or dispose of in regular trash. Recycle where facilities exist.

Swallowing Hazard: Keep away from children. If swallowed, seek medical attention immediately.

Soldering Safety: Use proper ventilation when soldering. Avoid overheating batteries.

Shipping & Transportation Notice

Hazardous Material: This product contains lithium batteries and is classified as dangerous goods for shipping purposes.

Air Transport Restrictions: Due to international air transport regulations, battery shipments may be subject to additional restrictions and longer transit times.

Packaging Compliance: All shipments comply with UN3090 packaging requirements for lithium metal batteries.

Delivery Time: Battery-containing parcels may experience extended delivery times due to stricter customs inspections and carrier handling procedures.

Documentation: Proper hazardous materials documentation accompanies all shipments to ensure compliance with international shipping regulations.
