FMA ACE 7.4V Li-Po Battery for Drone TX RX Receiver FS-ST8 G7P GT5 RC Remote Control Airplane

FMA ACE 7.4V Li-Po Rechargeable Battery for Drone RC Transmitter

Keep your drone flights going longer with this high-performance 7.4V lithium polymer battery pack, purpose-built for RC transmitters including TX RX series receivers, FS-ST8, G7P, and GT5. Available in two capacity options — compact 1100mAh for everyday flying sessions, or high-capacity 3000mAh for extended range operations and long-duration missions. Equipped with SYP and XH-3P connectors for broad compatibility.

Key Features

• Purpose-Built for RC Transmitters: Compatible with FS-ST8, G7P, GT5, and similar 7.4V TX RX series RC controllers

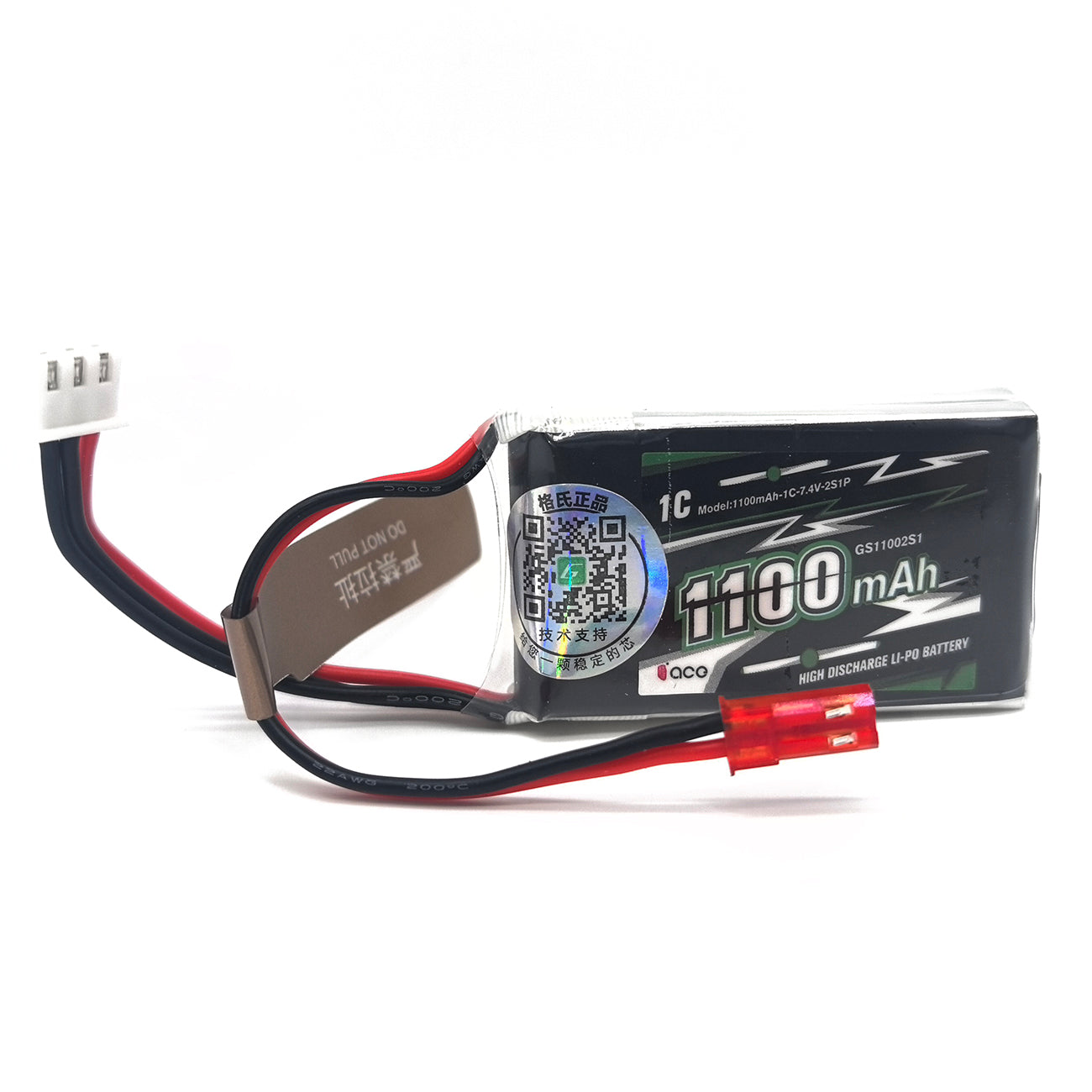

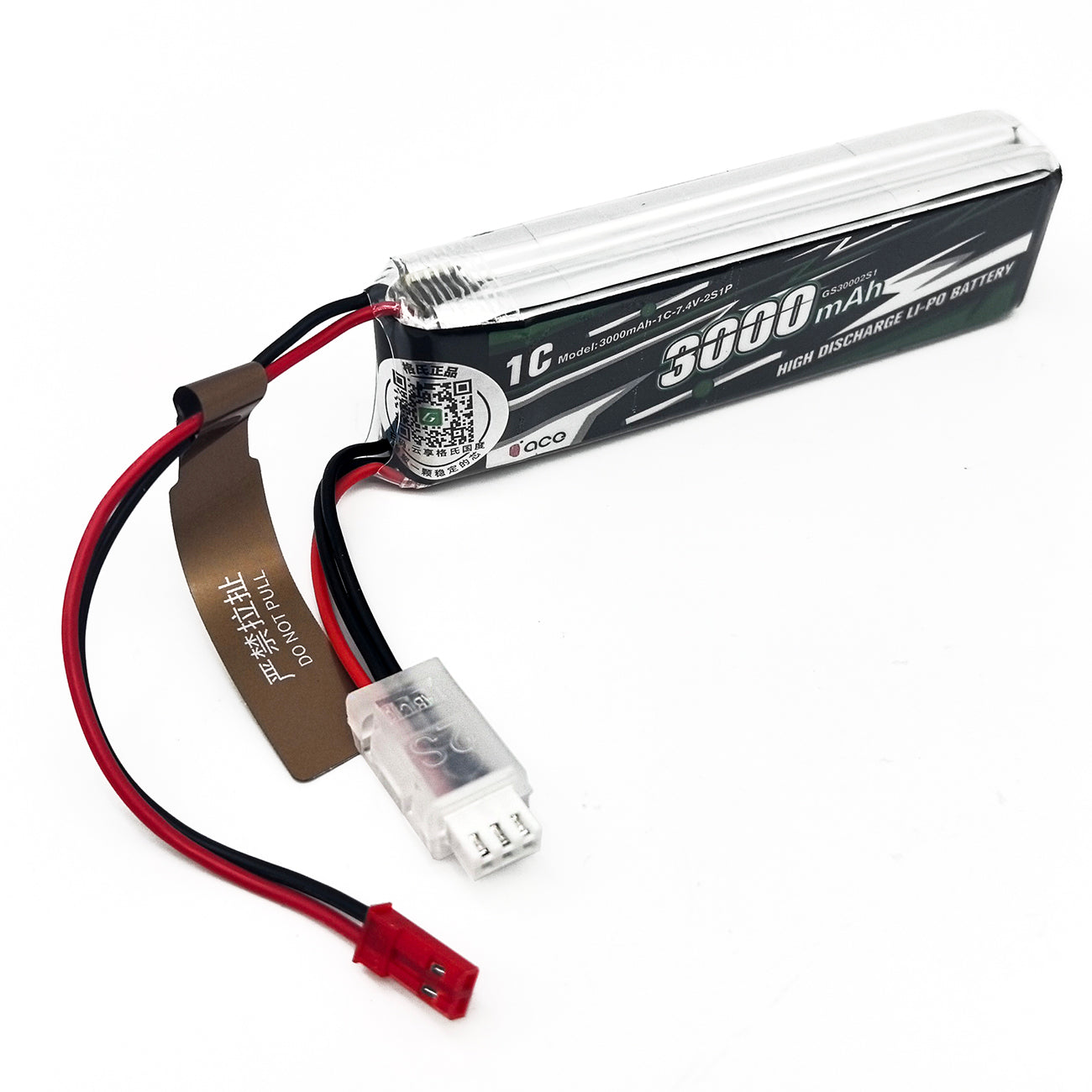

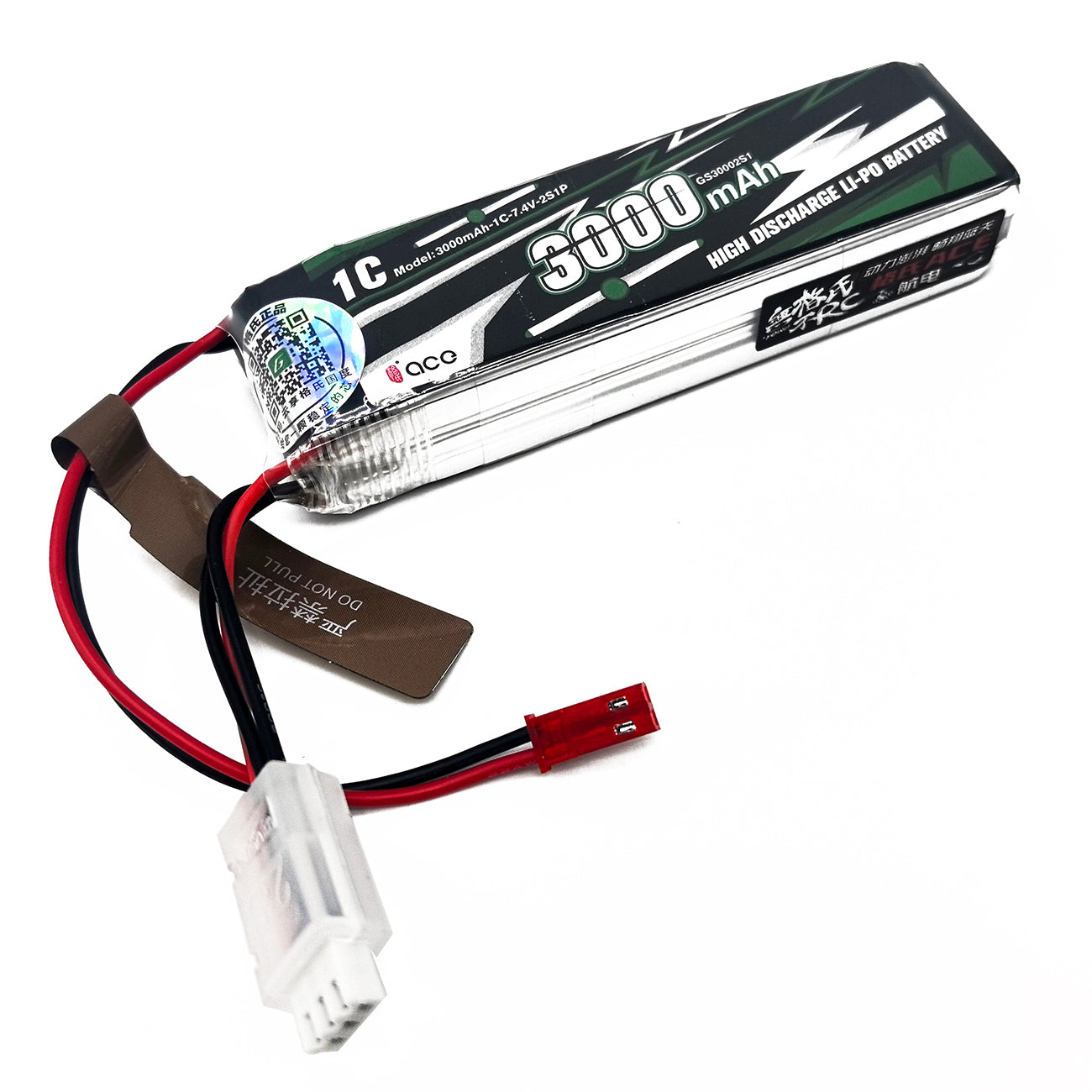

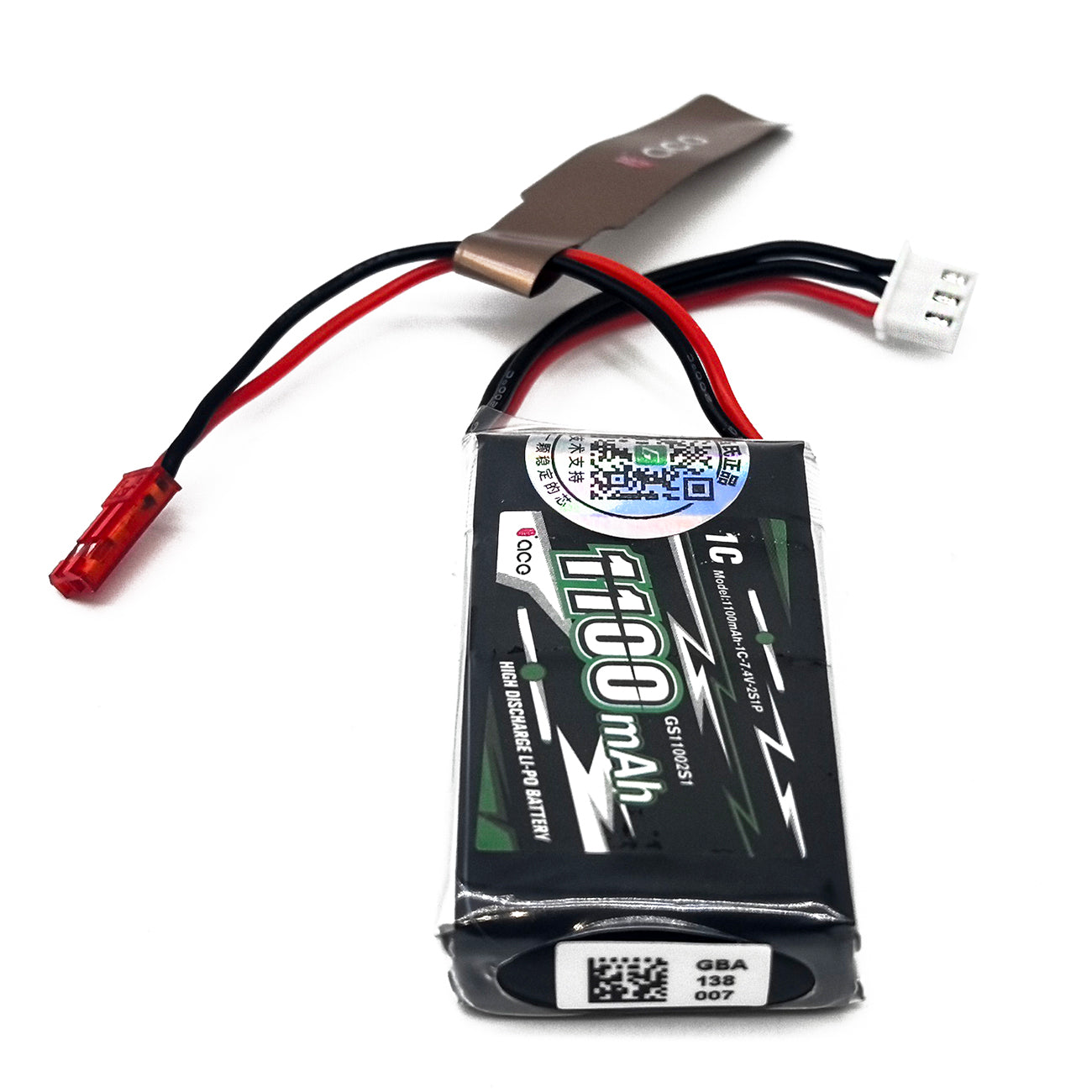

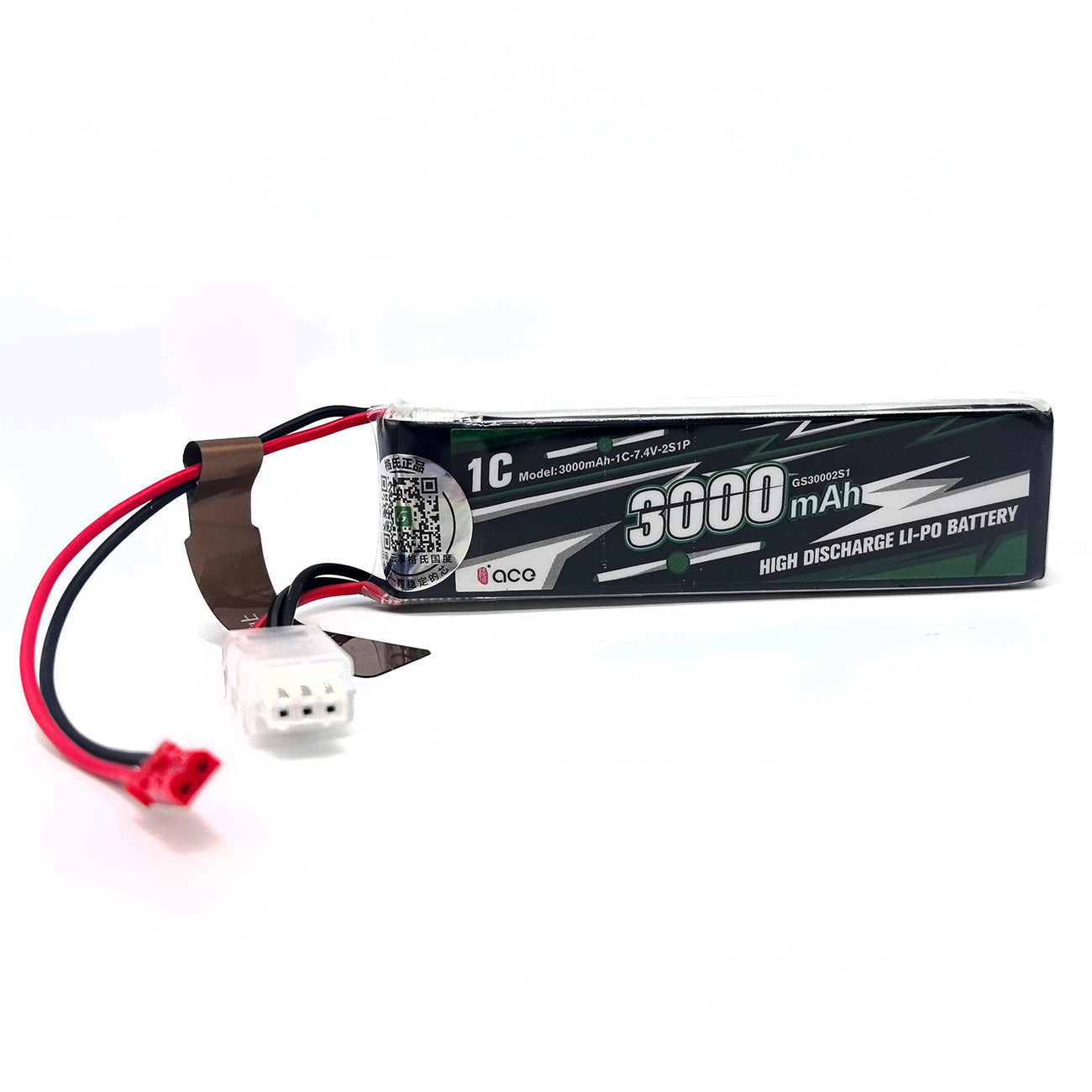

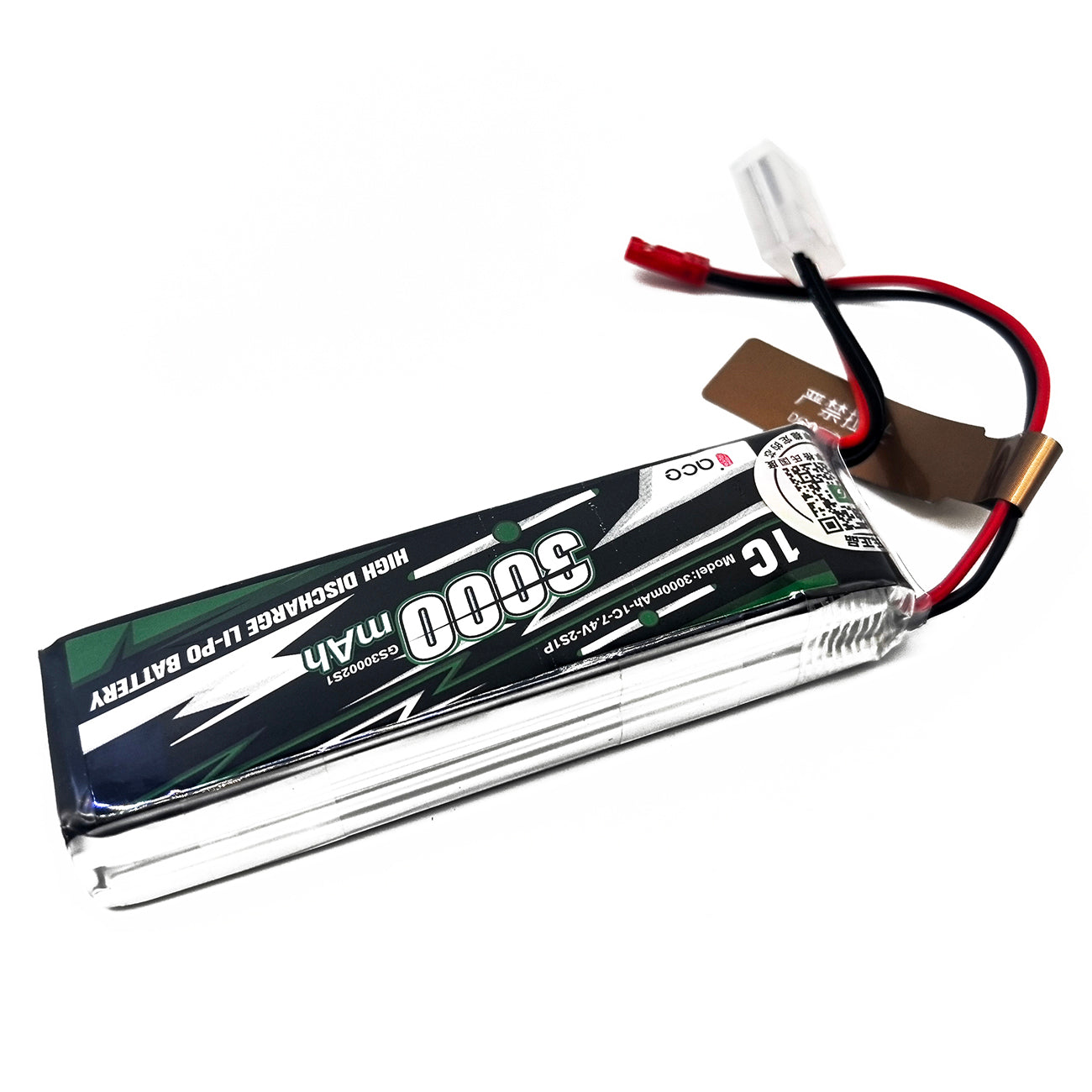

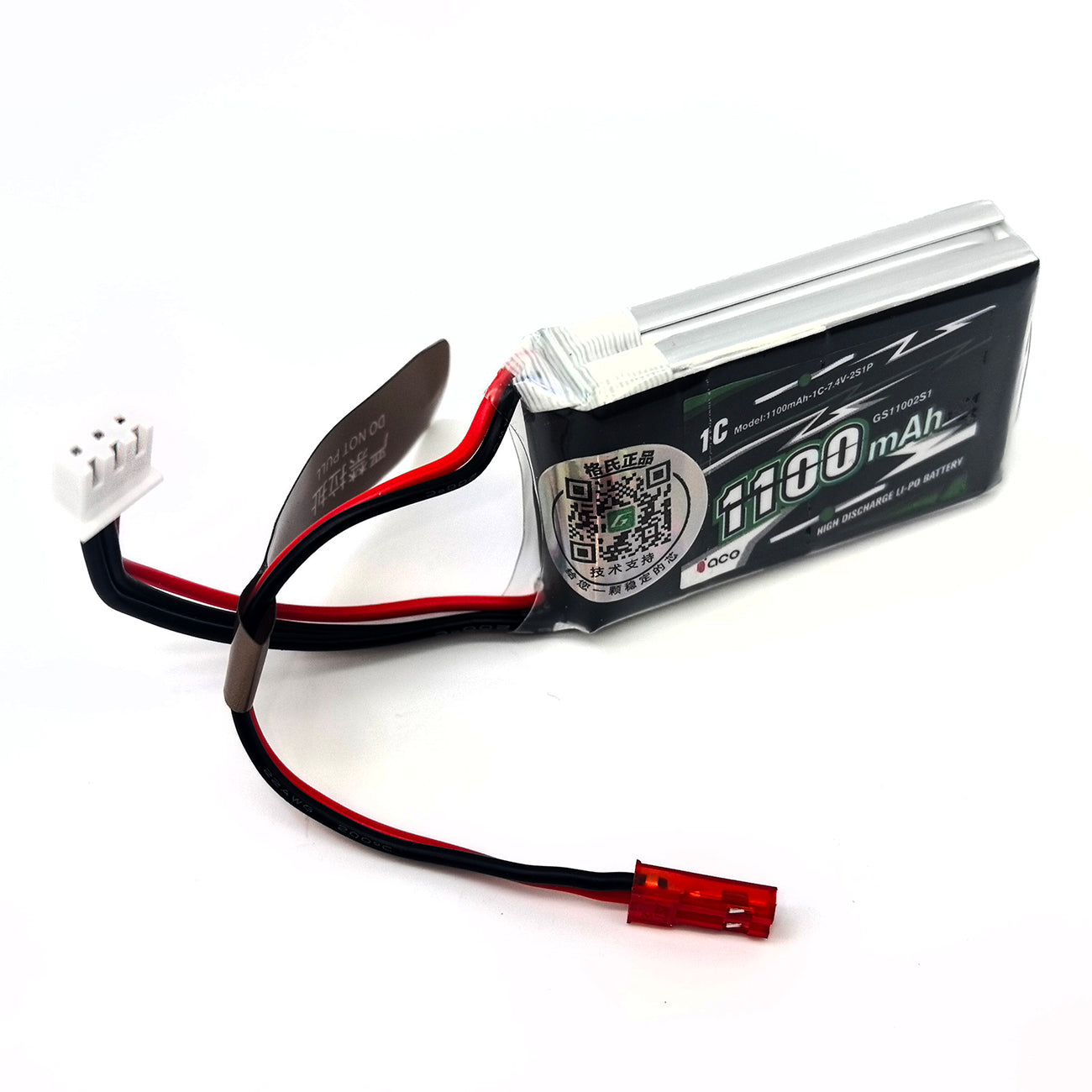

• Two Capacity Options: 1100mAh (compact) or 3000mAh (extended runtime)
• 2S1P Li-Po Configuration: Stable 7.4V nominal output, 8.4V full charge
• 2 Connector Types: SYP (power) + XH-3P (balance charging) — ready for most RC transmitter systems
• Lightweight Design: Optimized form factor to fit standard RC transmitter battery compartments
• High Energy Density: Li-Po chemistry for maximum capacity in minimal size
• Brand New: FMA ACE series, manufactured to strict quality standards

Technical Specifications

Connector Types

Available Variants

Compatible Transmitters

• FlySky FS-ST8
• FlySky G7P
• FlySky GT5
• TX RX series receivers
• Other RC transmitters requiring 7.4V 2S Li-Po battery

Applications

• Drone / UAV remote controllers and transmitters
• RC aircraft and fixed-wing transmitters
• RC car and boat controllers
• Other 7.4V RC equipment

Package Contents

• 1× FMA ACE 7.4V Li-Po Battery Pack (capacity as selected)
• Connectors: SYP (power) + XH-3P (balance charging)

How to Install

1. Power off your RC transmitter completely before replacing the battery.
2. Open the battery compartment and remove the old battery pack.
3. Insert the new FMA ACE battery into the compartment, aligning it with the housing guides.
4. Connect the SYP connector to the transmitter’s power port — push the connector body firmly until it clicks. Do not pull or tug the wires.
5. Close the battery compartment and power on the transmitter to verify normal operation.
6. To charge, connect the XH-3P balance connector to a Li-Po balance charger set to 2S / 7.4V (max 8.4V). Always use balance charging mode for cell-level balancing.
7. For long-term storage, charge to storage voltage (~7.6V / 3.8V per cell) before storing.

Installation Cautions

• ⚠️ SYP Connector — Handle with Care: This battery uses an SYP connector with internal solder joints. Always grip the connector body when plugging or unplugging — never pull on the wires. Pulling the wires can cause the internal solder joint to detach from the battery terminal, resulting in loss of connection or battery damage.
• ⚠️ XH-3P Balance Connector: Used for balance charging only — do not use as the main power connection. Connect only to a compatible 2S balance charger port.
• ⚠️ Align all connectors correctly before inserting. Do not force any connector — incorrect orientation may damage the pins.
• ⚠️ Ensure the battery fits snugly in the compartment without bending or compressing the wires. Pinched wires can cause short circuits.
• ⚠️ Do not route wires across sharp edges inside the battery compartment.
• ⚠️ If the SYP connector feels loose or the battery shows no power after installation, inspect the connector and internal solder joints before use. Contact us if the joint has detached.

Important Cautions

• ⚠️ No PCM protection inside. Always use with a device or charger that provides overcharge and over-discharge protection.
• ⚠️ Use only a Li-Po balance charger set to 2S (8.4V max). Never use Ni-MH or unregulated chargers.
• ⚠️ Never discharge below 6.0V (3.0V per cell). Deep discharge will permanently damage the battery.
• ⚠️ Do not short-circuit, puncture, crush, bend, or expose to fire.
• ⚠️ Do not charge a swollen or damaged battery. Discontinue use immediately if abnormalities are detected.
• ⚠️ Charge in a fireproof LiPo safe bag. Never leave charging unattended.
• ⚠️ Keep out of reach of children.

Safety Information

• Charging: Use a 2S Li-Po balance charger (8.4V max). Charge in a fireproof container. Never overcharge.
• Storage: Store at 3.8V per cell (~7.6V total) in a cool, dry place (15–25°C). Avoid full charge for long-term storage.
• Operation: Do not short-circuit, puncture, crush, or disassemble. Avoid exposure to water or moisture.
• Temperature: Charge and discharge within 0°C–45°C. Do not charge below 0°C.
• Disposal: Discharge to safe voltage, then dispose of according to local lithium battery regulations. Do not incinerate.
• Inspection: Inspect before each use. Do not use if swollen, damaged, or leaking.

Shipping & Transportation Notice

• This product contains lithium polymer cells and is classified as dangerous goods (UN3481) for shipping purposes.
• Air transport is subject to IATA regulations. Additional documentation and handling time may be required.
• All shipments comply with UN3481 packaging and labeling requirements. UN38.3 test report available upon request.
