4.2V Smart Charger for 3.6V 3.7V Li-ion Li-Po Battery

Product Overview

Premium 4.2V Intelligent Smart Charger designed specifically for 3.6V and 3.7V Li-ion and Li-Po rechargeable battery packs (1S configuration). Featuring advanced intelligent voltage recognition technology and multiple current options from 0.5A to 3A, this charger provides safe, efficient charging solutions for various battery capacities.

Key Features

Multiple Current Options: Choose from 0.5A, 1.5A, or 3A to match your battery capacity and charging speed requirements
Intelligent Voltage Recognition: Built-in smart IC automatically detects battery voltage (3.6V/3.7V) and chemistry (Li-ion/Li-Po)
Dual Chemistry Compatibility: Works with both 3.6V Li-ion (1S) and 3.7V Li-Po (1S) battery packs
Auto-Stop Protection: Automatically stops charging when battery is full, preventing overcharge damage and extending battery life
Advanced LED Indicator: Three-state LED shows charging status, completion, and error conditions
Over-Voltage & Over-Current Protection: Built-in safety features protect both charger and battery
Reverse Polarity Protection: Protects charger and battery from incorrect connection with flashing LED warning
Universal AC Input: 100-240V, 50/60Hz compatibility for worldwide use
International Certifications: FCC, CE-LVD, CE-EMC, RCM, PSE, and CCC certified for safe operation
Durable Construction: High-quality ABS housing with excellent heat dissipation for reliable performance
Multiple Plug Options: Available with US, EU, AU, UK plugs or 4-in-1 universal adapter

Technical Specifications

Brand	FMA / DSS
Compatible Battery	3.6V Li-ion (1S) / 3.7V Li-Po (1S)
Input Voltage	AC 100-240V, 50/60Hz
Output Voltage	DC 4.2V
Output Current Options	0.5A, 1.5A, 3.0A (model dependent)
Charging Method	CC/CV (Constant Current/Constant Voltage) with intelligent IC recognition
Protection Features	Overcharge, overcurrent, over-voltage, short-circuit, reverse polarity
Weight	90g (approx.)

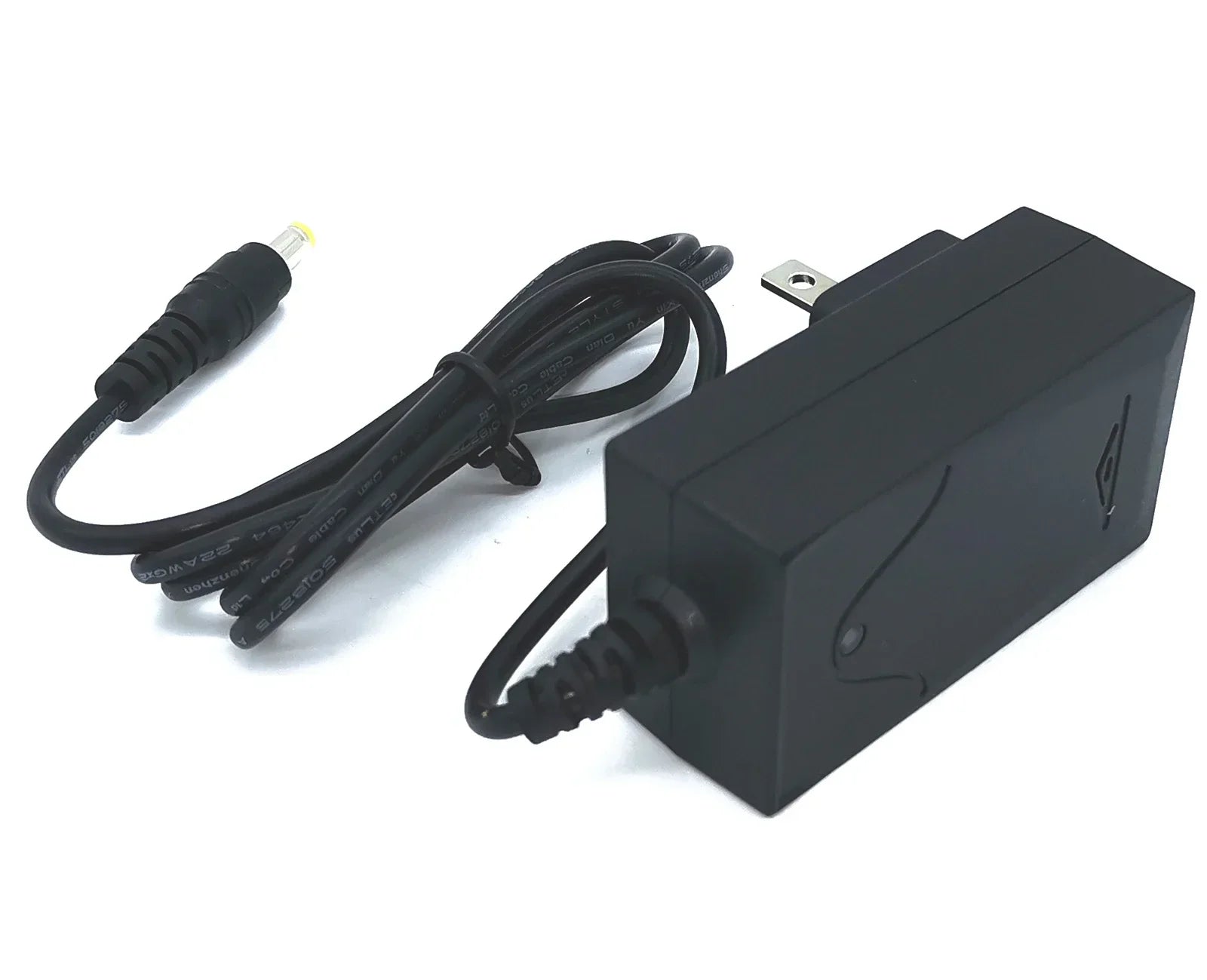

LED Indicator Status

Green Light (Solid): Power on (standby) or fully charged - safe to disconnect
Red Light (Solid): Charging in progress - do not disconnect
Green Light (Flashing): Wrong polarity connection or battery damaged - check connection immediately

Current Selection Guide

0.5A: Ideal for small capacity batteries (200-1000mAh) or gentle charging
1.5A: Suitable for medium capacity batteries (1000-3000mAh)
3.0A: Best for larger capacity batteries (3000-6000mAh) requiring faster charging

Available Models

Choose from multiple configurations to match your specific needs:

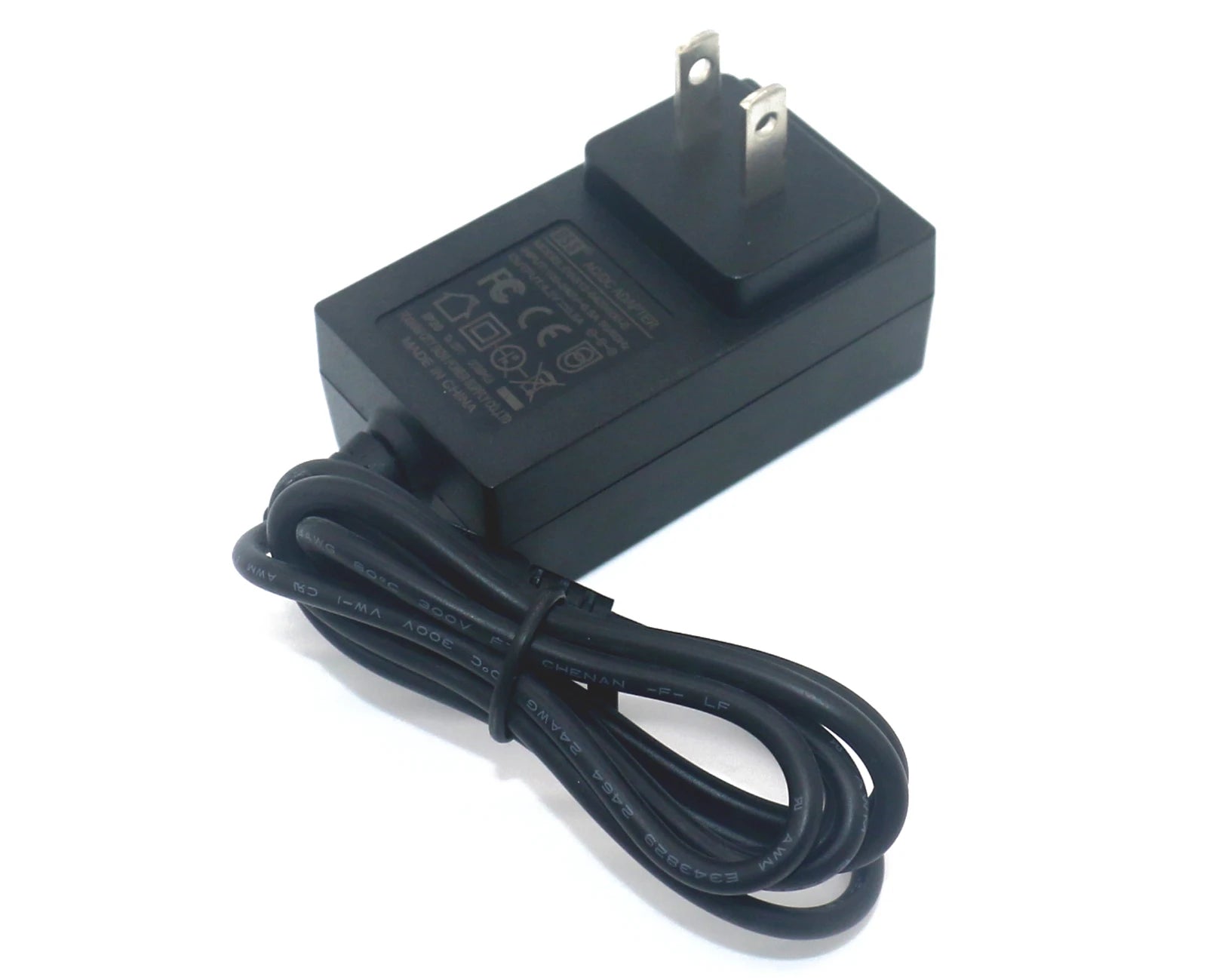

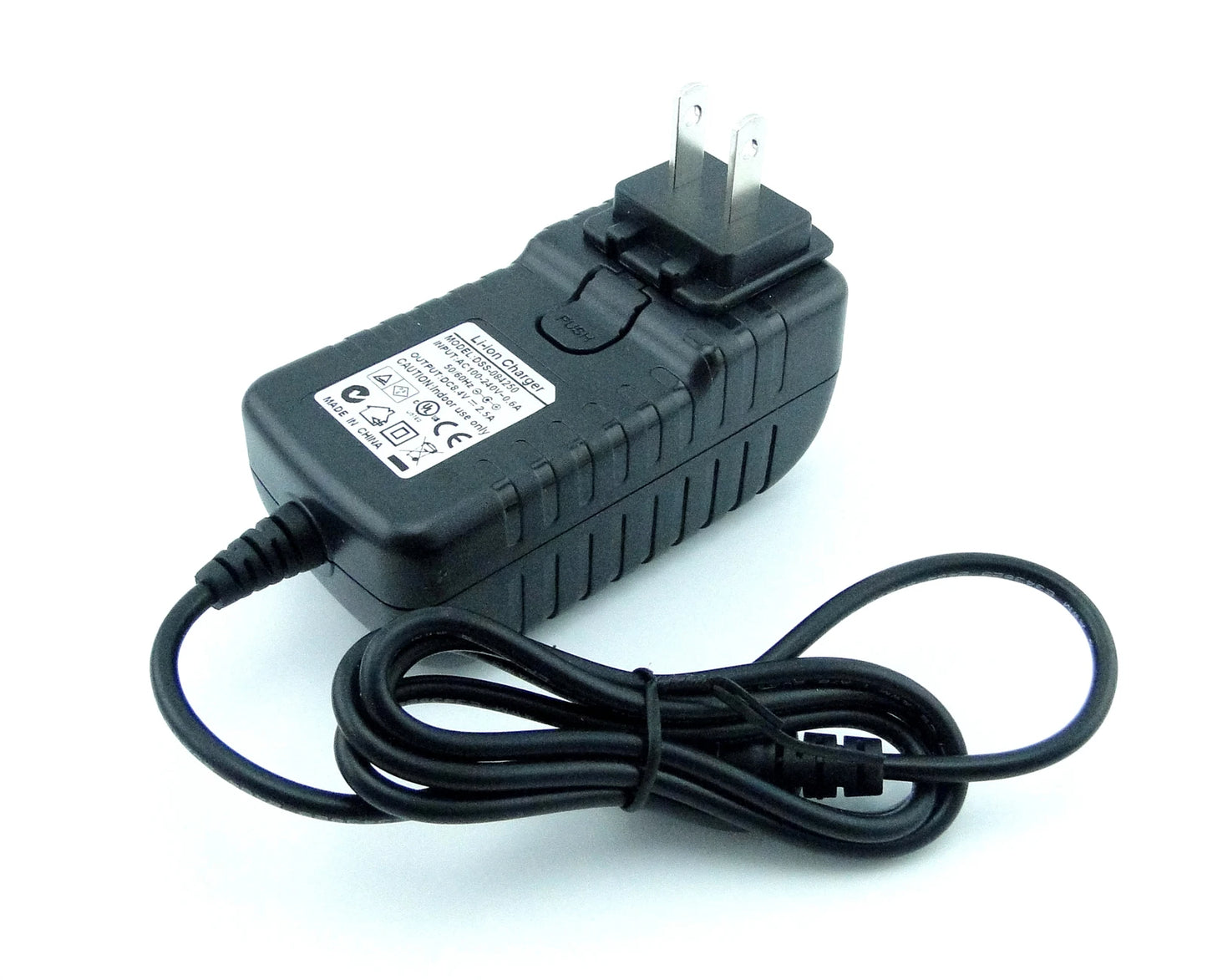

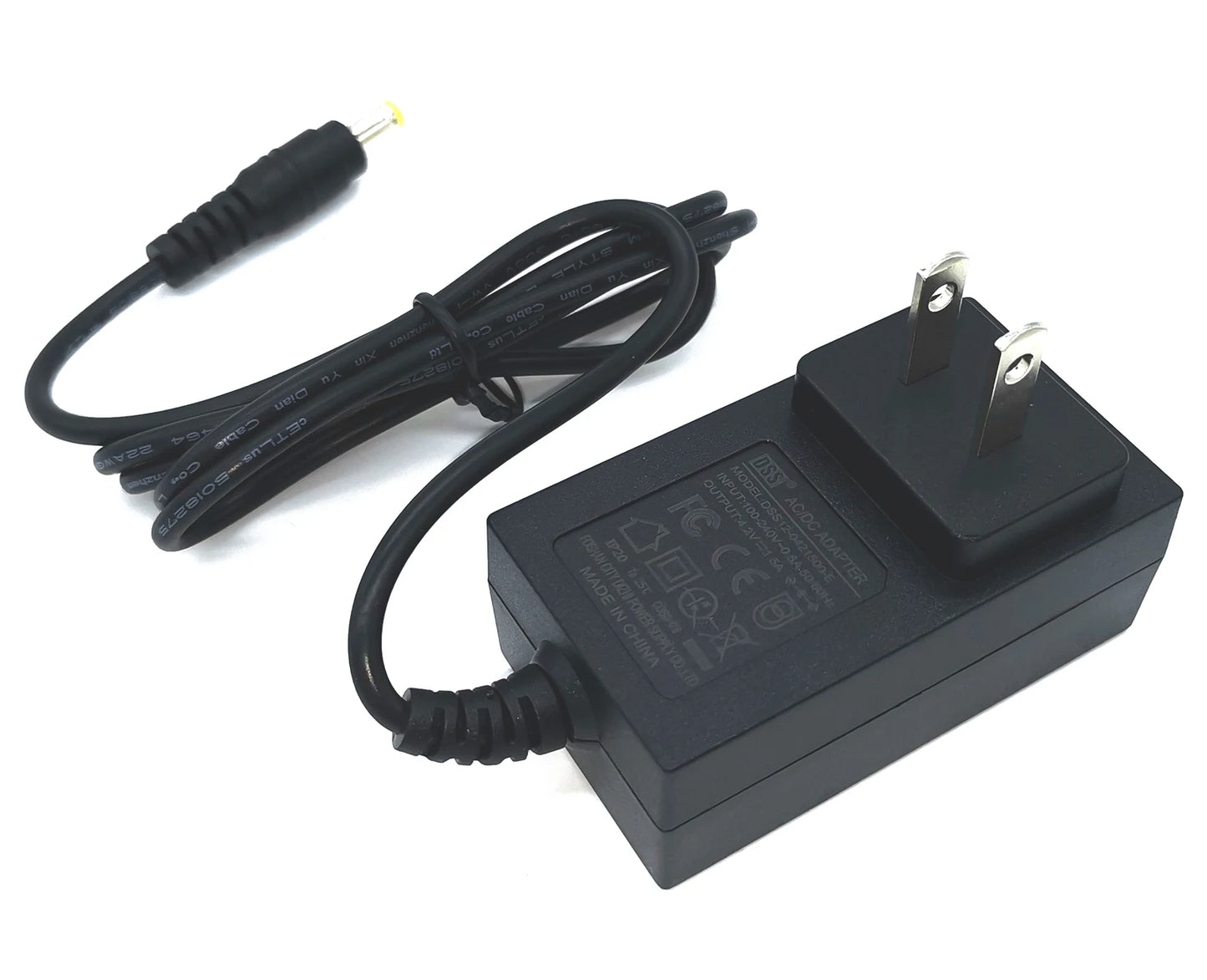

Output Current: 0.5A, 1.5A, or 3.0A

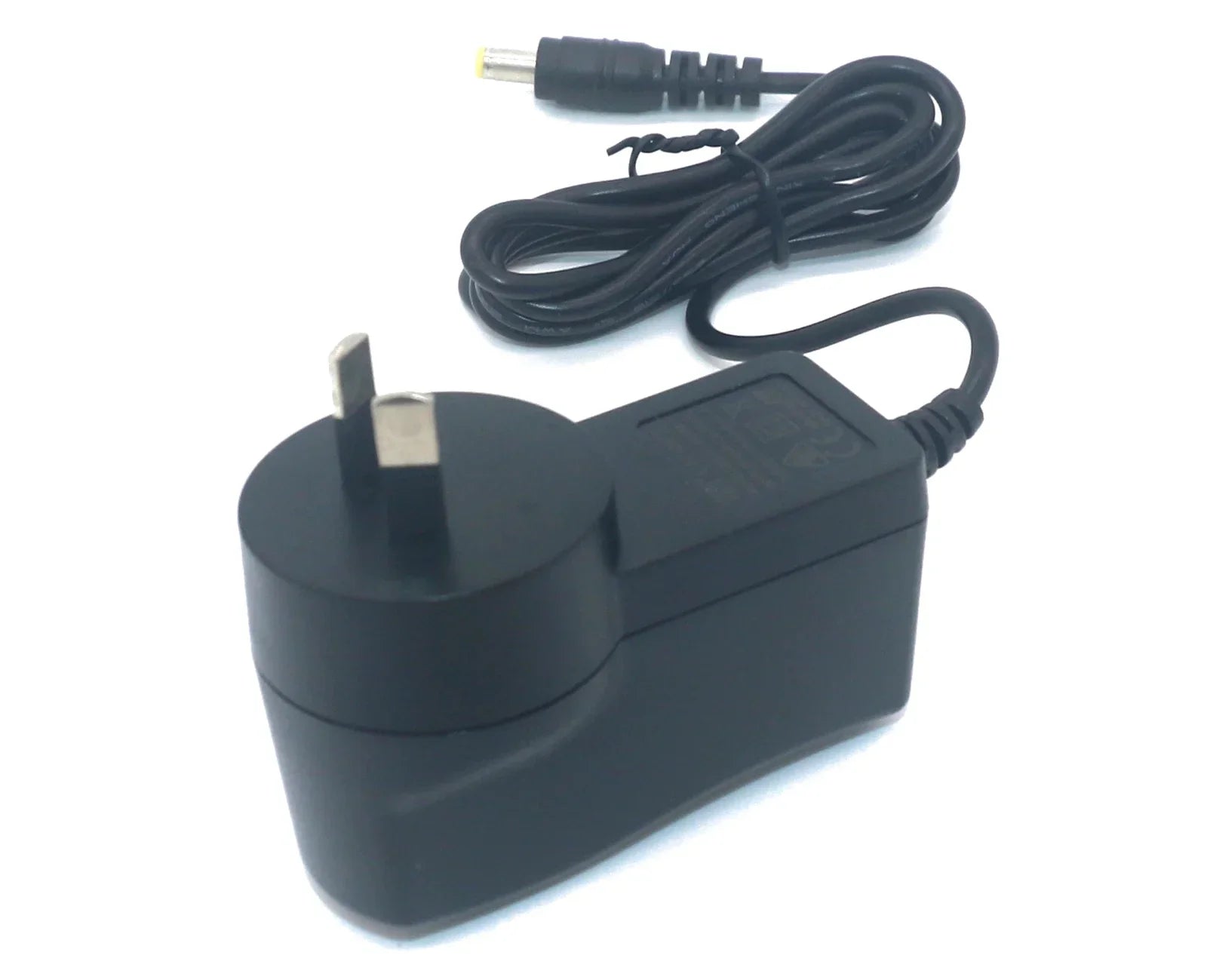

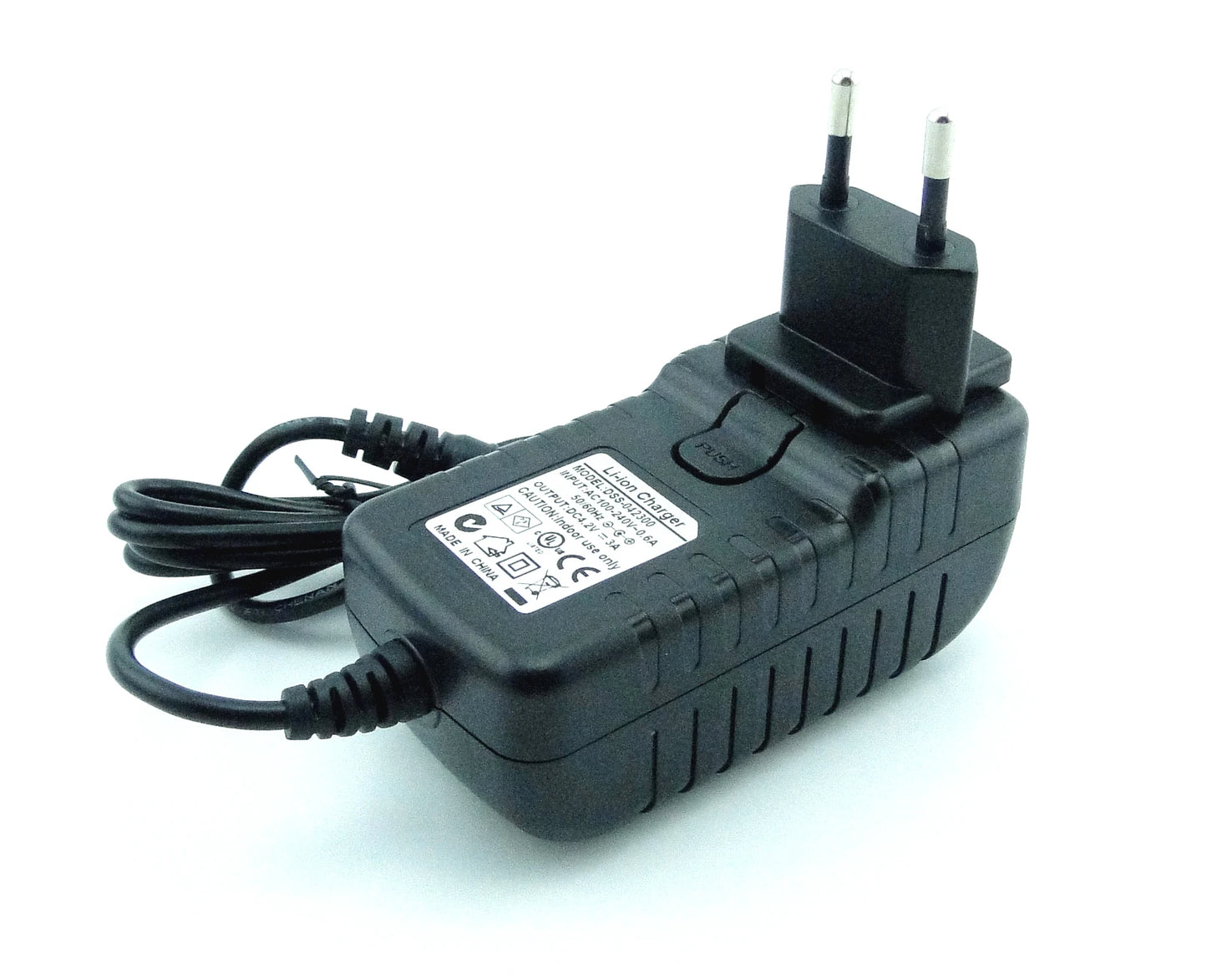

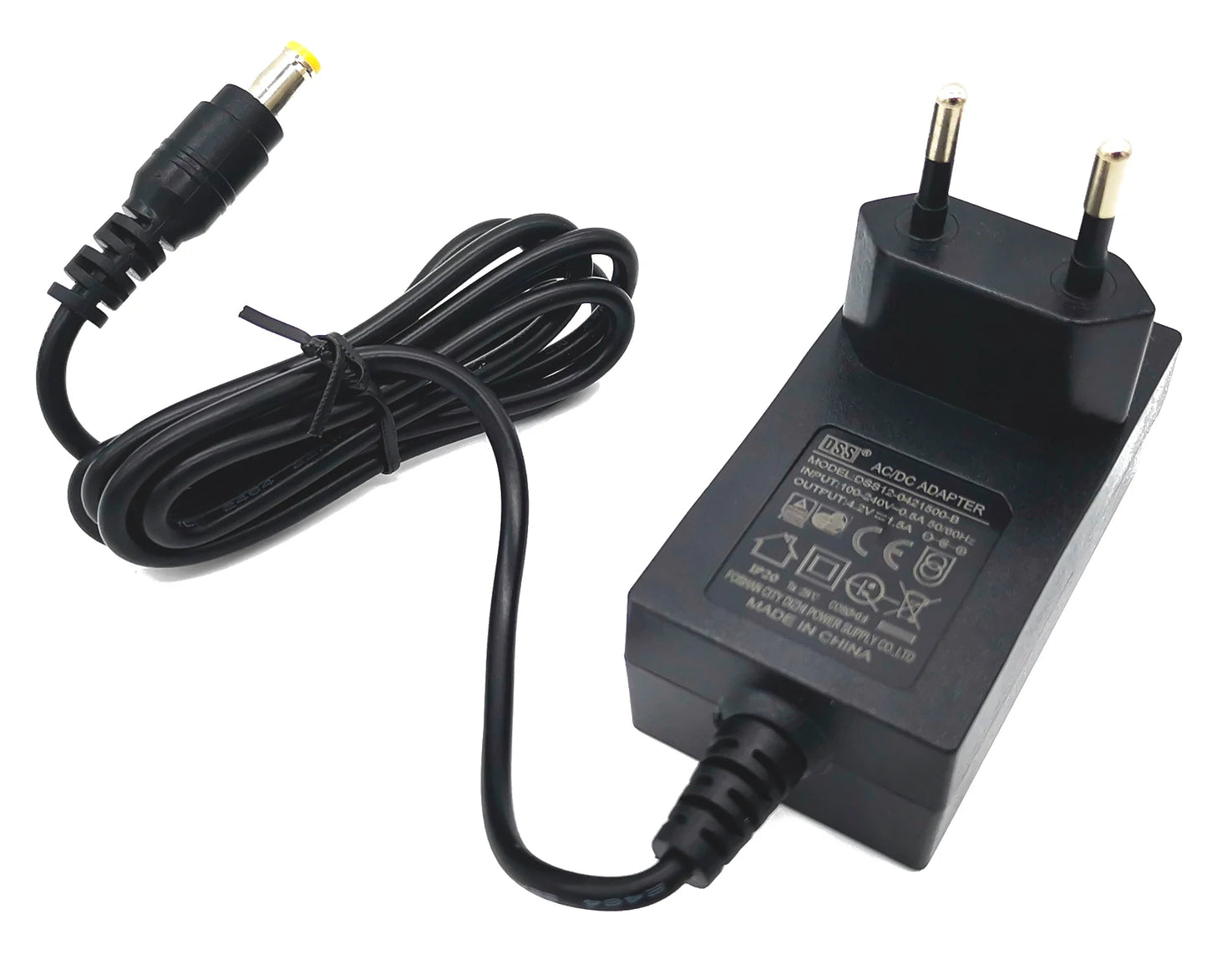

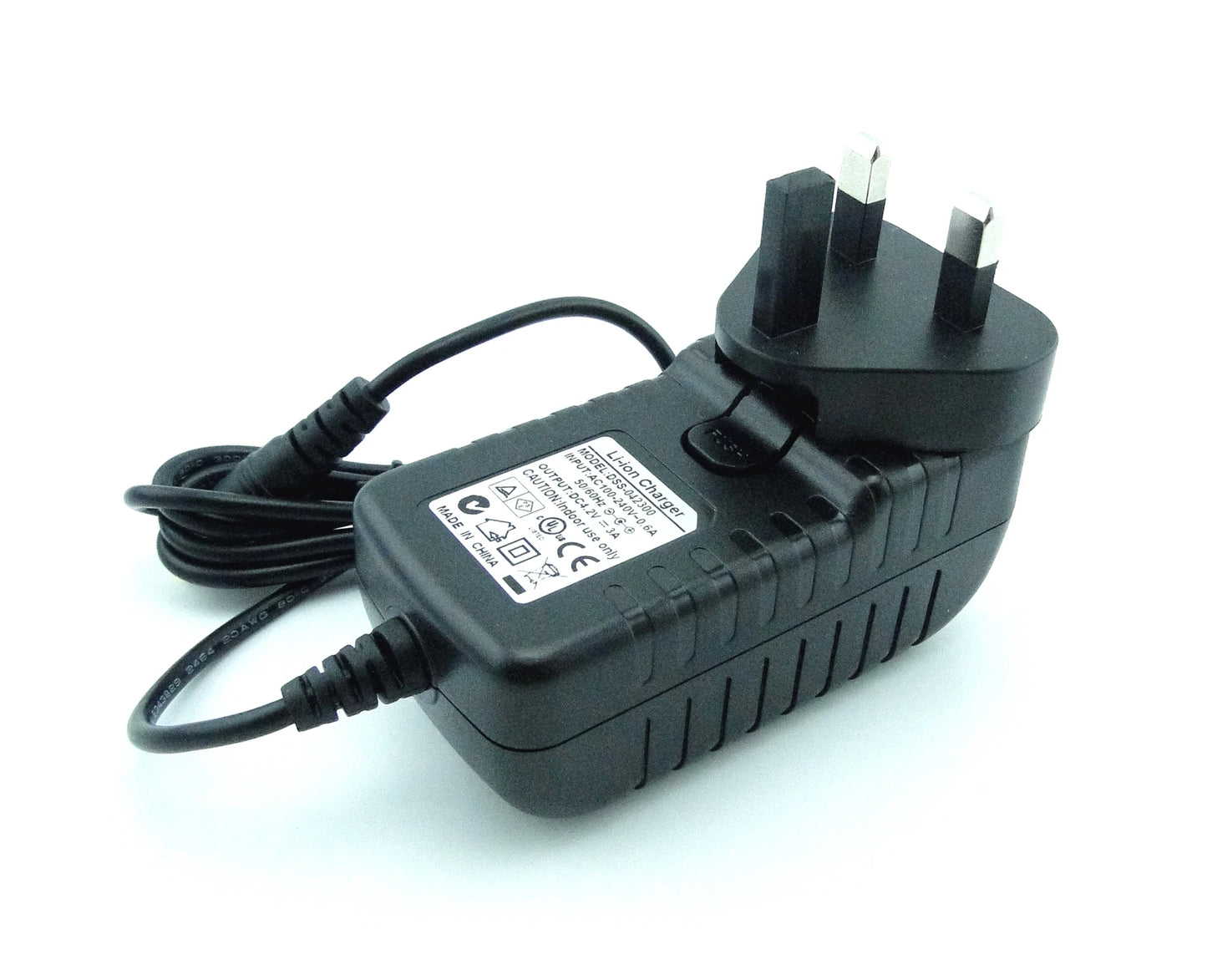

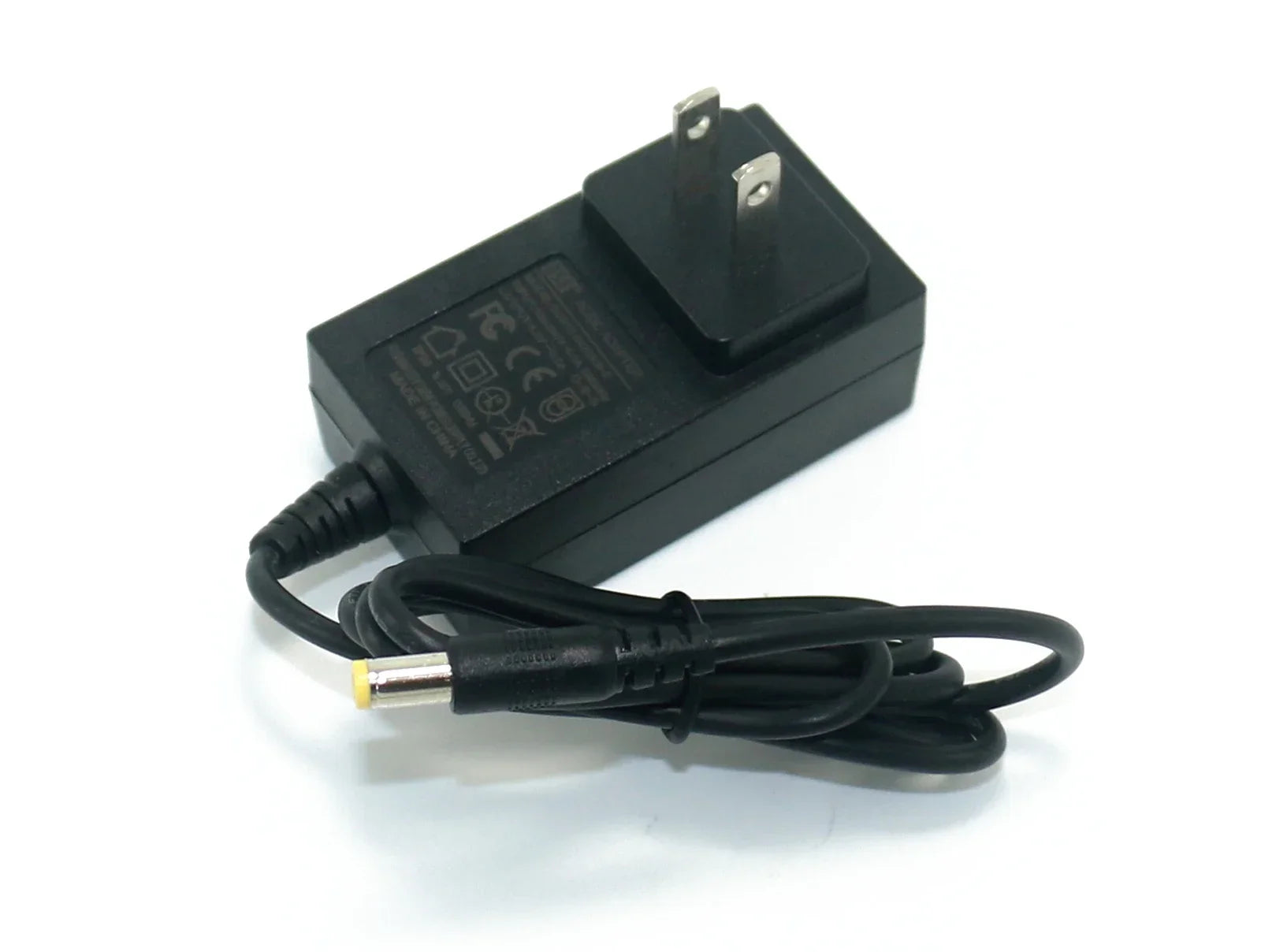

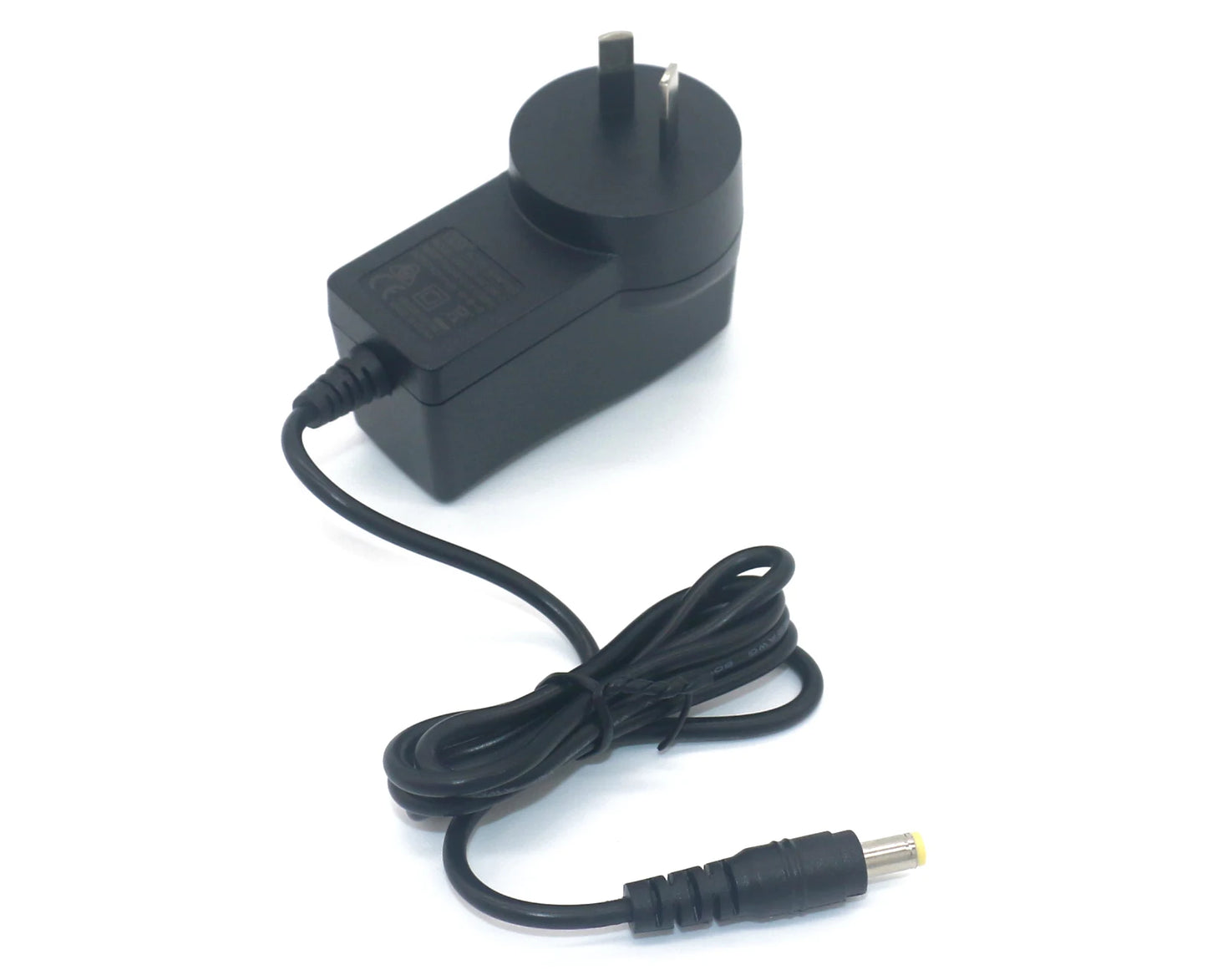

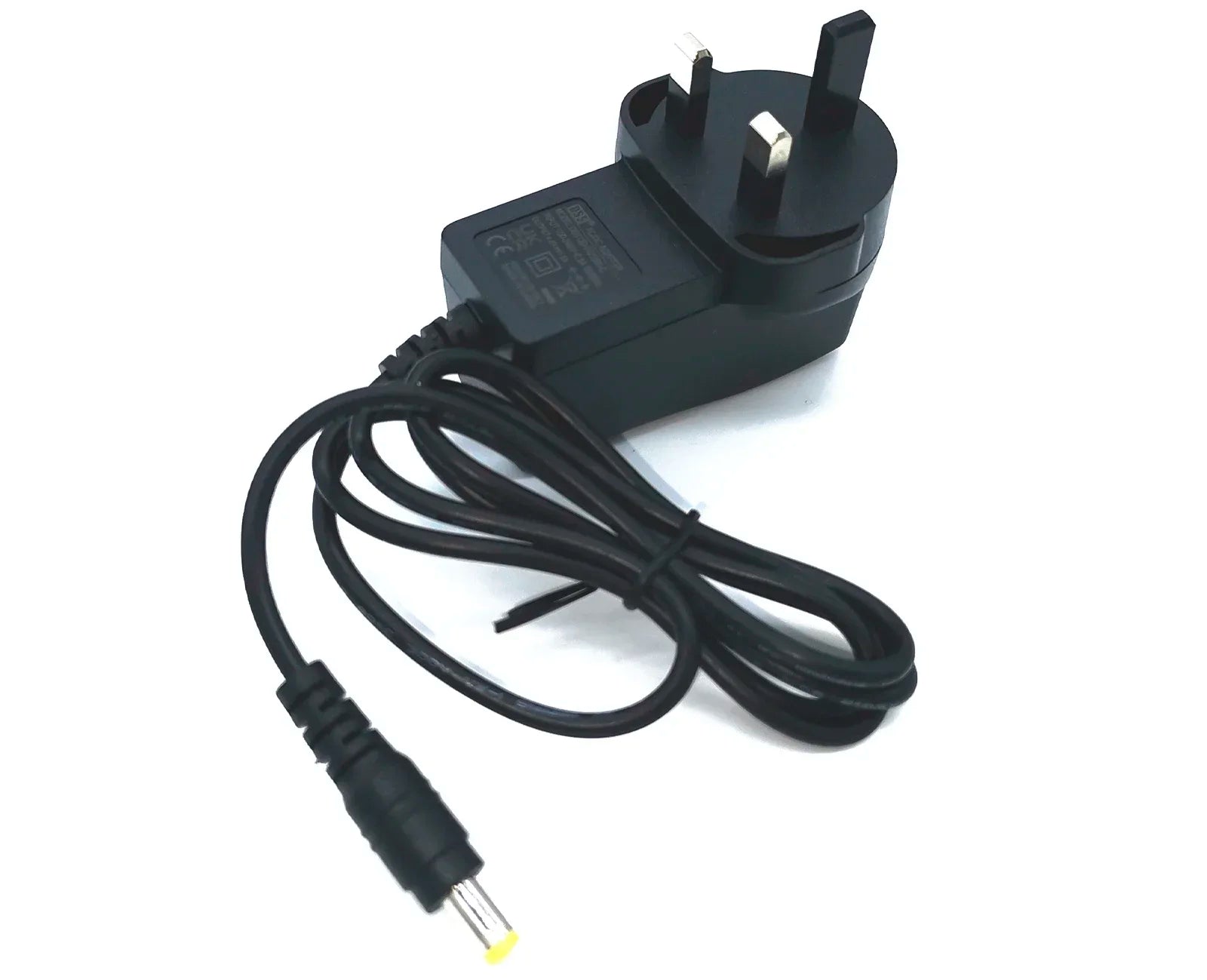

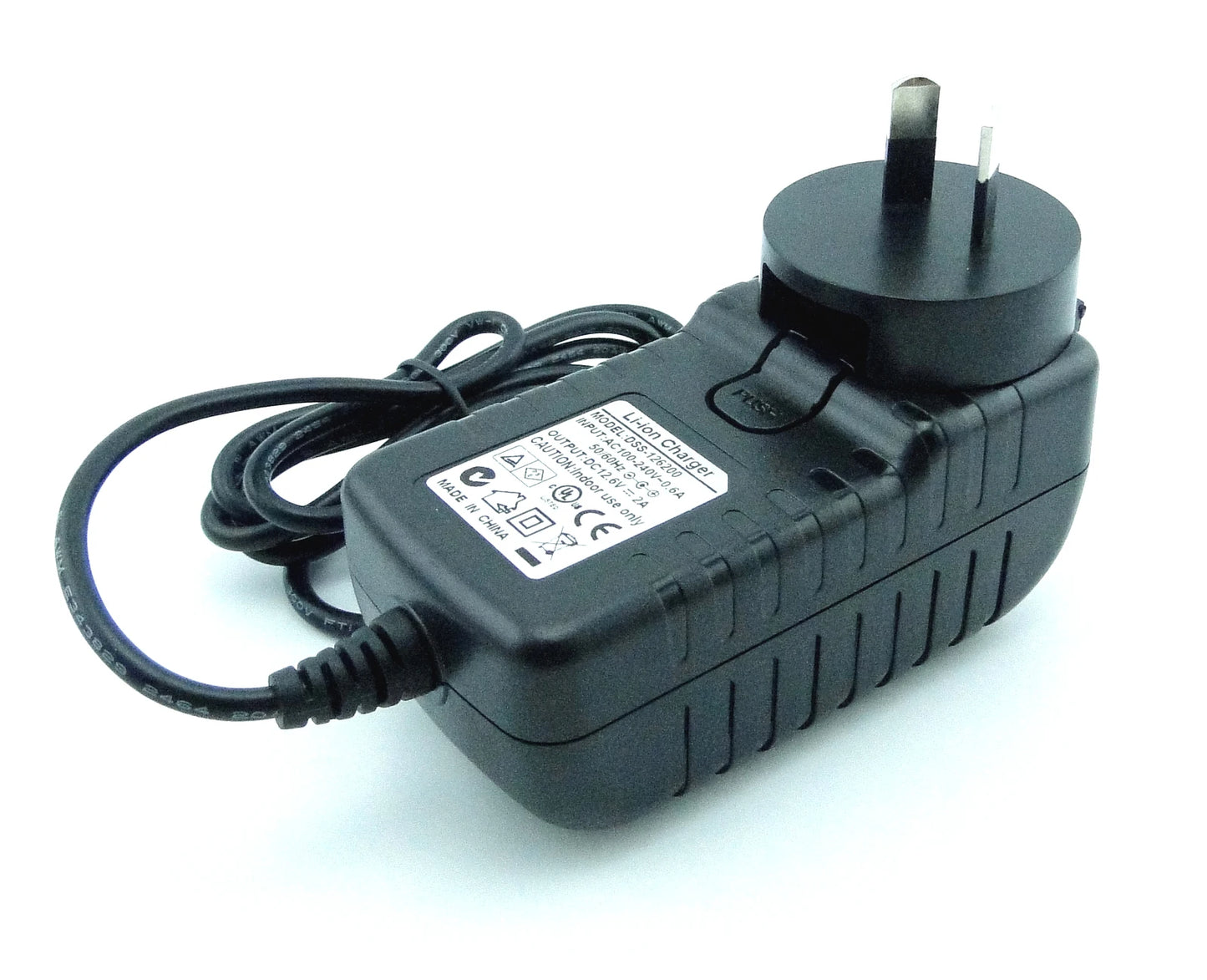

Regional Plug: US, EU, AU, or UK

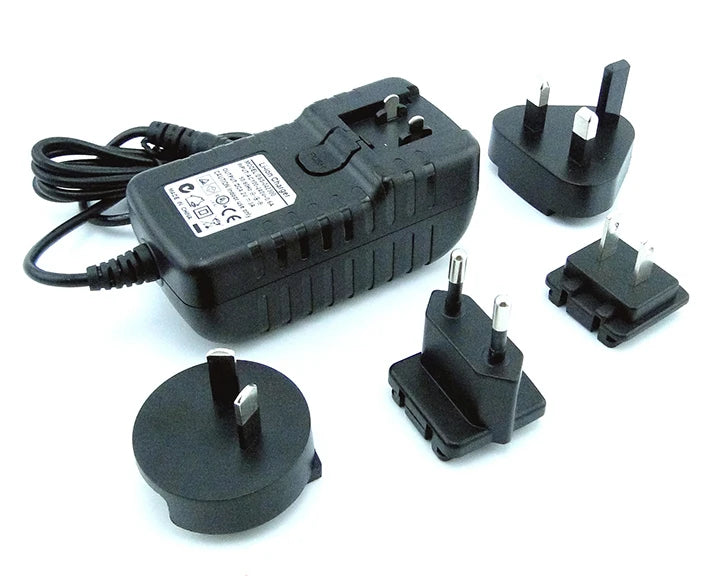

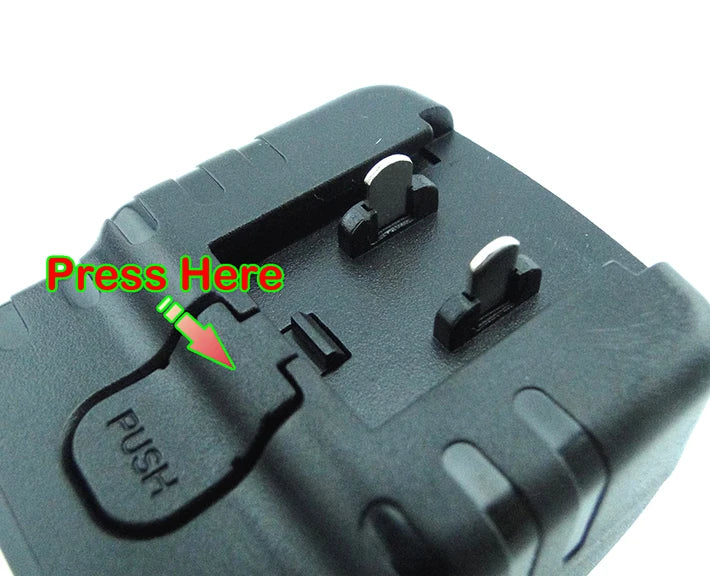

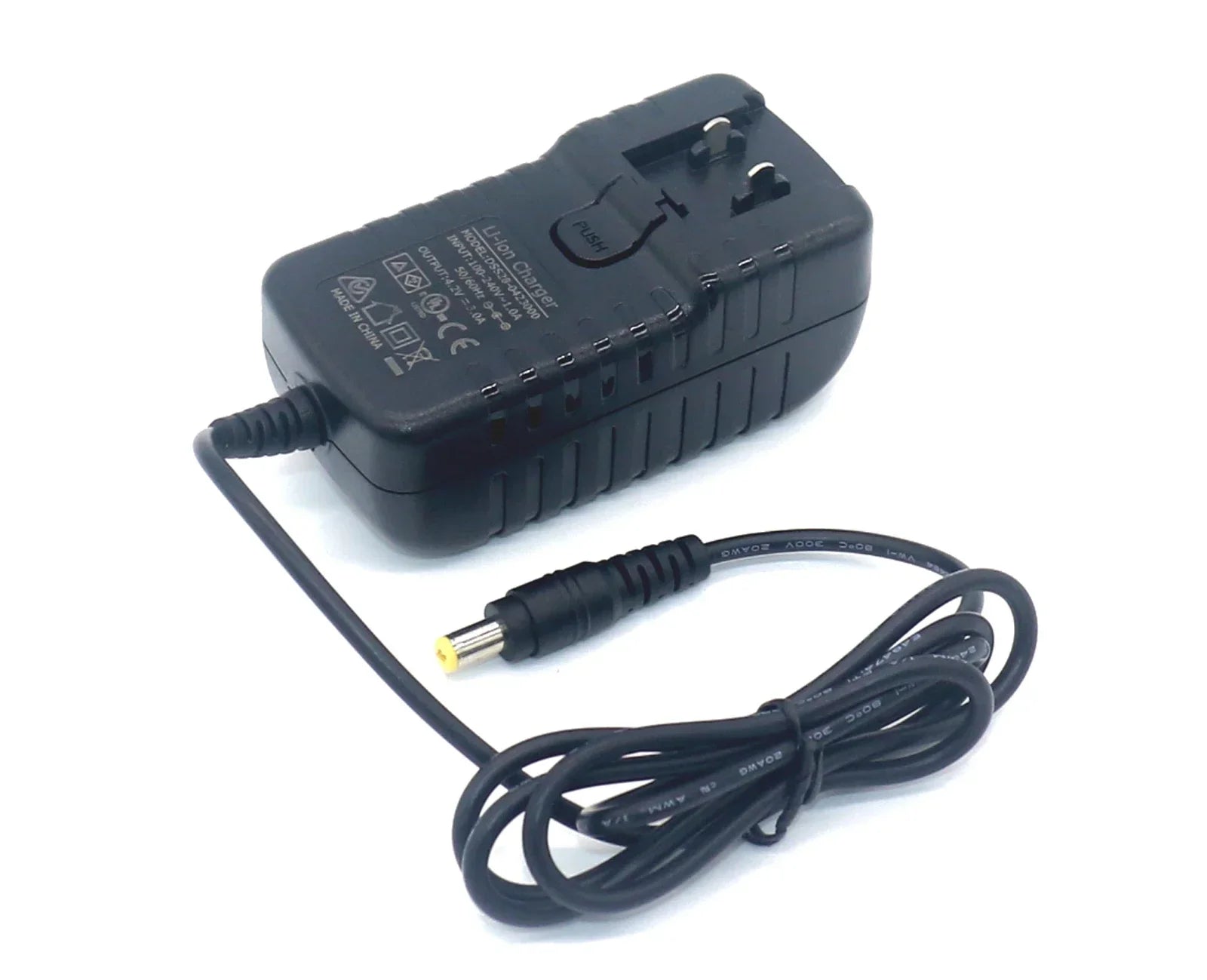

4-in-1 Universal: Includes interchangeable plugs for US, EU, AU, and UK (3.0A model only)

Applications

Flashlights and headlamps
Portable electronics
RC toys and small vehicles
Handheld devices
Emergency lighting
Other 3.6V/3.7V Li-ion/Li-Po powered devices

Safety Certifications

Certified to international safety standards with detailed report numbers:

FCC: Report No. 16063326 (USA/North America)
CE-LVD & CE-EMC: CE Report No. 16063325, IEC No. DE 2-018390 (Europe)
RCM (SAA+C-TICK): Report No. 16064855 (Australia)
PSE: Report No. JD 50301812 (Japan)
CCC: Report No. 2015010907755103 (China)

Package Contents

1× 4.2V Intelligent Smart Charger (current and plug type as selected)
Selected plug type (US/EU/AU/UK or 4-in-1 universal adapter)

Condition: Brand New with Manufacturer Warranty

Safety Information

Charging: Always charge batteries in a well-ventilated area away from flammable materials. Never leave charging batteries unattended.
Storage: Store the charger in a cool, dry place away from direct sunlight and moisture.
Operation: Do not use the charger if the cable or housing is damaged. Ensure proper polarity connection before charging. If LED flashes green, immediately disconnect and check polarity or battery condition.
Temperature: Operating temperature: 0°C to 40°C (32°F to 104°F). Do not use in extreme temperatures.
Handling: Disconnect the charger from power source when not in use. Avoid dropping or subjecting to impact.
Inspection: Regularly inspect cables and connectors for wear or damage. Replace if any damage is found.
Current Selection: Always select appropriate charging current based on your battery capacity. Using too high current may damage smaller batteries.
Battery Compatibility: Only use with 3.6V Li-ion or 3.7V Li-Po (1S) batteries. Do not attempt to charge other battery types or voltages.
Polarity Warning: Ensure correct polarity when connecting the battery. Incorrect connection may damage the battery or charger.

Shipping & Transportation Notice

Hazardous Goods: This charger may be subject to shipping restrictions in certain regions due to battery-related regulations.
Air Transportation: May have limitations for air freight. Please check with carrier for specific requirements.
Packaging: Product is packaged according to international shipping standards to ensure safe delivery.
Delivery Time: Shipping times may vary depending on destination and customs clearance procedures.
Documentation: All necessary shipping documentation and safety data sheets are included with commercial shipments.
