FMA 3.2V 27Ah LiFePO4 Prismatic Rechargeable Battery Cell

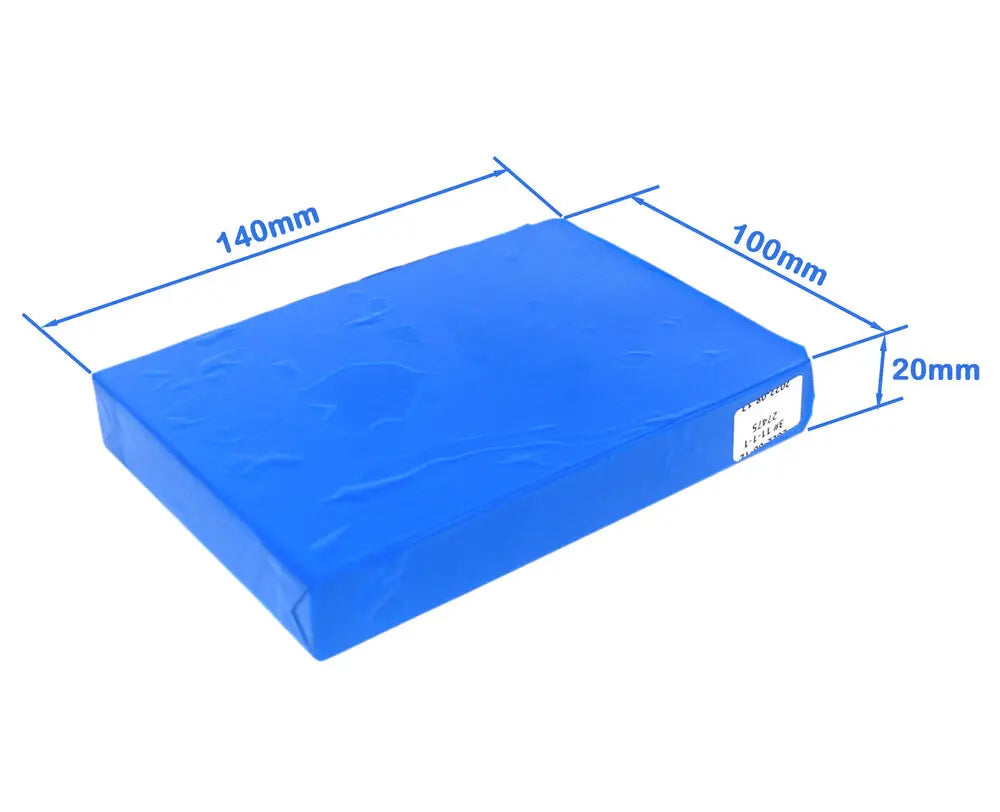

High-capacity 3.2V 27Ah lithium iron phosphate (LiFePO4) prismatic cell in a compact aluminum-case format. Delivering 87Wh of energy in a slim 20×100×140mm footprint, this cell is ideal for building or rebuilding battery packs for electric vehicles, outdoor power stations, portable power supplies, and a wide range of energy storage applications. LiFePO4 chemistry offers outstanding thermal stability, long cycle life (>2000 cycles), and inherent safety — the preferred choice for high-reliability power systems.

Key Features

• LiFePO4 Chemistry: Superior thermal stability, no thermal runaway risk, longest cycle life among lithium chemistries
• High Capacity: 27Ah / 87Wh per cell — excellent energy density for a prismatic format
• Prismatic Aluminum Case: Rigid, stackable form factor ideal for DIY battery pack assembly
• Wide Application Range: E-bikes, e-trikes, mopeds, outdoor power stations, mobile power supplies, solar storage, and more
• Long Cycle Life: >2000 charge-discharge cycles at 80% capacity retention
• PVC Heat-Shrink Wrap: Protective outer layer for insulation and handling safety
• Brand New: FMA brand, manufactured to strict quality standards

Technical Specifications

Why LiFePO4 for Your Application?

Applications

• ⚡ Electric Vehicles: E-bikes, e-trikes, electric mopeds, electric motorcycles, electric scooters
• 🔋 Outdoor Power Stations: Portable power stations, camping power supplies, off-grid energy storage
• 📱 Mobile Power Supplies: DIY power banks, backup power systems
• ☀️ Solar Energy Storage: Small-scale solar battery banks, off-grid solar systems
• 🔧 DIY Battery Packs: Custom series/parallel configurations for any 3.2V-based system
• 🏭 Industrial / UPS: Backup power, uninterruptible power supplies, telecom backup

DIY Battery Pack Guide

These prismatic cells can be assembled in series and/or parallel to achieve your target voltage and capacity:

Note: Always use a BMS (Battery Management System) matched to your cell configuration for safe operation. Contact us for custom pack assembly services.

Package Contents

• 1× FMA 3.2V 27Ah LiFePO4 Prismatic Cell (quantity as ordered)

How to Use

1. Inspect the cell upon receipt. Do not use if the casing is damaged, dented, or the terminals are corroded.
2. For single-cell use, connect positive (+) and negative (−) terminals to your load or charger — observe correct polarity.
3. For multi-cell pack assembly, connect cells in series (for higher voltage) or parallel (for higher capacity) using appropriate busbars or nickel strips. Always use a BMS.
4. Charge using a LiFePO4-compatible charger set to 3.65V per cell (CC/CV mode). Do not use Li-ion or Li-Po charger profiles.
5. For long-term storage, maintain cells at ~3.2–3.3V (nominal). Check voltage every 3–6 months and top up if needed.

Important Cautions

• ⚠️ Use a LiFePO4-specific charger. Max charge voltage is 3.65V per cell. Never exceed this voltage.
• ⚠️ Always use a BMS when assembling multi-cell packs to prevent cell imbalance, overcharge, and over-discharge.
• ⚠️ Never short-circuit the terminals. High short-circuit current can cause fire or explosion.
• ⚠️ Do not puncture, crush, or disassemble the cell.
• ⚠️ Do not discharge below 2.5V per cell. Deep discharge will permanently damage the cell.
• ⚠️ Do not expose to water, moisture, or extreme temperatures during storage or use.
• ⚠️ Keep out of reach of children.

Safety Information

• Charging: Use a LiFePO4 charger (3.65V max per cell). Never use Li-ion or Li-Po charger profiles. Do not overcharge.
• Storage: Store at 3.2–3.3V in a cool, dry place (15–25°C). Avoid full charge for long-term storage. Check every 3–6 months.
• Operation: Discharge within 2.5V–3.65V range. Do not short-circuit or disassemble. Avoid water and moisture.
• Temperature: Charge: 0°C–45°C. Discharge: −20°C–60°C. Do not charge below 0°C.
• Disposal: Discharge to safe voltage, then dispose of according to local lithium battery / e-waste regulations. Do not incinerate.
• Inspection: Inspect before each use. Do not use if swollen, damaged, leaking, or showing abnormal heat.

Shipping & Transportation Notice

• This product contains lithium iron phosphate cells and is classified as dangerous goods (UN3481) for shipping purposes.
• Air transport is subject to IATA regulations. Additional documentation and handling time may be required.
• All shipments comply with UN3481 packaging and labeling requirements. UN38.3 test report available upon request.
• Estimated delivery: 7–20 business days depending on destination and carrier.
• Brazil shipments require a valid Tax Number (CPF/CNPJ). Some remote destinations may take up to 60 days.
