FMA 12S 43.2V 44.4V Li-ion Battery Protection Board BMS PCM 15A

FMA 12S 43.2V Li-ion Battery Protection Circuit Board (BMS/PCM)

Professional-grade Battery Management System (BMS) protection circuit board designed for 12S lithium-ion battery packs. Provides comprehensive protection against overcharge, over-discharge, overcurrent, and short circuit conditions to ensure safe and reliable battery operation.

Key Features

• 12S Configuration: Designed for 12-cell series lithium-ion battery packs (43.2V nominal, 44.4V fully charged)
• Multi-Protection: Overcharge, over-discharge, overcurrent, and short circuit protection
• 15A Continuous Current: Supports up to 15A continuous discharge current
• Precision Voltage Monitoring: Individual cell voltage monitoring for balanced protection
• Compact Design: Space-efficient PCB layout for easy integration
• High Reliability: Quality components ensure long-term stable operation

Package Contents

• 1× FMA 12S BMS Protection Circuit Board

Technical Specifications

Applications

• 12S lithium-ion battery pack protection
• E-bike and electric scooter battery systems
• Power tool battery pack assemblies
• Energy storage systems
• Custom battery pack projects
• DIY battery rebuilds and upgrades

Protection Functions

Overcharge Protection: Automatically disconnects charging when any cell reaches the overcharge protection voltage (4.25V), preventing battery damage from excessive voltage.

Over-discharge Protection: Cuts off discharge when any cell voltage drops to the protection threshold (2.5V), preventing deep discharge that can permanently damage lithium cells.

Overcurrent Protection: Monitors discharge current and disconnects the load if current exceeds safe limits, protecting both the battery and connected devices.

Short Circuit Protection: Instantly disconnects the battery in the event of a short circuit, preventing fire hazards and equipment damage.

Installation & Wiring

Before Installation:

• Ensure all battery cells are balanced and at similar voltage levels
• Verify that the battery pack voltage matches the BMS specification (12S configuration)
• Prepare necessary tools: soldering iron, wire strippers, multimeter, heat-shrink tubing
• Work in a clean, well-ventilated area with proper ESD protection
• Wear safety glasses and insulated gloves

Wiring Guidelines:

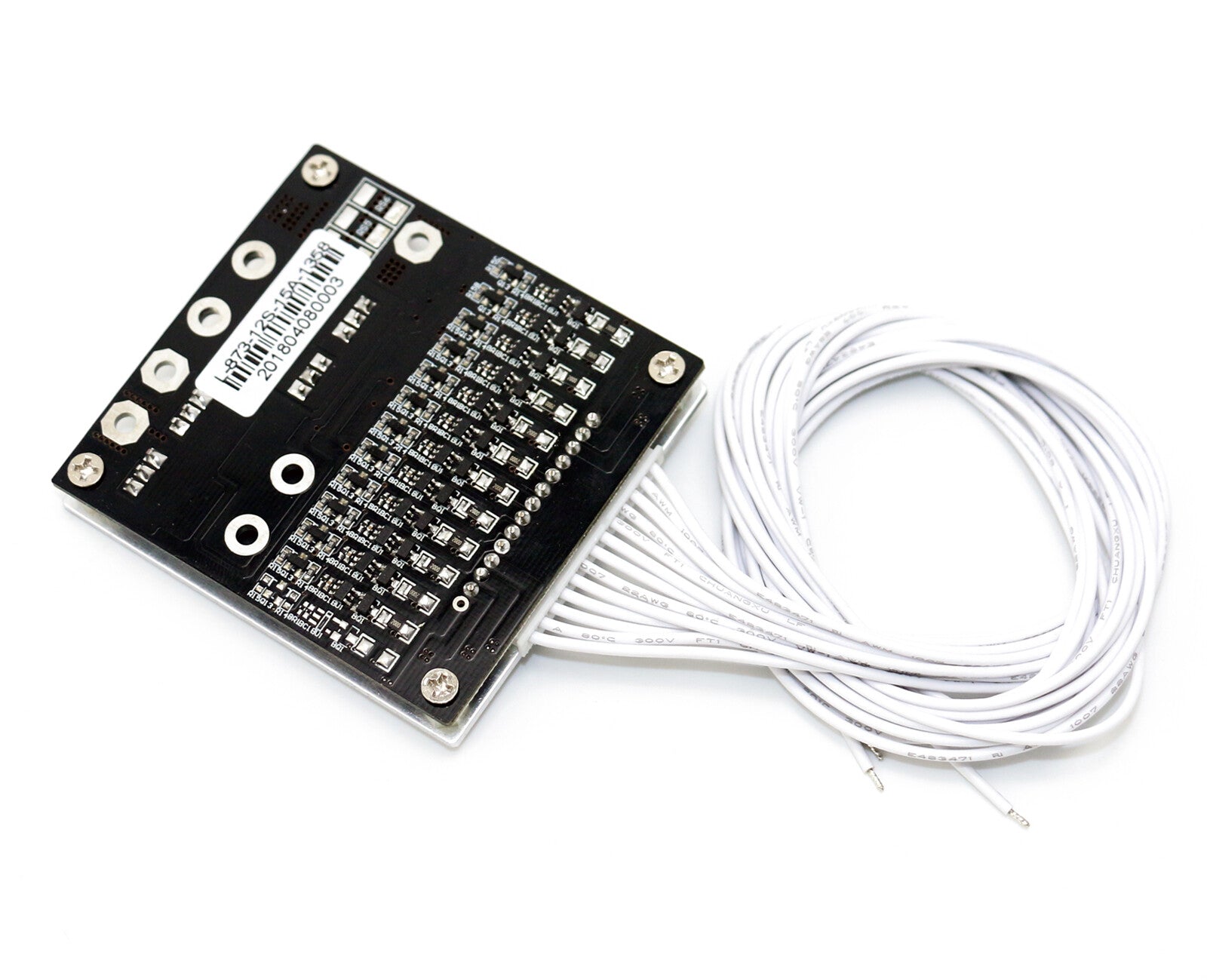

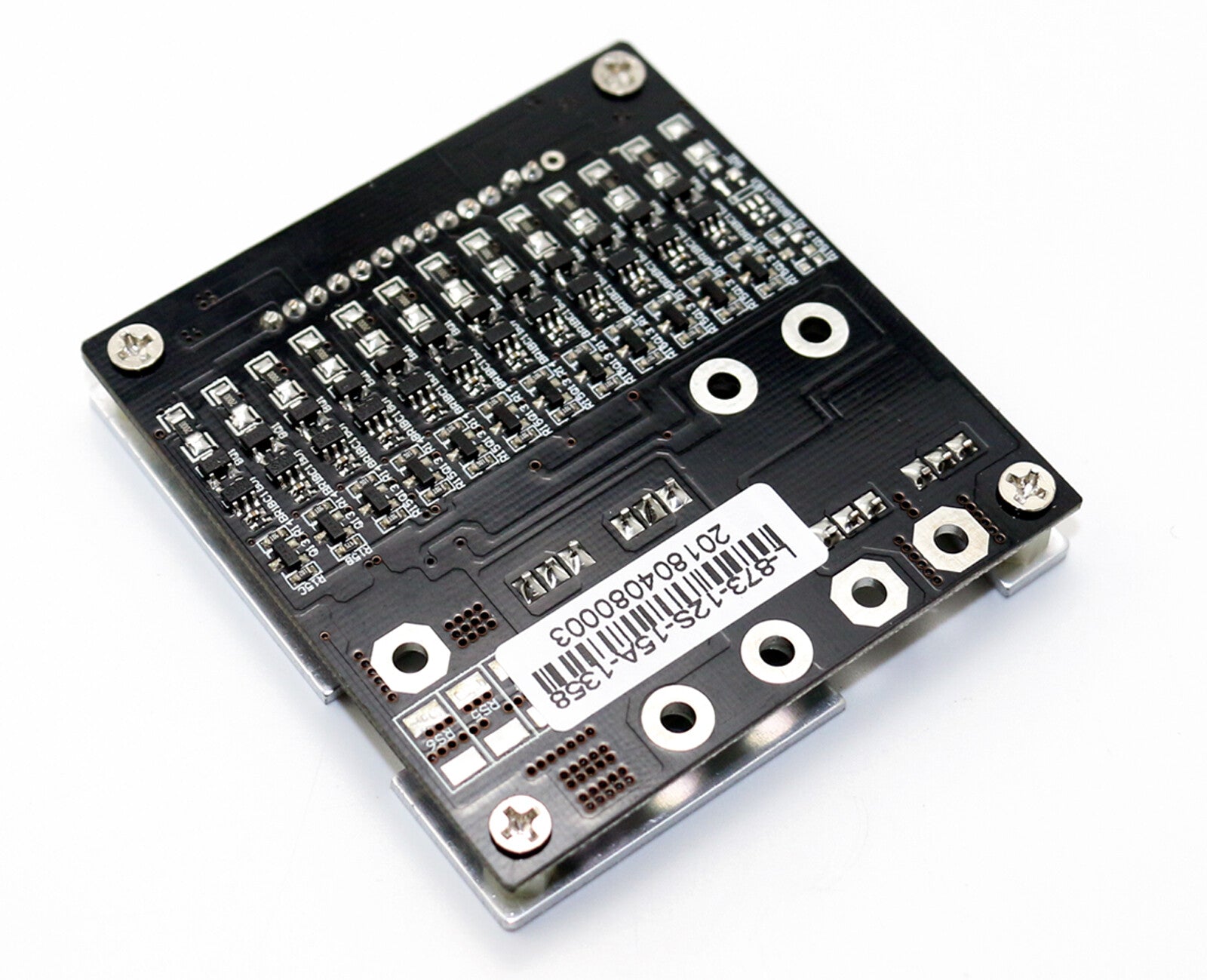

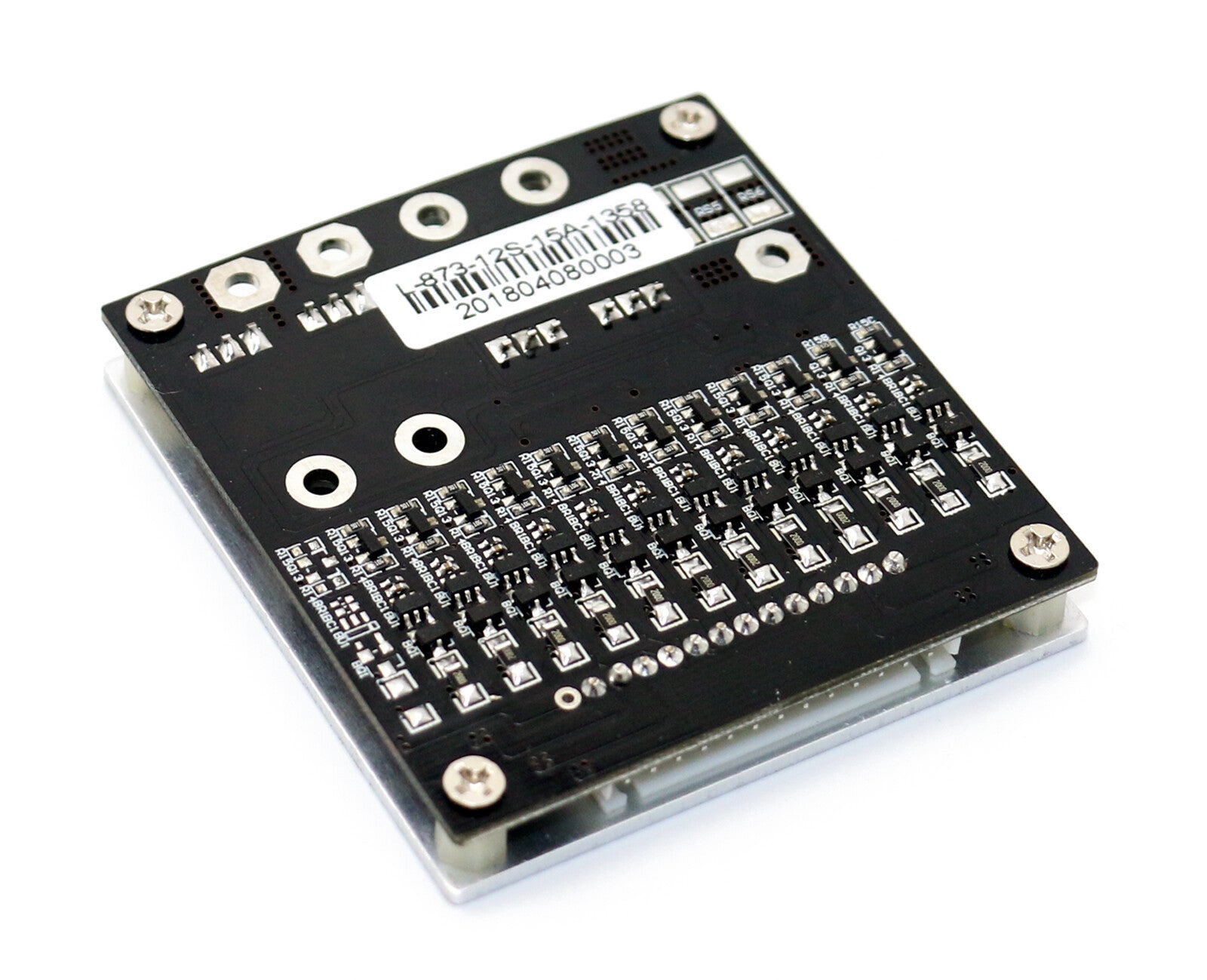

• Connect balance wires to each cell in the correct sequence (refer to product images)
• Use appropriate wire gauge for main power connections (minimum 14AWG for 15A)
• Double-check polarity before making final connections
• Ensure all solder joints are clean and secure
• Insulate all connections with heat-shrink tubing to prevent shorts
• Test voltage at each balance point with a multimeter before powering on

Required Skills:

• Understanding of lithium battery chemistry and safety
• Proficiency in soldering and electrical connections
• Ability to read wiring diagrams and follow technical specifications
• Knowledge of proper battery handling and safety protocols

Who Should NOT Attempt Installation:

• Individuals without electrical or electronics experience
• Those unfamiliar with lithium battery safety requirements
• Anyone without proper tools or workspace
• Minors without qualified adult supervision
• If unsure about any aspect of installation, consult a professional technician

Important Notes

Connector Customization: We ship the standard configuration as shown in the main product images. If you require specific connectors or custom wire arrangements, please refer to the product gallery images and contact us with your requirements before ordering.

Compatibility: This BMS is designed for 12S lithium-ion battery packs. Ensure your battery configuration matches before purchase. Using this BMS with incorrect battery configurations can result in improper protection and potential safety hazards.

Testing: After installation, perform thorough testing including voltage checks, charge/discharge cycles, and protection function verification before putting the battery pack into regular use.

Why Choose FMA BMS Products?

FMA specializes in high-quality battery management solutions for lithium-ion and lithium-polymer battery systems. Our BMS boards are manufactured using premium components and undergo rigorous quality control testing to ensure reliable protection and long service life. Each board is inspected and tested before shipment to guarantee it meets our strict quality standards.

Custom BMS Solutions

Need a different cell configuration, current rating, or custom features? We offer custom BMS design and manufacturing services. Contact us with your specifications including cell count, voltage requirements, current ratings, and any special features you need, and we'll create a tailored solution for your application.

Safety Information

Charging: Use only chargers designed for 12S lithium-ion battery packs with proper voltage and current specifications. Never exceed 50.4V charging voltage.

Storage: Store in a cool, dry place away from direct sunlight, heat sources, and flammable materials. Keep out of reach of children.

Operation: Do not bypass or disable protection functions. Do not expose to water, moisture, or conductive materials that could cause short circuits.

Temperature: Operate within recommended temperature range. Avoid extreme temperatures during charging and discharging.

Disposal: Dispose of according to local regulations for electronic waste. Do not incinerate or dispose of in regular trash.

Inspection: Regularly inspect for signs of damage, overheating, or component failure. Discontinue use immediately if any abnormalities are detected.
