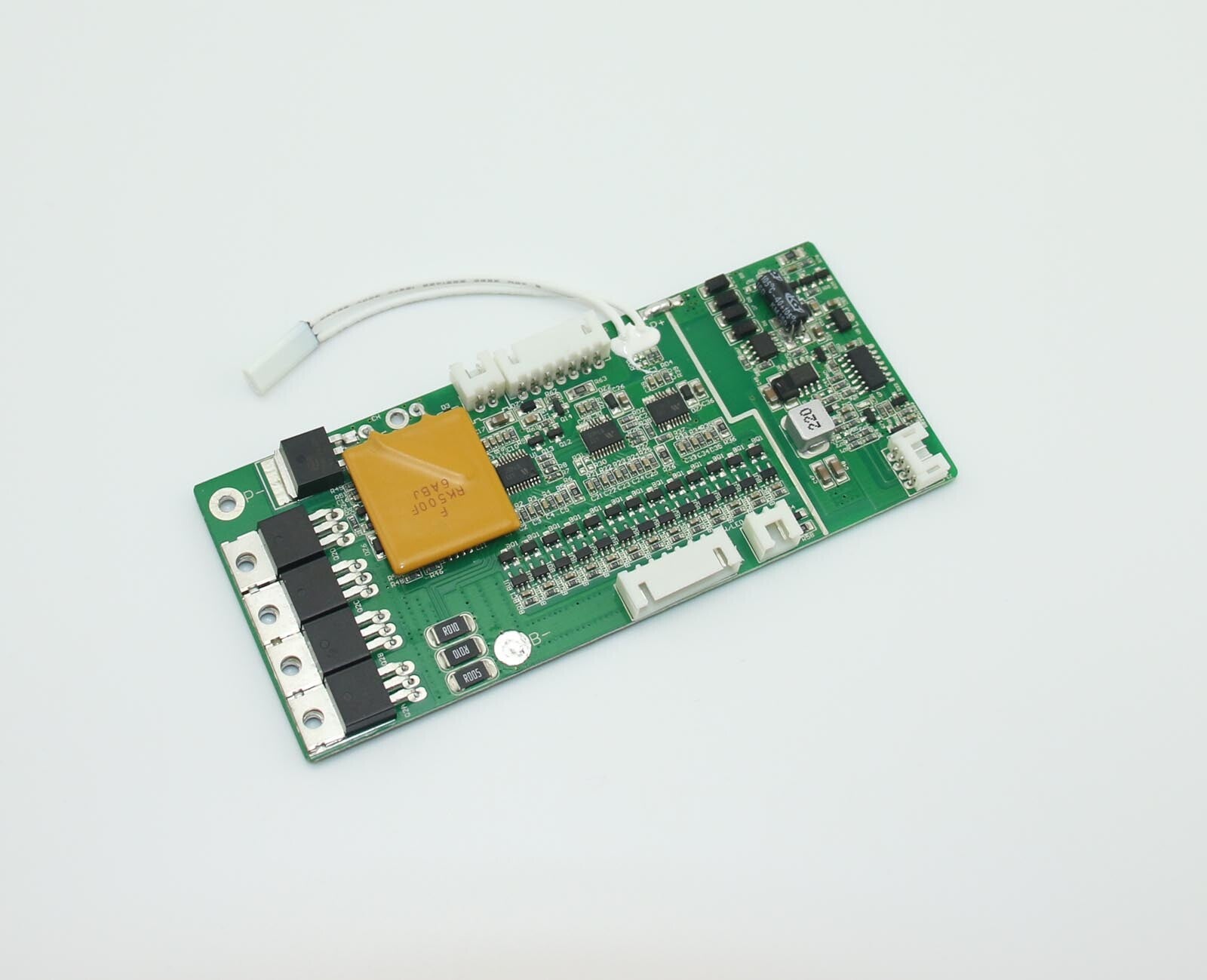

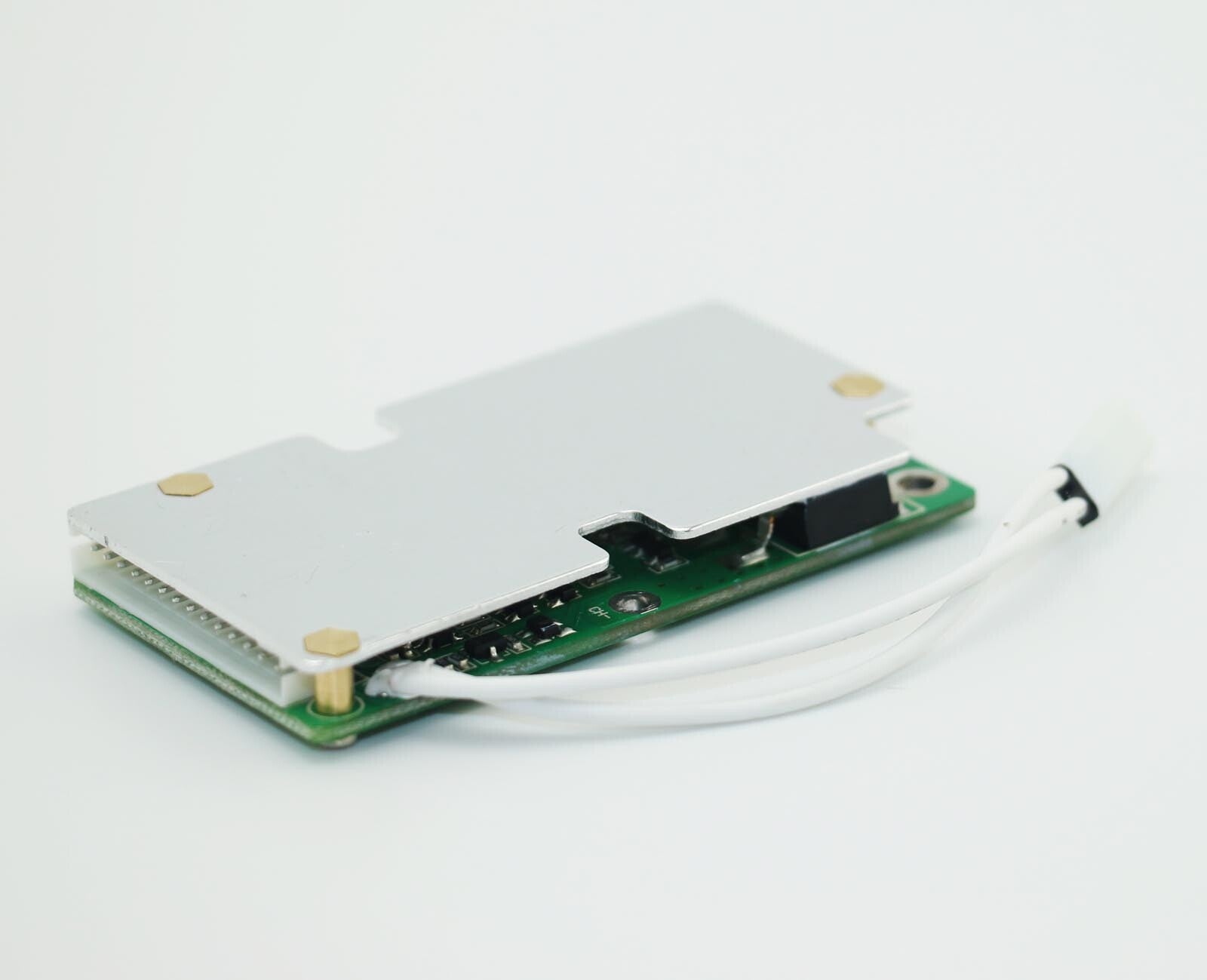

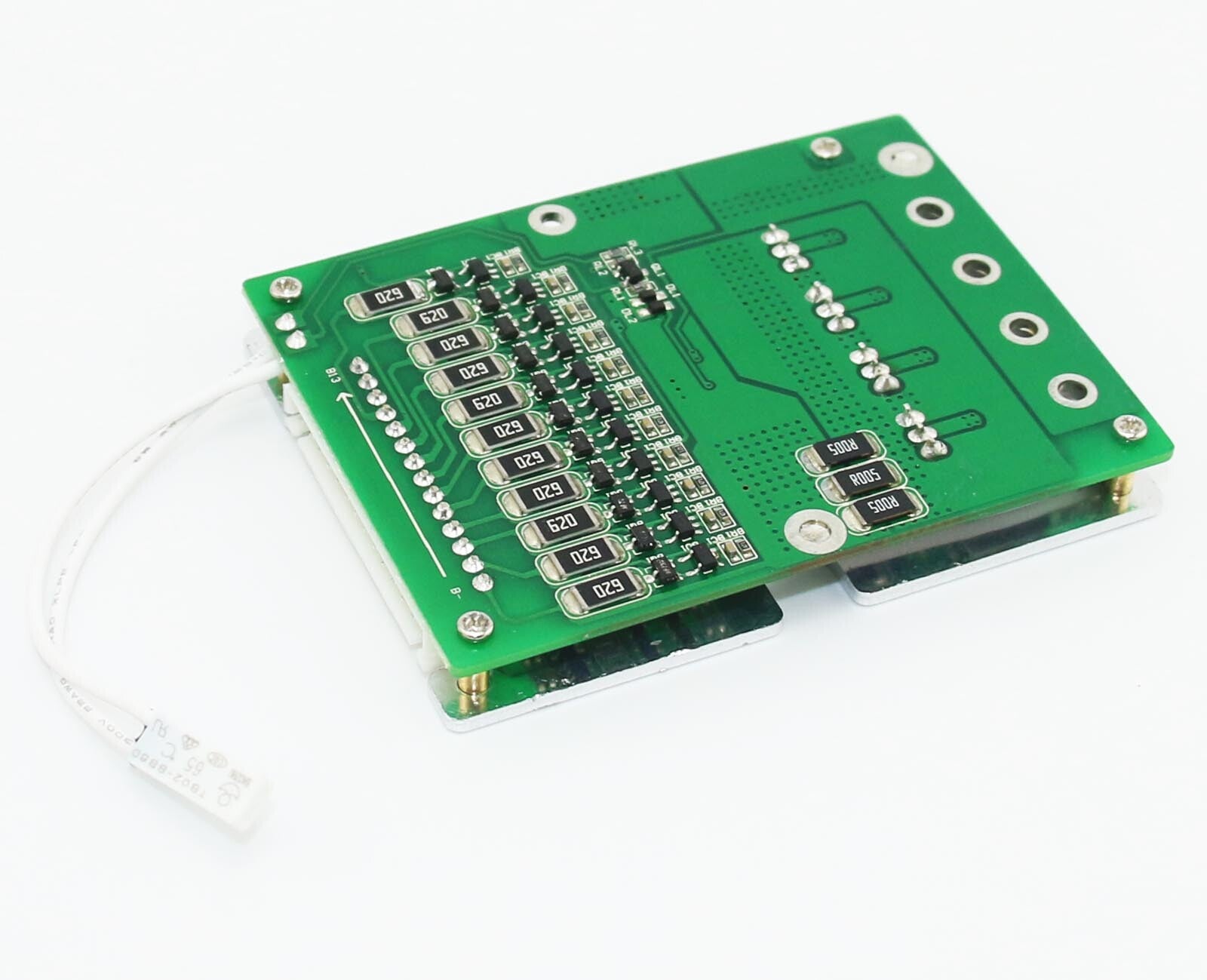

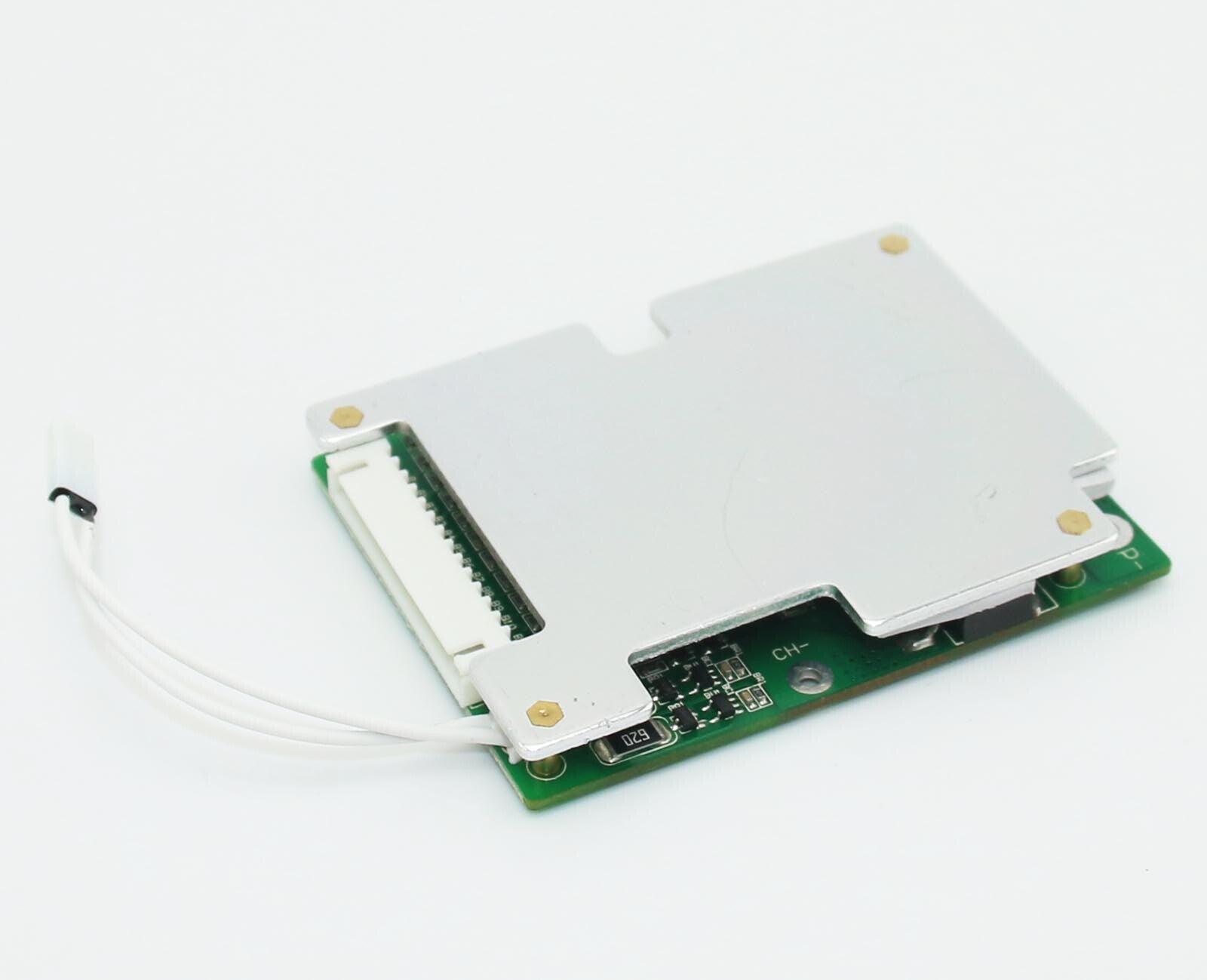

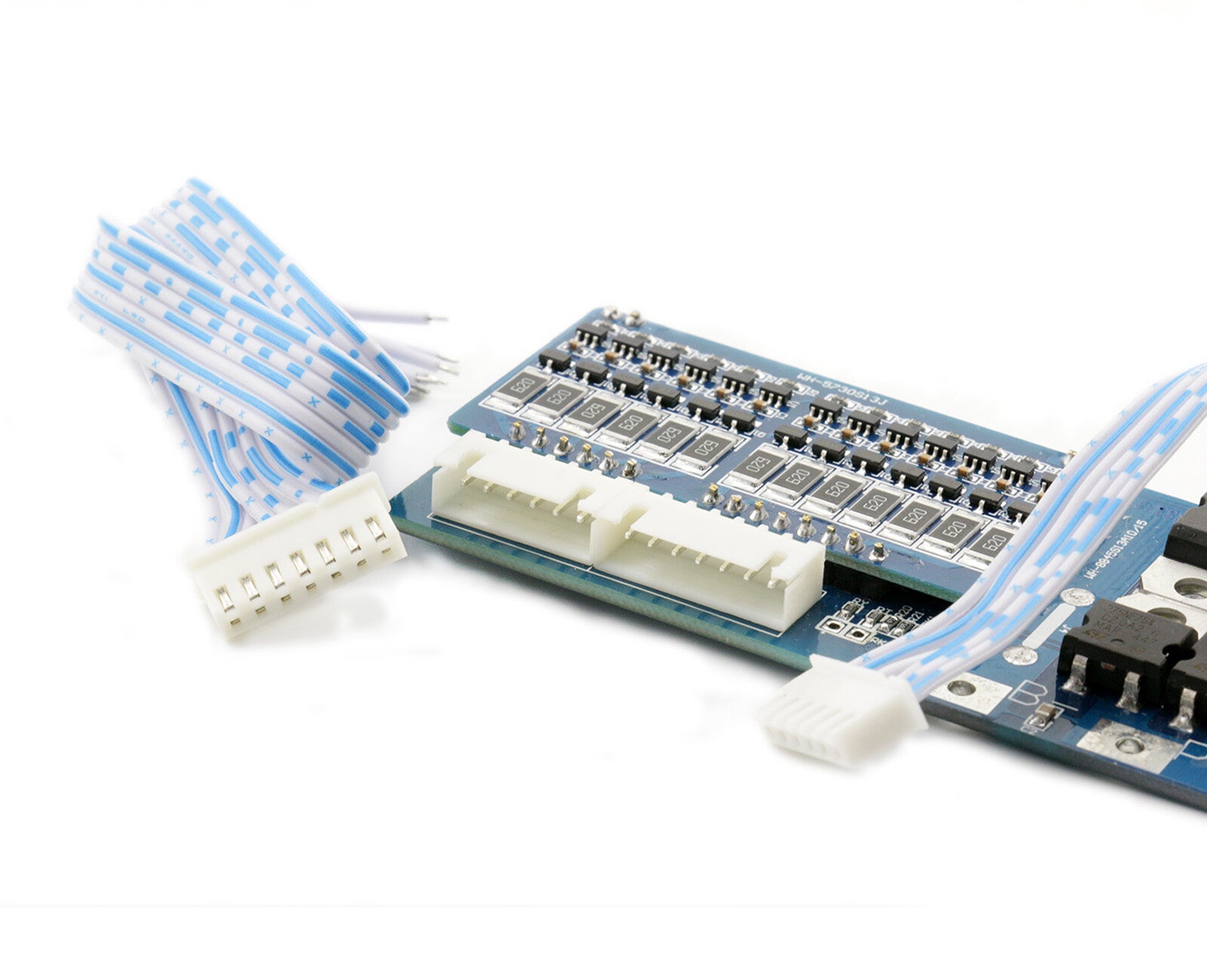

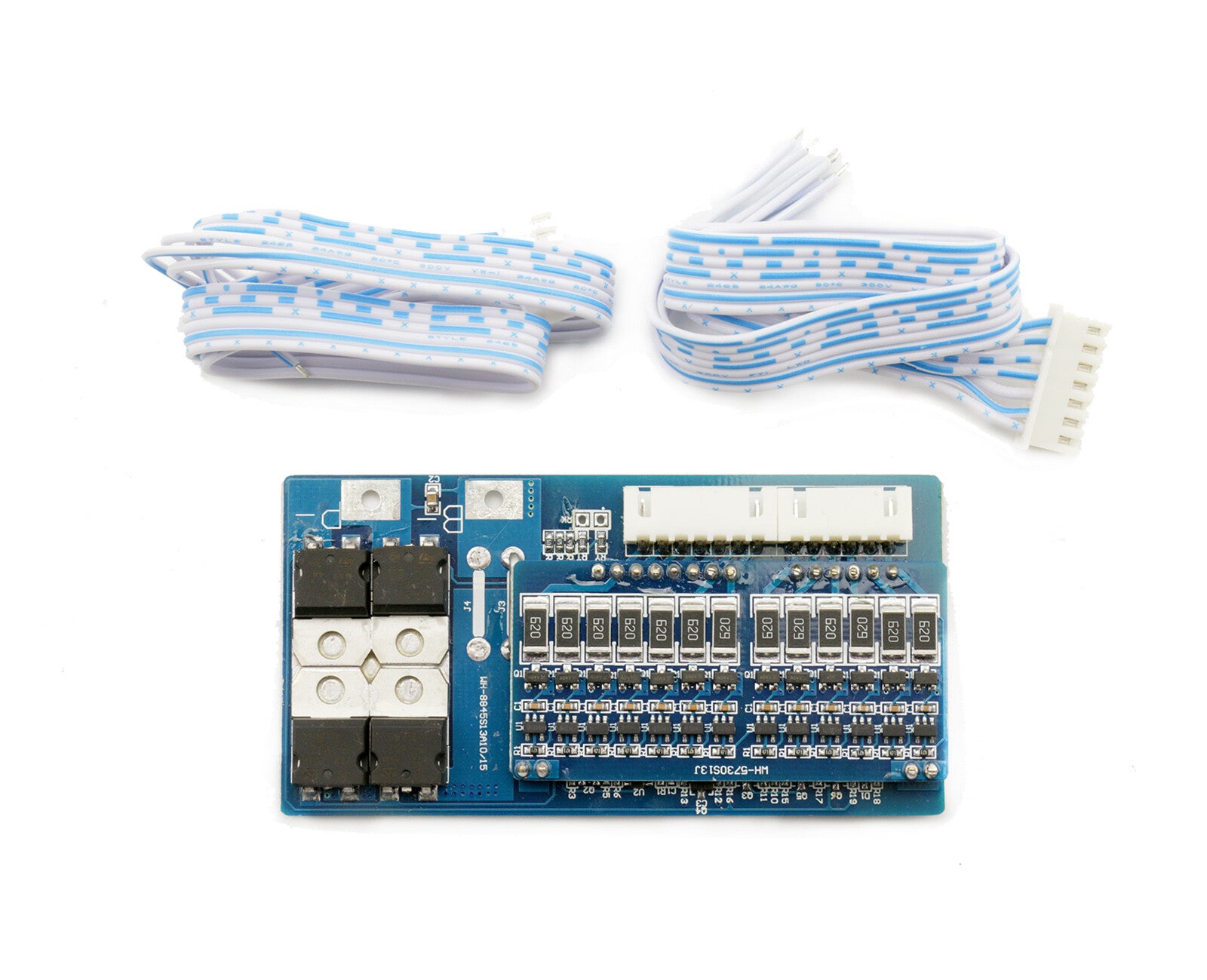

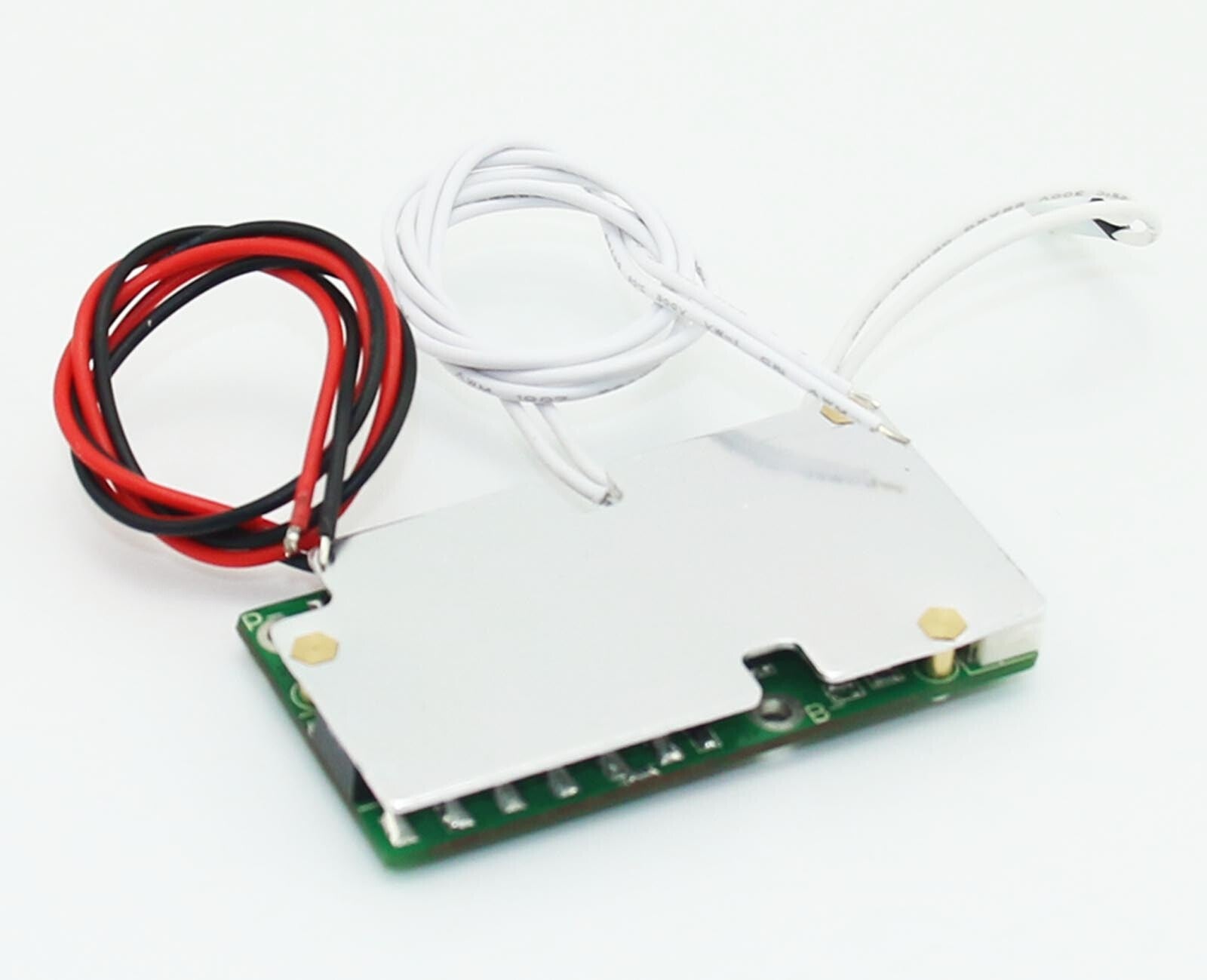

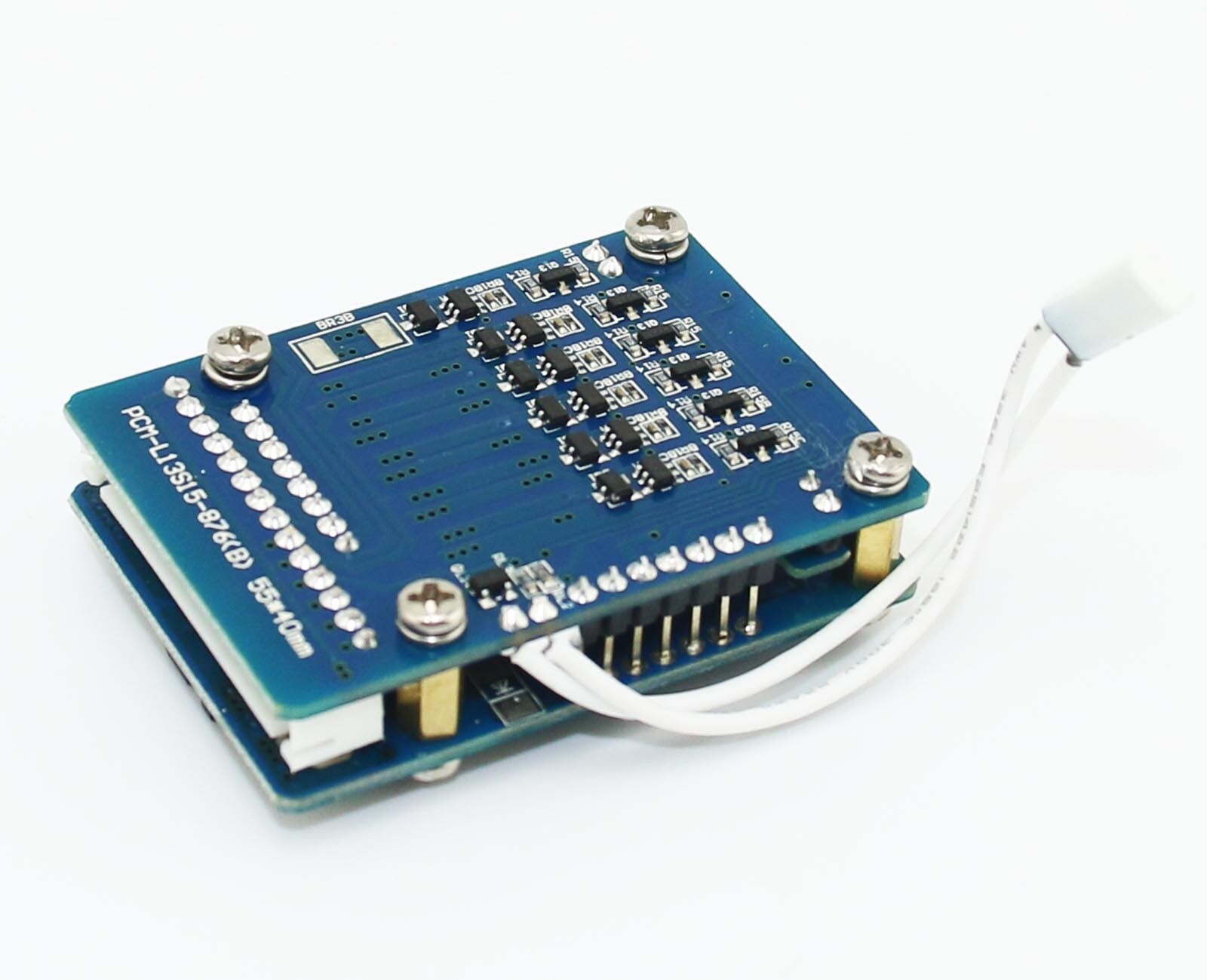

FMA 13S 46.8V 48V Li-ion Li-Po Battery Protect Circuit Management Board PCM BMS

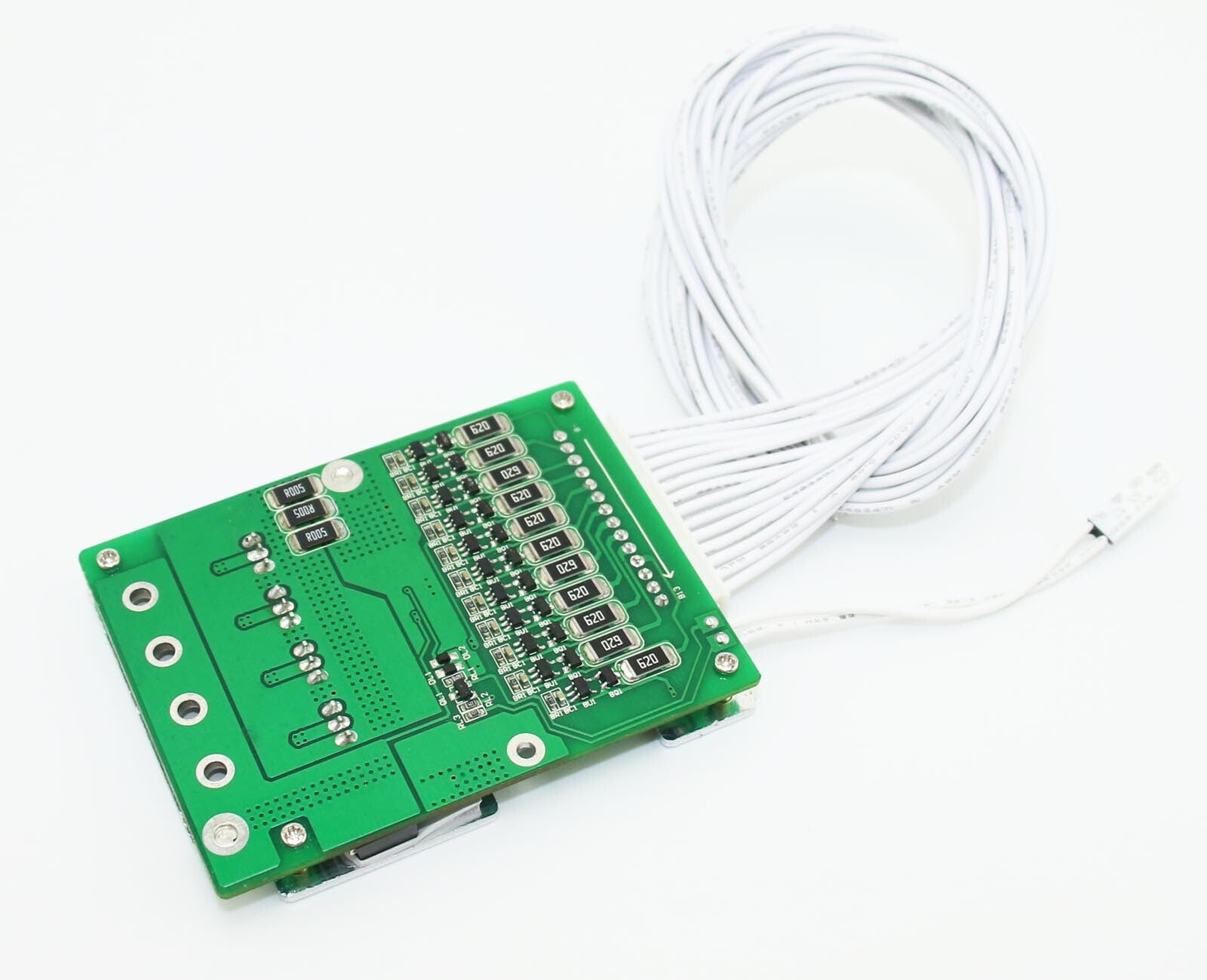

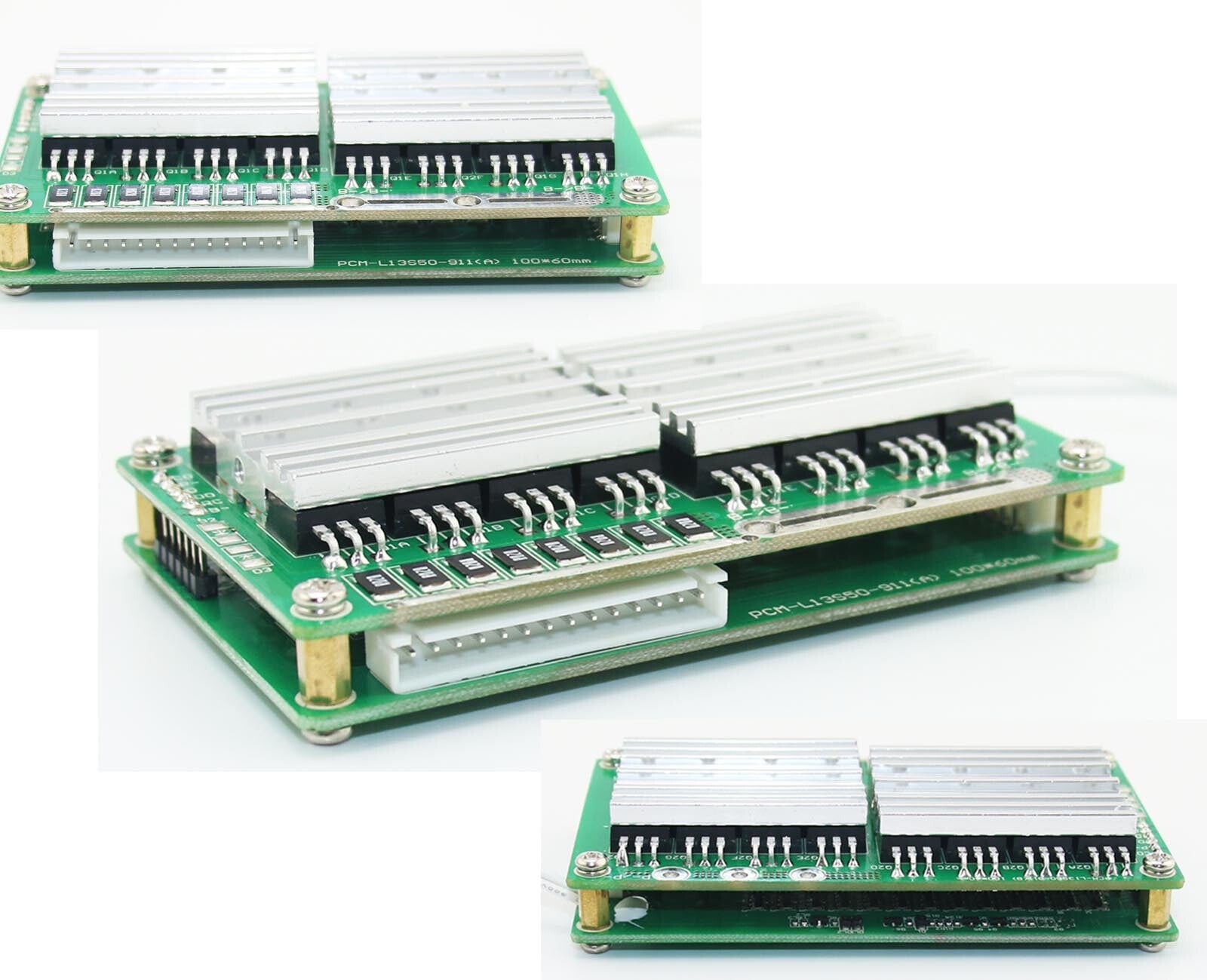

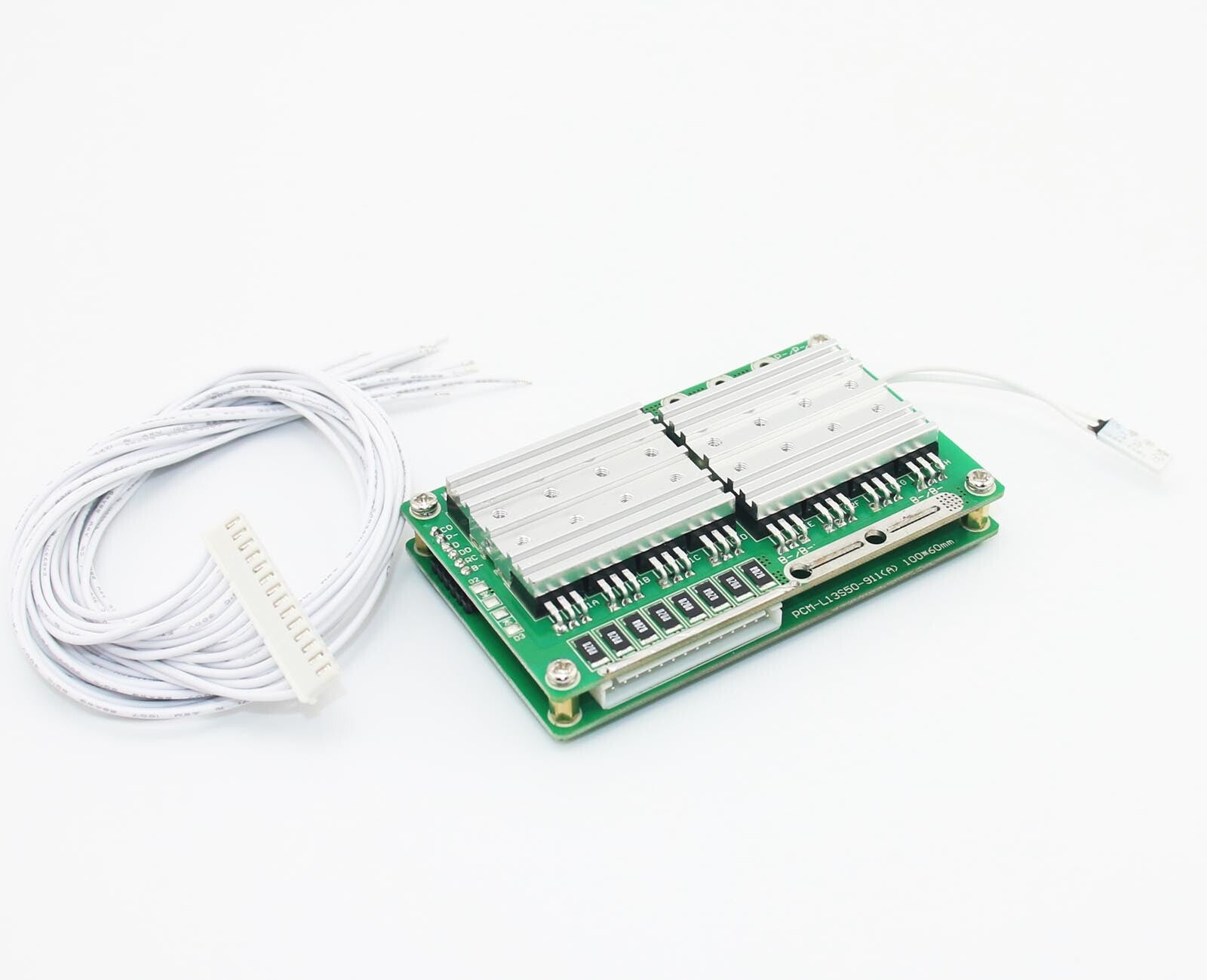

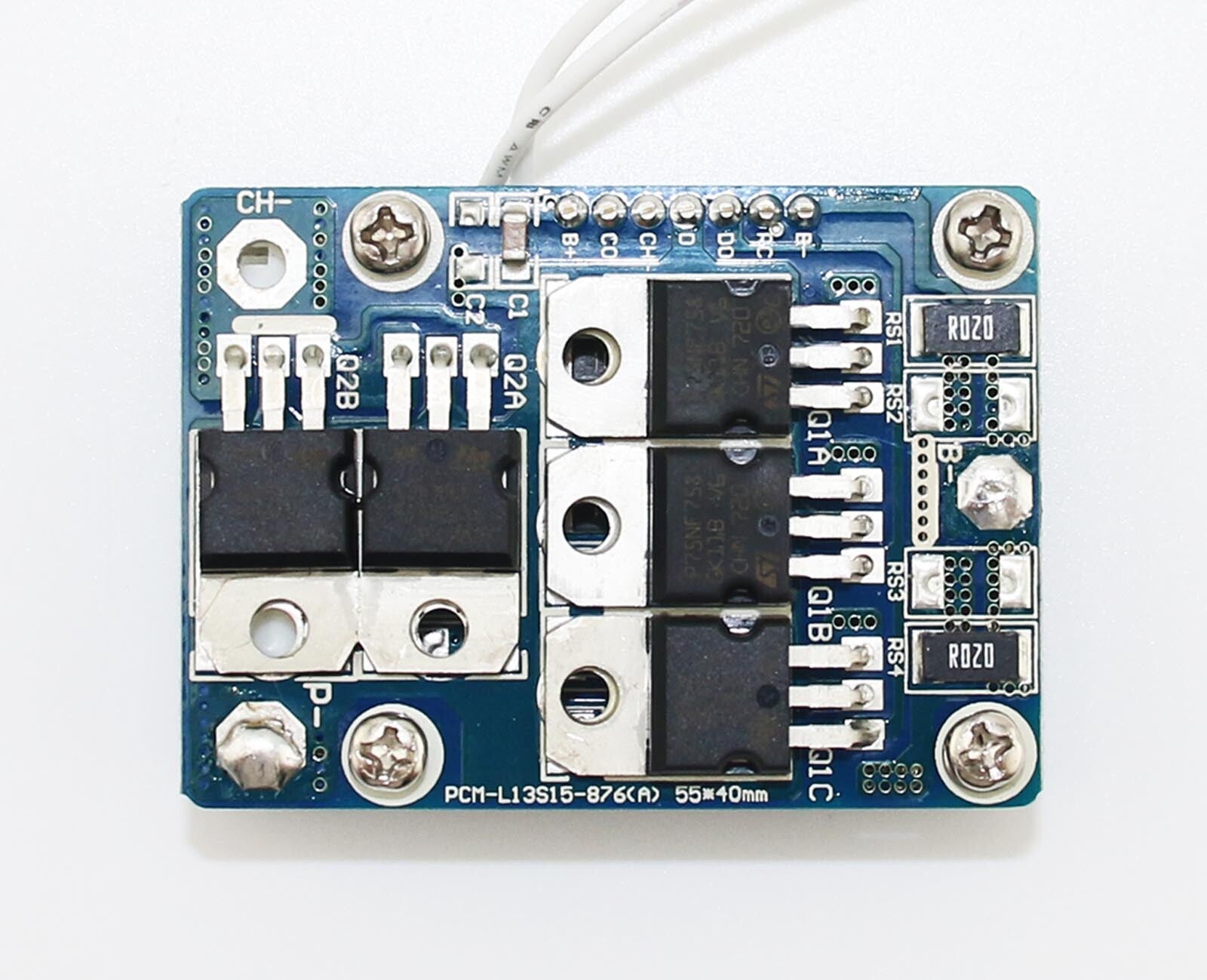

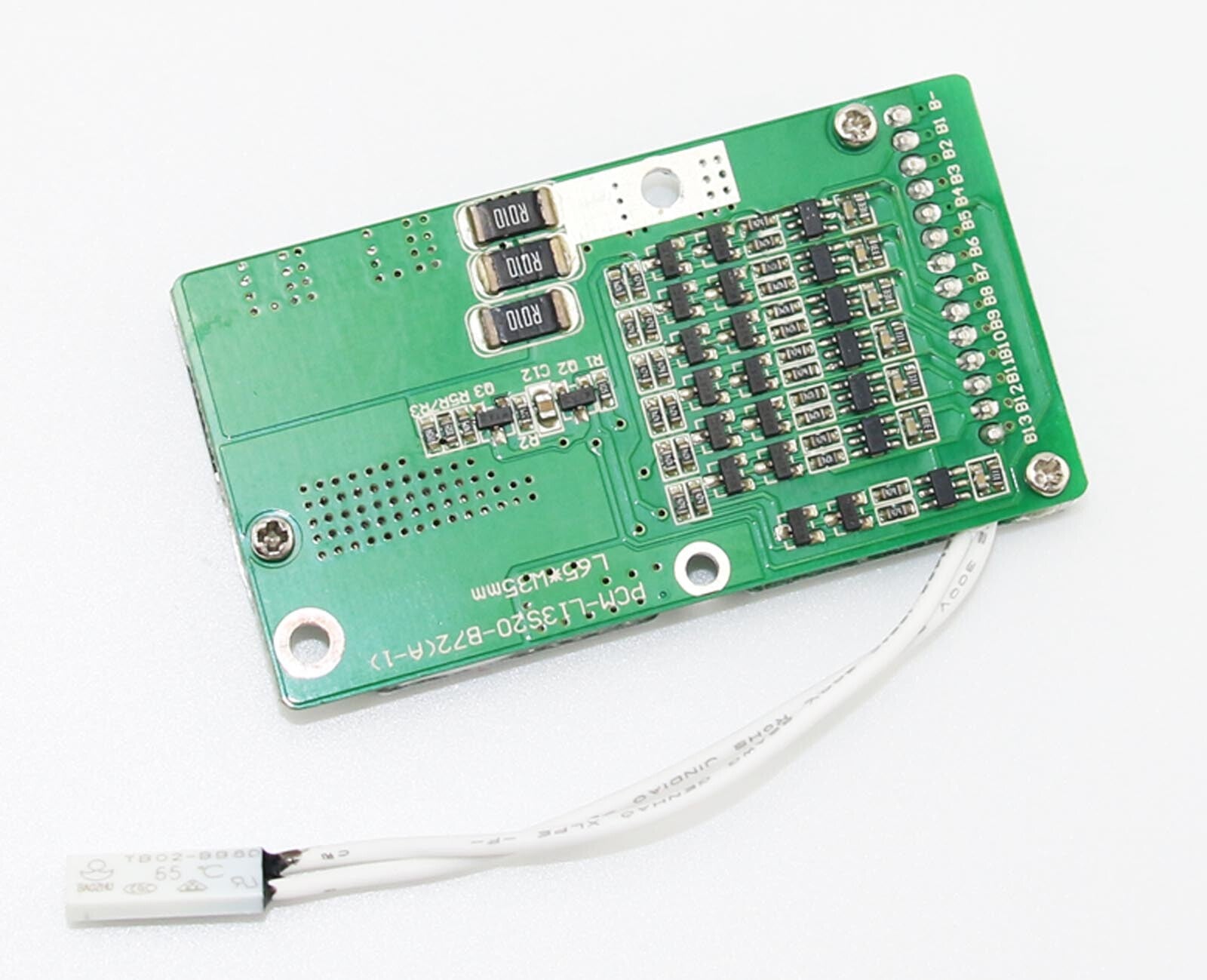

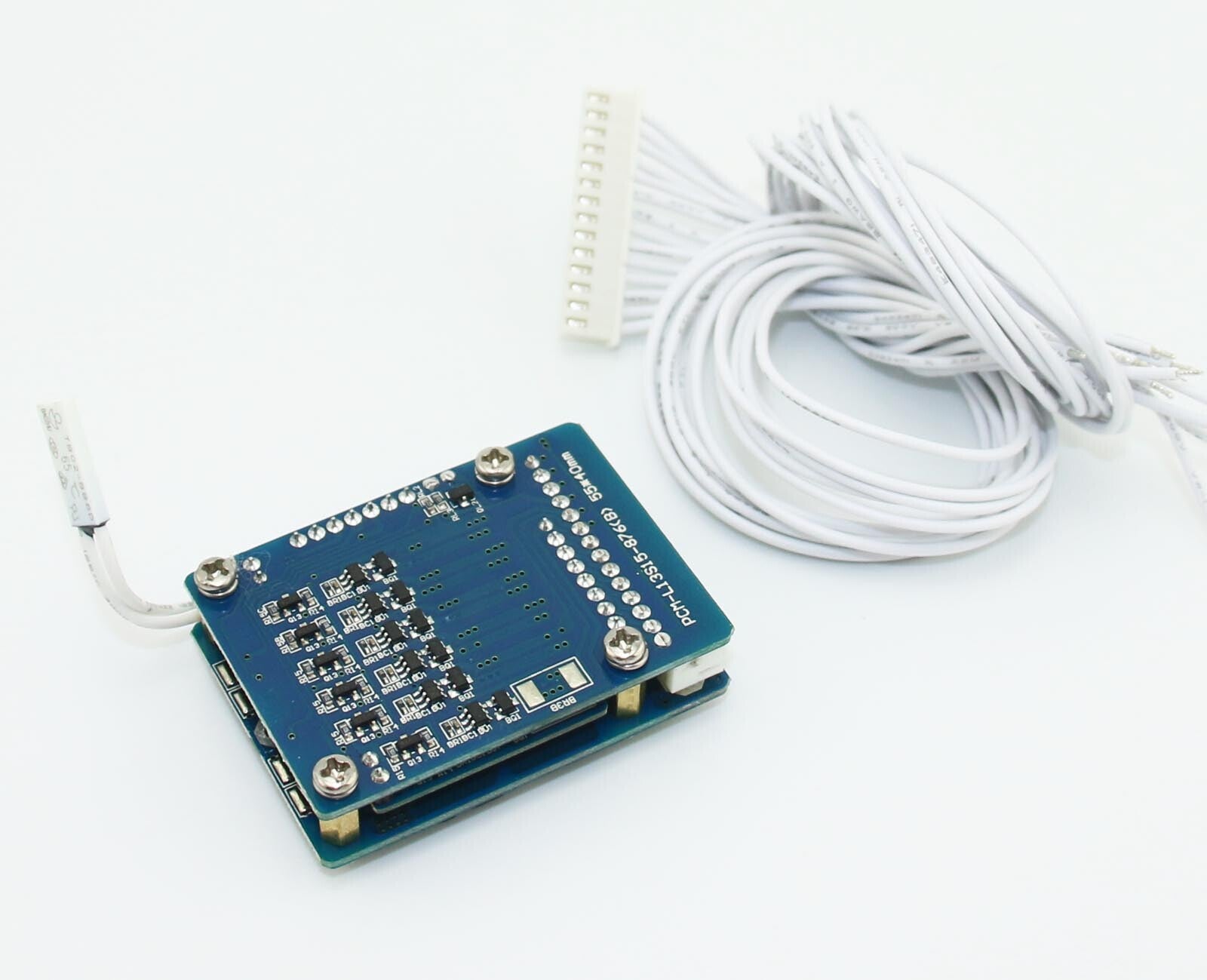

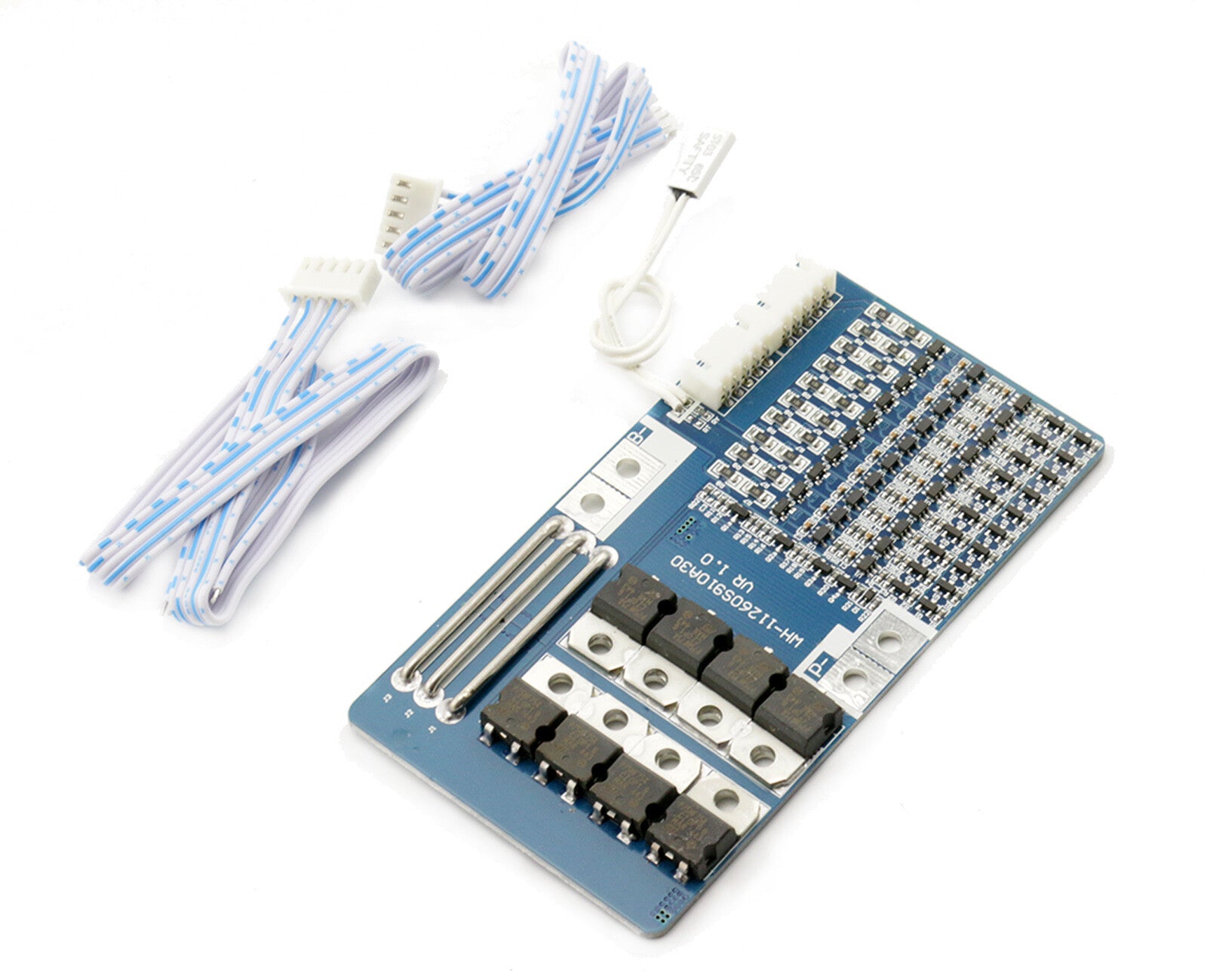

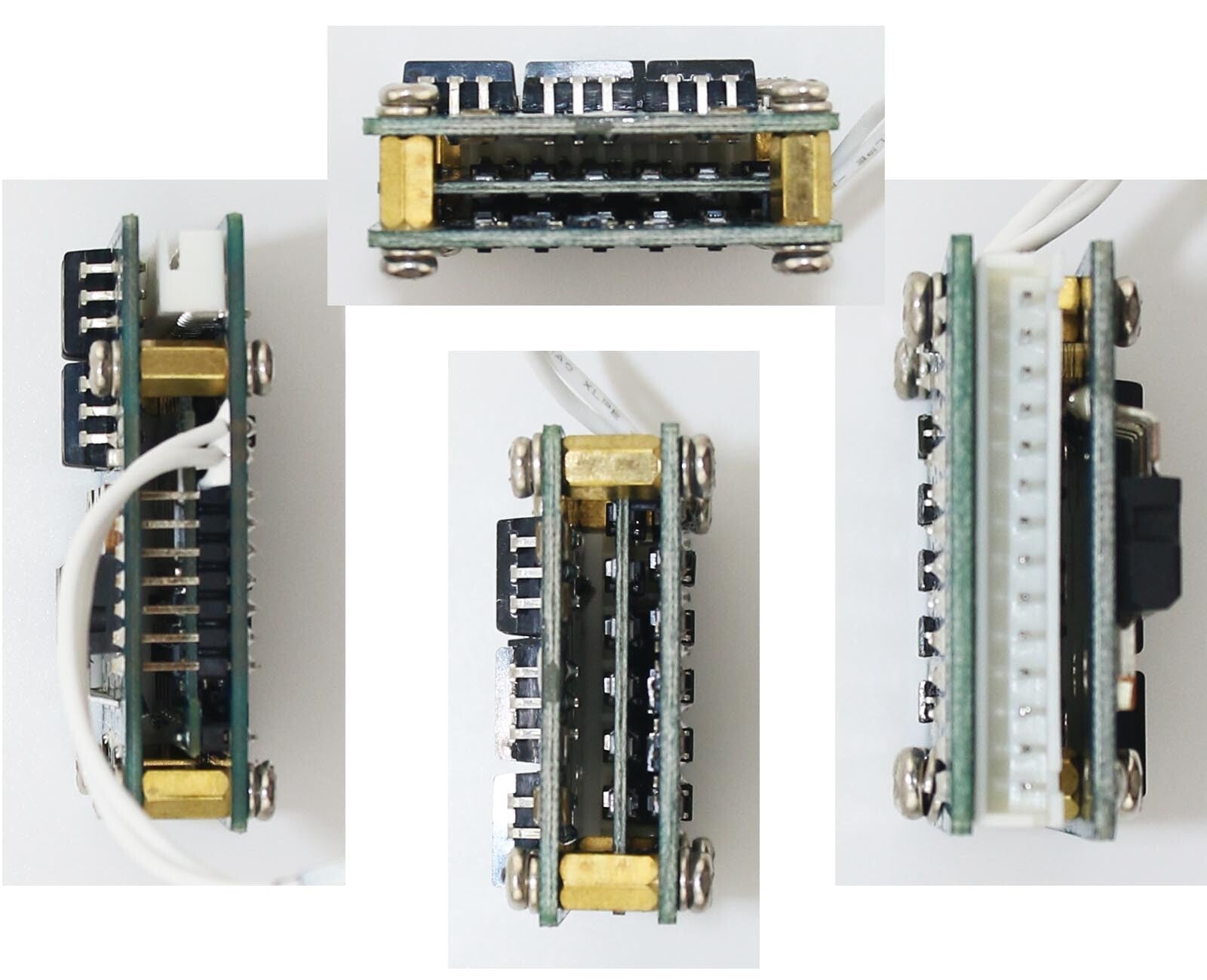

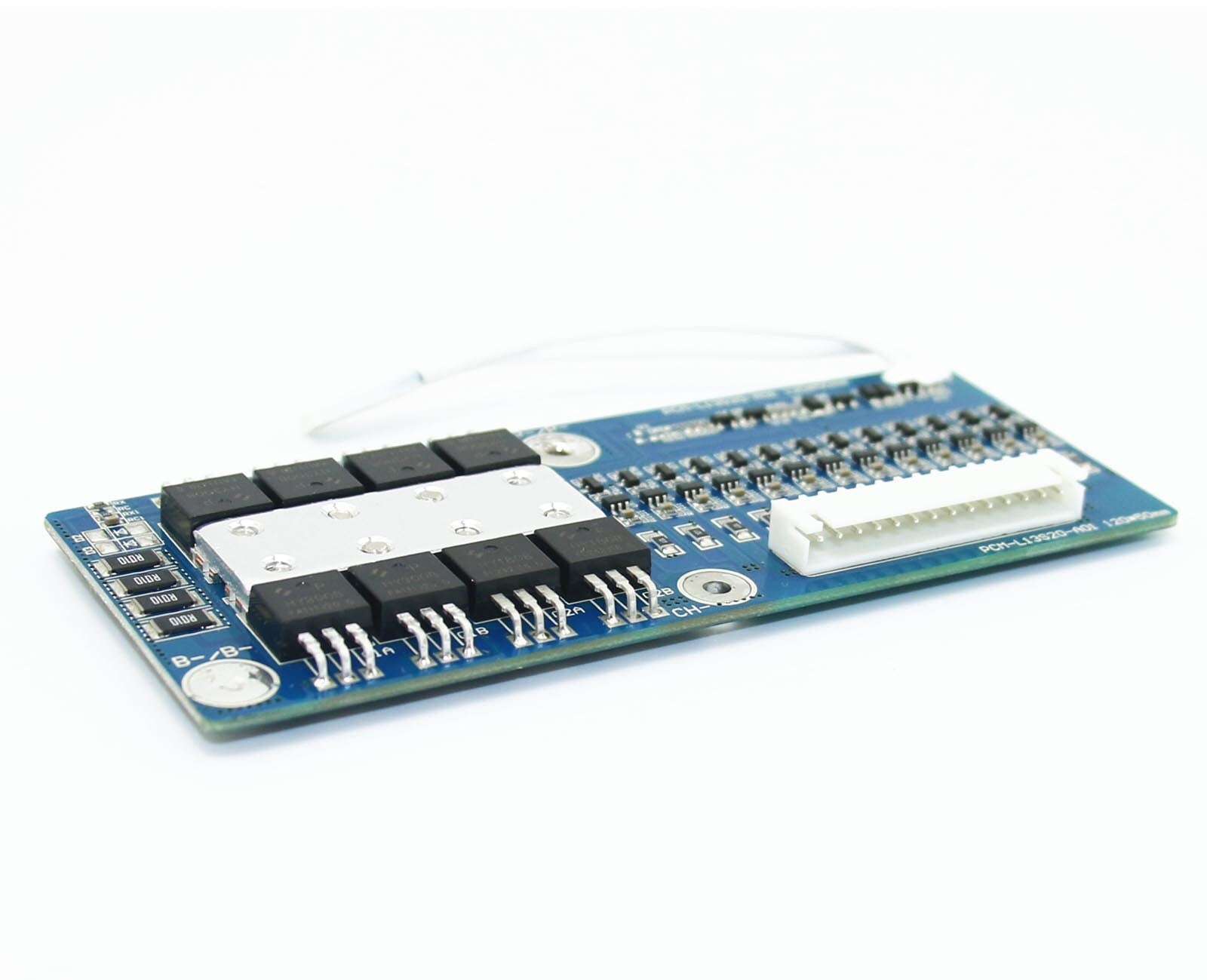

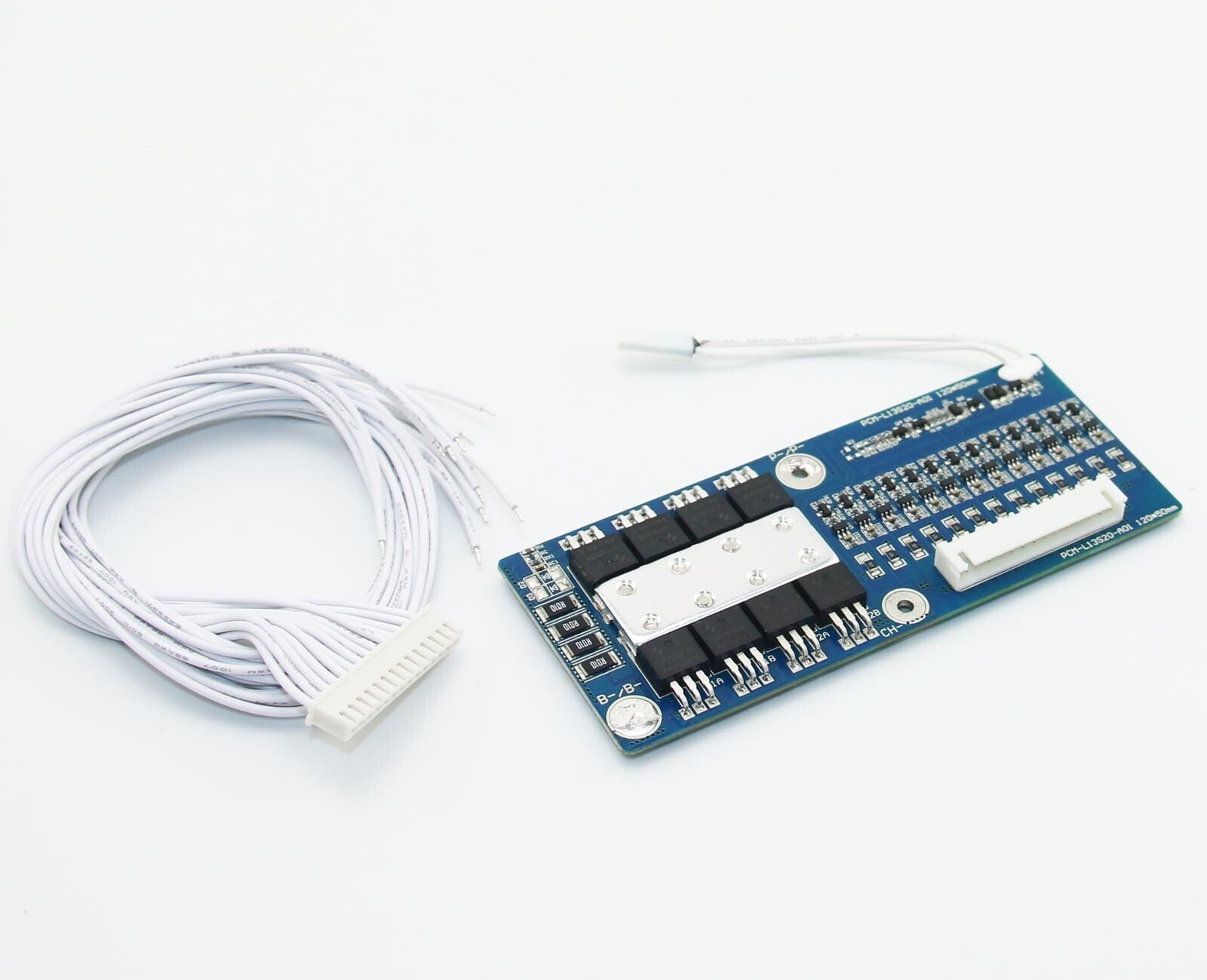

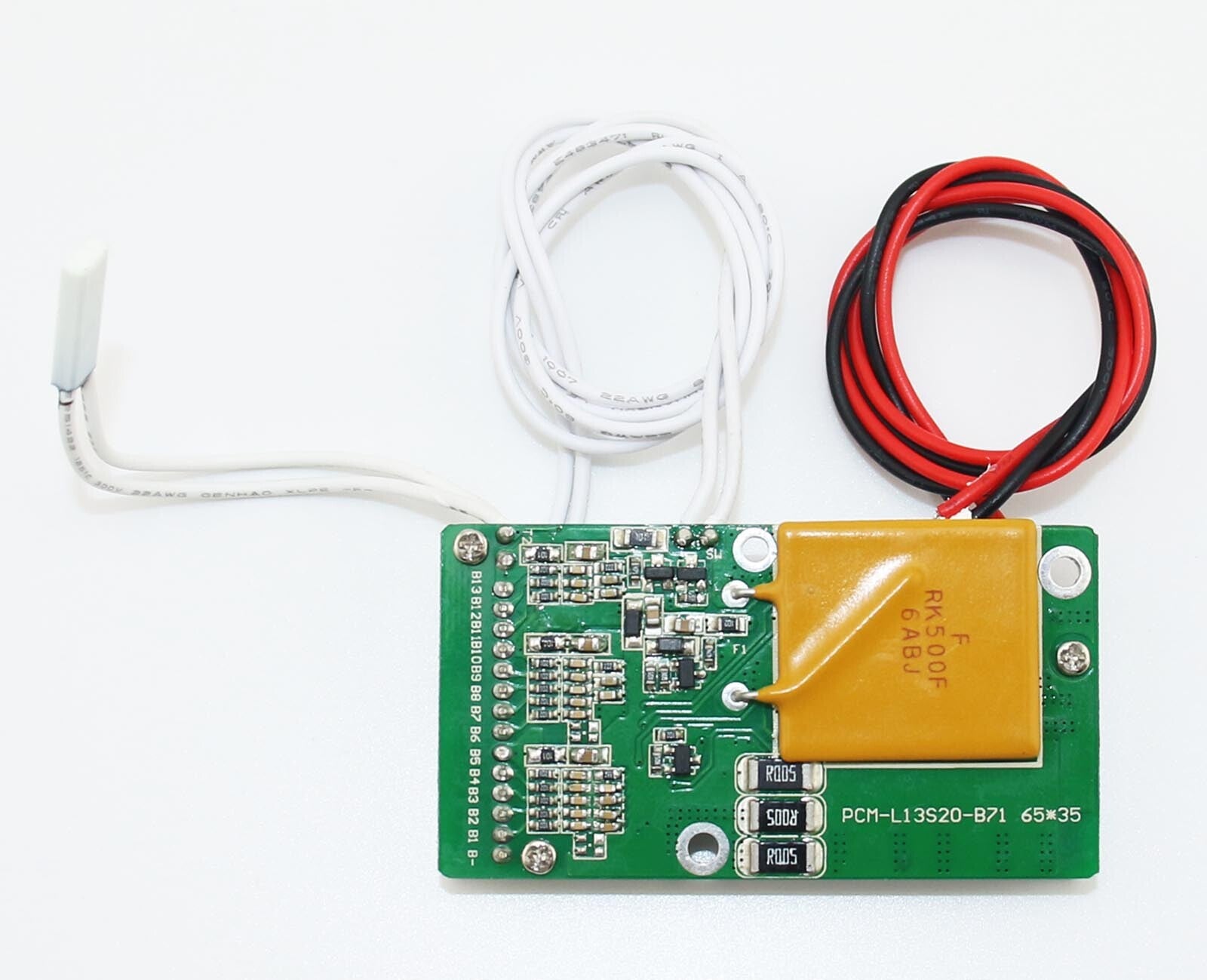

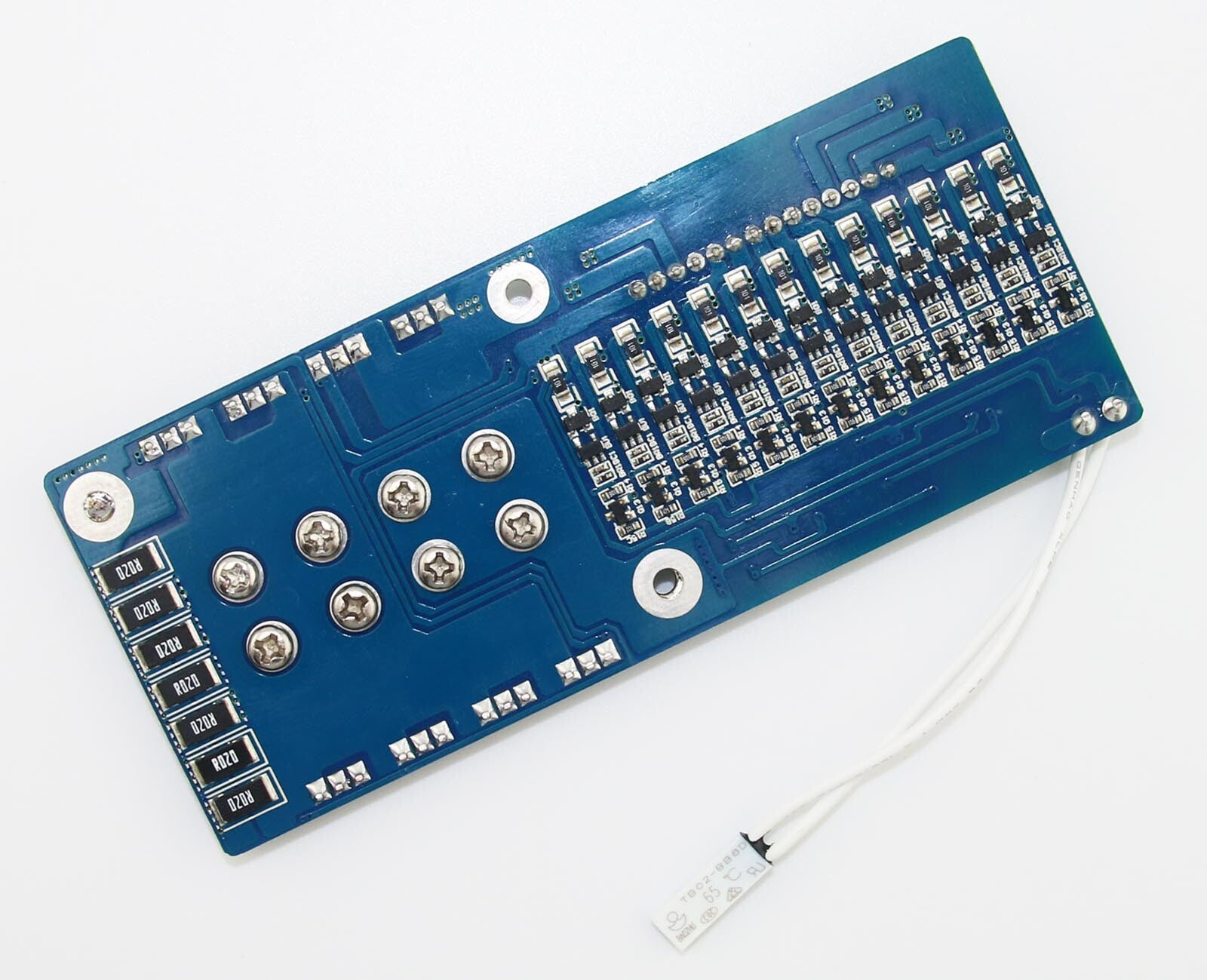

13S 48V Li-ion/LiPo Battery Protection Board (BMS/PCM) - 8 Models Available

Professional Battery Management System (BMS) / Protection Circuit Module (PCM) specifically designed for 13S (46.8V/48V) lithium-ion and lithium-polymer battery packs. Available in 8 different models with current ratings from 10A to 40A and various sizes. Features comprehensive protection including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, plus built-in 13-cell balancing function. Perfect for 48V e-bikes, electric scooters, solar energy storage systems, and high-power applications.

Key Features

• 48V System Compatible: 13S configuration (46.8V nominal, 54.6V max)
• 8 Models Available: Choose from 10A to 40A current ratings
• Li-ion/LiPo Compatible: Works with both battery chemistries
• Comprehensive Protection: Overcharge, over-discharge, overcurrent, short circuit, temperature
• 13-Cell Balancing: Built-in balancing for all 13 cells

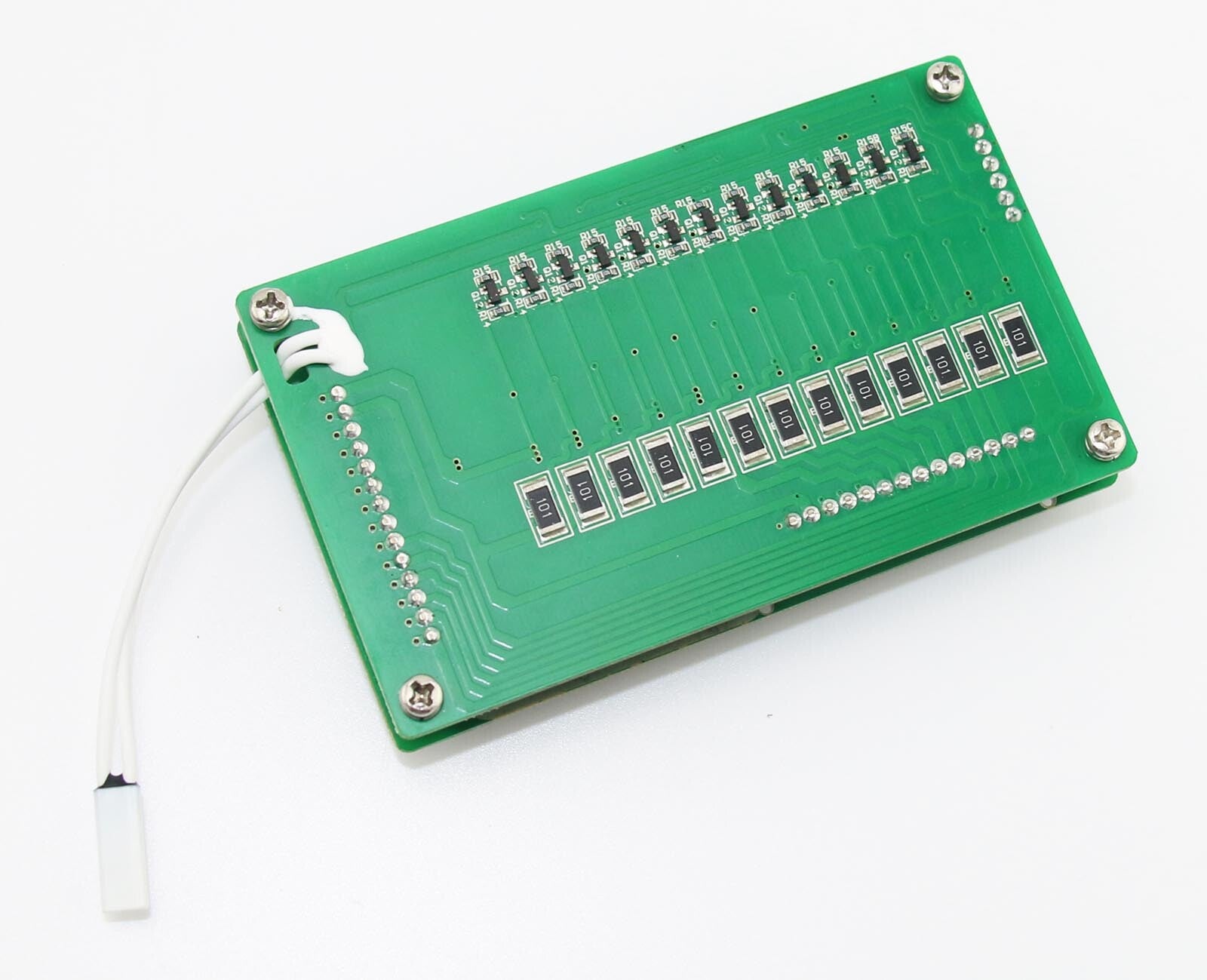

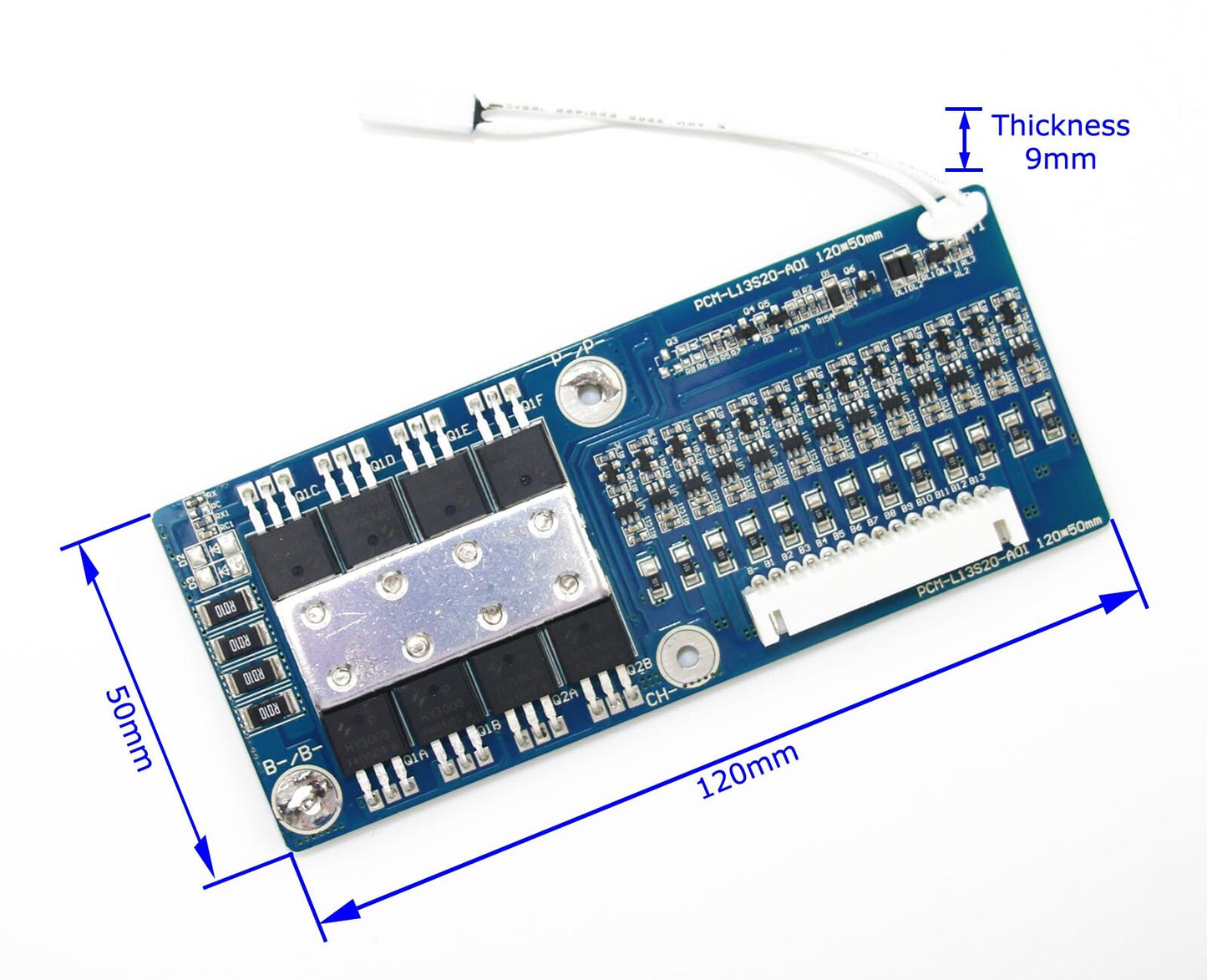

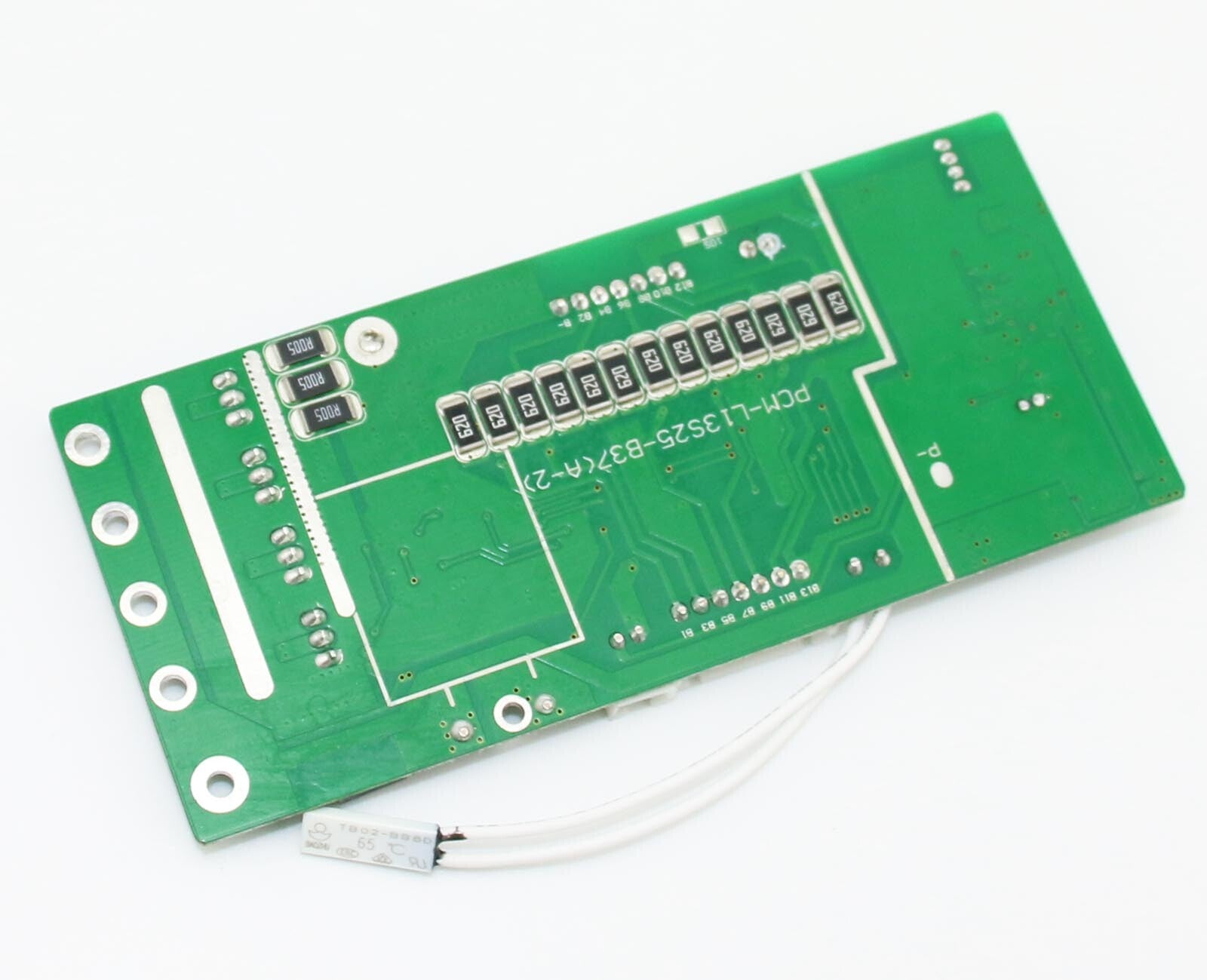

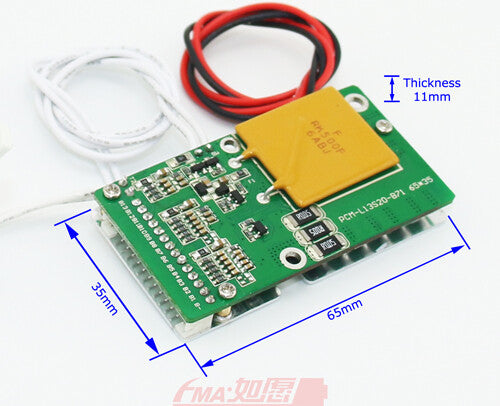

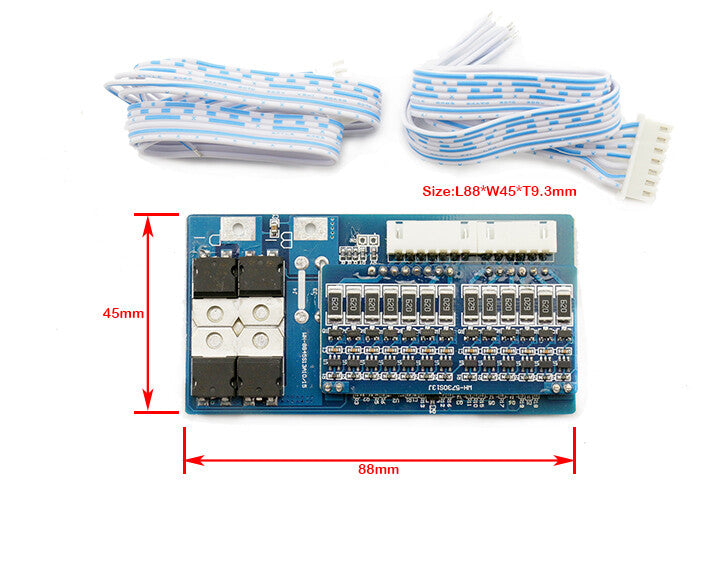

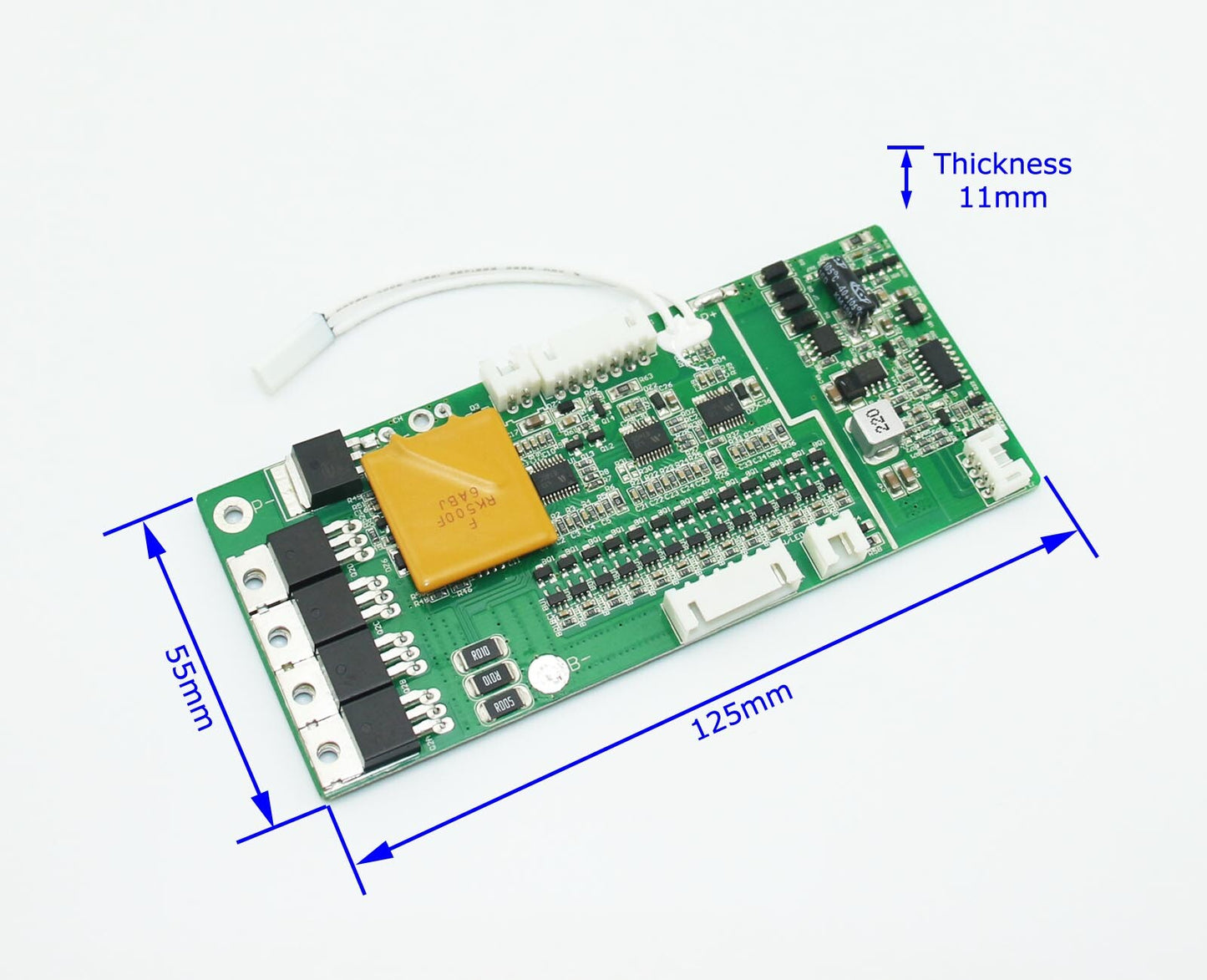

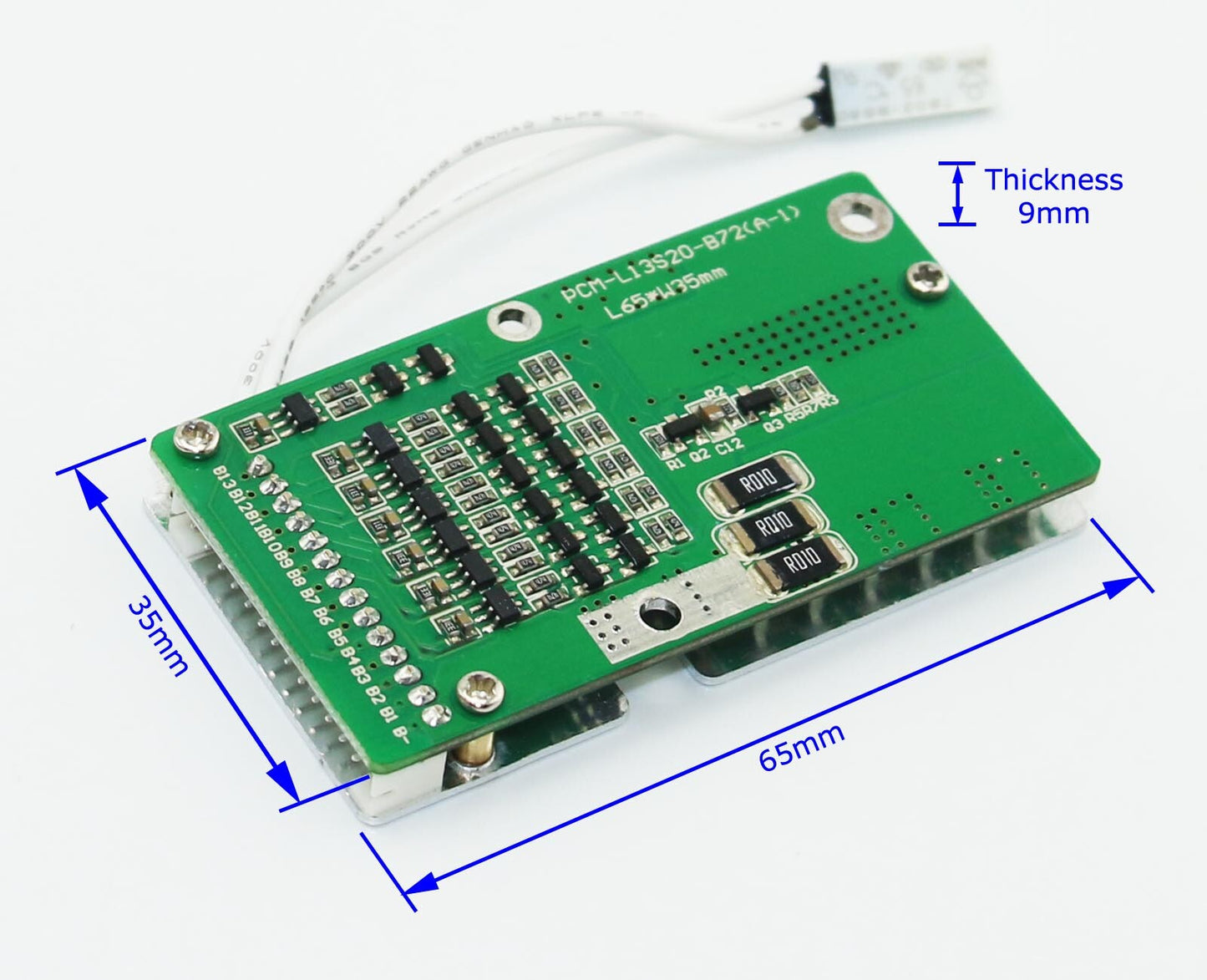

• Multiple Sizes: Various form factors from 55×40mm to 125×55mm
• Quality Components: Reliable MOSFETs and protection ICs
• Low Self-Consumption: Minimal power drain on battery

Package Contents

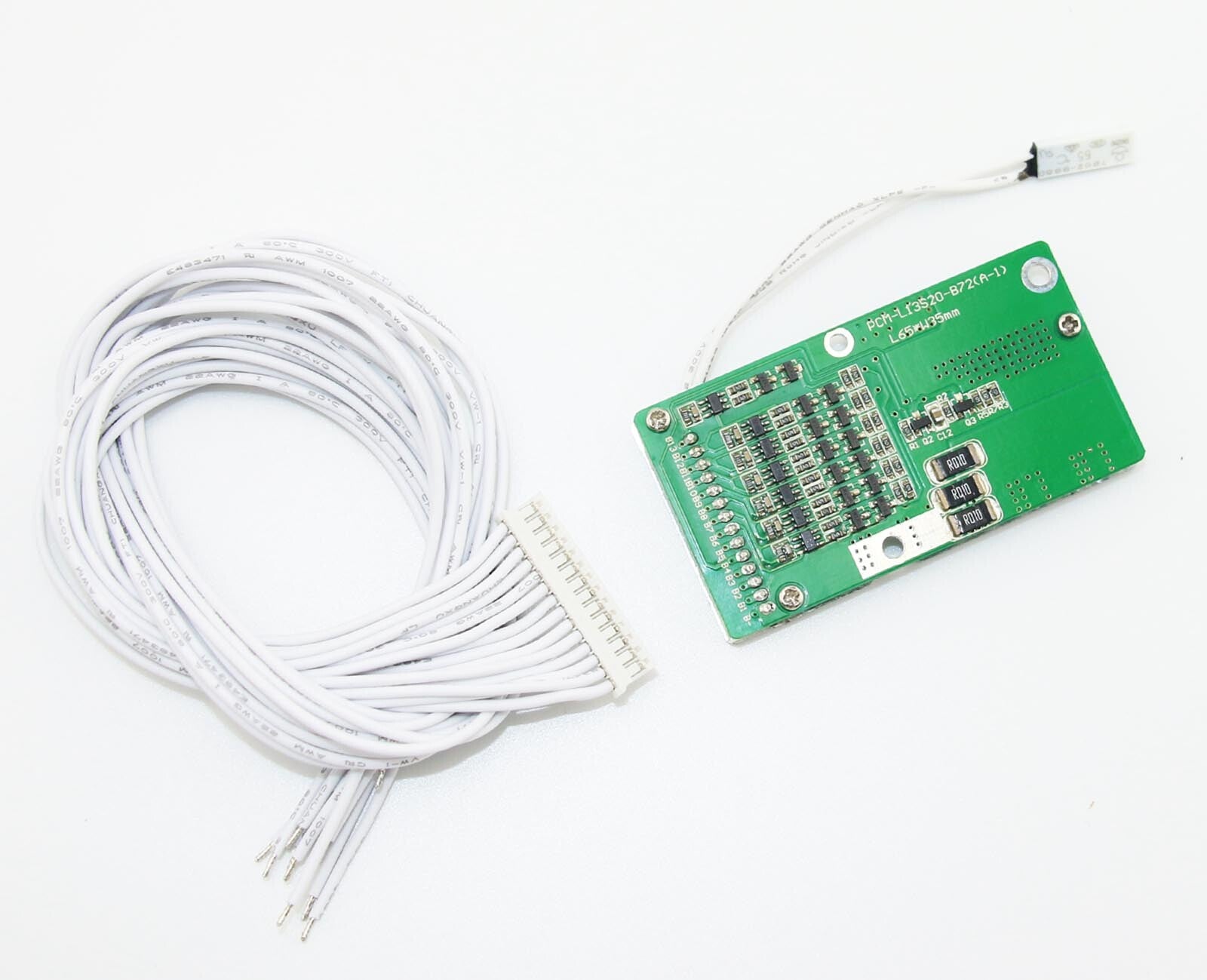

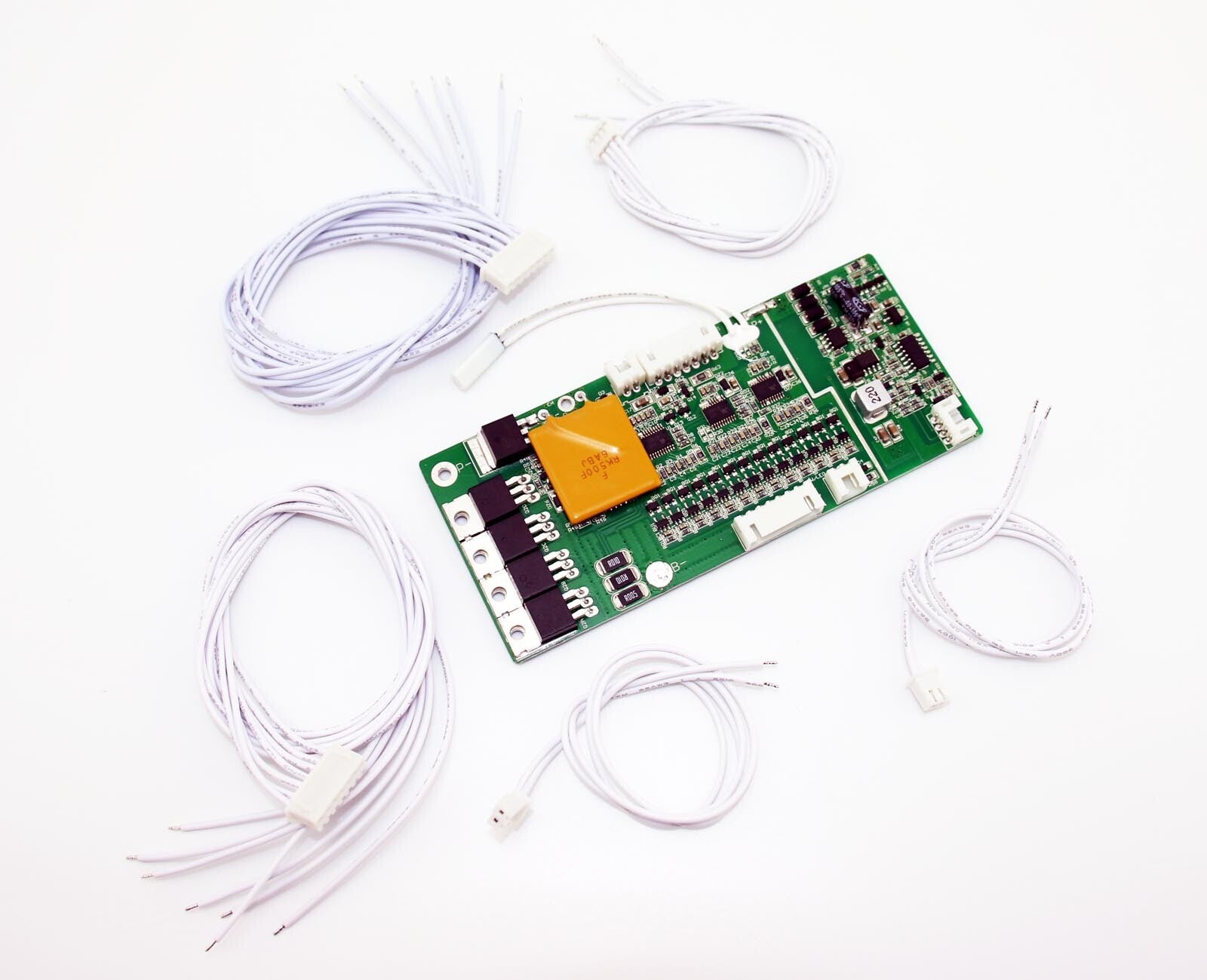

• 1× 13S 48V Li-ion/LiPo Protection Board (BMS/PCM) - model as selected

Available Models - Choose Based on Your Current Needs

Technical Specifications

Protection Features

Step-by-Step Installation Instructions

✅ Follow These Steps Carefully for Safe Installation

Step 1: Preparation & Safety

• CRITICAL: Disconnect all power sources before starting
• HIGH VOLTAGE: 13S battery can reach 54.6V - take precautions
• Verify you have exactly 13 Li-ion or LiPo cells in series
• Select correct BMS model based on maximum current draw
• Prepare tools: soldering iron, solder, wire cutters, multimeter, heat shrink tubing
• Wire gauge recommendations:
• 10-15A: 14-16 AWG
• 20-25A: 12-14 AWG
• 30-40A: 10-12 AWG
• Work in well-ventilated area
• Wear safety glasses

Step 2: Identify Connection Points

• Locate connection points on BMS:
• B- (Battery Negative): Connect to negative terminal of battery pack
• B+ (Battery Positive): Connect to positive terminal of battery pack
• P- (Load/Charger Negative): Output negative terminal
• P+ (Load/Charger Positive): Output positive terminal

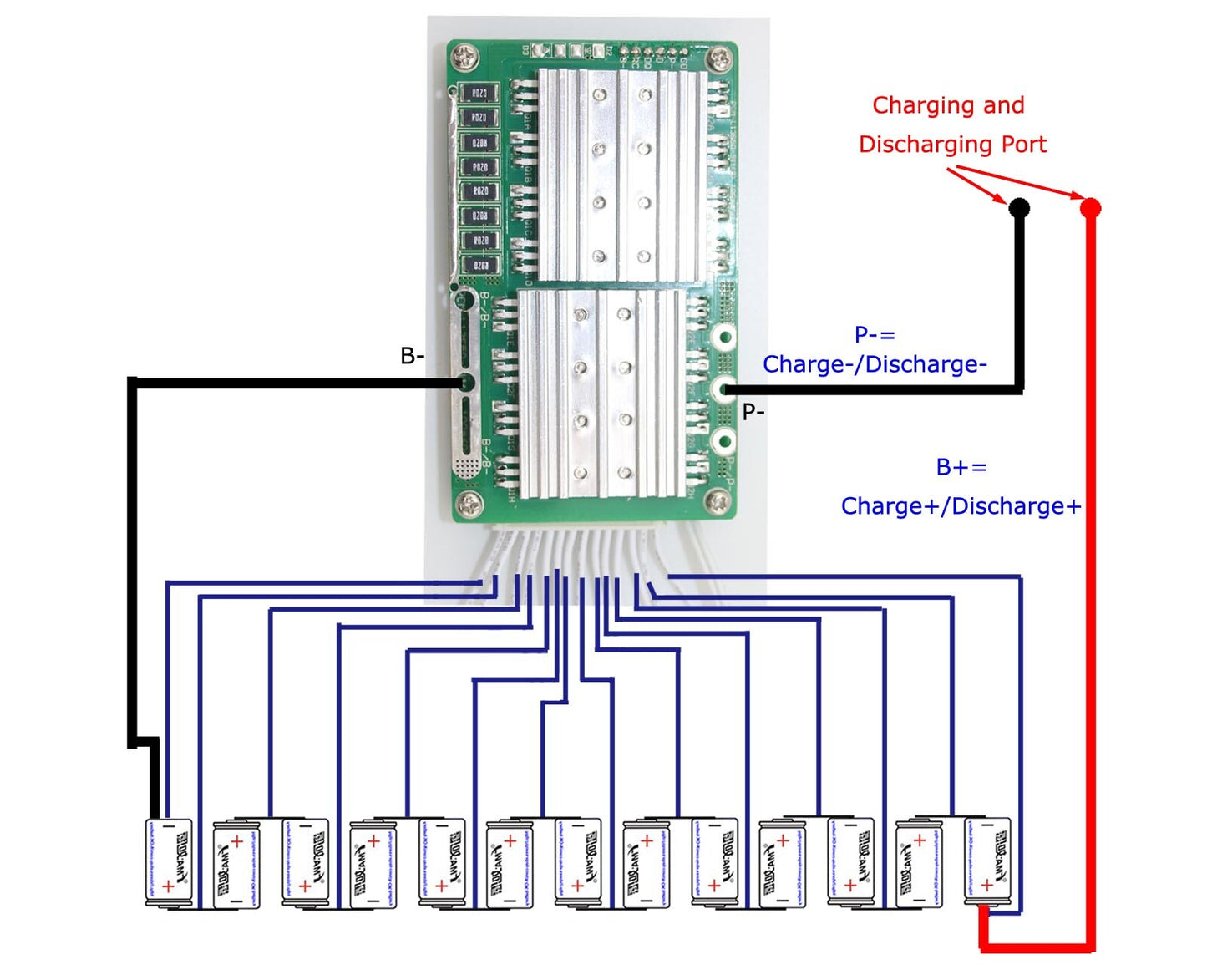

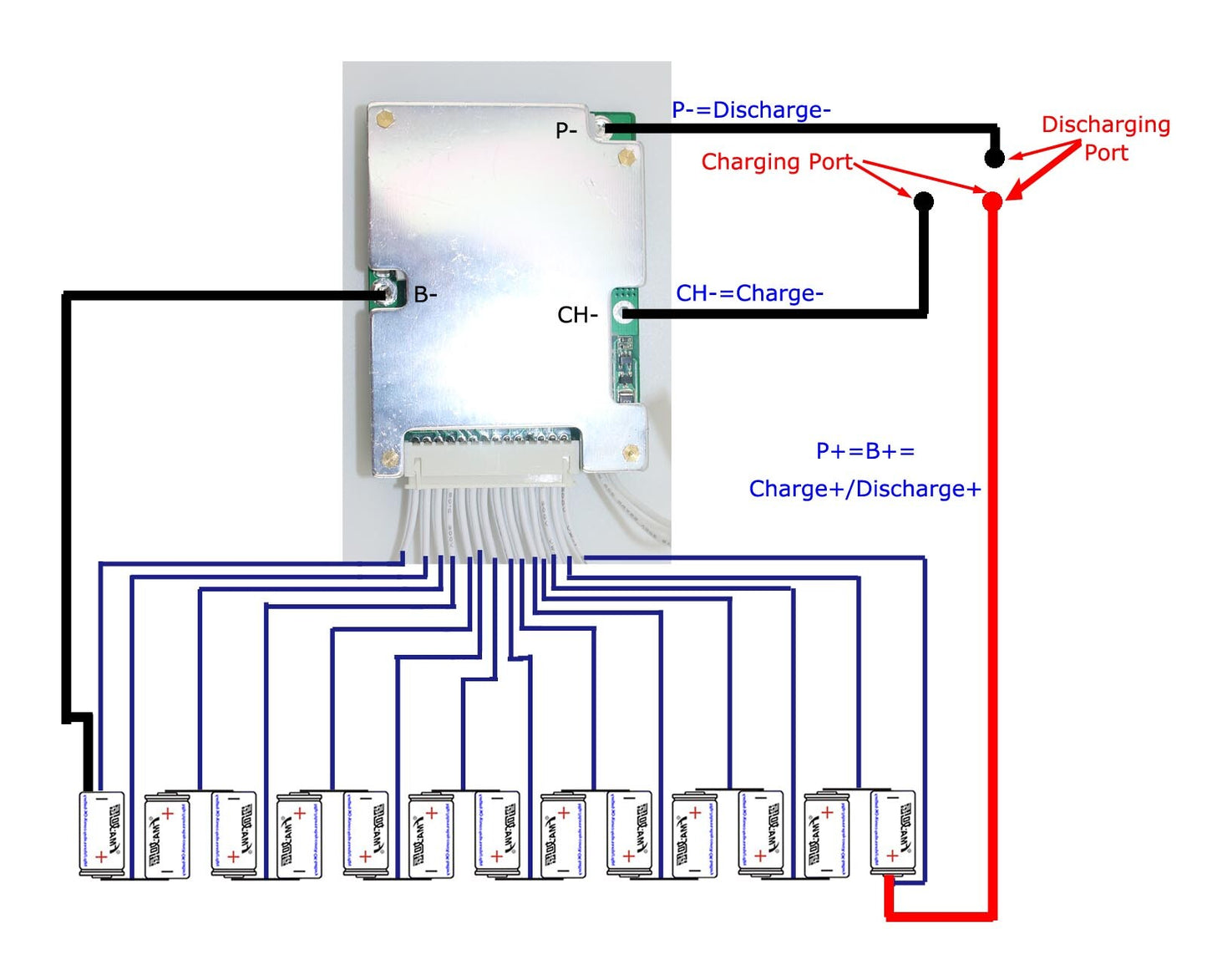

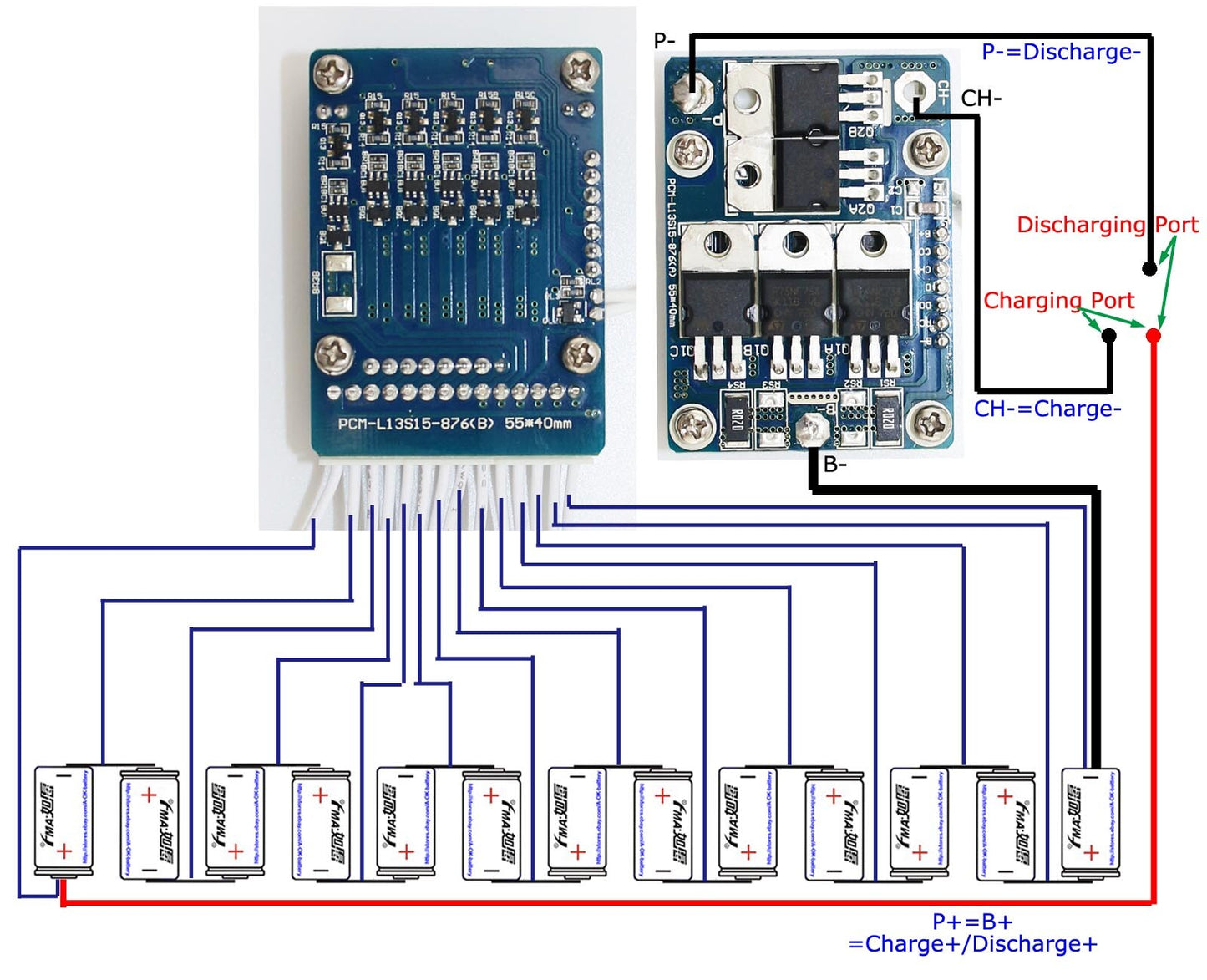

• Balance Wires (13S): B-, B1, B2, B3, B4, B5, B6, B7, B8, B9, B10, B11, B12, B+
• Study wiring diagram carefully
• Take photos for reference

Step 3: Connect Balance Wires (Critical Step)

• For 13S Configuration - 14 balance wire connections:
• B- → Negative terminal of Cell 1
• B1 → Connection between Cell 1 and Cell 2
• B2 → Connection between Cell 2 and Cell 3
• B3 → Connection between Cell 3 and Cell 4
• B4 → Connection between Cell 4 and Cell 5
• B5 → Connection between Cell 5 and Cell 6
• B6 → Connection between Cell 6 and Cell 7
• B7 → Connection between Cell 7 and Cell 8
• B8 → Connection between Cell 8 and Cell 9
• B9 → Connection between Cell 9 and Cell 10
• B10 → Connection between Cell 10 and Cell 11
• B11 → Connection between Cell 11 and Cell 12
• B12 → Connection between Cell 12 and Cell 13
• B+ → Positive terminal of Cell 13
• Use 22-24 AWG wire for balance connections
• Label each wire BEFORE connecting (critical with 14 wires!)
• Use numbered labels or color coding
• Connect in sequence from B- to B+
• Verify each connection with multimeter (~3.6-4.2V between adjacent points)
• Total voltage B- to B+ should be ~46.8V-54.6V

Step 4: Connect Main Power Wires

• Battery Side:
• Connect B- to battery pack negative using appropriate gauge wire
• Connect B+ to battery pack positive using appropriate gauge wire
• Load/Charger Side:
• Connect P- to load/charger negative
• Connect P+ to load/charger positive
• Use heavy gauge wire for high current models
• Ensure all connections are solid and well-insulated

Step 5: Verify All Connections

• CRITICAL - Check before power-on:
• ✅ All 14 balance wires connected in correct sequence
• ✅ No reversed polarity on any connection
• ✅ All solder joints solid and insulated
• ✅ No short circuits between wires
• ✅ Verify voltage at each balance point with multimeter
• ✅ Total pack voltage should be 46.8V-54.6V
• ✅ Each cell voltage should be 3.6V-4.2V

Step 6: Initial Testing

• Connect battery pack to BMS
• Measure voltage at P+ and P- (should read full pack voltage)
• If no output: BMS in protection mode, connect charger briefly to wake
• Test with low current load first (1-2A)
• Monitor BMS temperature for first 30 minutes
• Verify protection functions work correctly
• Check cell balancing is functioning

Step 7: Final Assembly

• Apply heat shrink tubing to all connections
• Secure BMS in enclosure with foam padding
• Ensure adequate ventilation around BMS
• Route balance wires neatly, avoid sharp bends
• Keep balance wires away from high-current wires
• Label output terminals clearly: "48V - P+ and P-"
• Add voltage warning label if needed

Important Safety Precautions

⚠️ CRITICAL SAFETY WARNINGS

Before Installation:

• ❌ NEVER use on wrong cell count - 13S ONLY
• ❌ Do NOT exceed rated current capacity
• ❌ Do NOT reverse polarity - instant destruction
• ❌ Do NOT skip balance wires - will not protect properly
• ❌ Do NOT use with LiFePO4 batteries - Li-ion/LiPo ONLY
• ✅ Verify exactly 13 cells in series
• ✅ Ensure all cells balanced (within 0.05V)
• ✅ Select BMS current rating 20-30% higher than max load

Balance Wire Connection Tips:

• With 14 balance wires, organization is critical
• Create a numbered diagram before starting
• Label each wire with permanent marker or tape
• Use different colored wires if possible
• Work methodically from B- to B+
• Test each connection before moving to next
• One mistake can destroy the BMS

Common Mistakes to Avoid:

• ❌ Balance wires in wrong order (most common)
• ❌ Skipping balance wire connections
• ❌ Using wire too thin for current rating
• ❌ Not insulating connections properly
• ❌ Exceeding current rating of BMS
• ❌ Mounting BMS directly against cells

Troubleshooting:

• No output voltage: BMS in protection mode, connect charger briefly to reset
• BMS keeps shutting off: Current exceeds rating or balance wire issue
• Won't charge: Check balance wires, verify charger voltage (54.6V for 13S)
• BMS overheating: Current too high or poor ventilation
• Cells not balancing: Verify all 14 balance wire connections

Common Applications for 13S 48V BMS

• Electric Bicycles: 48V e-bikes (most common 48V system)
• Electric Scooters: 48V electric scooters and kick scooters
• Solar Energy Systems: 48V solar battery banks, off-grid systems
• Electric Motorcycles: Small electric motorcycles and mopeds
• Golf Carts: 48V golf cart conversions
• Backup Power: 48V UPS systems, telecom backup
• DIY Projects: Custom 48V battery packs
• Power Tools: Professional 48V cordless tools

Why Use BMS for 48V Battery Packs?

Essential Protection:

• Prevents overcharging - extends battery life from 500 to 1000+ cycles
• Prevents over-discharge - protects cells from permanent damage
• Balances 13 cells during charging - ensures all cells age evenly
• Protects against short circuits and overcurrent - prevents fires
• Temperature protection - prevents thermal damage
• Required for safe 48V multi-cell operation

Long-Term Benefits:

• Maximizes battery pack lifespan (can last 5-10 years with BMS)
• Maintains optimal performance throughout battery life
• Prevents costly battery replacement
• Protects expensive e-bike or solar investment
• Provides peace of mind for daily use

Warranty & Support

We stand behind the quality of our FMA BMS boards. If you experience any issues, please contact us for support. Always follow installation instructions carefully and verify all connections before applying power. Improper installation, reversed polarity, or using wrong voltage configuration will void warranty.

Need Help? If you're unsure about any step of the installation process, please contact us before proceeding. We're here to help ensure your 48V battery pack is safe and reliable.
