FMA
FMA 14.4V Ni-Cd 5AH Ni-MH 7.5AH Rechargeable Battery DIY for Metabo 31727000 Power tools Electric Screwdriver Cordless Drill
FMA 14.4V Ni-Cd 5AH Ni-MH 7.5AH Rechargeable Battery DIY for Metabo 31727000 Power tools Electric Screwdriver Cordless Drill
Couldn't load pickup availability
FMA 14.4V D-Type Ni-Cd / Ni-MH Rechargeable Battery for Metabo 31727000 Cordless Screwdriver & Drill

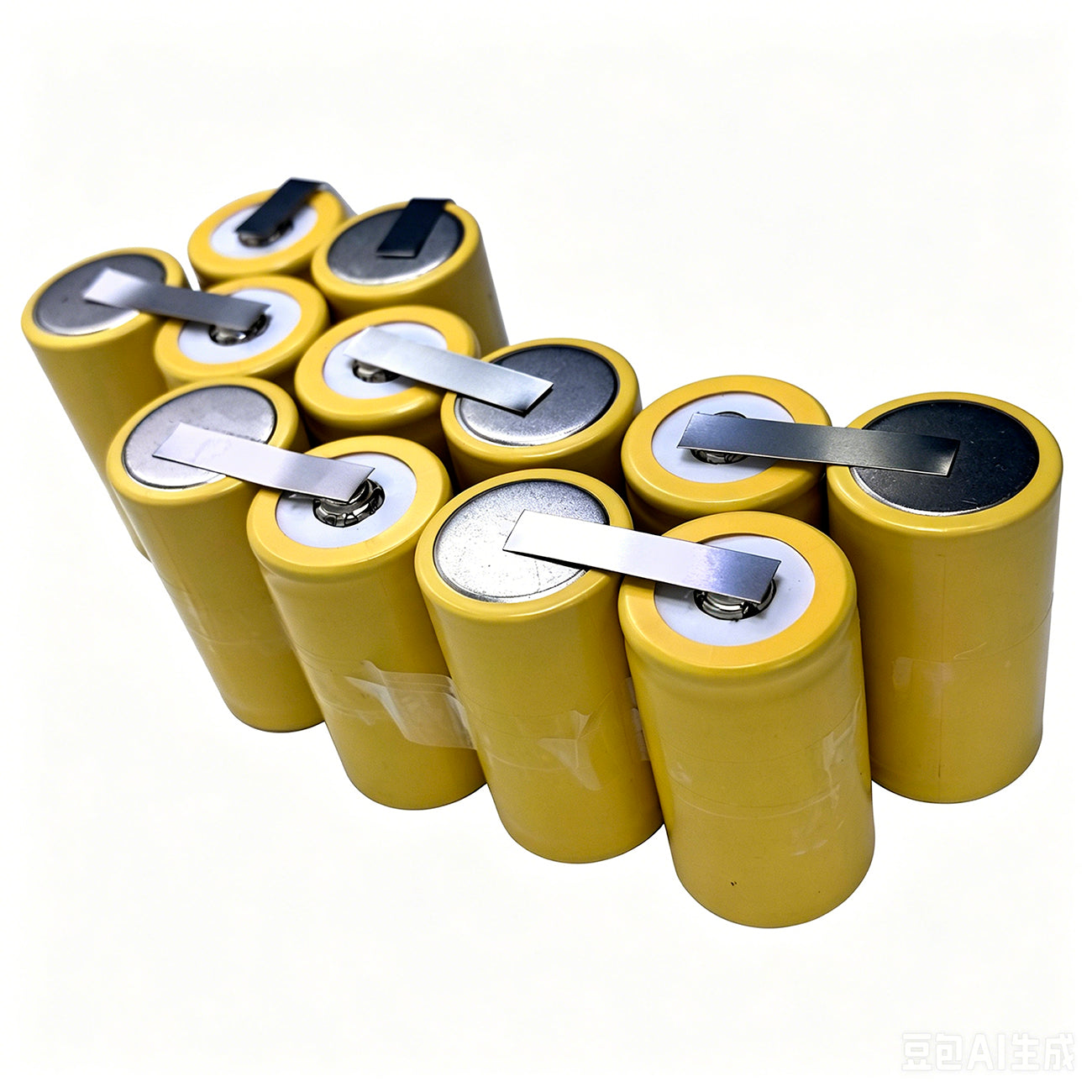

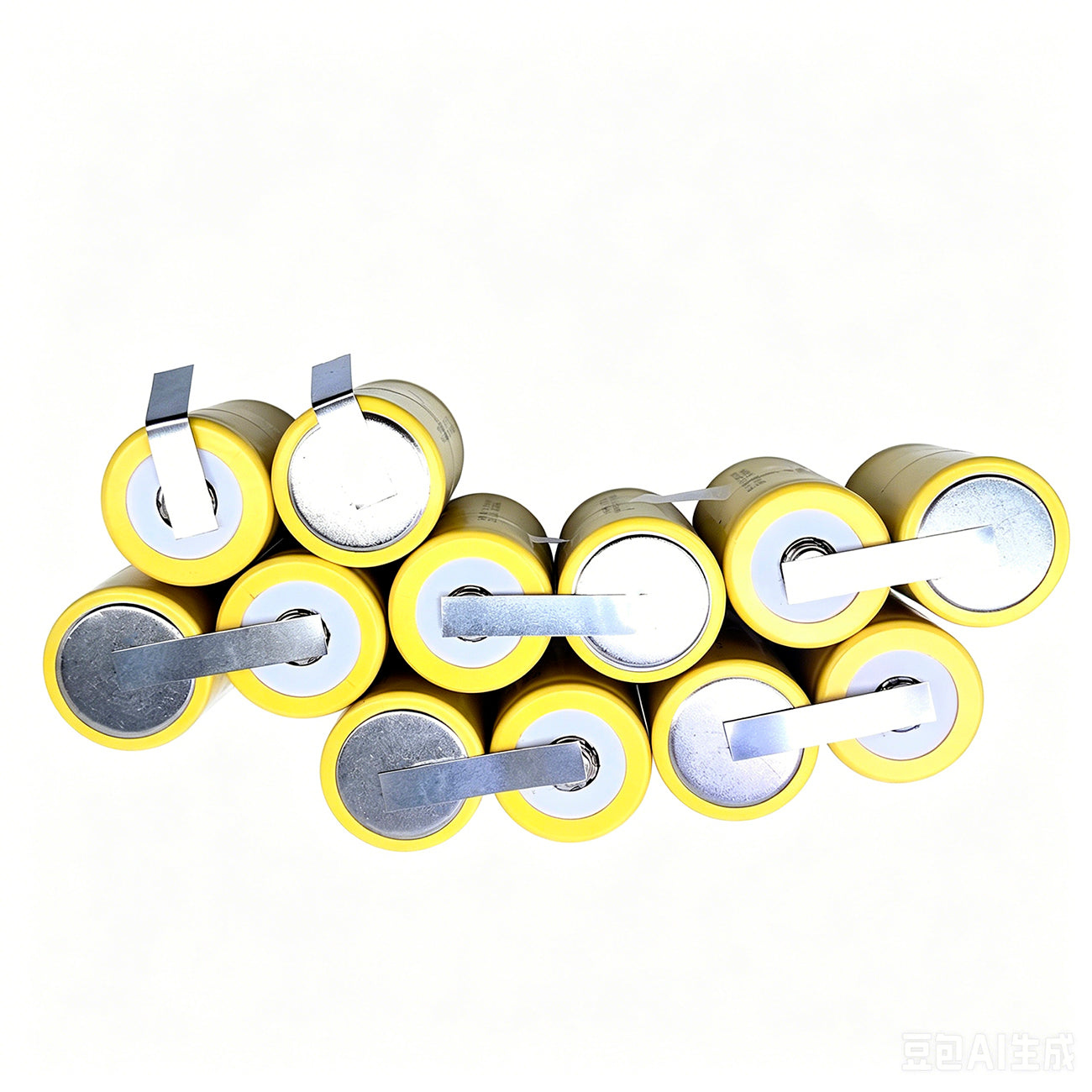

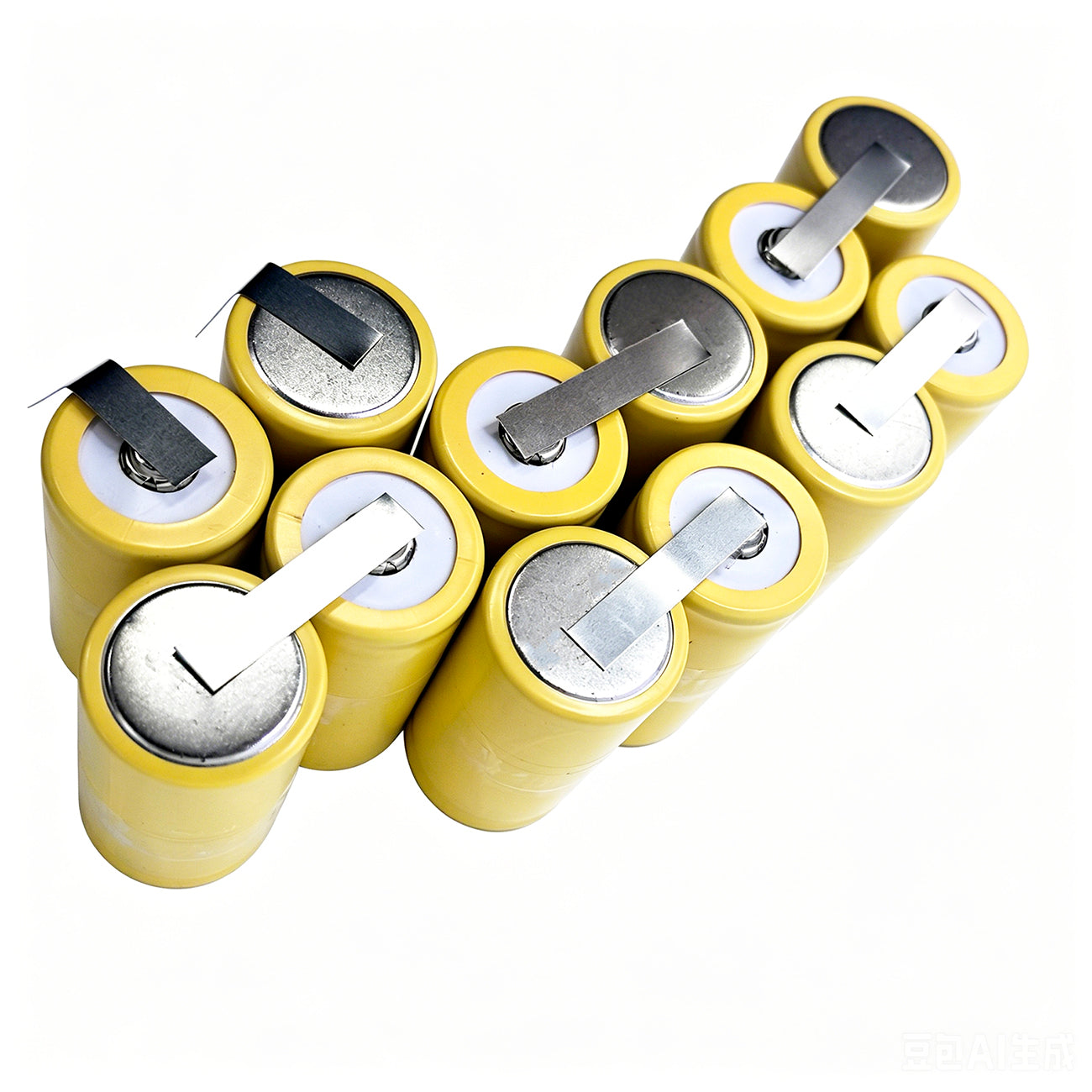

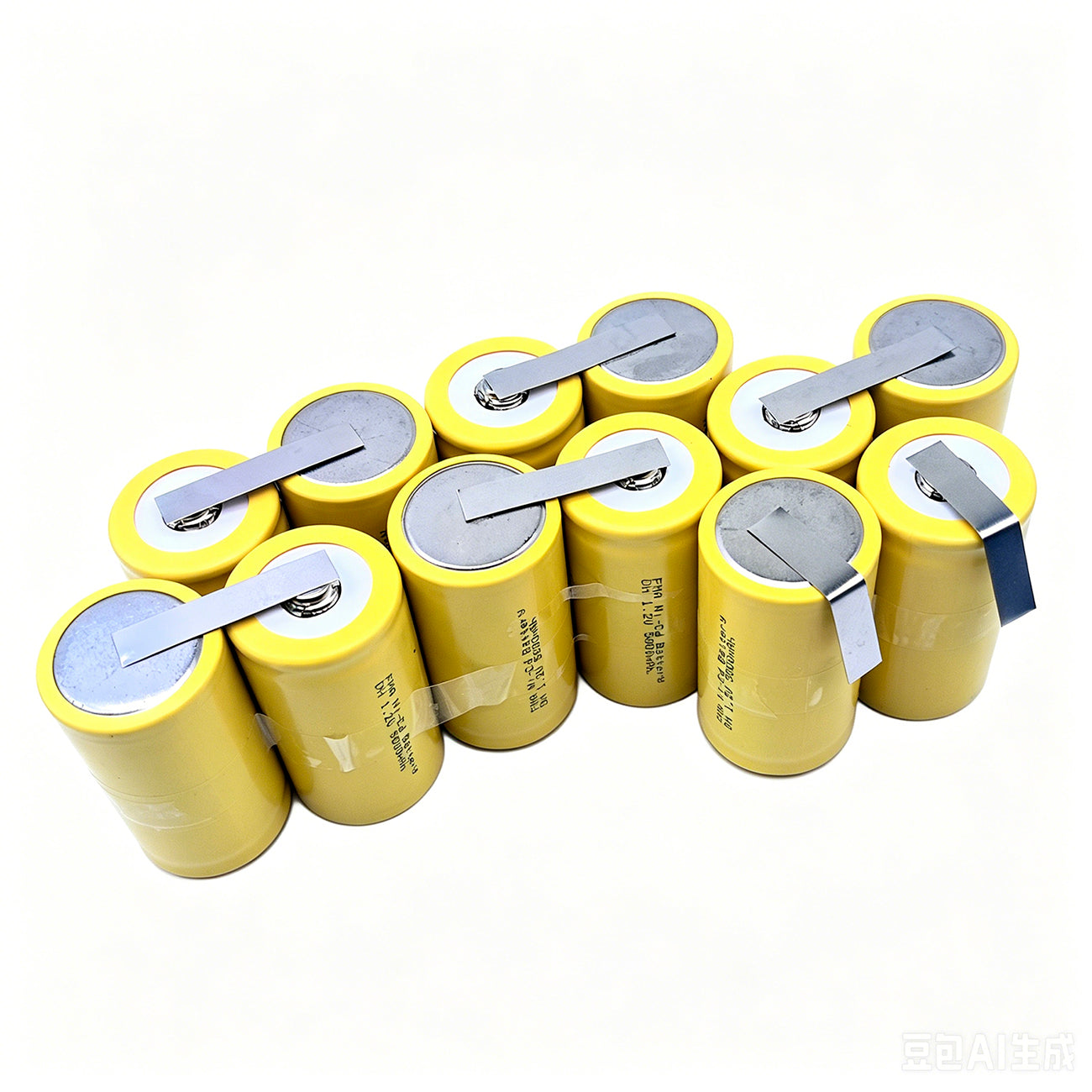

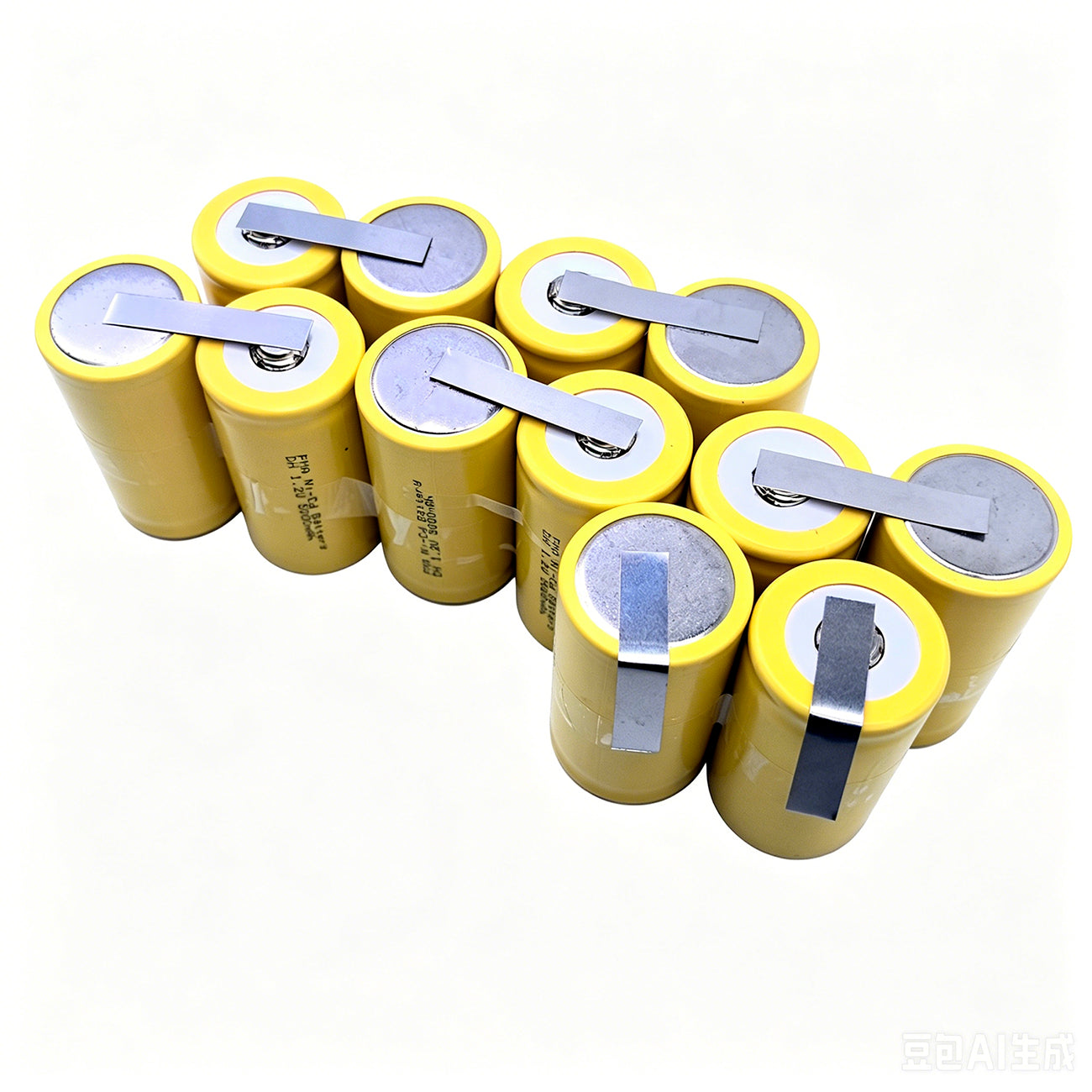

High-capacity 14.4V rechargeable battery pack built with large-format D-type (33600) cells — significantly larger and higher capacity than standard SC cells. Designed as a DIY replacement for Metabo 31727000 cordless screwdrivers and drills. Available in two chemistry options: Ni-Cd 5000mAh and Ni-MH 7500mAh, both in a 12-cell series (12S) configuration.
Key Features
- D-Type (33600) Large-Format Cells: 33mm diameter × 60mm height — much larger capacity than standard SC cells
- High Capacity: 5000mAh (Ni-Cd) or 7500mAh (Ni-MH) for extended runtime
- 14.4V Nominal Voltage: 12 cells in series (12S1P) for stable power output
- Two Chemistry Options: Ni-Cd for deep-discharge tolerance and durability; Ni-MH for higher capacity and lower memory effect
- Metabo 31727000 Compatible: DIY replacement for Metabo 31727000 cordless power tools
- PVC Heat-Shrink Packaging: Protects and insulates the cell assembly
- Brand New Cells: Fresh stock, not refurbished
Package Contents
- 1× FMA 14.4V D-Type Rechargeable Battery Pack (chemistry as selected)
Technical Specifications
| Nominal Voltage | 14.4V |
| Full Charge Voltage | 16.8V (Ni-Cd) / 16.8V (Ni-MH) — 1.4V × 12 |
| Configuration | 12S1P (12 cells in series) |
| Cell Type | D-type (33600) — 33mm × 60mm |
| Ni-Cd Capacity | 5000mAh (5Ah) — SKU: FK5000-33600C12SN57 |
| Ni-MH Capacity | 7500mAh (7.5Ah) — SKU: FH7500-33600C12SN57 |
| Weight | ~1512g (Ni-Cd 5Ah) / ~2412g (Ni-MH 7.5Ah) |
| Cell Packaging | PVC Heat-Shrink |
| Compatible Model | Metabo 31727000 Cordless Screwdriver & Drill |
| Condition | Brand New |
| Origin | Made in China |
Variant Comparison
| SKU | Chemistry | Capacity | Energy | Weight | Best For |
|---|---|---|---|---|---|
| FK5000-33600C12SN57 | Ni-Cd | 5000mAh | 72Wh | ~1512g | Deep-discharge tolerance, durable, cost-effective |
| FH7500-33600C12SN57 | Ni-MH | 7500mAh | 108Wh | ~2412g | Maximum runtime, lower memory effect, eco-friendly |
D-Type vs SC-Type Cells — Why D-Type?
| Feature | D-Type (33600) | SC-Type (Sub-C) |
|---|---|---|
| Cell Size | 33mm × 60mm | 23mm × 43mm |
| Typical Ni-MH Capacity | 7000–10000mAh | 2000–3500mAh |
| Typical Ni-Cd Capacity | 4000–6000mAh | 1200–2000mAh |
| Runtime | 2–3× longer | Standard |
Applications
- Metabo 31727000 cordless screwdriver and drill battery replacement
- DIY battery pack rebuilding and upgrading
- Extended-runtime power tool applications
- Professional construction and maintenance work
- Custom 14.4V Ni-Cd / Ni-MH battery pack assembly
Installation Notes
- These are bare cell packs (no connector included). Connector transfer or soldering from the original battery case is required.
- Ensure correct polarity when connecting — positive to positive, negative to negative.
- Use appropriate wire gauge for the current rating of your tool.
- Insulate all connections with heat-shrink tubing or electrical tape.
- If unsure about installation, consult a qualified battery technician.
Safety Information
Charging: Use only a charger compatible with Ni-Cd or Ni-MH chemistry (as applicable) at the correct voltage (14.4V / 16.8V max). Do not use Li-ion chargers.
Storage: Store in a cool, dry place (0°C–25°C) away from direct sunlight and heat sources. For Ni-MH, store partially discharged. For Ni-Cd, store fully discharged.
Operation: Do not short-circuit, crush, puncture, or disassemble. Avoid exposure to water or moisture.
Temperature: Operating range: 0°C–45°C (charging); -20°C–60°C (discharging).
Disposal: Dispose of according to local regulations for Ni-Cd / Ni-MH batteries. Do not incinerate or dispose of in regular household waste.
Inspection: Inspect before use. Do not use if cells are swollen, leaking, or damaged.
Shipping & Transportation Notice
Hazardous Material: This product contains Ni-Cd / Ni-MH rechargeable batteries and may be subject to dangerous goods regulations for transportation.
Air Transport: Shipment by air may require special documentation and packaging per IATA regulations.
Packaging: Products are packaged according to applicable transportation safety standards.
Delivery Time: International shipments may experience delays due to customs clearance and carrier requirements for battery-containing parcels.
Documentation: Material Safety Data Sheet (MSDS) available upon request for customs clearance.
