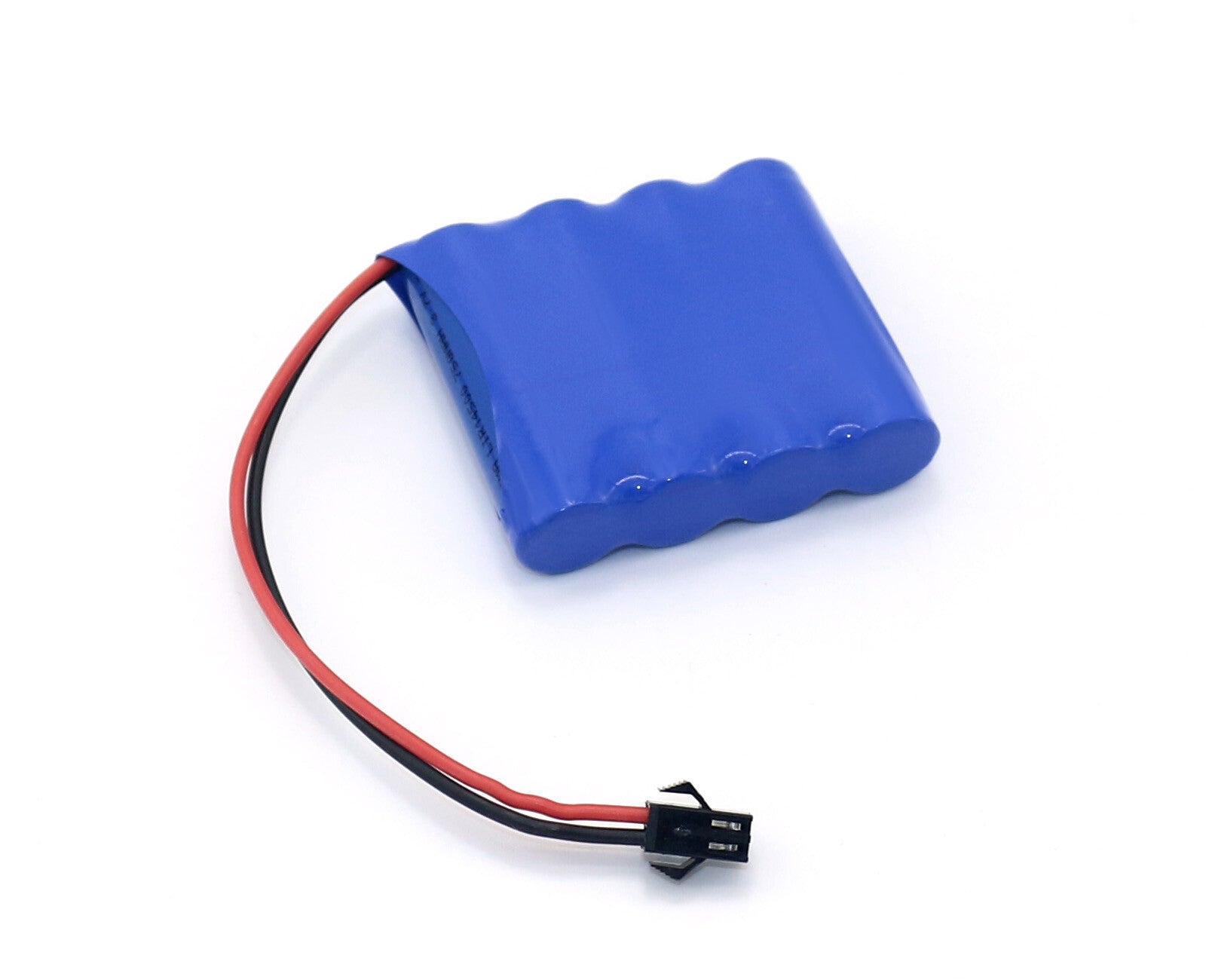

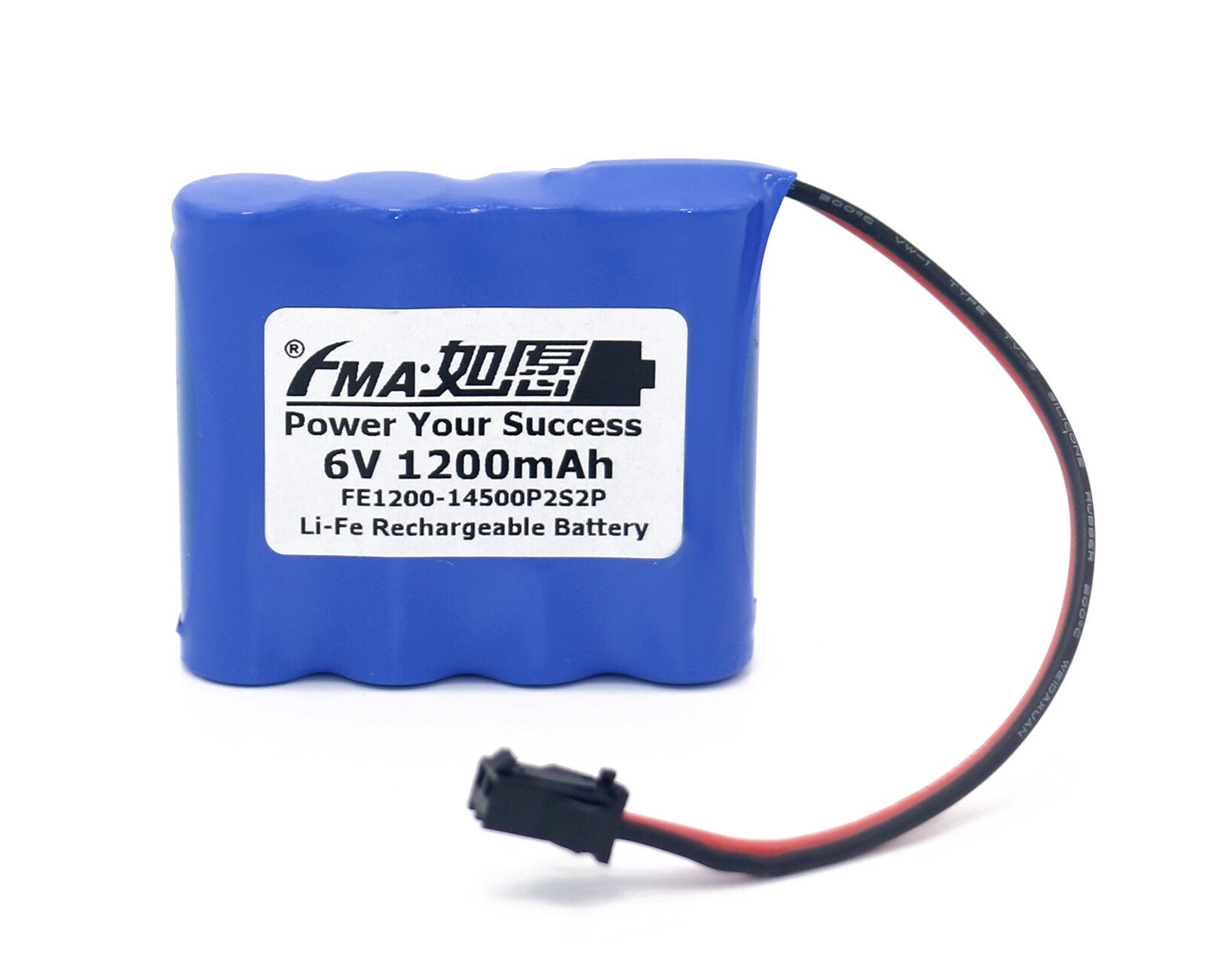

6V 1200mAh LiFePO4 Protected Battery - Home Alarm System & Phone

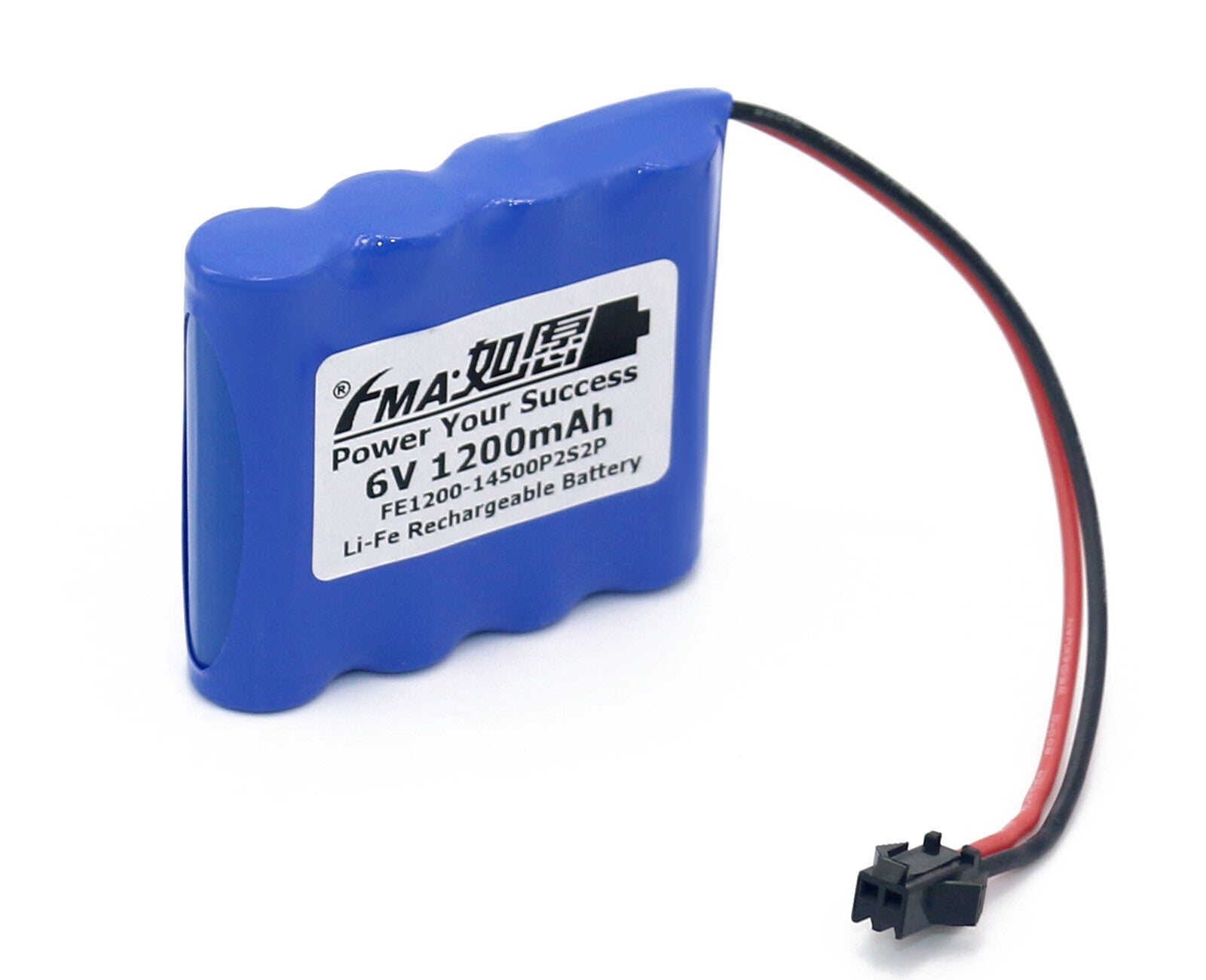

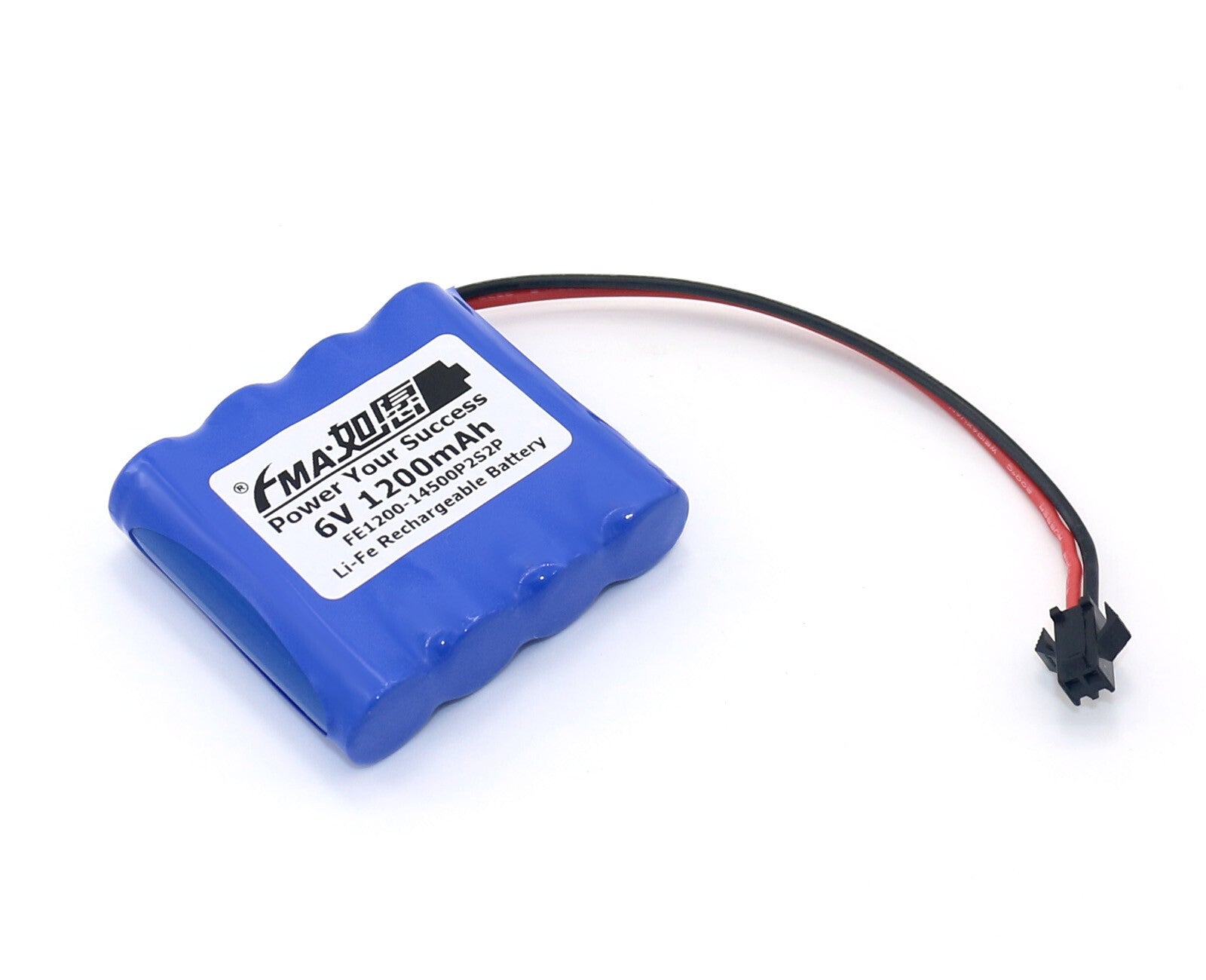

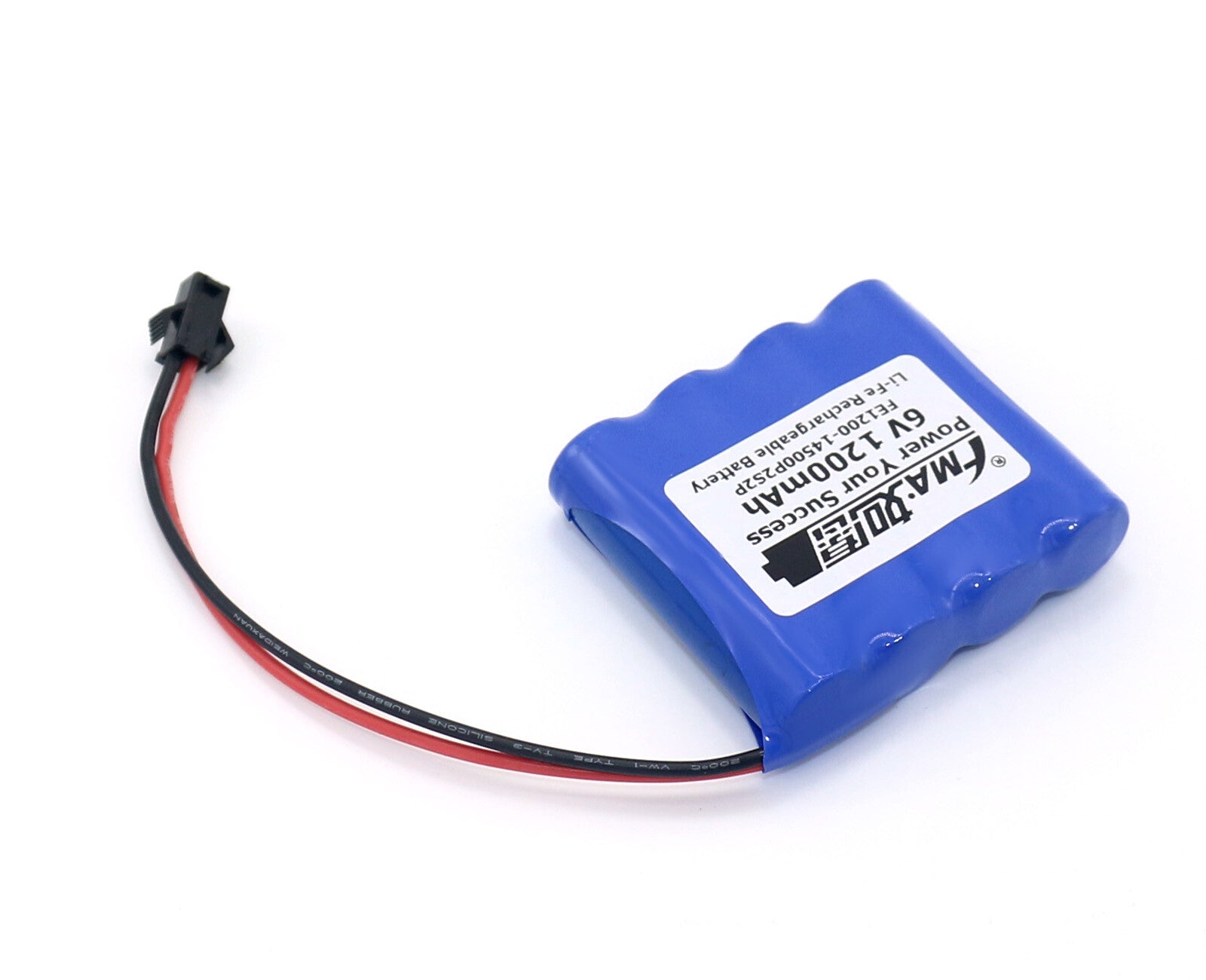

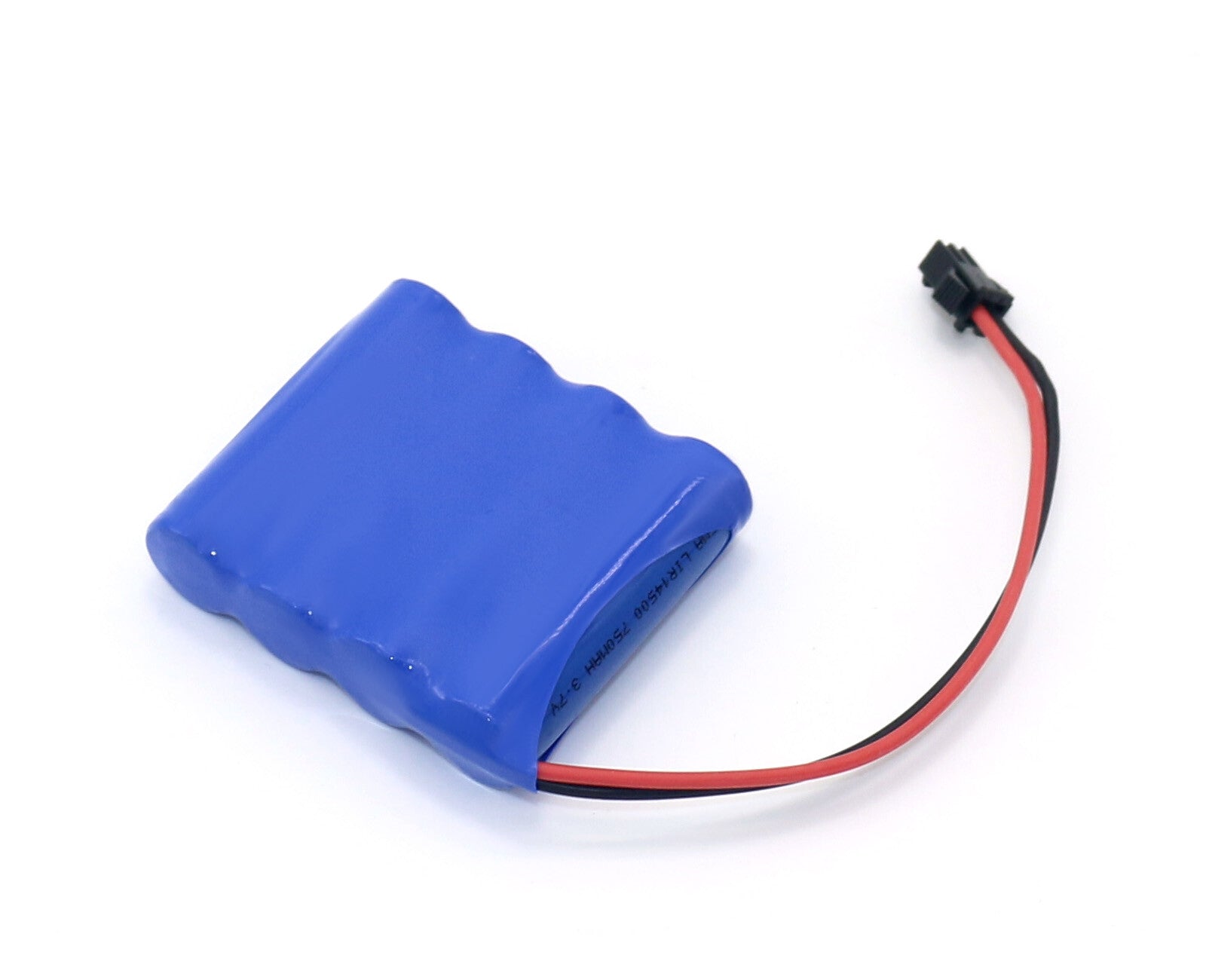

Professional-grade 6V 1200mAh Lithium Iron Phosphate (LiFePO4) rechargeable battery with built-in PCM protection circuit. Available in four connector types (SMP, SYP, XHR, UV) for easy plug-and-play installation. Designed for home alarm systems (GC87C, BA225030, FUB 9NM), cordless phones, and security equipment. Features compact size, lightweight design, long cycle life, and safe LiFePO4 chemistry.

Key Features

• Four Connector Options: SMP, SYP, XHR, UV - choose what fits your device
• PCM Protected: Built-in protection circuit for safe operation
• Plug-and-Play: Pre-installed connectors for easy replacement
• High Capacity: 1200mAh for extended runtime
• 14500 Cells: Premium AA-size cells in 2S2P configuration
• Compact Size: 15mm × 56mm × 52mm
• Lightweight: Only 134g
• Long Cycle Life: 2000+ charge cycles

Package Contents

• 1× 6V 1200mAh LiFePO4 Battery Pack with connector (connector type as selected)

Connector Types

Connector Type	Description	Common Applications

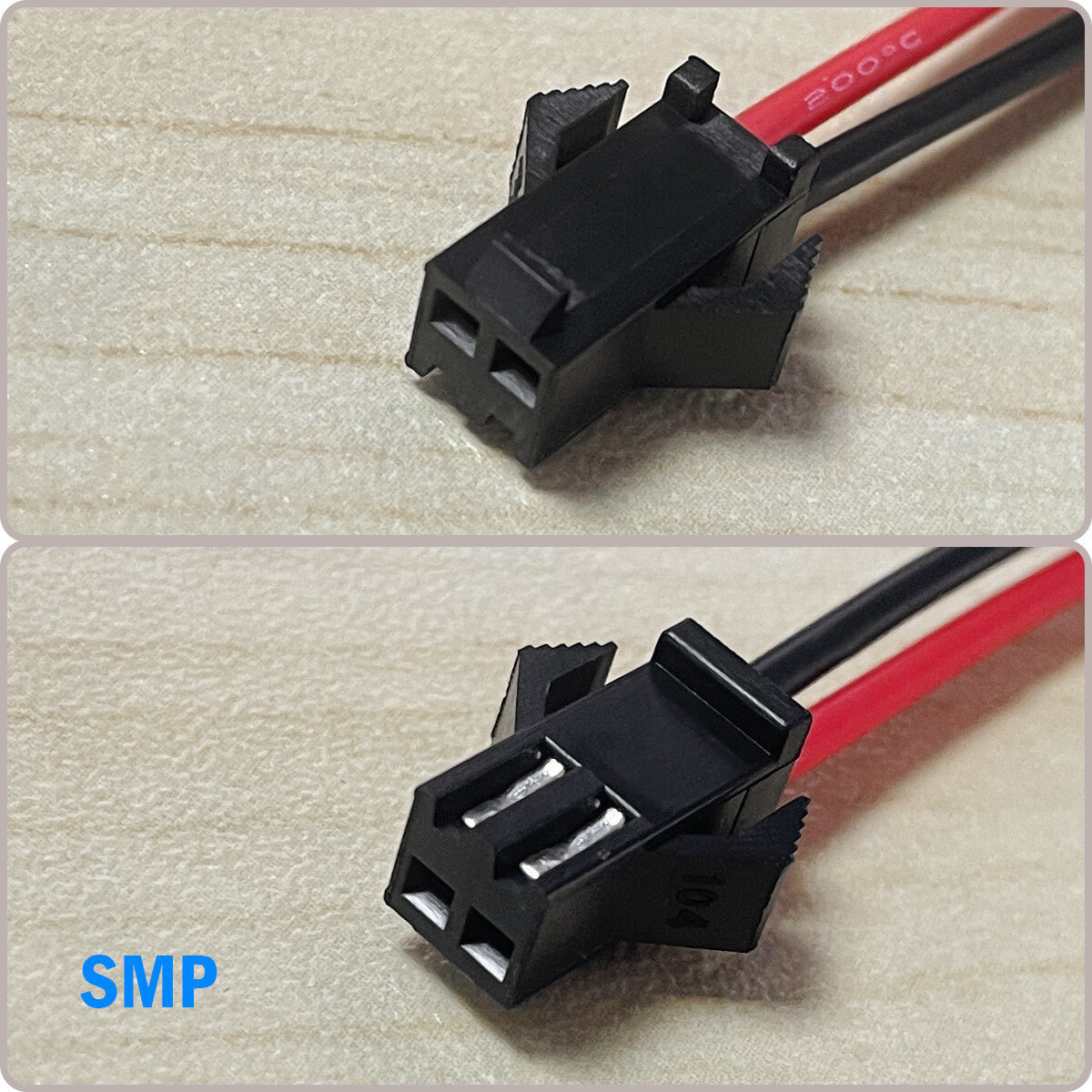

SMP	Standard SMP plug	Alarm systems, security panels, phones

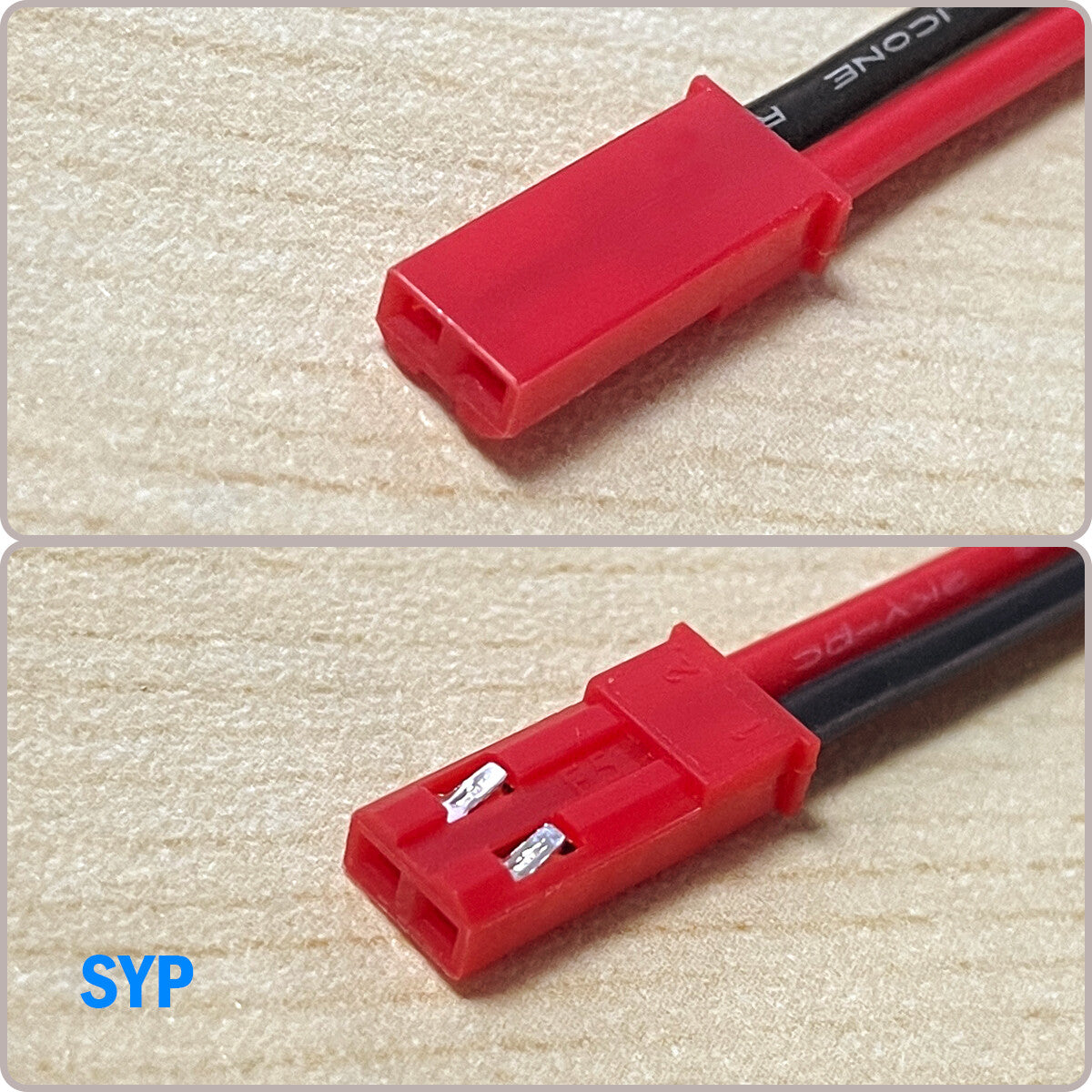

SYP	Standard SYP plug	Home security, cordless phones, devices

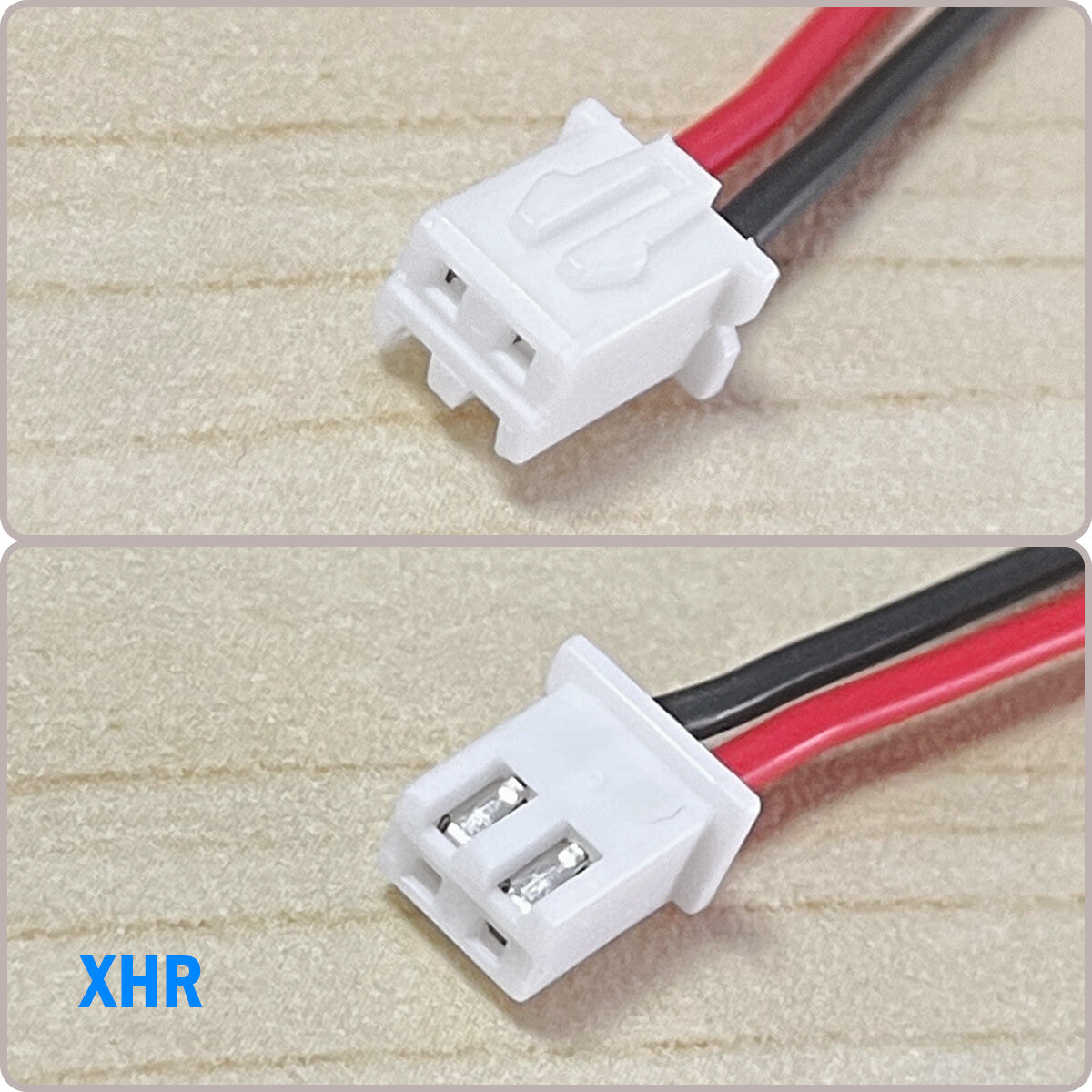

XHR	XHR connector	Alarm panels, security equipment

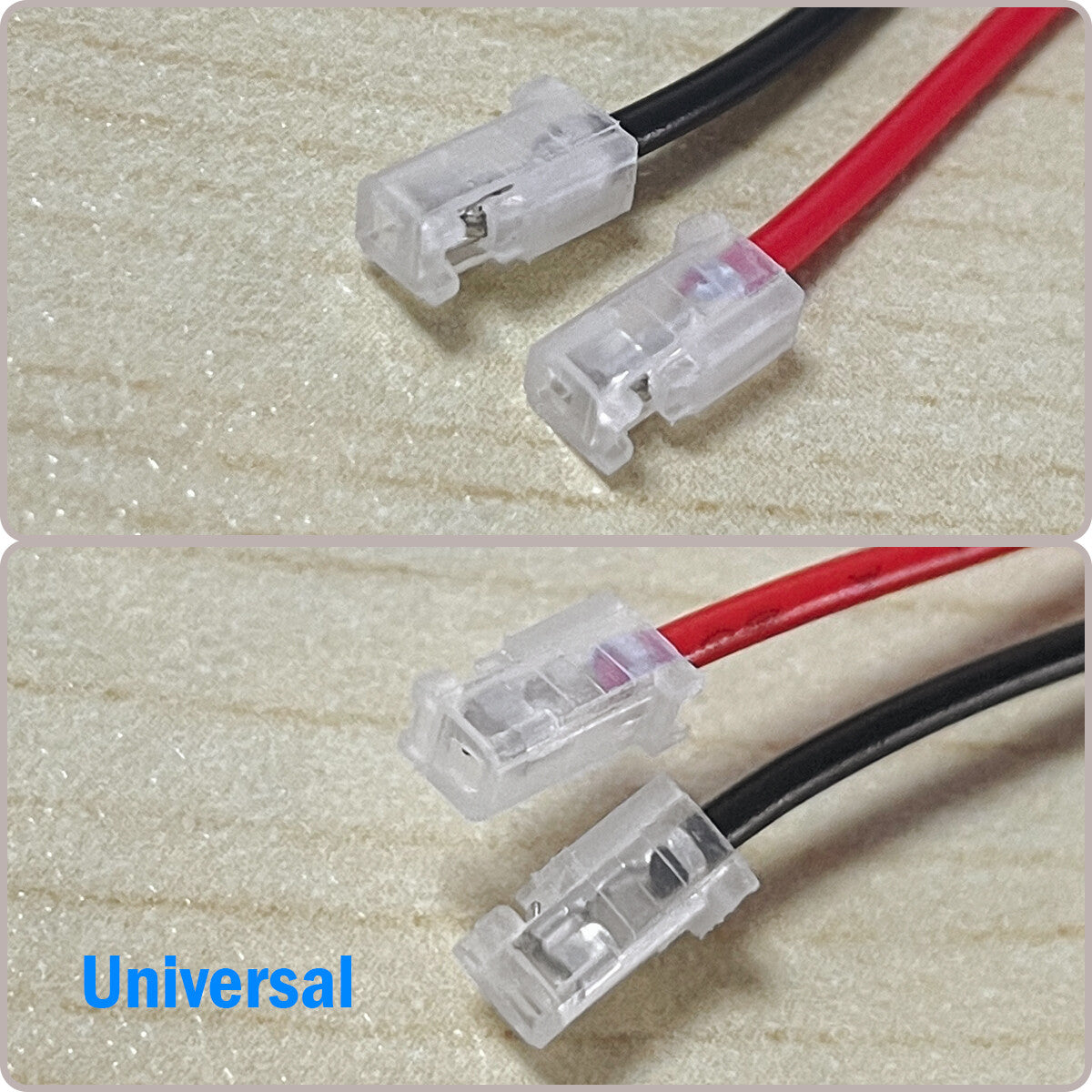

UV	UV connector	Specialized alarm systems, phones

ℹ️ Need a Different Connector? Contact us with your requirements, and we can customize the connector type for you!

Technical Specifications

Nominal Voltage	6V / 6.4V (2S configuration)
Capacity	1200mAh (1.2Ah)
Energy	~7.68Wh
Chemistry	LiFePO4 (Lithium Iron Phosphate)
Cell Type	14500 (AA size)
Configuration	2S2P (2 series, 2 parallel)
Dimensions	15mm × 56mm × 52mm
Weight	~134g
Connector Options	SMP / SYP / XHR / UV
Protection	PCM (Protection Circuit Module)
Charge Voltage	7.3V (3.65V per cell)
Discharge Cut-off	5.0V (2.5V per cell)
Cycle Life	2000+ cycles
Compatible Models	GC87C, BA225030, FUB 9NM
Brand	FMA
Condition	Brand New

PCM Protection Features

Protection Type	Function
Overcharge Protection	Prevents charging above 7.3V
Over-discharge Protection	Cuts off at 5.0V to protect cells
Overcurrent Protection	Limits excessive current draw
Short Circuit Protection	Instantly cuts power if short detected

Common Applications

• Home Alarm Systems: GC87C, BA225030, FUB 9NM alarm panels
• Security Systems: Burglar alarms and security panels
• Cordless Phones: 6V cordless phone batteries
• Emergency Lighting: Exit signs and emergency lights
• Access Control: Door locks and access systems
• Fire Alarms: Fire detection and alarm systems
• Backup Power: Small backup power systems
• Medical Devices: Portable medical equipment

Why Choose LiFePO4 for Alarm Systems?

1. Safest Lithium Chemistry:

• LiFePO4 is the safest lithium battery type
• Excellent thermal stability
• No risk of thermal runaway
• Safe for home security applications
• PCM adds extra protection layer

2. Long Backup Time:

• 1200mAh capacity for extended backup
• Keeps alarm system running during power outages
• Low self-discharge (3% per month)
• Ready when you need it

3. Exceptional Lifespan:

• 2000+ charge cycles
• Lasts 5-10 years with proper care
• Better value than disposable batteries
• Fewer replacements needed

4. Reliable Performance:

• Stable voltage throughout discharge
• Consistent alarm system operation
• No voltage sag
• Dependable security protection

5. Compact & Lightweight:

• Only 134g and 15×56×52mm
• Fits in small alarm panel compartments
• Easy to install and replace

Simple Battery Replacement Guide

✅ Easy Plug-and-Play Installation - No Soldering Required!

Step 1: Choose the Correct Connector

• Check your alarm system's existing battery connector
• Select matching connector: SMP, SYP, XHR, or UV
• If unsure, take a photo and contact us for help

Step 2: Prepare for Replacement

• Disarm alarm system if necessary
• Open alarm panel or battery compartment
• Take a photo of old battery orientation for reference

Step 3: Remove Old Battery

• Locate the connector inside alarm panel
• Gently pull connector straight out (do not twist)
• Remove old battery from compartment

Step 4: Install New Battery

• Place new battery in compartment
• Ensure wires are not pinched
• Align connector with socket
• Plug in connector - it should fit smoothly

Step 5: Test and Close

• Verify alarm system powers on correctly
• Test alarm functions
• Close panel and secure
• Re-arm alarm system

Charging Information

Charger Requirements:

• Use LiFePO4-compatible charger (7.3V for 2S)
• Do NOT use standard 6V NiMH/NiCd chargers
• Recommended charge current: 0.5-1.2A
• Charging time: 1-2 hours

PCM Protection During Charging:

• PCM automatically stops charging at 7.3V
• Prevents overcharging damage
• Safe to leave connected (PCM will protect)

Safety Information

Charging: Use only LiFePO4-compatible chargers (7.3V for 2S). PCM provides overcharge protection.

Storage: Store at 40-60% charge in cool, dry place.

Operation: Do not short-circuit, puncture, crush, or disassemble the battery.

Temperature: Charge: 0-45°C, Discharge: -20-60°C, Storage: -20-35°C.

Disposal: Dispose according to local regulations. LiFePO4 is non-toxic but should be recycled.

PCM Protection: Built-in Protection Circuit Module guards against overcharge, over-discharge, overcurrent, and short circuit.

Alarm System Use: Test alarm system regularly to ensure battery is functioning properly.

Shipping & Transportation Notice

Hazardous Material: This product contains lithium batteries and is classified as dangerous goods for shipping purposes.

Air Transport Restrictions: Due to international air transport regulations, battery shipments may be subject to additional restrictions and longer transit times.

Packaging Compliance: All shipments comply with UN3480 or UN3481 packaging requirements for lithium batteries.

Delivery Time: Battery-containing parcels may experience extended delivery times due to stricter customs inspections and carrier handling procedures.
