Li-Fe Battery 3.2V 6.4V 9.6V Protection Circuit Management Board LiFePO4 PCM BMS

Li-Fe Battery 3.2V 6.4V 9.6V Protection Circuit Management Board LiFePO4 PCM BMS

Regular price $6.90 USD
Regular price $7.93 USD Sale price $6.90 USD
Sale Sold out
Shipping calculated at checkout.
Voltage+Current+Size
Quantity

LiFePO4 Battery Protection Board (BMS/PCM) - 1S/2S/3S Li-Fe Protection Circuit

Professional Battery Management System (BMS) / Protection Circuit Module (PCM) specifically designed for LiFePO4 (Lithium Iron Phosphate) batteries. Available in multiple configurations for 1S (3.2V), 2S (6.4V), and 3S (9.6V) battery packs with current ratings from 2A to 20A. Features comprehensive protection including overcharge, over-discharge, overcurrent, and short circuit protection. Essential for DIY LiFePO4 battery packs, ensuring safe and reliable operation.

Key Features

  • LiFePO4 Specific: Calibrated for Li-Fe voltage characteristics
  • Multiple Configurations: 1S/2S/3S with various current ratings
  • Comprehensive Protection: Overcharge, over-discharge, overcurrent, short circuit
  • Compact Sizes: Various sizes from 10×30mm to 34×60mm
  • Easy Installation: Clear wiring diagrams and connection points
  • High Quality: Reliable components for long-term use
  • Low Self-Consumption: Minimal power drain
  • Temperature Protection: Built-in thermal protection

Package Contents

  • 1× LiFePO4 Protection Board (BMS/PCM) - configuration as selected

Available Configurations

Configuration Voltage Current Size (mm) Best For

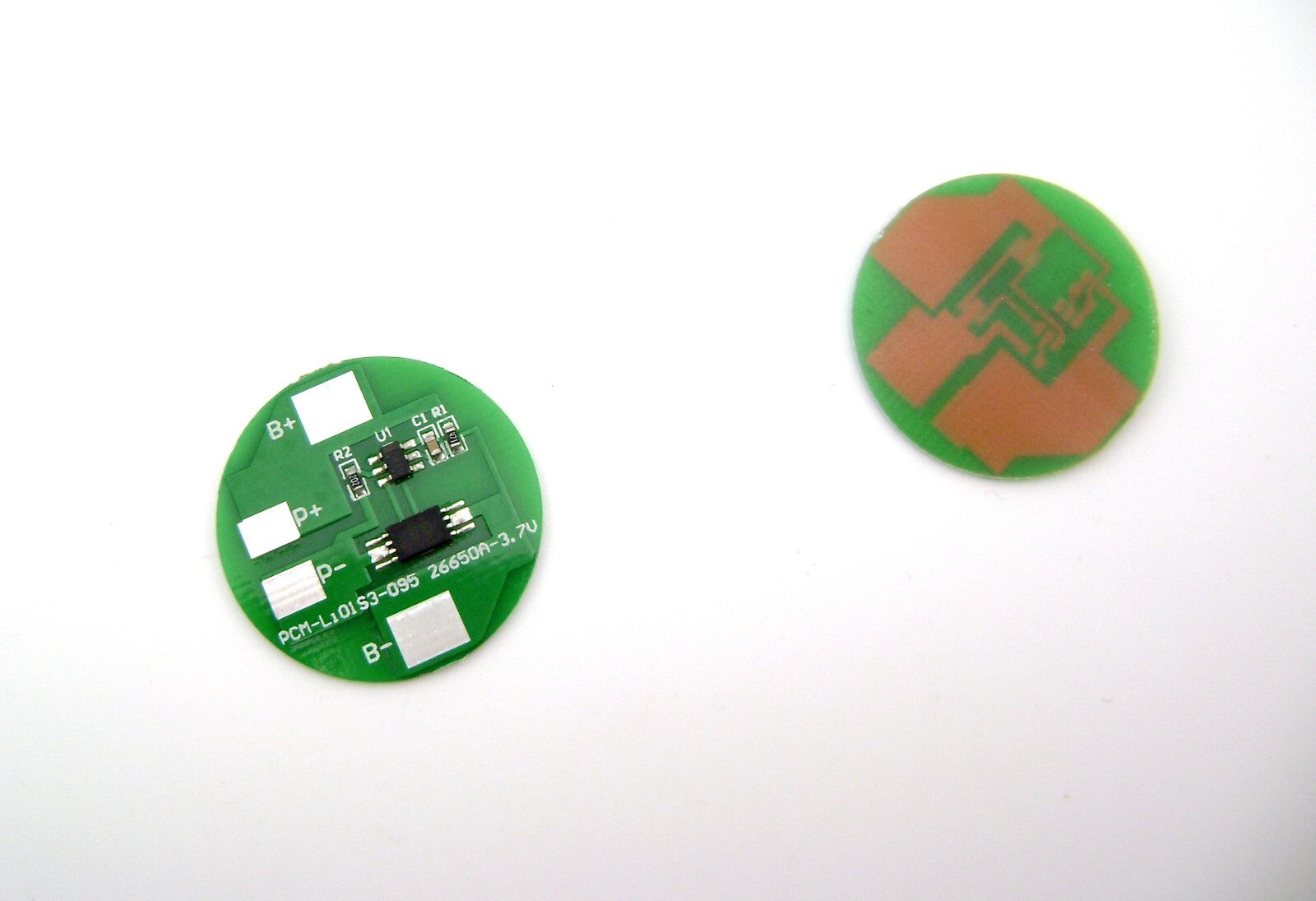

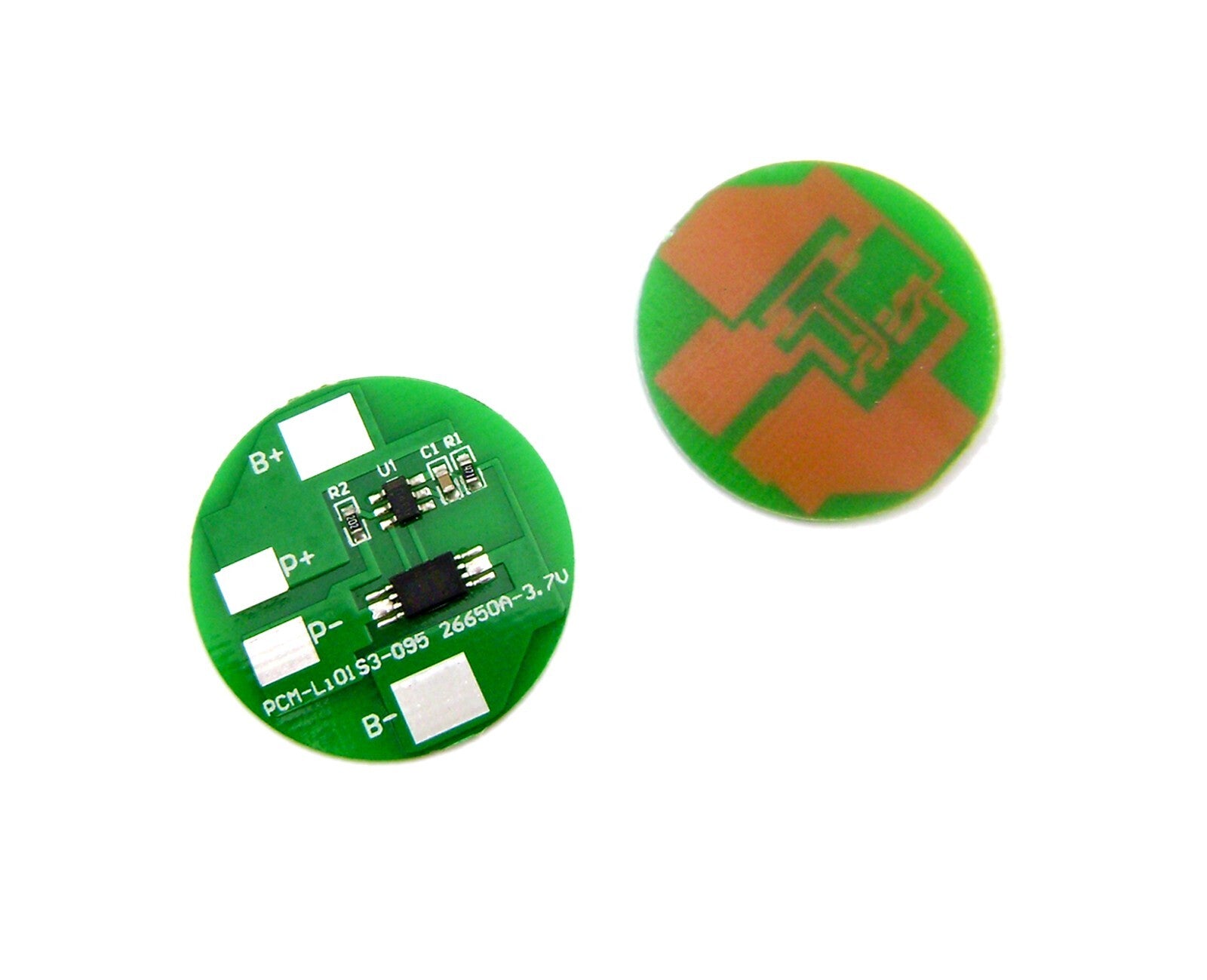

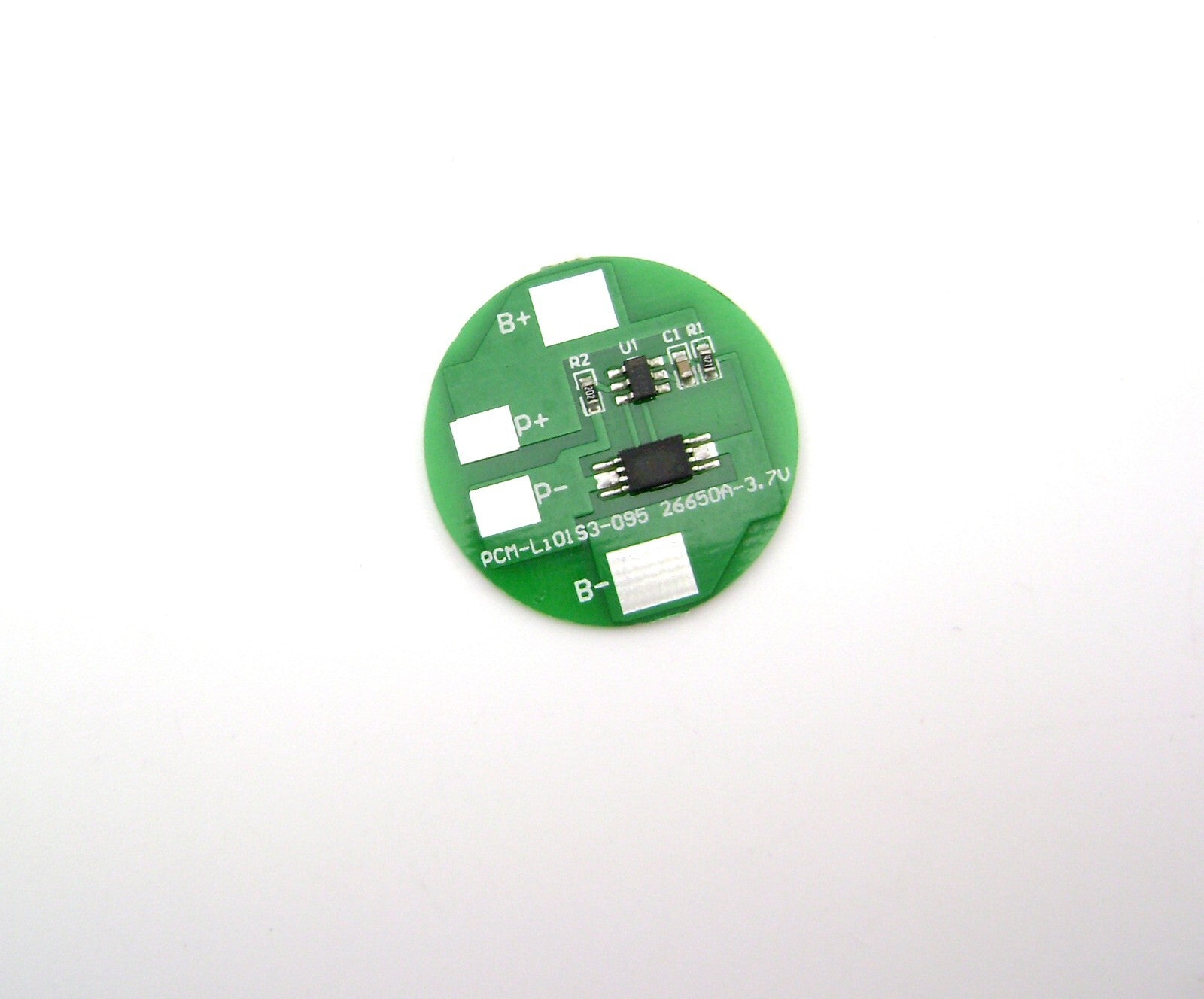

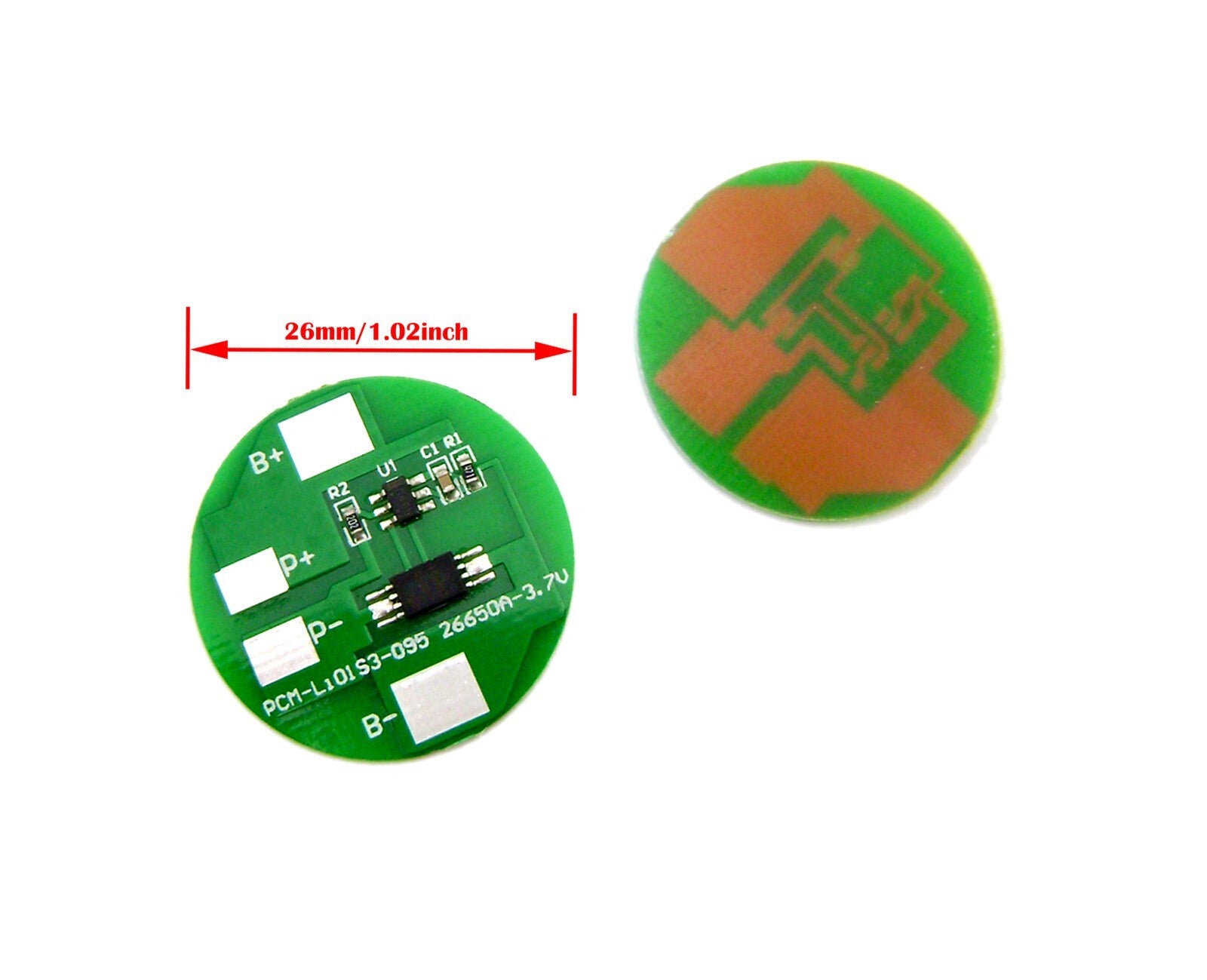

1S 3A 3.2V 3A 26mm round Single cell, low current

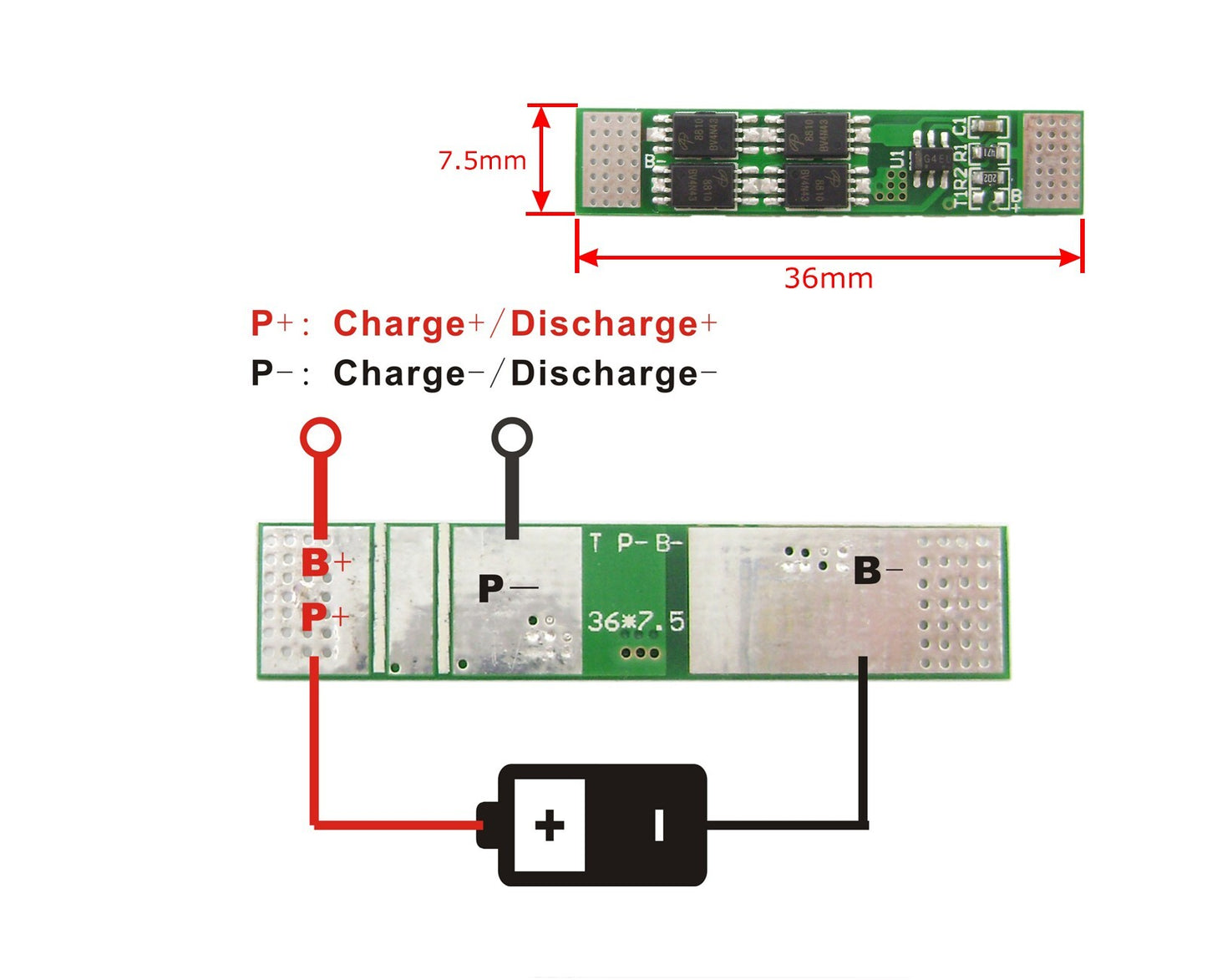

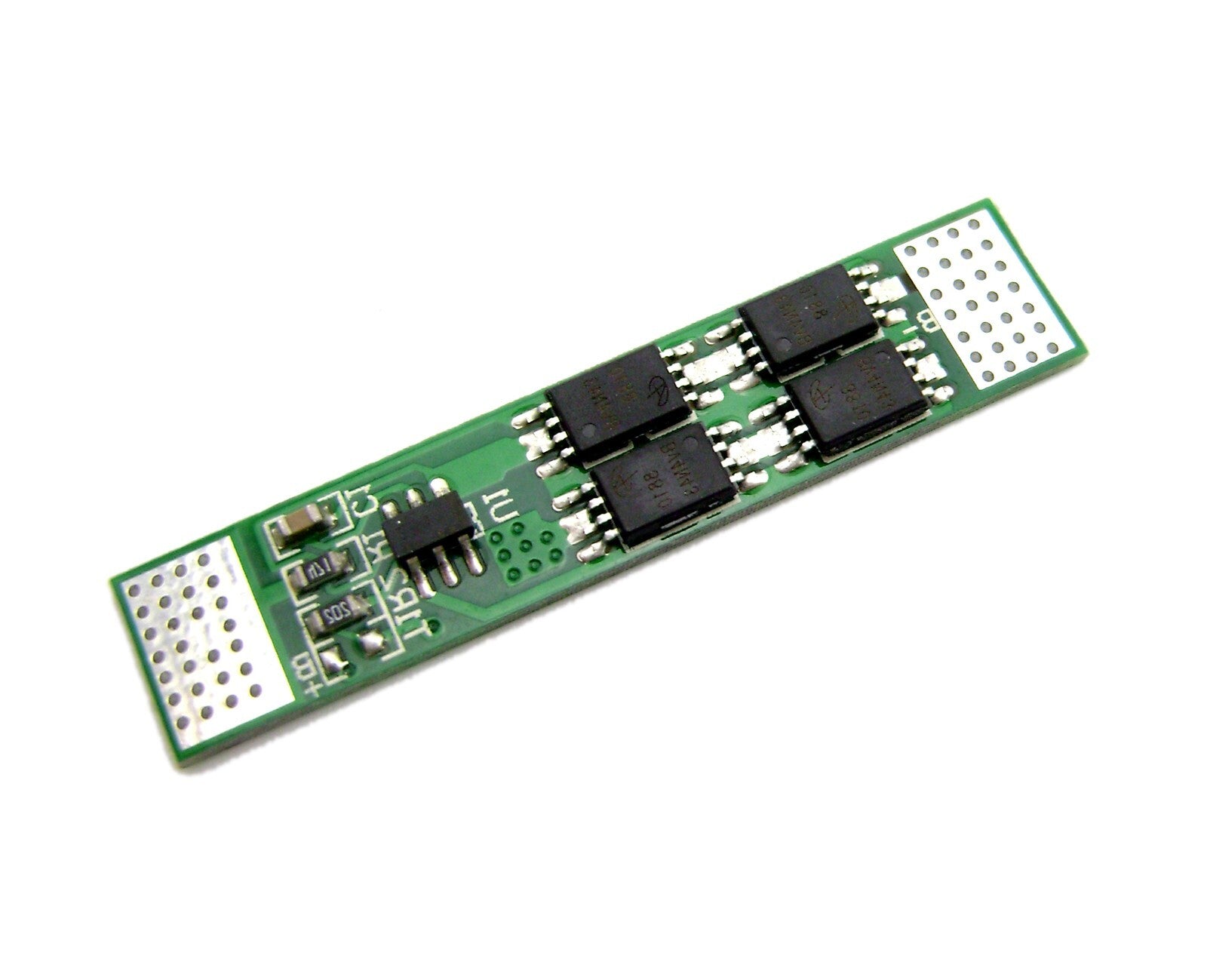

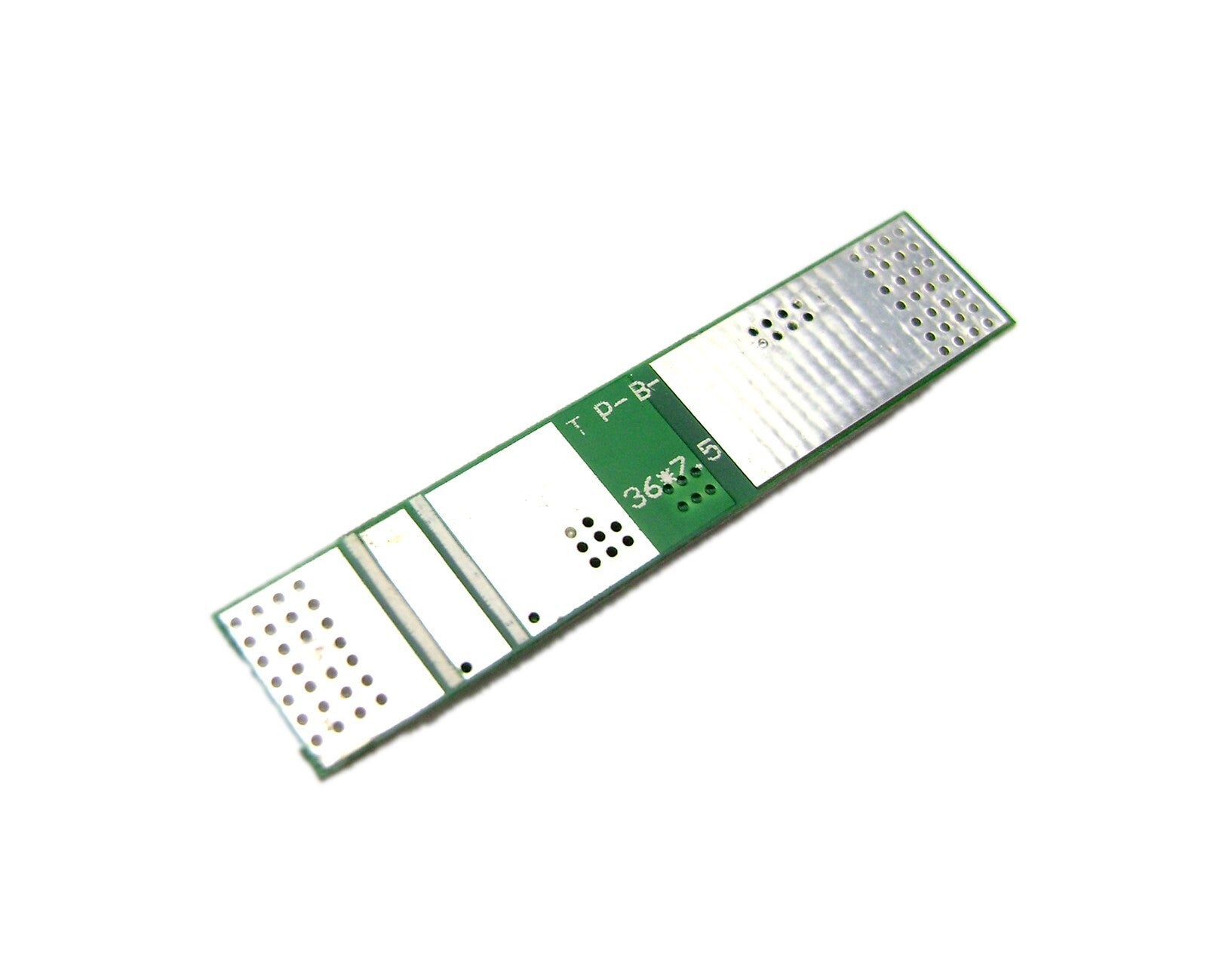

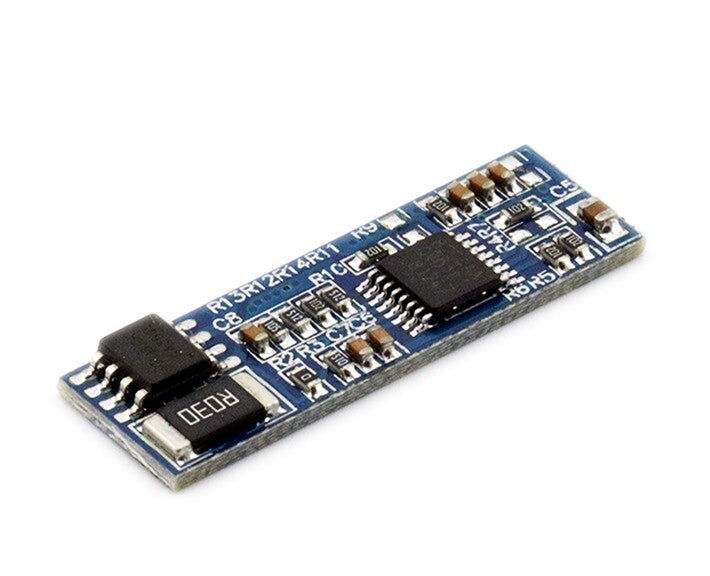

1S 10A 3.2V 10A 7.4 × 36 Single cell, higher current

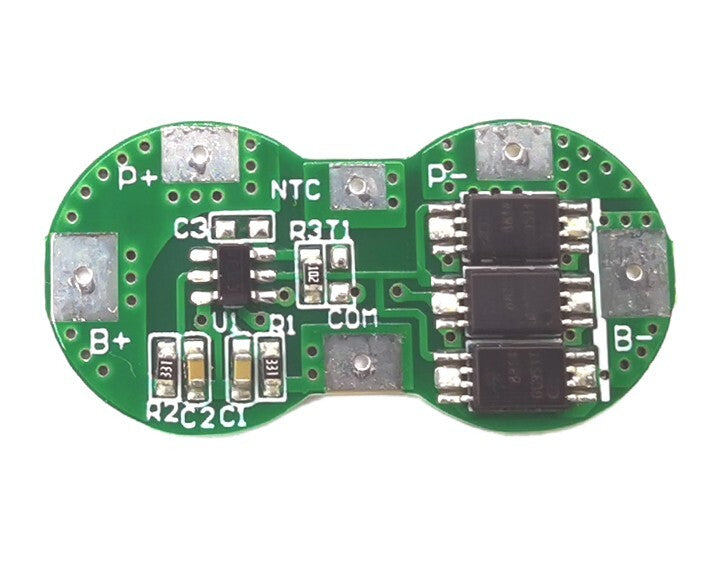

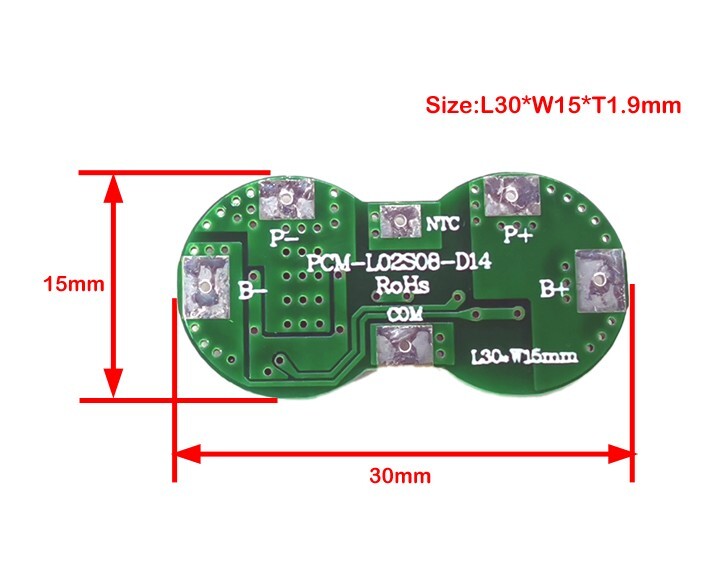

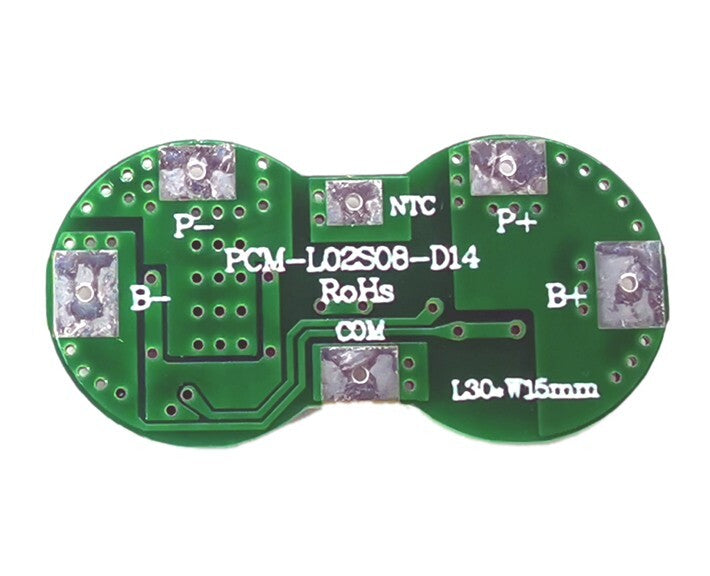

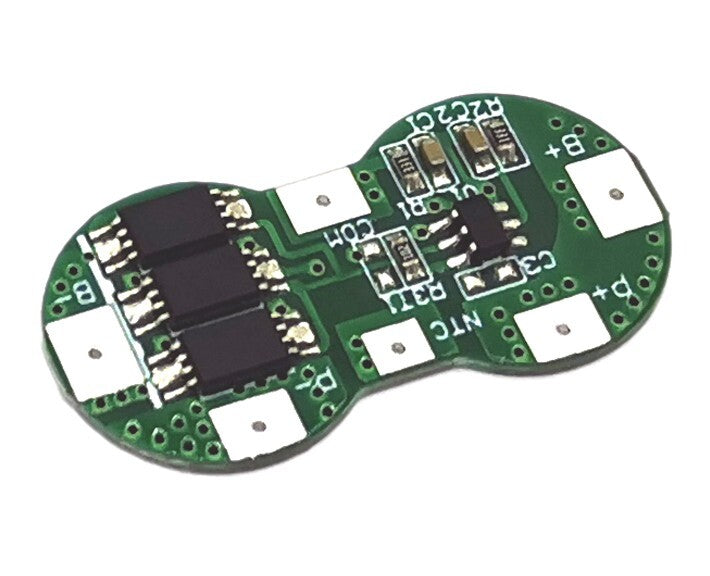

2S 7A 6.4V 7A 15 × 30 2 cells, compact

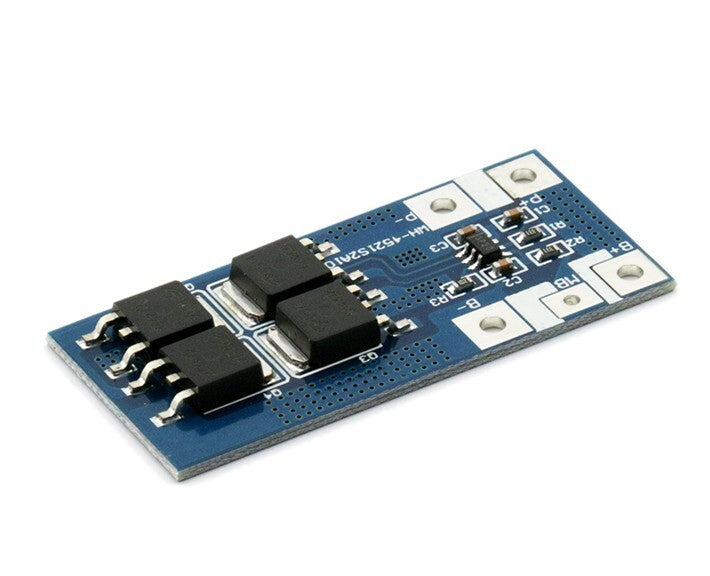

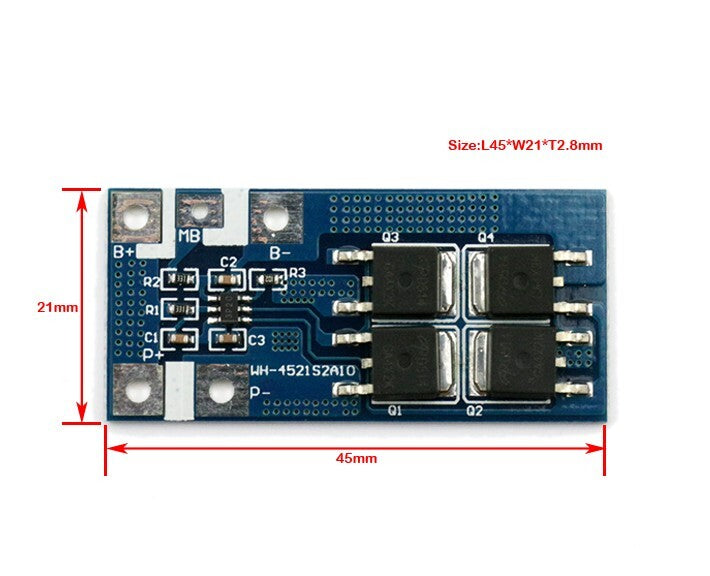

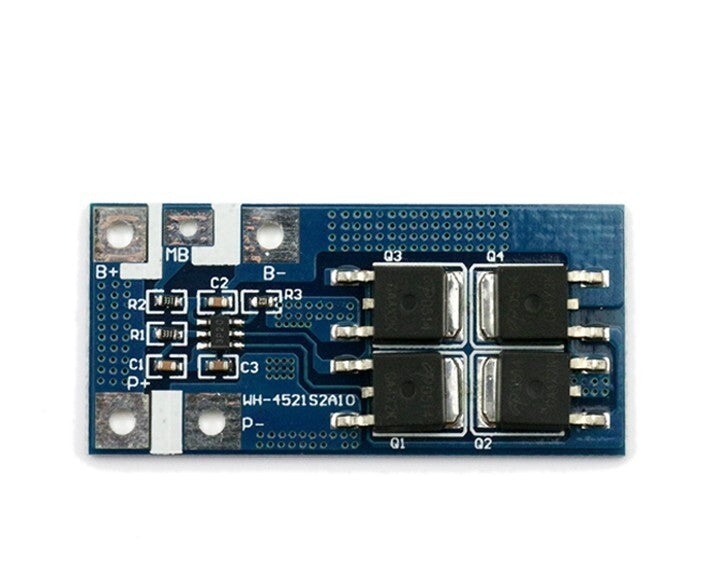

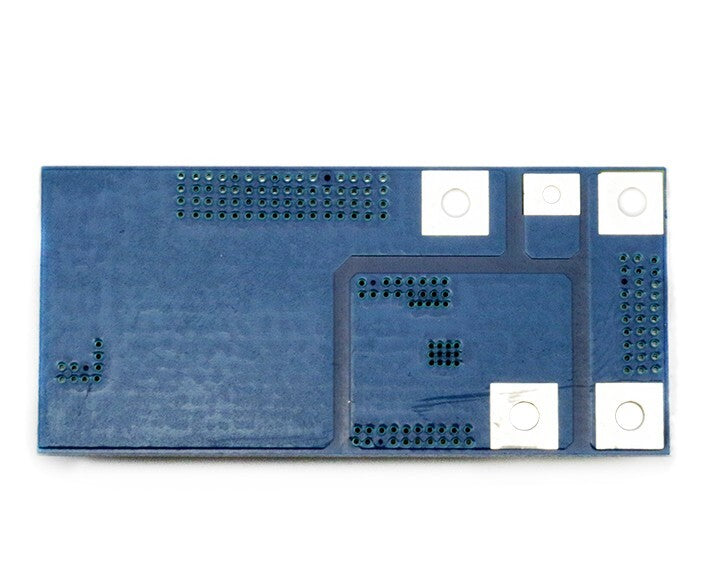

2S 12A 6.4V 12A 21 × 45 2 cells, higher current

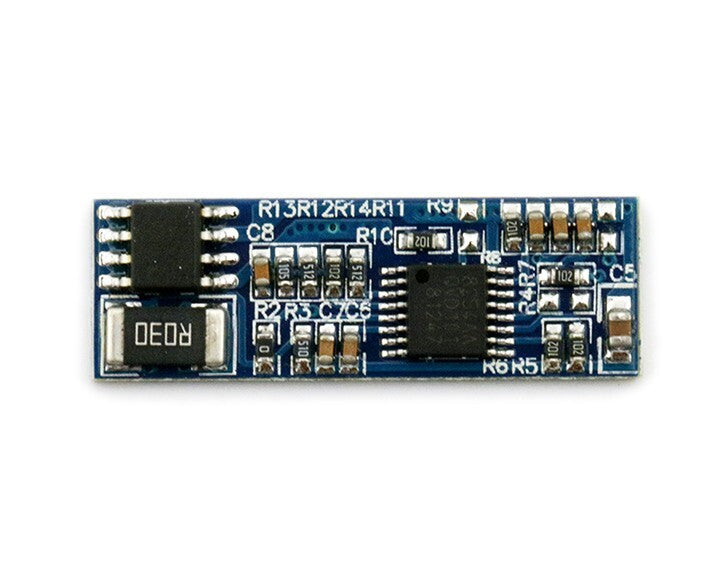

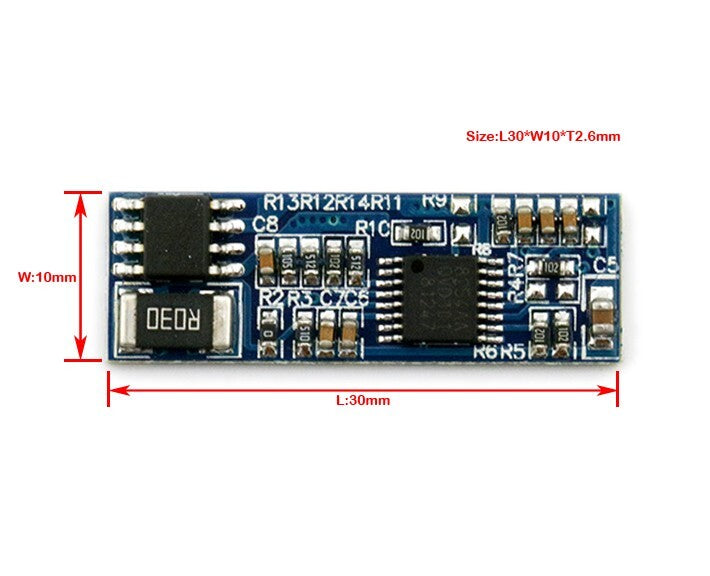

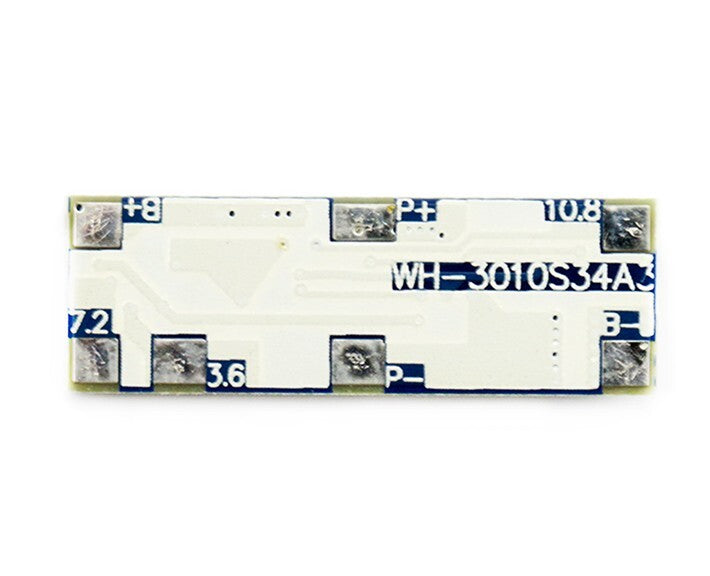

3S 2A 9.6V 2A 10 × 30 3 cells, low current

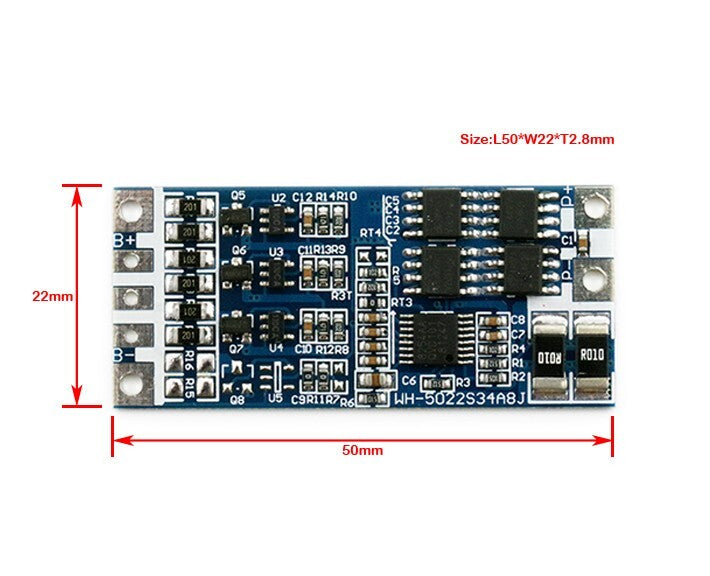

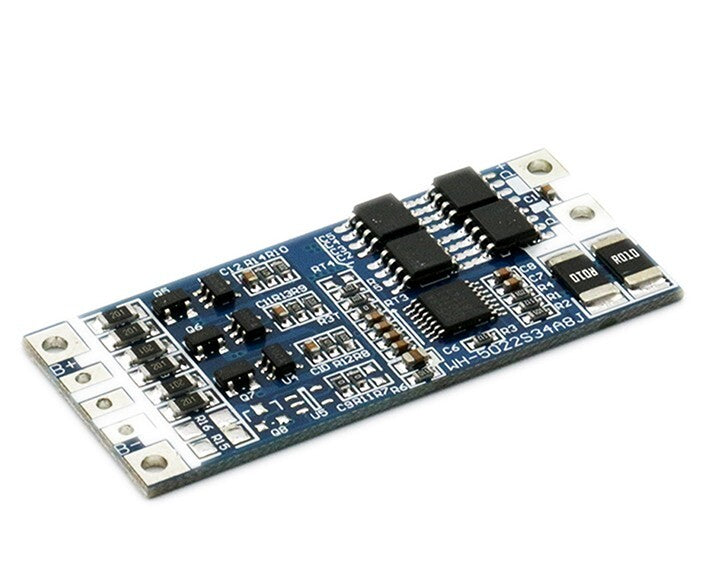

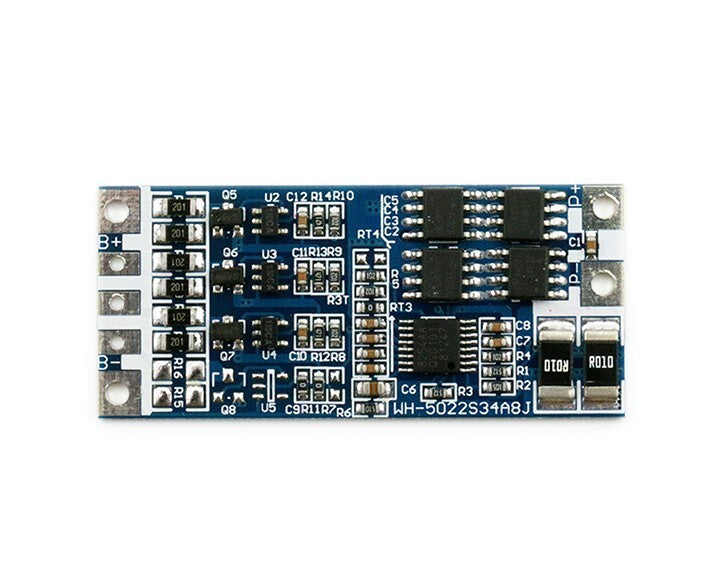

3S 8A 9.6V 8A 22 × 50 3 cells, medium current

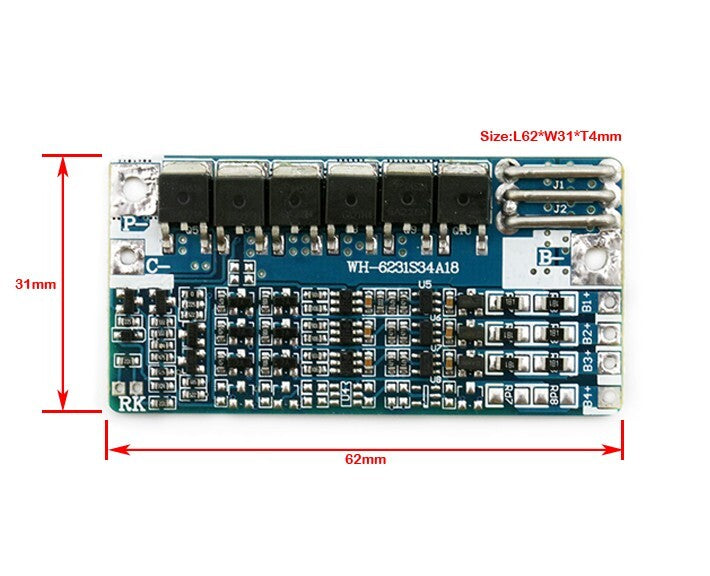

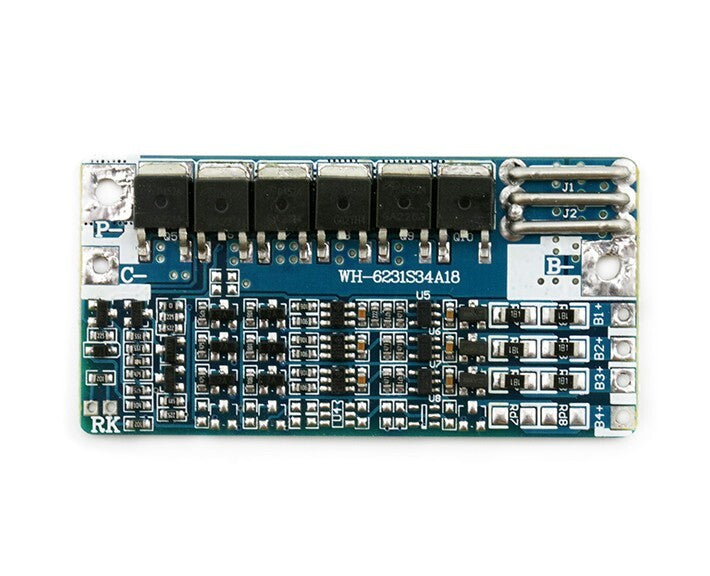

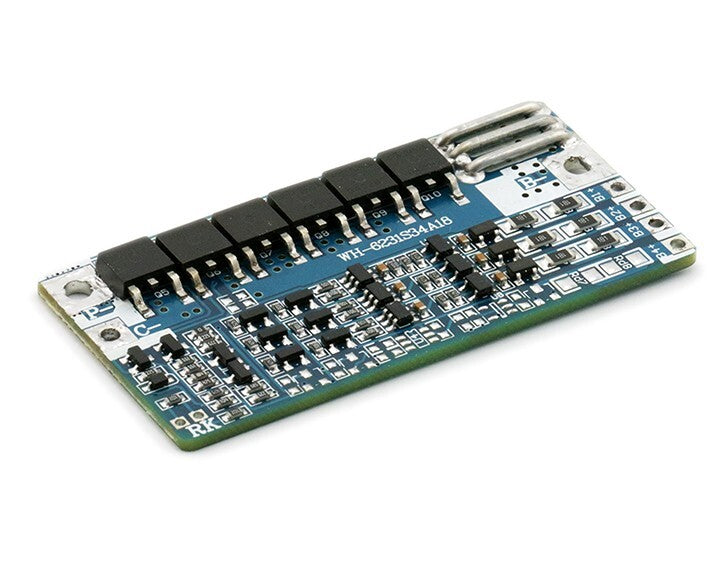

3S 16A 9.6V 16A 31 × 62 3 cells, high current

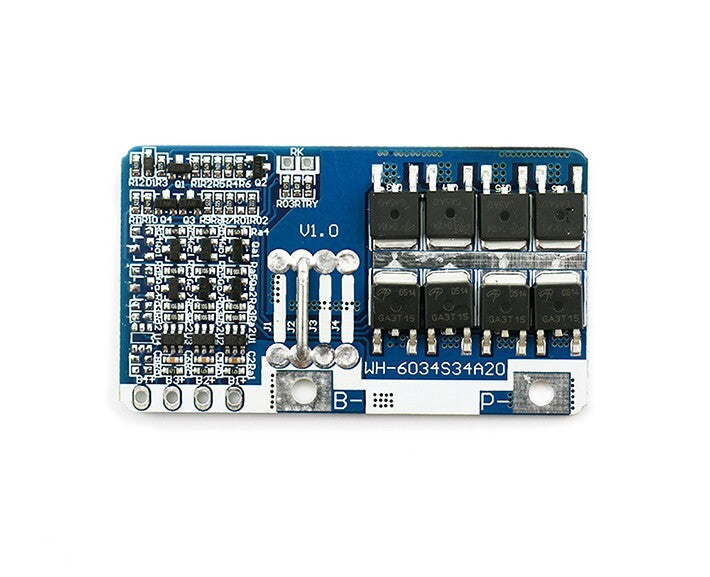

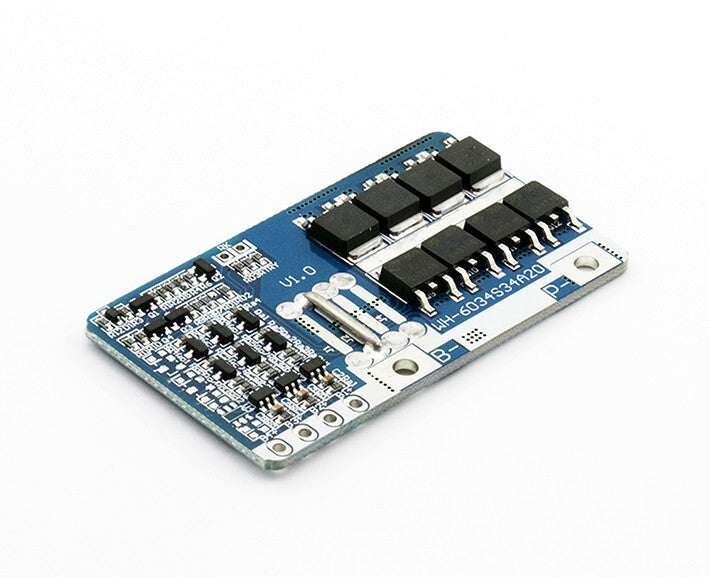

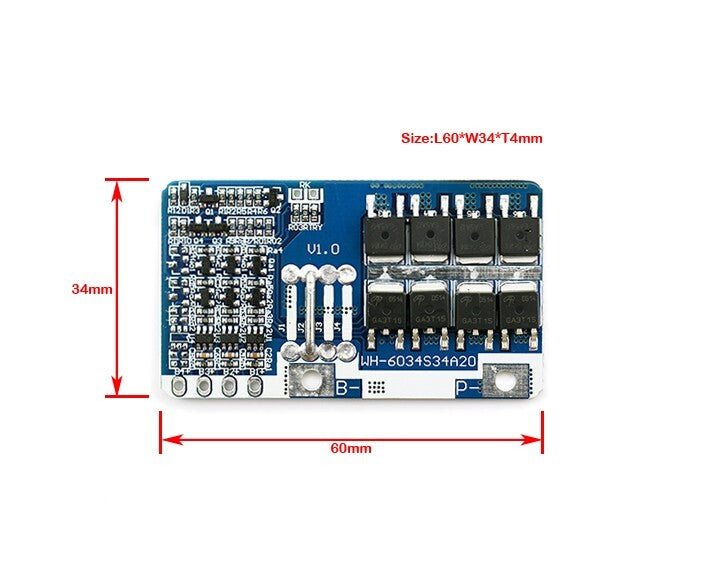

3S 20A 9.6V 20A 34 × 60 3 cells, maximum current

Protection Features

Protection Type Function
Overcharge Protection Disconnects when voltage exceeds 3.65V per cell
Over-discharge Protection Disconnects when voltage drops below 2.5V per cell
Overcurrent Protection Disconnects when current exceeds rated limit
Short Circuit Protection Instantly disconnects on short circuit
Temperature Protection Protects against overheating

Step-by-Step Installation Instructions

✅ Follow These Steps Carefully for Safe Installation

Step 1: Preparation & Safety

  • CRITICAL: Ensure all power sources are disconnected
  • Verify you have the correct BMS for your battery configuration (1S/2S/3S)
  • Check current rating matches or exceeds your application needs
  • Prepare tools: soldering iron, solder, wire cutters, multimeter
  • Use appropriate wire gauge for the current rating
  • Work in a well-ventilated area
  • Wear safety glasses

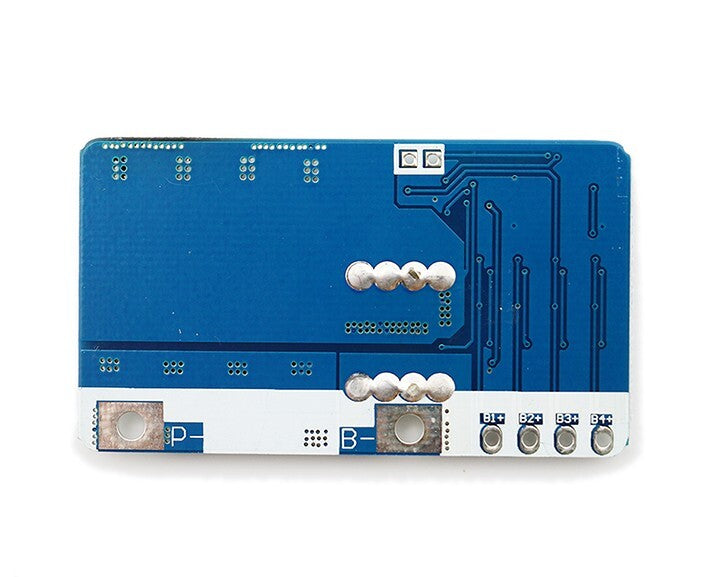

Step 2: Identify Connection Points

  • Locate the following pads/wires on the BMS board:
  • B- (Battery Negative): Connect to negative terminal of battery pack
  • B+ (Battery Positive): Connect to positive terminal of battery pack
  • P- (Load/Charger Negative): Output negative terminal
  • P+ (Load/Charger Positive): Output positive terminal

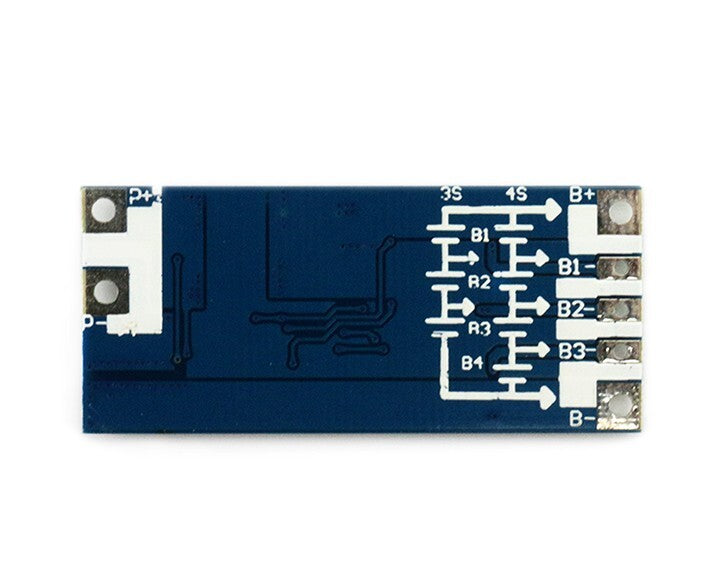

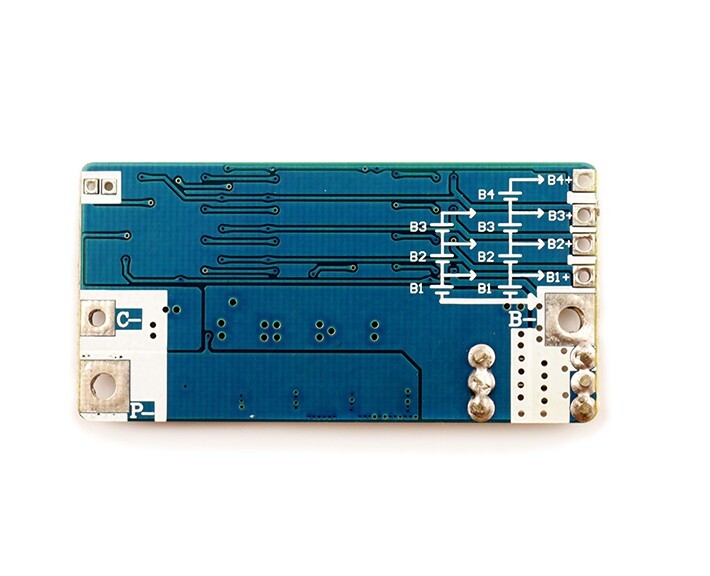

  • Balance Wires (for 2S/3S): B-, B1, B2, B+ (or B3 for 3S)
  • Refer to the wiring diagram (usually printed on the board or provided)

Step 3: Connect Balance Wires (2S/3S Only)

  • For 2S (6.4V):
  • B- to negative terminal of first cell
  • B1 to connection point between cell 1 and cell 2
  • B+ to positive terminal of second cell
  • For 3S (9.6V):
  • B- to negative terminal of first cell
  • B1 to connection point between cell 1 and cell 2
  • B2 to connection point between cell 2 and cell 3
  • B+ to positive terminal of third cell
  • Use thin wires (22-24 AWG) for balance connections
  • Double-check polarity before soldering

Step 4: Connect Main Power Wires

  • Battery Side:
  • Connect B- to battery pack negative terminal
  • Connect B+ to battery pack positive terminal
  • Load/Charger Side:
  • Connect P- to load/charger negative
  • Connect P+ to load/charger positive
  • Use appropriate wire gauge based on current rating:
  • 2-3A: 20-22 AWG
  • 7-10A: 16-18 AWG
  • 12-16A: 14-16 AWG
  • 20A: 12-14 AWG

Step 5: Verify Connections

  • BEFORE applying power, double-check:
  • All polarity is correct (+ to +, - to -)
  • Balance wires are connected in correct order
  • No short circuits between wires
  • All solder joints are solid and insulated
  • Use multimeter to verify voltage at each connection point
  • Ensure no bare wires are touching

Step 6: Initial Testing

  • Connect battery pack to BMS
  • Measure voltage at P+ and P- (should match battery voltage)
  • If no voltage at output, BMS may be in protection mode
  • Connect charger briefly to wake up BMS
  • Test with low-current load first
  • Monitor for any unusual heat or behavior

Step 7: Final Assembly

  • Insulate all exposed connections with heat shrink tubing
  • Secure BMS board inside battery pack enclosure
  • Ensure BMS does not touch battery cells directly
  • Use foam or insulation material if needed
  • Leave some ventilation space
  • Label positive and negative terminals clearly

Important Installation Precautions & Safety Guidelines

⚠️ CRITICAL SAFETY WARNINGS

Before Installation:

  • NEVER connect BMS to wrong voltage configuration
  • ❌ Do NOT use 1S BMS on 2S/3S batteries (will damage BMS and batteries)
  • ❌ Do NOT exceed rated current capacity
  • ❌ Do NOT reverse polarity (will destroy BMS immediately)
  • ✅ Verify BMS configuration matches your battery pack
  • ✅ Use correct wire gauge for current rating
  • ✅ Ensure all cells are balanced before installation

During Installation:

  • ❌ Never work on live circuits
  • ❌ Do not short circuit battery terminals
  • ❌ Avoid touching both terminals simultaneously
  • ✅ Work methodically, one connection at a time
  • ✅ Use proper soldering technique
  • ✅ Insulate each connection immediately after soldering

Wiring Best Practices:

  • Use stranded copper wire for flexibility
  • Tin wire ends before soldering to BMS pads
  • Apply heat shrink tubing BEFORE soldering
  • Keep wire lengths as short as practical
  • Route wires neatly to avoid pinching or damage
  • Use different colored wires for positive and negative
  • Label all connections clearly

Common Installation Mistakes to Avoid:

  • ❌ Reversed polarity on balance wires
  • ❌ Using wire gauge too small for current
  • ❌ Skipping balance wire connections on 2S/3S
  • ❌ Not insulating solder joints properly
  • ❌ Mounting BMS directly against battery cells
  • ❌ Forgetting to test before final assembly

Troubleshooting:

  • No output voltage: BMS in protection mode, connect charger briefly to reset
  • BMS keeps shutting off: Check for overcurrent, verify load is within rating
  • Won't charge: Check balance wire connections, verify charger voltage
  • BMS getting hot: Current may exceed rating, check wire gauge, verify no short circuit

Why Use a BMS/PCM?

Essential Protection:

  • Prevents overcharging (extends battery life)
  • Prevents over-discharge (protects cells from damage)
  • Protects against short circuits and overcurrent
  • Balances cells during charging (2S/3S)
  • Required for safe LiFePO4 battery operation

Safety Benefits:

  • Prevents thermal runaway
  • Protects your devices from battery failure
  • Extends battery pack lifespan significantly
  • Provides peace of mind for DIY projects

Common Applications

  • DIY Battery Packs: Custom LiFePO4 battery assemblies
  • Solar Systems: Solar battery banks
  • Electric Vehicles: E-bikes, scooters, small EVs
  • Power Tools: Cordless tool battery packs
  • Portable Power: Power banks, portable generators
  • UPS Systems: Backup power applications
  • Marine & RV: House battery systems

Warranty & Support

We stand behind the quality of our BMS boards. If you experience any issues, please contact us for support. Always follow installation instructions carefully and verify all connections before applying power. Improper installation may void warranty.
