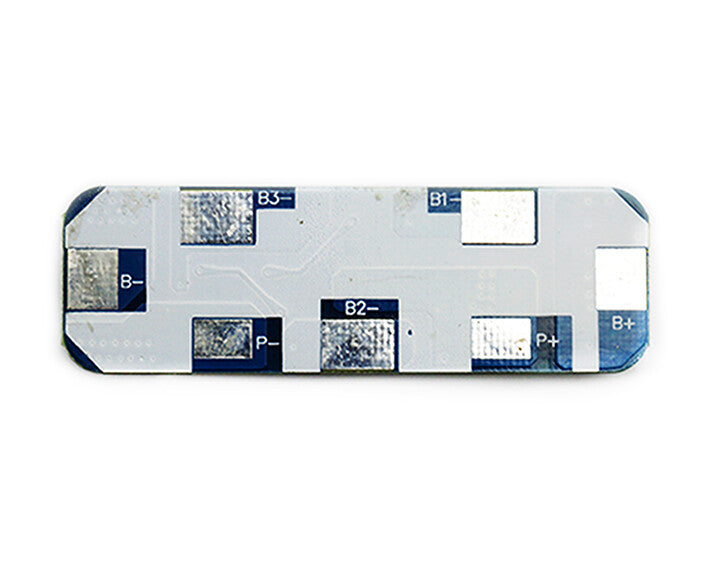

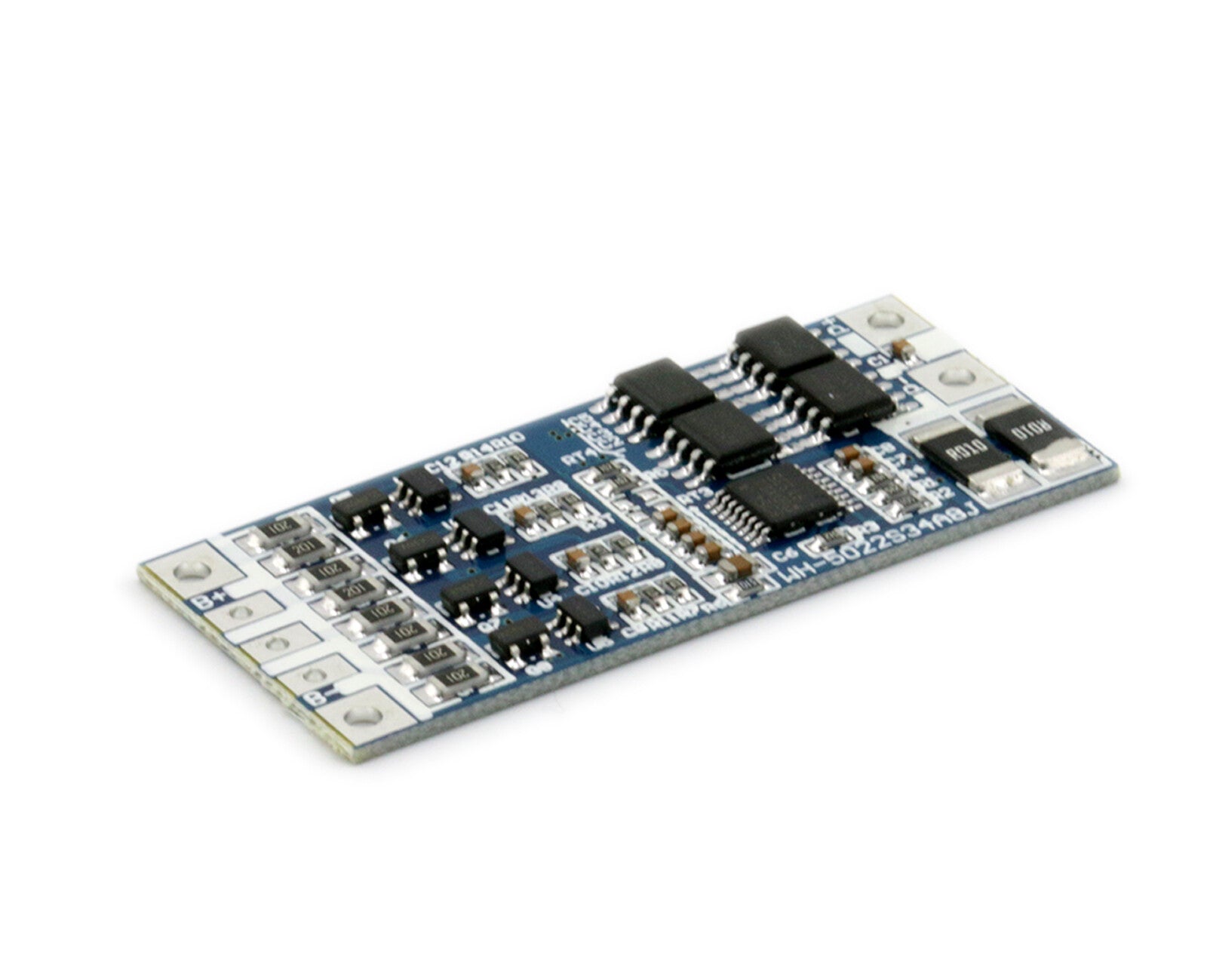

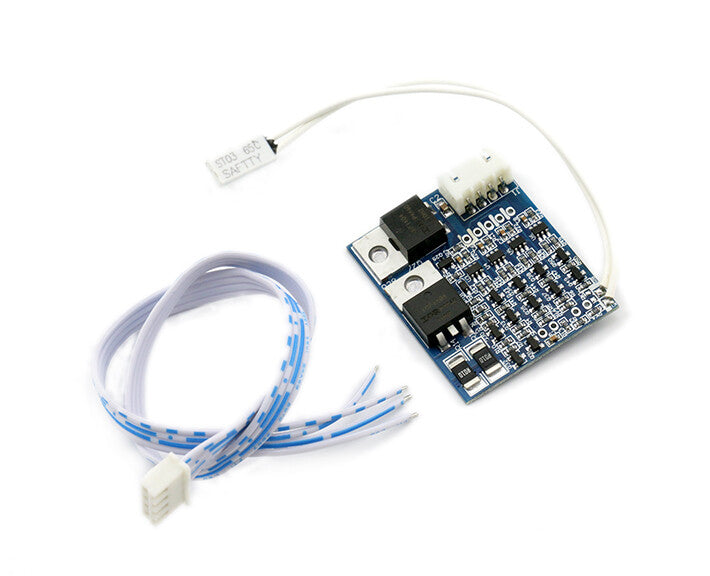

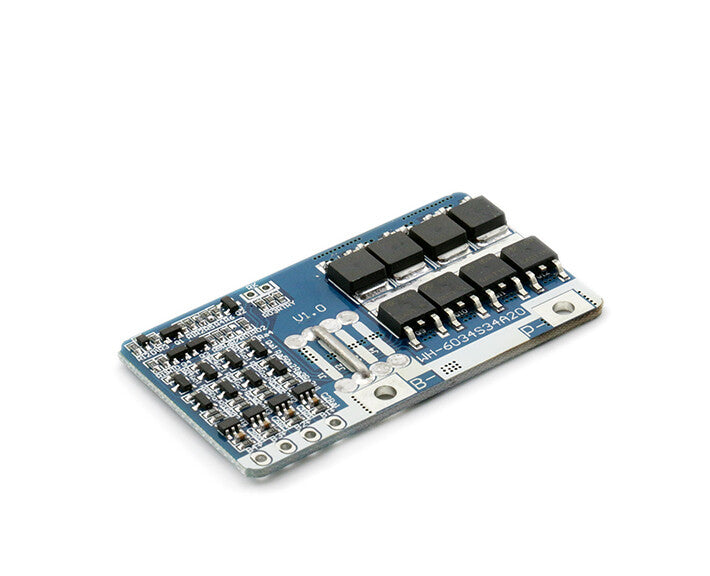

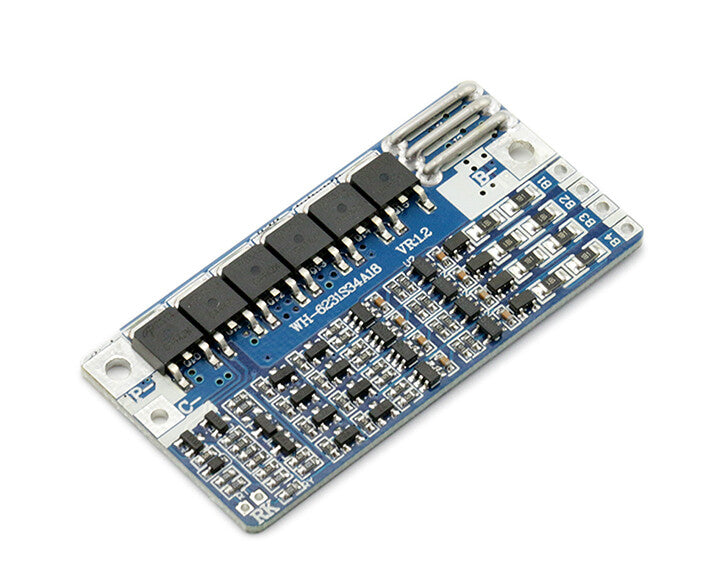

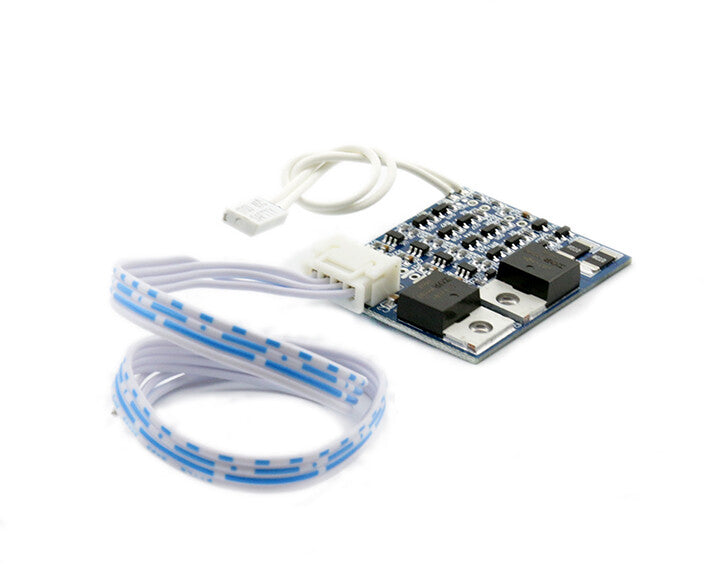

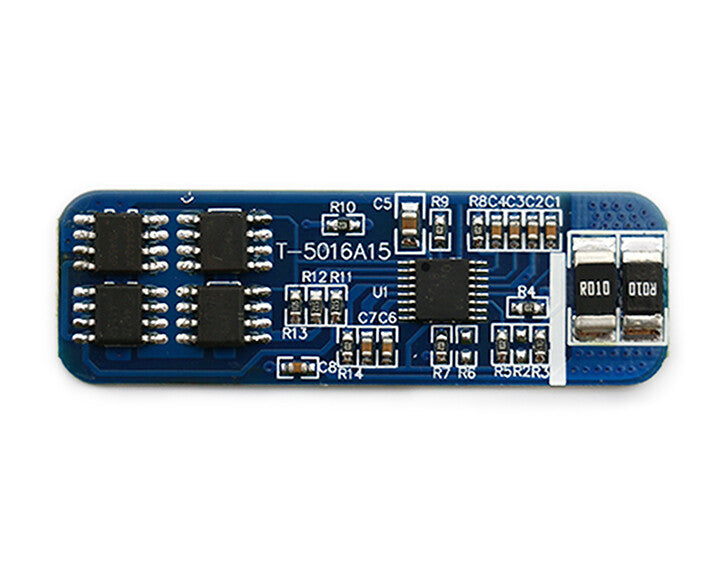

4S 12.8V LiFePO4 Battery Protection Board (BMS/PCM) - 8 Models Available

Professional Battery Management System (BMS) / Protection Circuit Module (PCM) specifically designed for 4S (12.8V) LiFePO4 (Lithium Iron Phosphate) battery packs. Available in 8 different models with current ratings from 4A to 20A and various sizes to fit different applications. Features comprehensive protection including overcharge, over-discharge, overcurrent, short circuit, and temperature protection, plus built-in cell balancing function. Perfect for DIY 12V LiFePO4 battery packs, solar systems, RVs, marine applications, and backup power systems.

Key Features

  • 8 Models Available: Choose from 4A to 20A current ratings
  • 4S Configuration: For 12.8V (4-cell) LiFePO4 battery packs
  • LiFePO4 Specific: Calibrated for Li-Fe voltage characteristics (3.2V per cell)
  • Comprehensive Protection: Overcharge, over-discharge, overcurrent, short circuit, temperature
  • Cell Balancing: Built-in balancing function for optimal performance
  • Multiple Sizes: Various form factors from 16×50mm to 61×61mm
  • Quality Components: Reliable MOSFETs and protection ICs
  • Low Self-Consumption: Minimal power drain on battery

Package Contents

  • 1× 4S 12.8V LiFePO4 Protection Board (BMS/PCM) - model as selected

Available Models - Choose Based on Your Current Needs

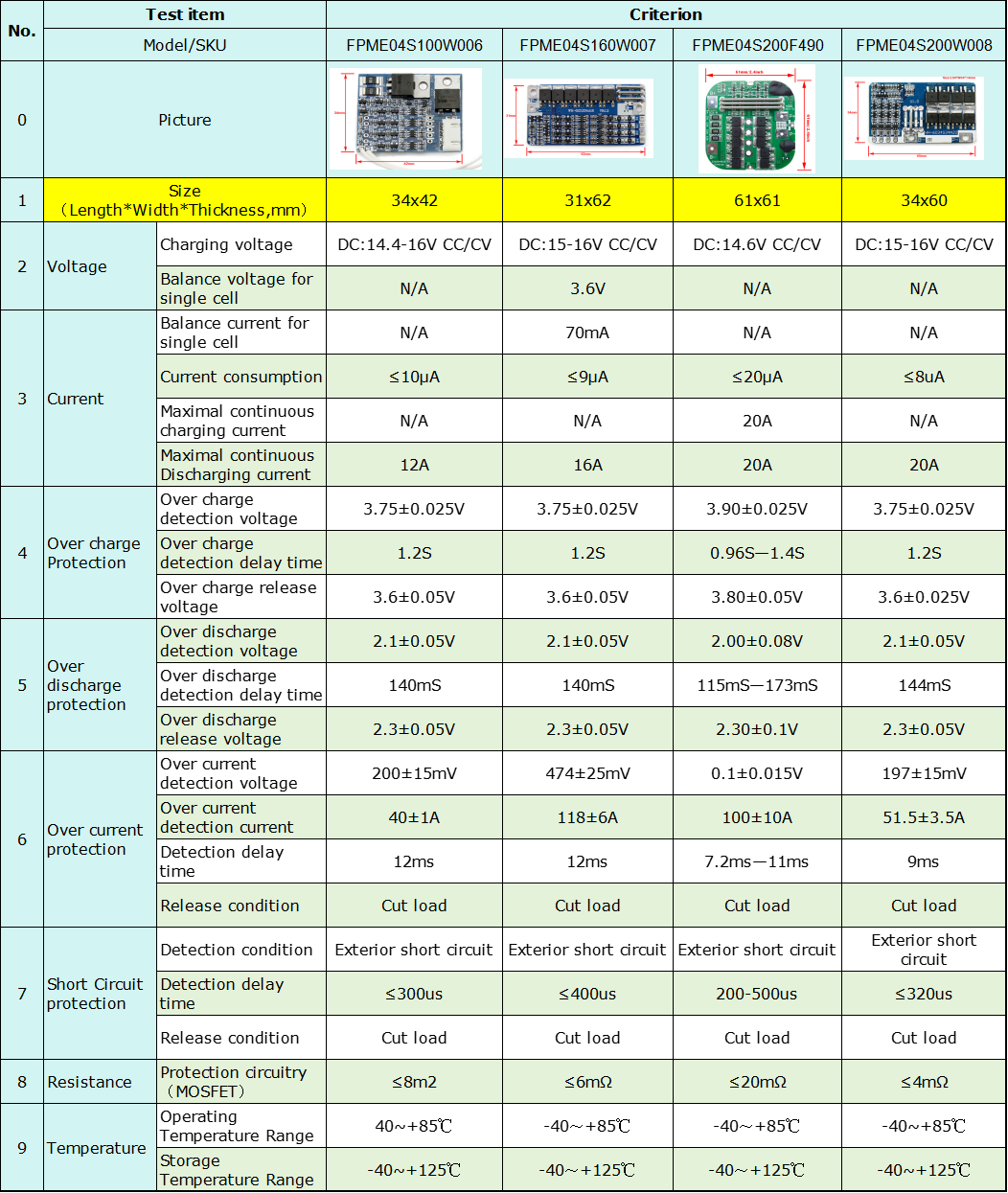

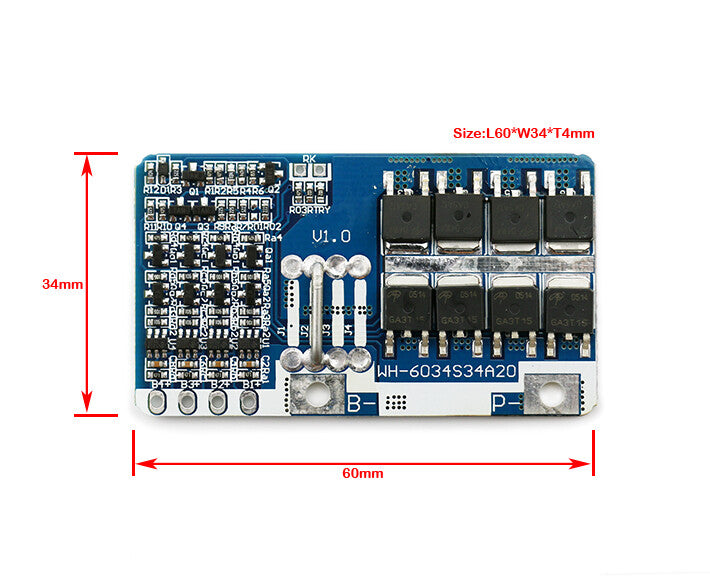

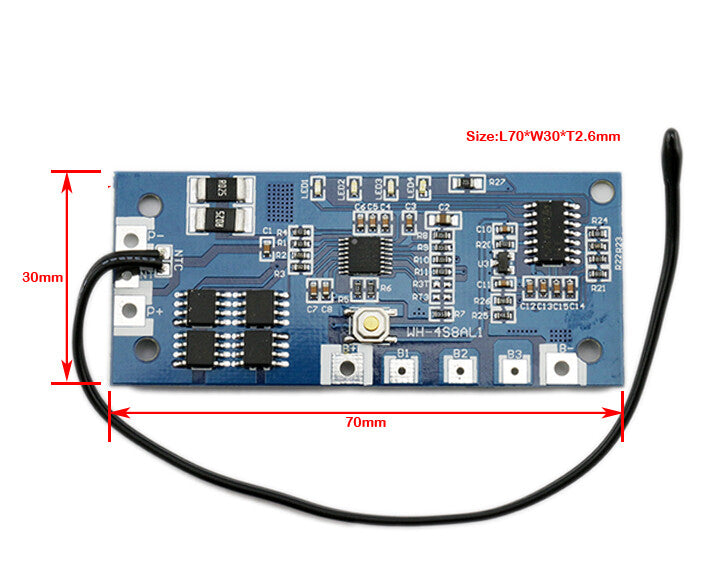

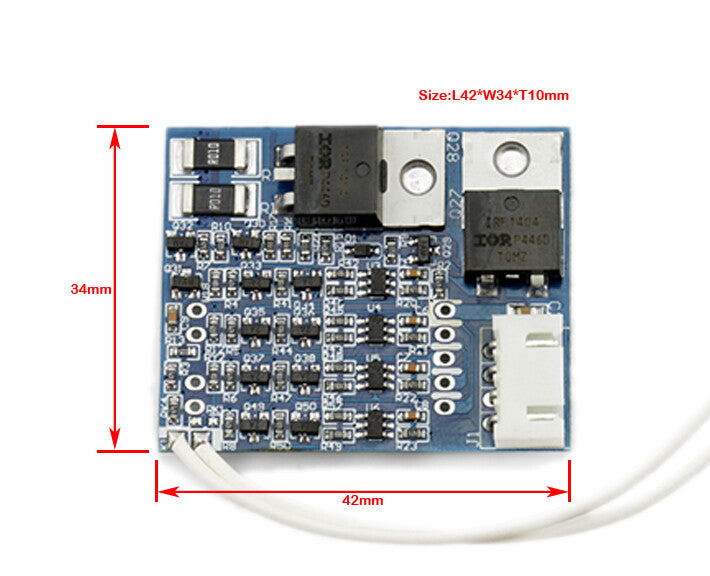

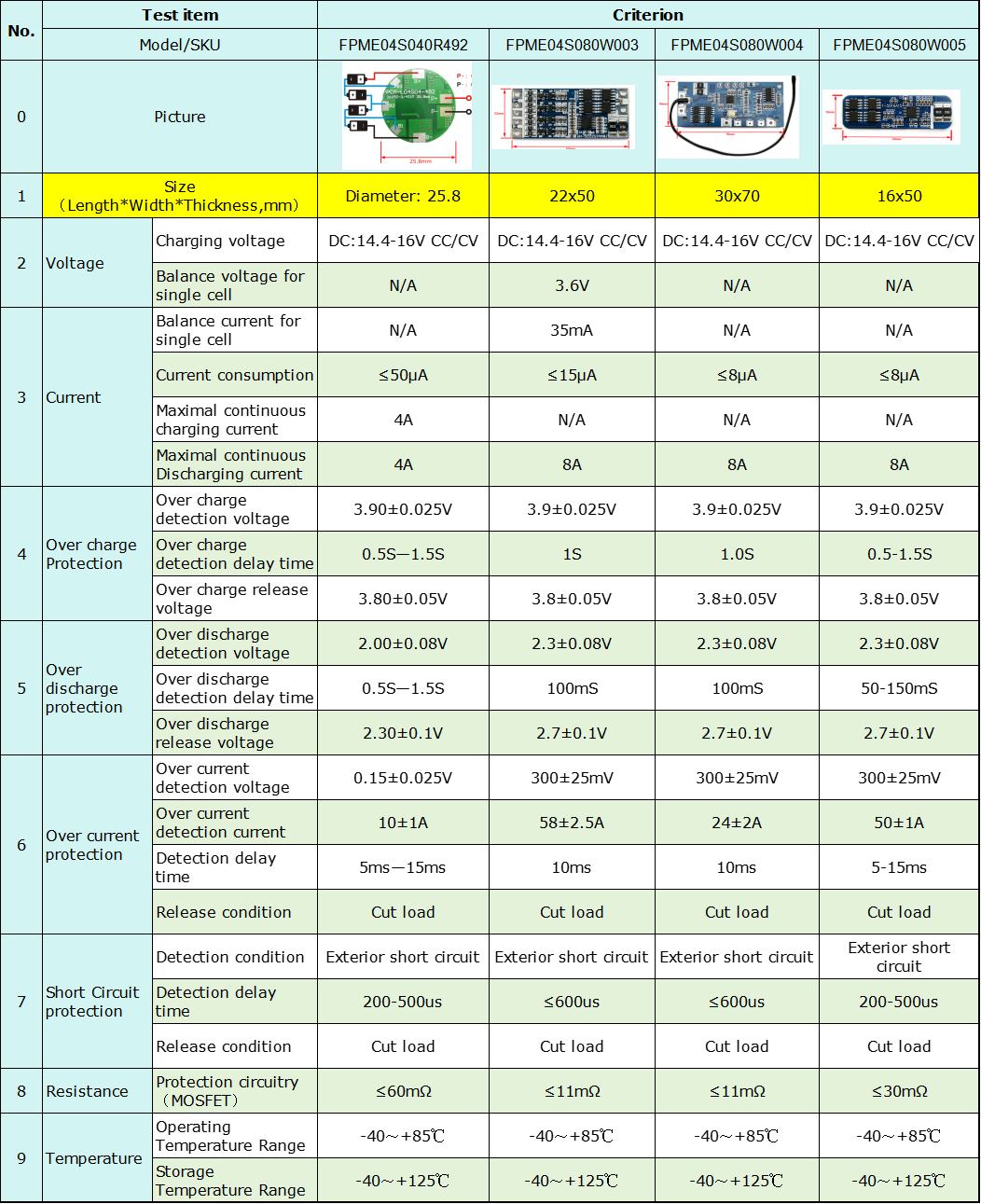

Model Current Size (mm) Weight Best For

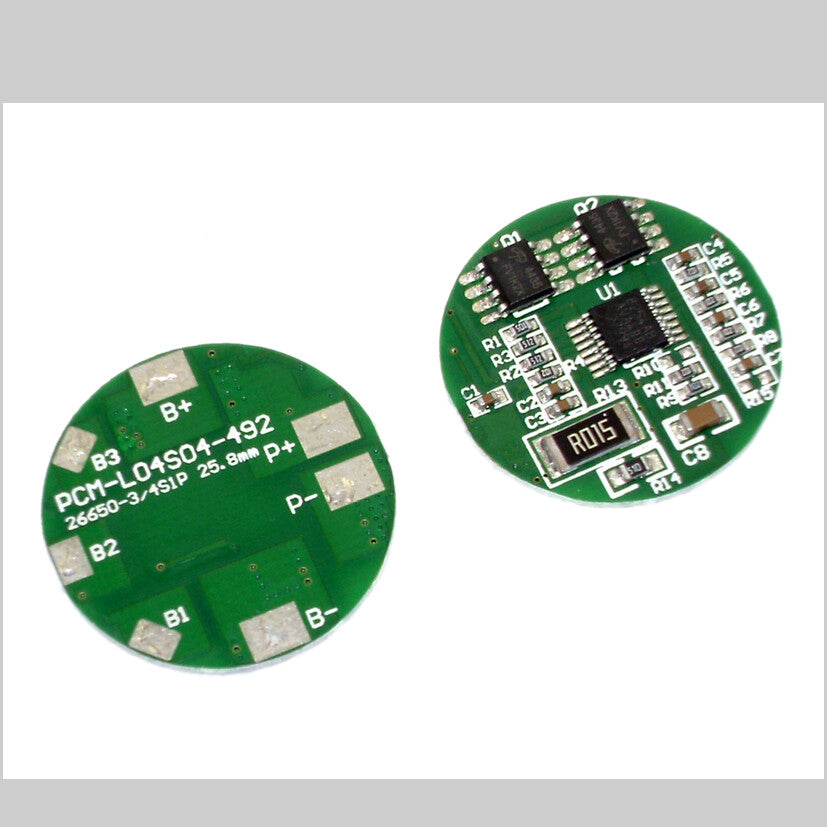

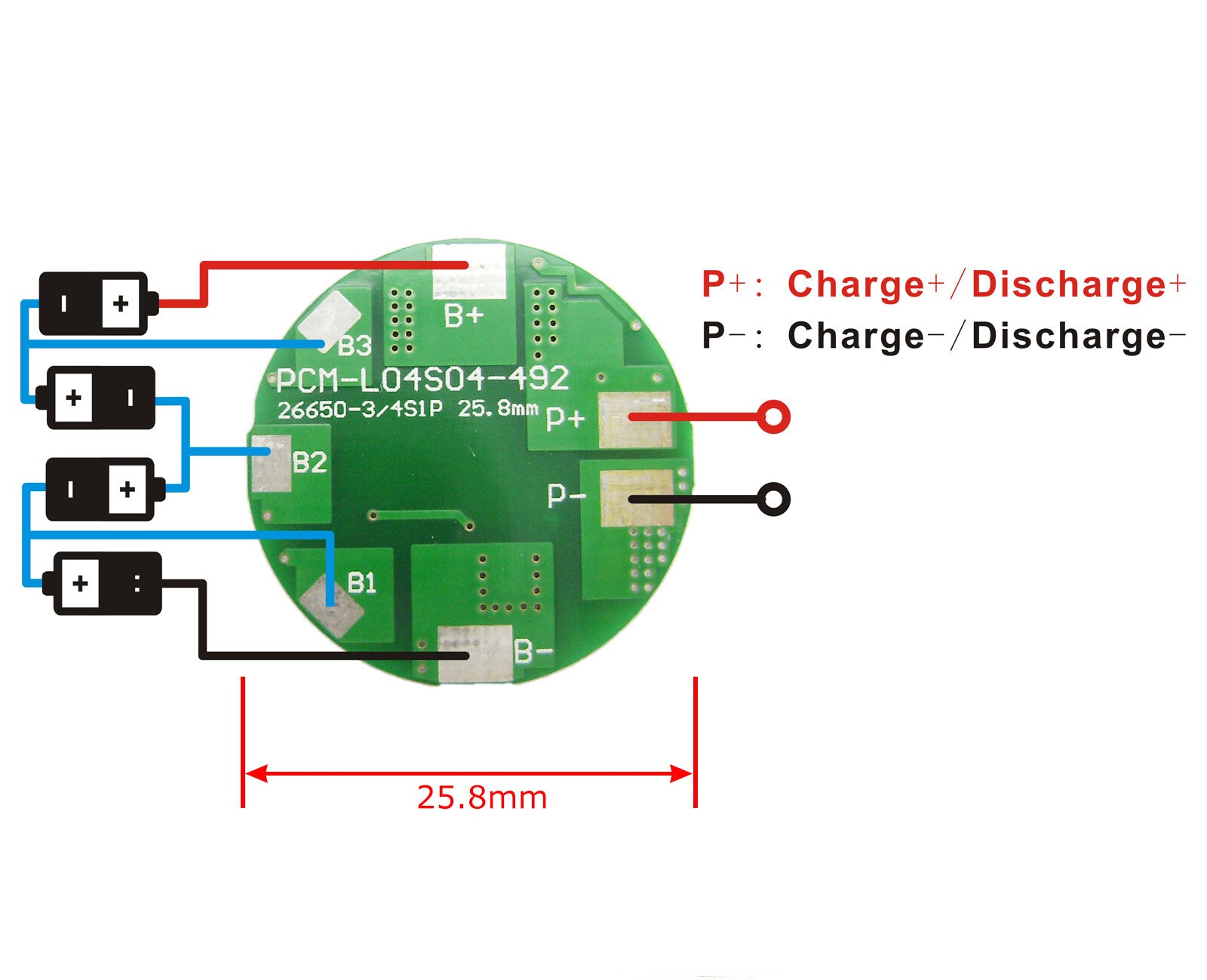

4A Round 4A 25.8mm Ø 33g Low current, compact cylindrical packs

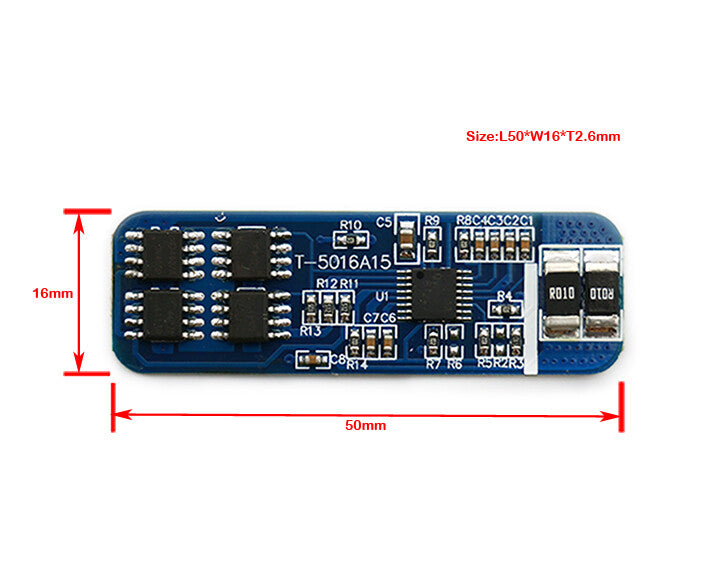

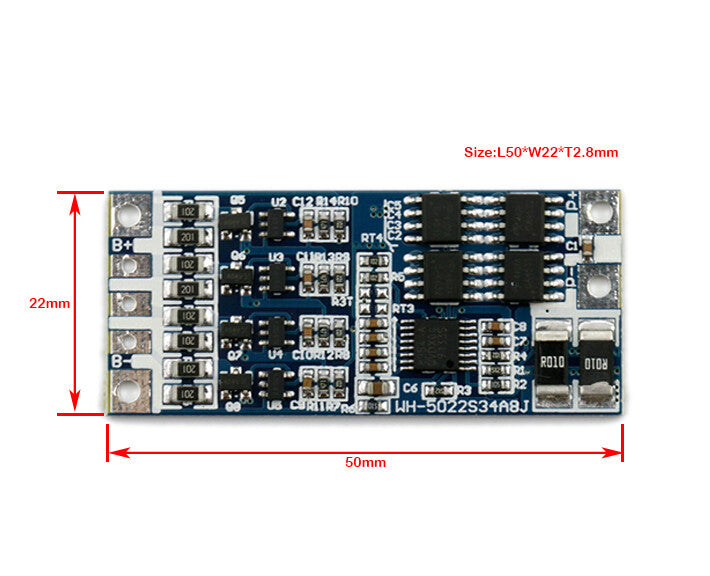

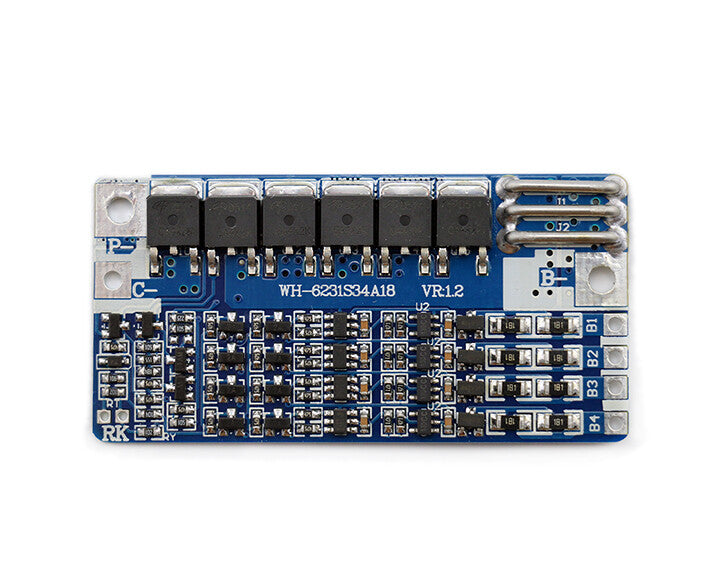

8A Model 1 8A 22 × 50 34g Compact applications, narrow spaces

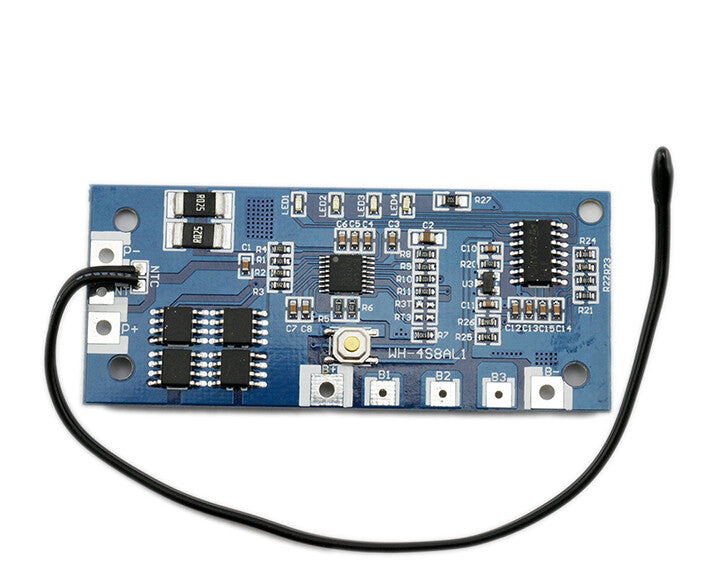

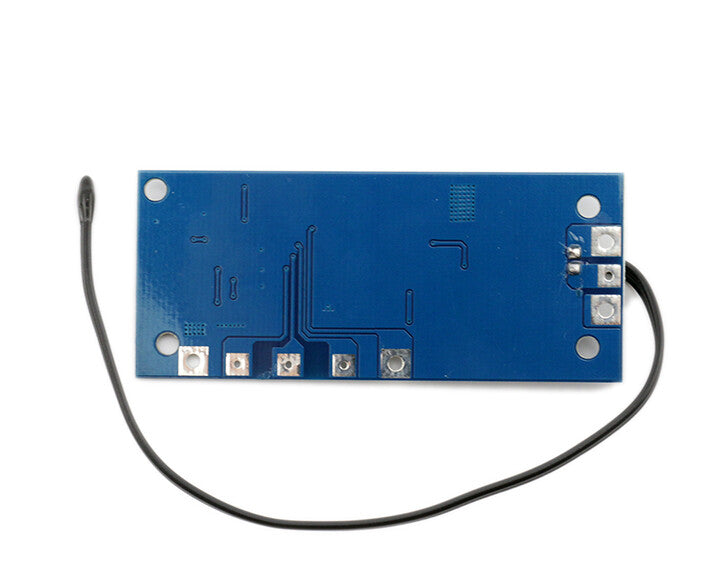

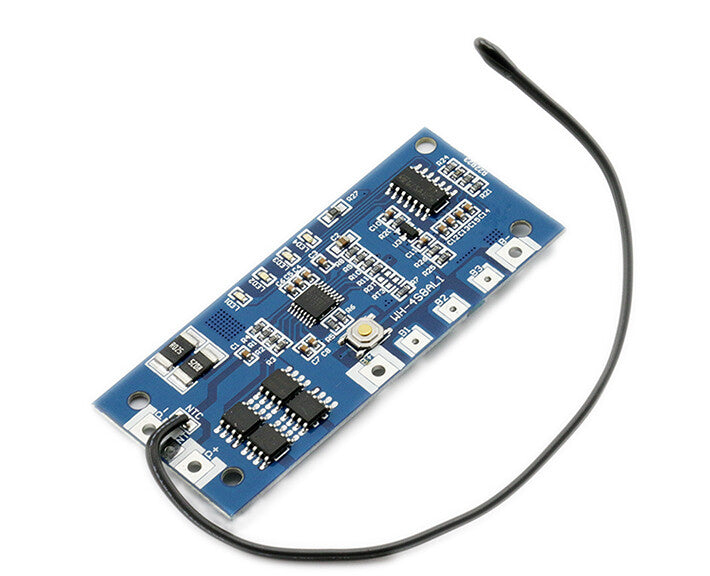

8A Model 2 8A 30 × 70 39g Standard applications

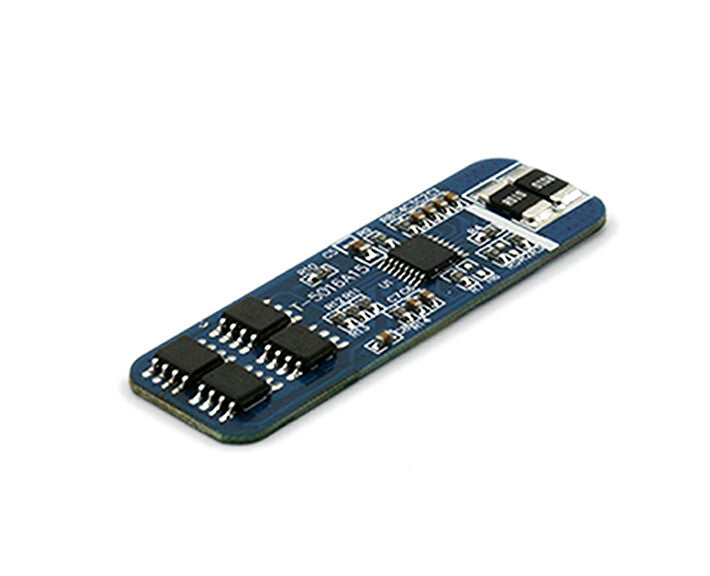

8A Model 3 8A 16 × 50 33g Ultra-compact, tight spaces
10A 10A 34 × 42 46g Medium current applications

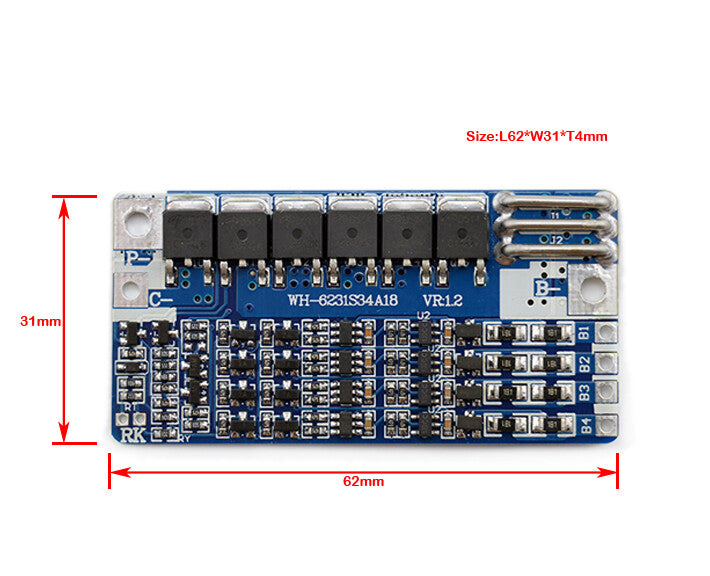

16A 16A 31 × 62 42g Higher current, power tools

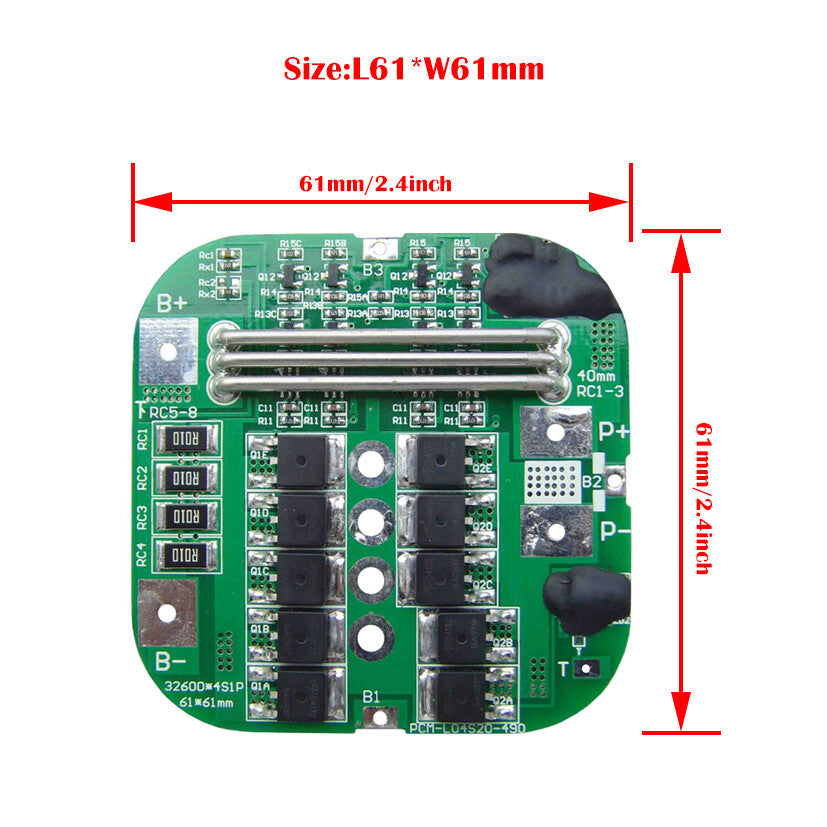

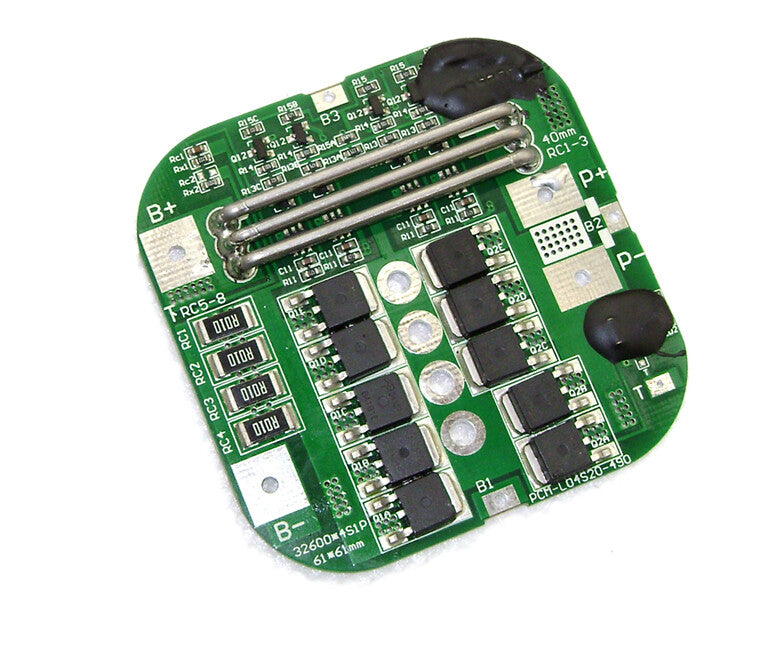

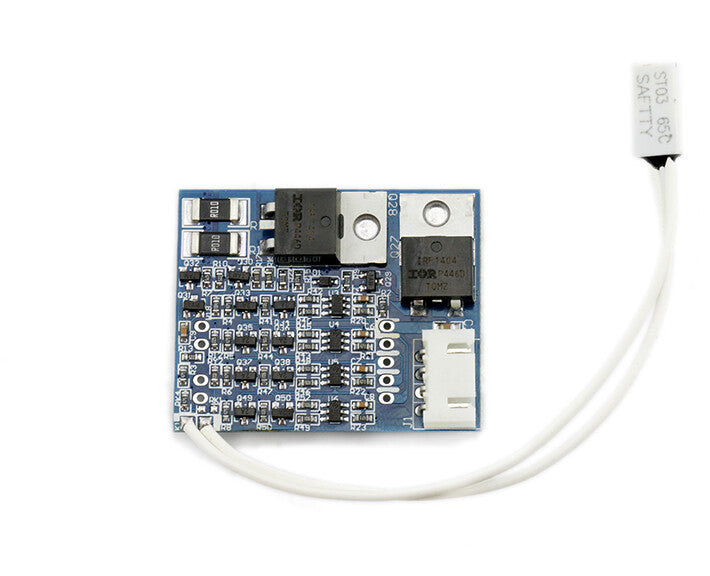

20A Model 1 20A 61 × 61 50g High current, square format
20A Model 2 20A 34 × 60 41g High current, rectangular format

Protection Features

Protection Type Function
Overcharge Protection Disconnects when any cell exceeds 3.65V
Over-discharge Protection Disconnects when any cell drops below 2.5V
Overcurrent Protection Disconnects when current exceeds rated limit
Short Circuit Protection Instantly disconnects on short circuit
Cell Balancing Balances cells during charging for optimal performance
Temperature Protection Protects against overheating

Step-by-Step Installation Instructions

✅ Follow These Steps Carefully for Safe Installation

Step 1: Preparation & Safety

  • CRITICAL: Disconnect all power sources before starting
  • Verify you have a 4S (4-cell) LiFePO4 battery pack
  • Select the correct BMS model based on your maximum current draw
  • Prepare tools: soldering iron, solder, wire cutters, multimeter, heat shrink tubing
  • Wire gauge recommendations:
  • 4-8A: 18-20 AWG
  • 10-16A: 14-16 AWG
  • 20A: 12-14 AWG
  • Work in a well-ventilated area with good lighting
  • Wear safety glasses

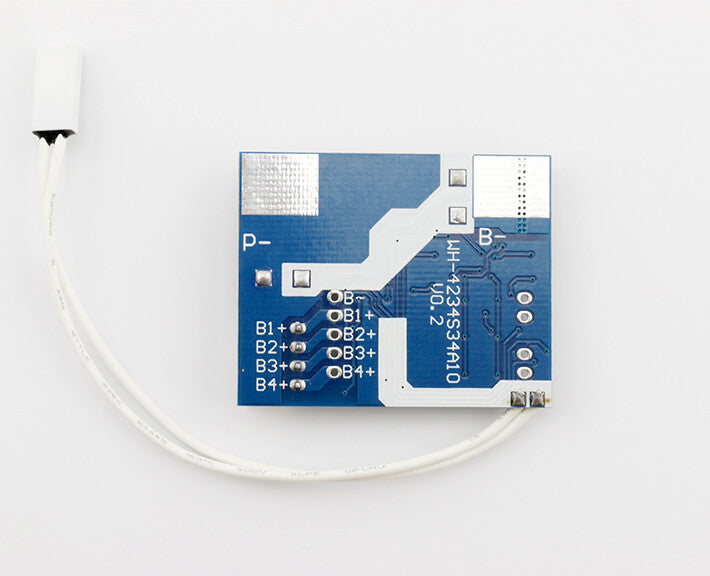

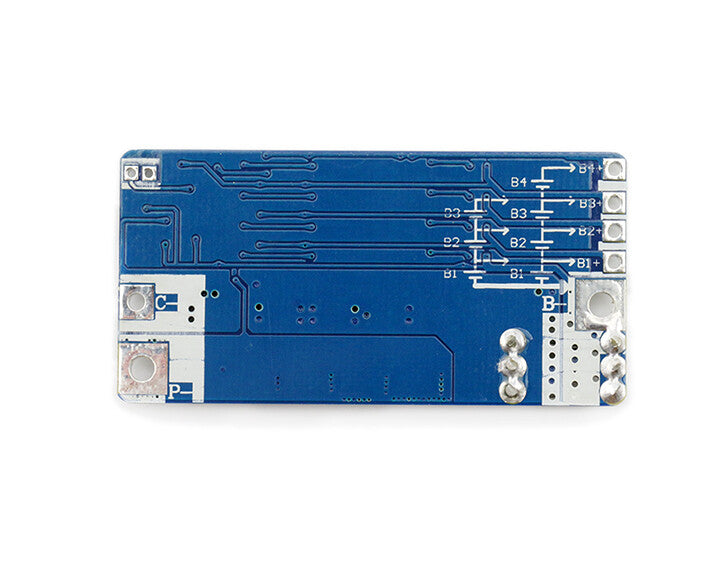

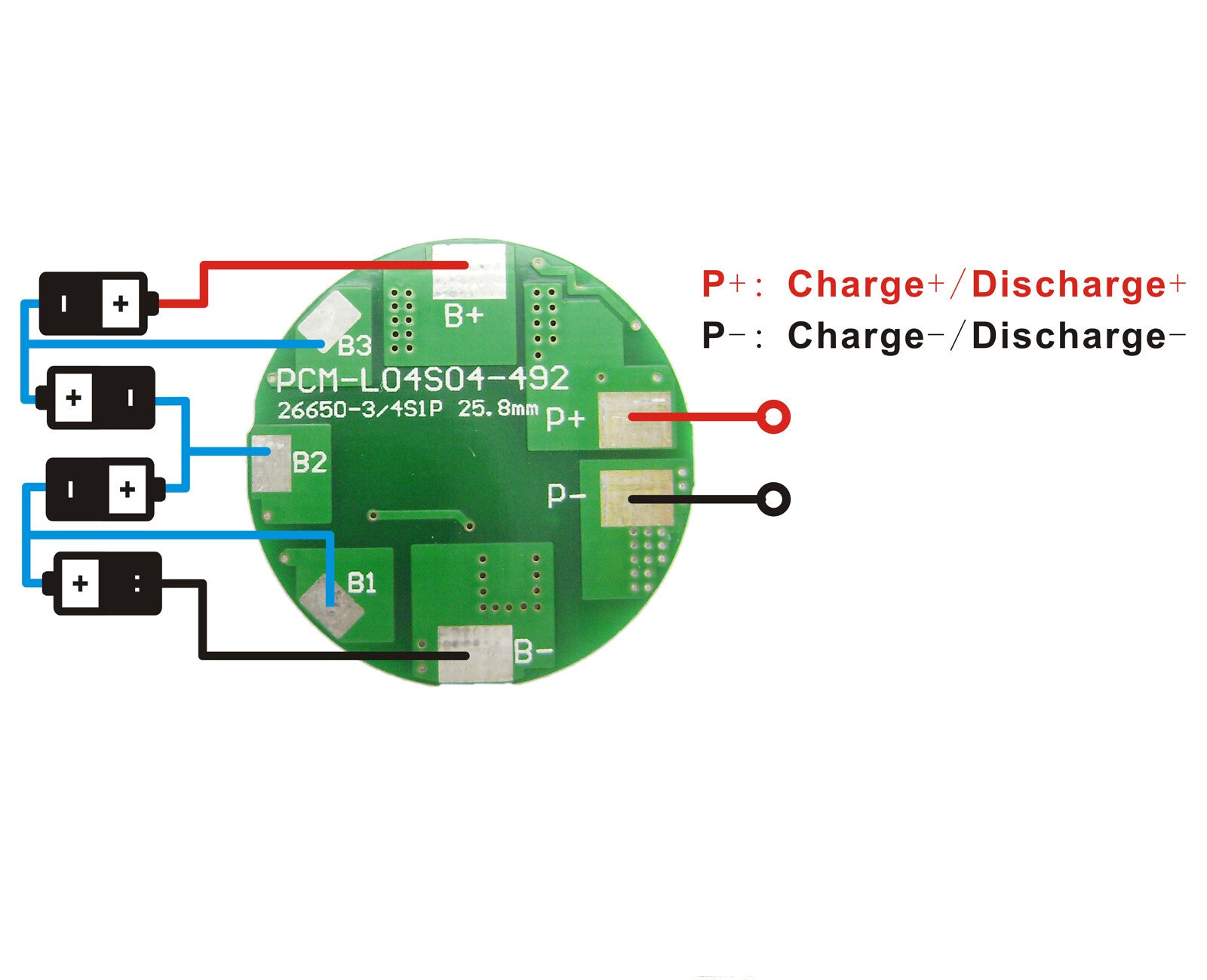

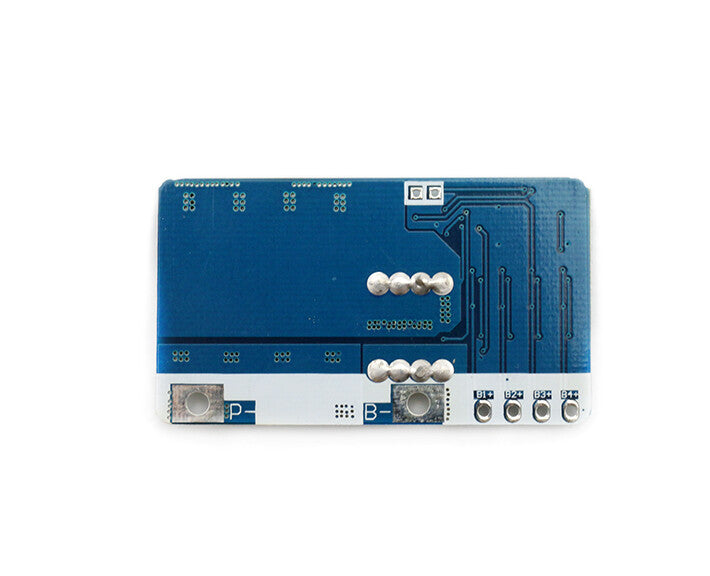

Step 2: Identify Connection Points on BMS

  • Locate the following pads/wires on the BMS board:
  • B- (Battery Negative): Connect to negative terminal of battery pack
  • B+ (Battery Positive): Connect to positive terminal of battery pack
  • P- (Load/Charger Negative): Output negative terminal
  • P+ (Load/Charger Positive): Output positive terminal

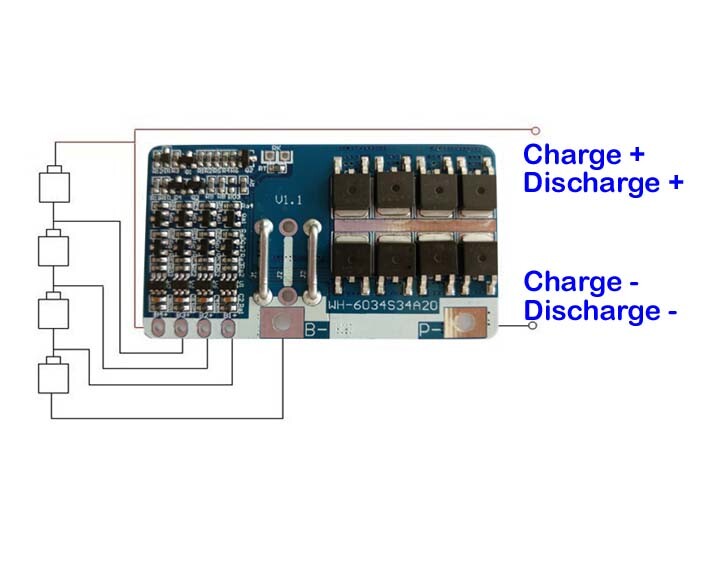

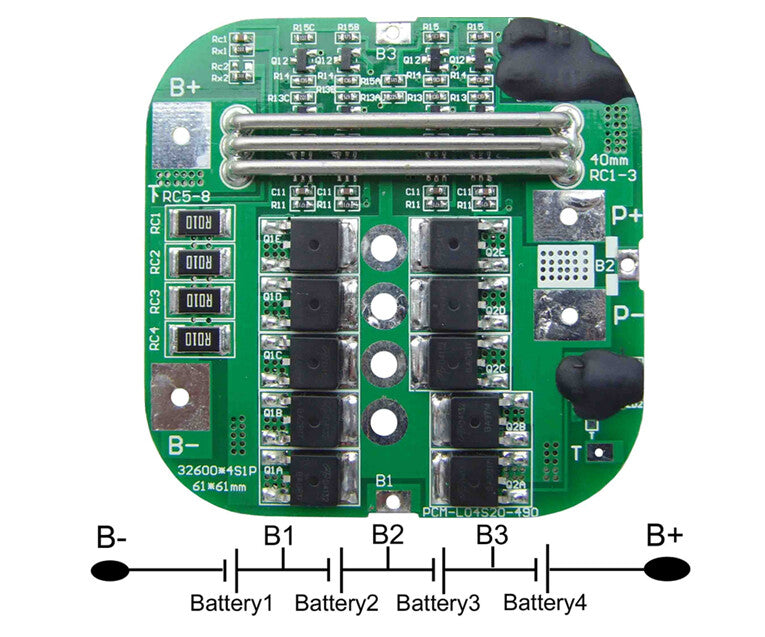

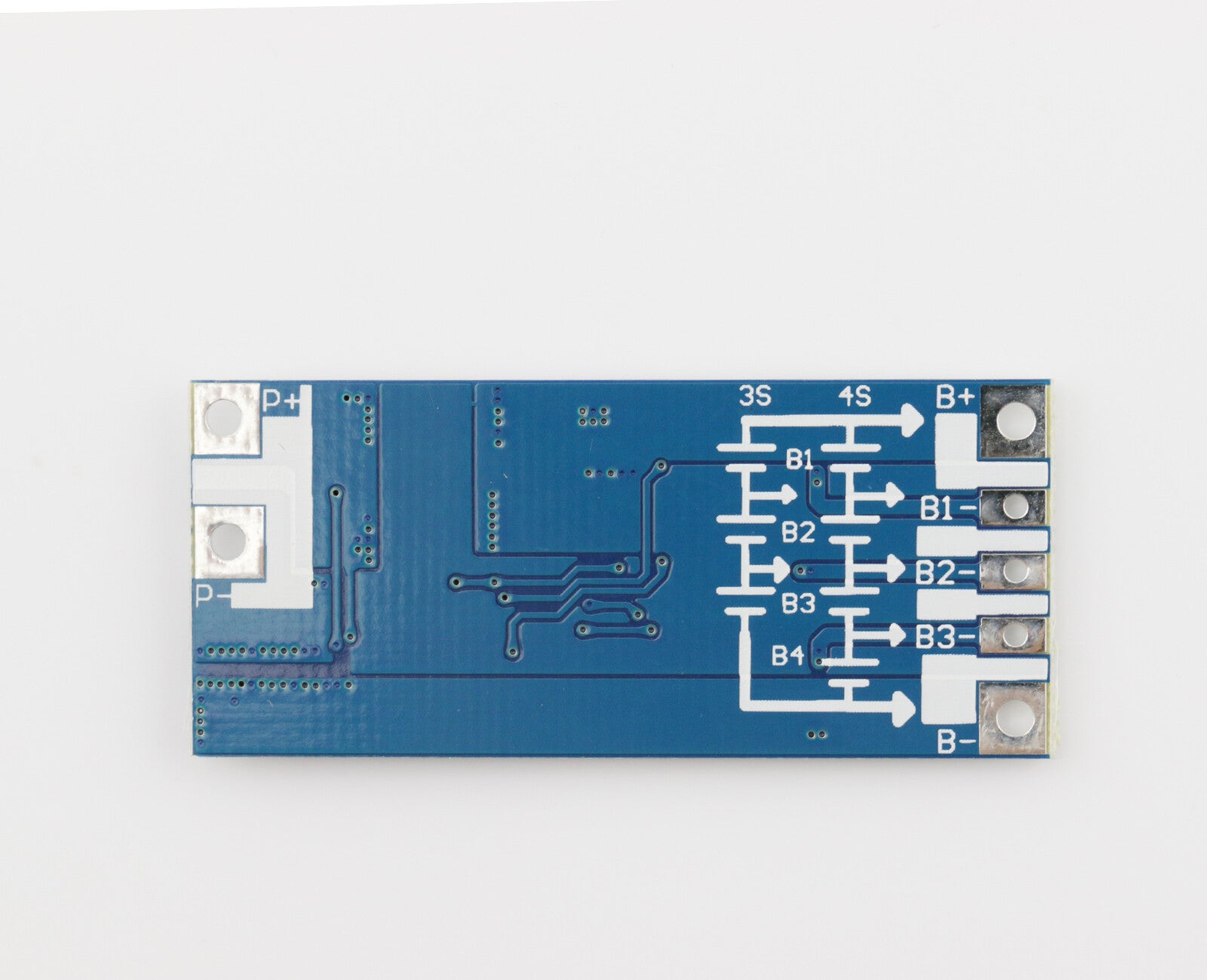

  • Balance Wires (4S): B-, B1, B2, B3, B+
  • Refer to the wiring diagram (usually printed on the board or in documentation)
  • Take a photo of the diagram for reference during installation

Step 3: Connect Balance Wires (Critical Step)

  • For 4S (12.8V) Configuration:
  • B- → Negative terminal of Cell 1 (first cell)
  • B1 → Connection point between Cell 1 and Cell 2
  • B2 → Connection point between Cell 2 and Cell 3
  • B3 → Connection point between Cell 3 and Cell 4
  • B+ → Positive terminal of Cell 4 (last cell)
  • Use thin wire (22-24 AWG) for balance connections
  • Label each wire BEFORE connecting (use masking tape)
  • Connect in order from B- to B+
  • Double-check each connection with multimeter:
  • B- to B1 should read ~3.2V
  • B1 to B2 should read ~3.2V
  • B2 to B3 should read ~3.2V
  • B3 to B+ should read ~3.2V
  • B- to B+ should read ~12.8V total

Step 4: Connect Main Power Wires

  • Battery Side Connections:
  • Connect B- pad to battery pack negative terminal
  • Connect B+ pad to battery pack positive terminal
  • Use appropriate wire gauge based on current rating

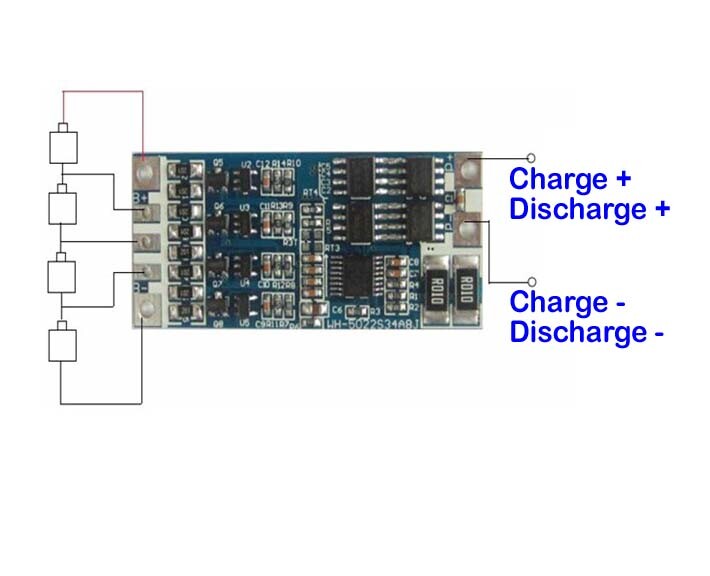

  • Load/Charger Side Connections:
  • Connect P- pad to load/charger negative
  • Connect P+ pad to load/charger positive
  • These are your output terminals
  • Solder all connections securely
  • Apply heat shrink tubing immediately after each solder joint

Step 5: Verify All Connections Before Power-On

  • CRITICAL - Check before applying power:
  • ✅ All balance wires connected in correct sequence (B-, B1, B2, B3, B+)
  • ✅ No reversed polarity on any connection
  • ✅ All solder joints are solid and well-insulated
  • ✅ No short circuits between adjacent wires
  • ✅ Use multimeter to verify voltage at each balance point
  • ✅ Verify total pack voltage is approximately 12.8V (11V-14.6V range)
  • ✅ Check continuity from B- to P- and B+ to P+

Step 6: Initial Testing

  • Connect battery pack to BMS
  • Measure voltage at P+ and P- terminals with multimeter
  • Should read full pack voltage (~12.8V)
  • If no output voltage:
  • BMS may be in protection mode (normal for new BMS)
  • Connect charger briefly (5-10 seconds) to wake up BMS
  • Check output voltage again
  • Test with low-current load first (1-2A)
  • Monitor BMS temperature during first 10 minutes of use
  • Verify protection functions:
  • Test over-discharge protection (discharge to 10V, BMS should disconnect)
  • Test overcharge protection (charge to 14.6V, BMS should disconnect)

Step 7: Final Assembly & Insulation

  • Apply heat shrink tubing to all exposed wire connections
  • Secure BMS board inside battery pack enclosure
  • Use foam padding or insulation to prevent BMS from touching cells directly
  • Ensure adequate ventilation around BMS (leave 5-10mm clearance)
  • Route balance wires neatly, avoid sharp bends
  • Keep balance wires away from high-current main power wires
  • Label output terminals clearly: P+ (Positive) and P- (Negative)
  • Perform final voltage check before sealing enclosure
  • Document your wiring for future reference

Important Installation Precautions & Safety Guidelines

⚠️ CRITICAL SAFETY WARNINGS

Before Installation:

  • NEVER use this 4S BMS on 1S, 2S, 3S, or 5S+ battery packs
  • ❌ Do NOT exceed the rated current capacity of your chosen model
  • ❌ Do NOT reverse polarity - will destroy BMS instantly
  • ❌ Do NOT skip balance wire connections - BMS will not function properly
  • ❌ Do NOT use with Li-ion or LiPo batteries - LiFePO4 ONLY
  • ✅ Verify you have exactly 4 LiFePO4 cells in series
  • ✅ Ensure all cells are balanced (within 0.05V of each other) before installation
  • ✅ Select BMS current rating 20-30% higher than your maximum load

During Installation:

  • ❌ Never work on live circuits
  • ❌ Do not short circuit battery terminals with tools
  • ❌ Avoid touching both terminals simultaneously
  • ❌ Do not solder directly to battery cells (use tabs or holders)
  • ✅ Work methodically, one connection at a time
  • ✅ Use proper soldering technique (clean tip, appropriate temperature)
  • ✅ Insulate each connection immediately after soldering
  • ✅ Test each balance wire connection with multimeter before proceeding

Balance Wire Connection - Critical Tips:

  • The balance wires MUST be connected in the correct order
  • Incorrect balance wire order will damage the BMS permanently
  • Label each wire before connecting: B-, B1, B2, B3, B+
  • Use different colored wires if possible for easy identification
  • Start from B- and work your way to B+ in sequence
  • Verify voltage between each adjacent balance point (~3.2V)
  • Keep balance wires as short as practical (but not too tight)
  • Do not bundle balance wires with high-current power wires

Wire Gauge Selection:

  • Using wire too thin will cause voltage drop and overheating
  • 4A model: minimum 18 AWG (1.0mm²)
  • 8A model: minimum 16 AWG (1.5mm²)
  • 10A model: minimum 14 AWG (2.5mm²)
  • 16A model: minimum 14 AWG (2.5mm²)
  • 20A model: minimum 12 AWG (4.0mm²)
  • When in doubt, use thicker wire - it's safer

Common Installation Mistakes to Avoid:

  • ❌ Connecting balance wires in wrong order (most common mistake)
  • ❌ Reversing B+ and B- connections
  • ❌ Using wire gauge too small for current rating
  • ❌ Forgetting to insulate solder joints
  • ❌ Mounting BMS directly against battery cells (causes shorts)
  • ❌ Not testing connections before final assembly
  • ❌ Exceeding current rating of BMS
  • ❌ Mixing up P+ and B+ connections

Troubleshooting Guide:

  • No output voltage at P+/P-:
  • BMS in protection mode - connect charger briefly to reset
  • Check balance wire connections are correct
  • Verify battery voltage is within normal range (11V-14.6V)
  • BMS keeps shutting off under load:
  • Current draw exceeds BMS rating - upgrade to higher current model
  • Check wire gauge is adequate
  • Verify no short circuits in load
  • Won't charge:
  • Check balance wire connections
  • Verify charger voltage is correct (14.6V for 4S LiFePO4)
  • Ensure charger current is within BMS rating
  • BMS getting very hot:
  • Current exceeds rating - reduce load or upgrade BMS
  • Poor ventilation - improve airflow
  • Wire gauge too small - use thicker wires
  • Cells not balancing:
  • Check all balance wire connections are secure
  • Verify balance wires are in correct order
  • Allow more time - balancing is slow (can take hours)

Common Applications for 4S 12.8V LiFePO4 BMS

  • Solar Energy Systems: 12V solar battery banks, off-grid power
  • RV & Marine: RV house batteries, boat batteries, trolling motors
  • Automotive: Car audio systems, 12V vehicle accessories
  • Backup Power: UPS systems, emergency lighting, security systems
  • DIY Projects: Custom 12V battery packs, portable power stations
  • Power Tools: Cordless tool battery packs (12V systems)
  • Electric Vehicles: Small EVs, mobility scooters, golf carts (12V systems)
  • Lighting: LED lighting systems, camping lights

Why Use a BMS for LiFePO4 Batteries?

Essential Protection:

  • Prevents overcharging - extends battery life from 500 to 2000+ cycles
  • Prevents over-discharge - protects cells from permanent damage
  • Balances cells during charging - ensures all cells age evenly
  • Protects against short circuits and overcurrent - prevents fires
  • Temperature protection - prevents thermal damage
  • Required for safe multi-cell LiFePO4 operation

Long-Term Benefits:

  • Maximizes battery pack lifespan (can last 10+ years with BMS)
  • Maintains optimal performance throughout battery life
  • Prevents costly battery replacement
  • Provides peace of mind for expensive battery investments
  • Protects connected devices from battery failure

Warranty & Support

We stand behind the quality of our BMS boards. If you experience any issues, please contact us for support. Always follow installation instructions carefully and verify all connections before applying power. Improper installation, reversed polarity, or using wrong voltage configuration will void warranty.

Need Help? If you're unsure about any step of the installation process, please contact us before proceeding. We're here to help ensure your battery pack is safe and reliable.
