3.2V 6.4V 9.6V 12.8V Li-Fe Battery Charger 3.65V 7.3V 11.1V 14.6V LiFePO4 Intelligent Smart Fast Charging

Product Overview

Premium LiFePO4 (Lithium Iron Phosphate) Intelligent Smart Charger designed specifically for Li-Fe rechargeable battery packs. Featuring advanced intelligent charging technology with automatic stop protection and multiple voltage options (3.2V-14.6V), this charger provides safe, efficient charging solutions for various LiFePO4 battery configurations from 1S to 4S.

Package Contents

• 1× LiFePO4 Intelligent Smart Charger (voltage and plug type as selected)
• Selected plug type (US/EU/AU/UK)

Condition: Brand New with Manufacturer Warranty

Key Features

• Multiple Voltage Options: Supports 3.2V (1S), 6.4V (2S), 9.6V (3S), and 12.8V (4S) LiFePO4 battery packs with corresponding output voltages
• Intelligent Charging Technology: Built-in smart IC automatically detects battery status and adjusts charging parameters
• Auto-Stop Protection: Automatically stops charging when battery is full, preventing overcharge damage and extending battery life
• LED Status Indicator: Clear dual-color LED shows charging status and completion
• Universal AC Input: 100-240V, 50/60Hz compatibility for worldwide use
• Multiple Safety Features: Over-current, over-voltage, short-circuit, and reverse polarity protection
• International Certifications: FCC, CE-LVD, CE-EMC, GS, RCM, PSE, and CCC certified for safe operation
• Durable Construction: High-quality ABS housing with excellent heat dissipation for reliable performance
• Multiple Plug Options: Available with US, EU, AU, UK plugs to match your region
• Clear Polarity Marking: Inside (red): +, Outside (black): - for safe connection

Product Specifications

• Brand: FMA / DSS
• Input Voltage: AC 100-240V, 50/60Hz
• Output Voltage: See specifications table below
• Charging Current: See specifications table below
• Charging Method: CC/CV (Constant Current/Constant Voltage) with intelligent IC recognition
• Polarity: Inside (red): +, Outside (black): -
• Weight: 100g (approx.)
• Condition: Brand New

Available Plug Types

• US Plug: For North America
• EU Plug: For European countries
• AU Plug: For Australia and New Zealand
• UK Plug: For United Kingdom and compatible regions

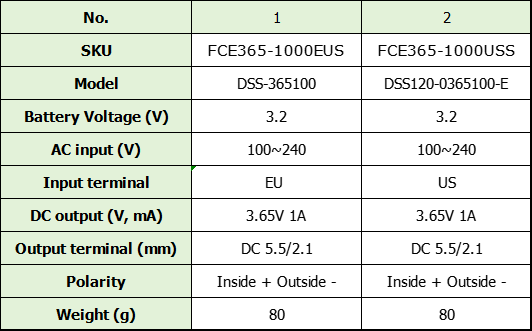

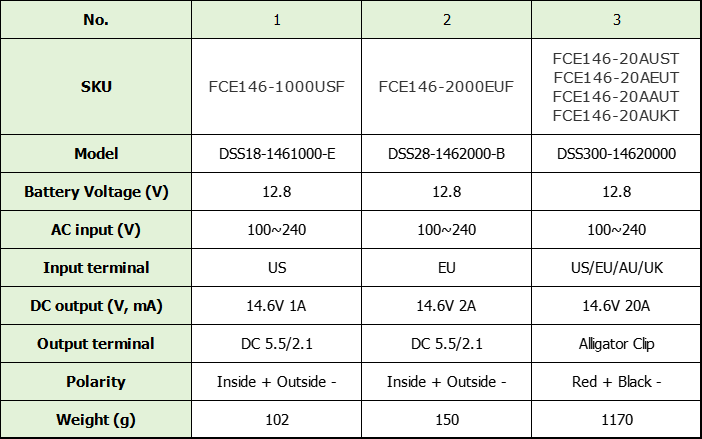

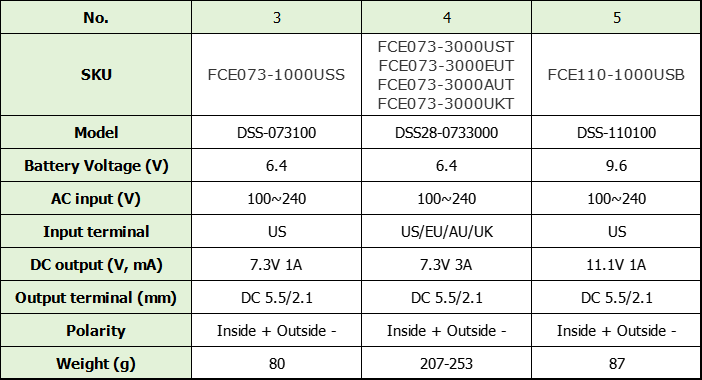

Voltage & Current Specifications

LED Indicator Status

• Green Light (Solid): Power on (standby) or fully charged - safe to disconnect
• Red Light (Solid): Charging in progress - do not disconnect

Battery Configuration Guide

• 3.2V / 3.65V Output: For 1S LiFePO4 battery (1 cell, 3.2V nominal)
• 6.4V / 7.3V Output: For 2S LiFePO4 battery (2 cells in series, 6.4V nominal)
• 9.6V / 11.1V Output: For 3S LiFePO4 battery (3 cells in series, 9.6V nominal)
• 12.8V / 14.6V Output: For 4S LiFePO4 battery (4 cells in series, 12.8V nominal)

Applications

• LiFePO4 battery packs (1-4 cells in series)
• Solar energy storage systems
• Electric vehicles and e-bikes
• Power tools with LiFePO4 batteries
• Emergency backup power systems
• Marine and RV applications
• Off-grid power solutions

Safety Certifications

Certified to international safety standards with detailed report numbers:

• FCC: Report No. 16063326 (USA/North America)
• CE-LVD & CE-EMC: CE Report No. 16063325, IEC No. DE 2-018390 (Europe)
• RCM (SAA+C-TICK): Report No. 16064855 (Australia)
• PSE: Report No. JD 50301812 (Japan)
• CCC: Report No. 2015010907755103 (China)

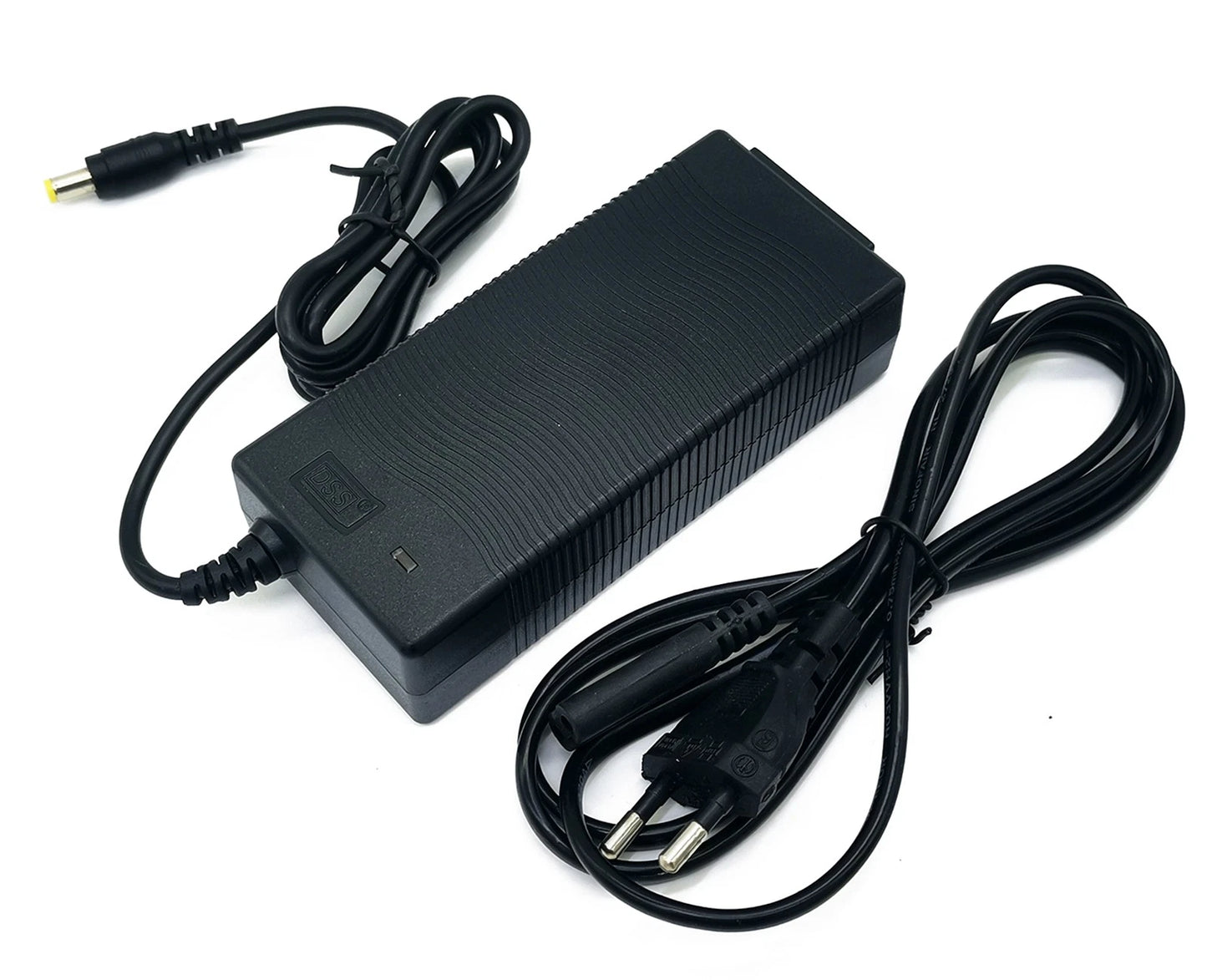

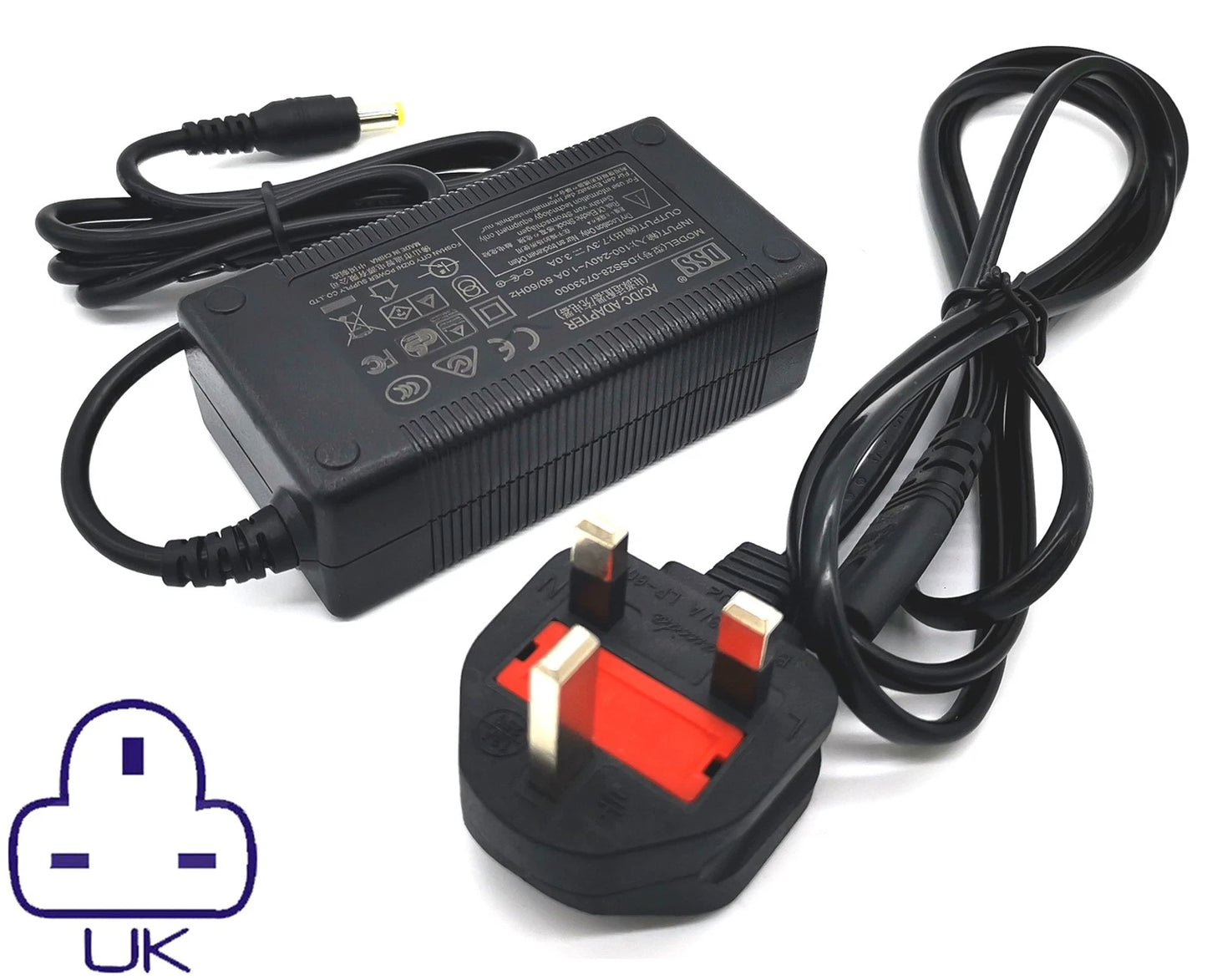

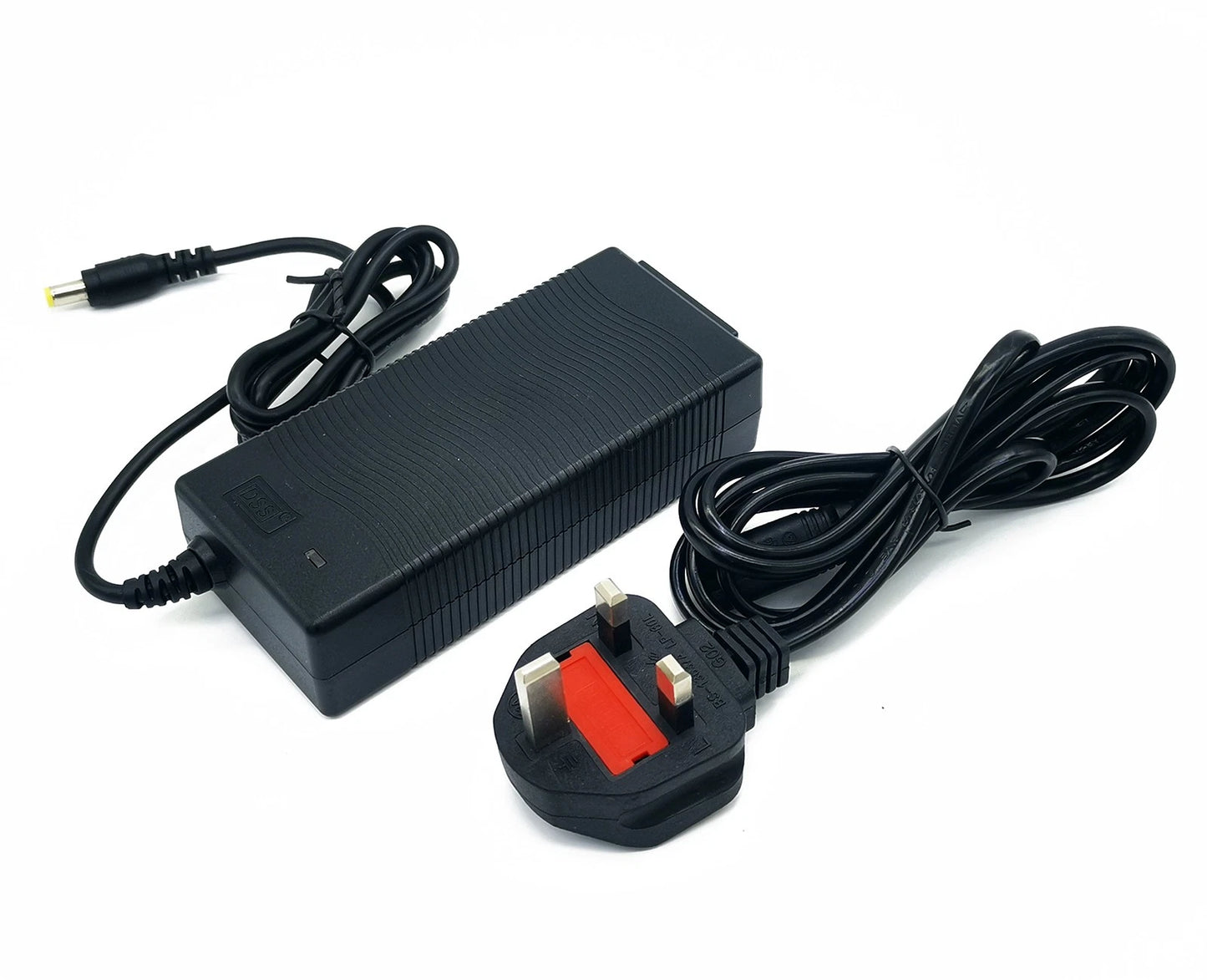

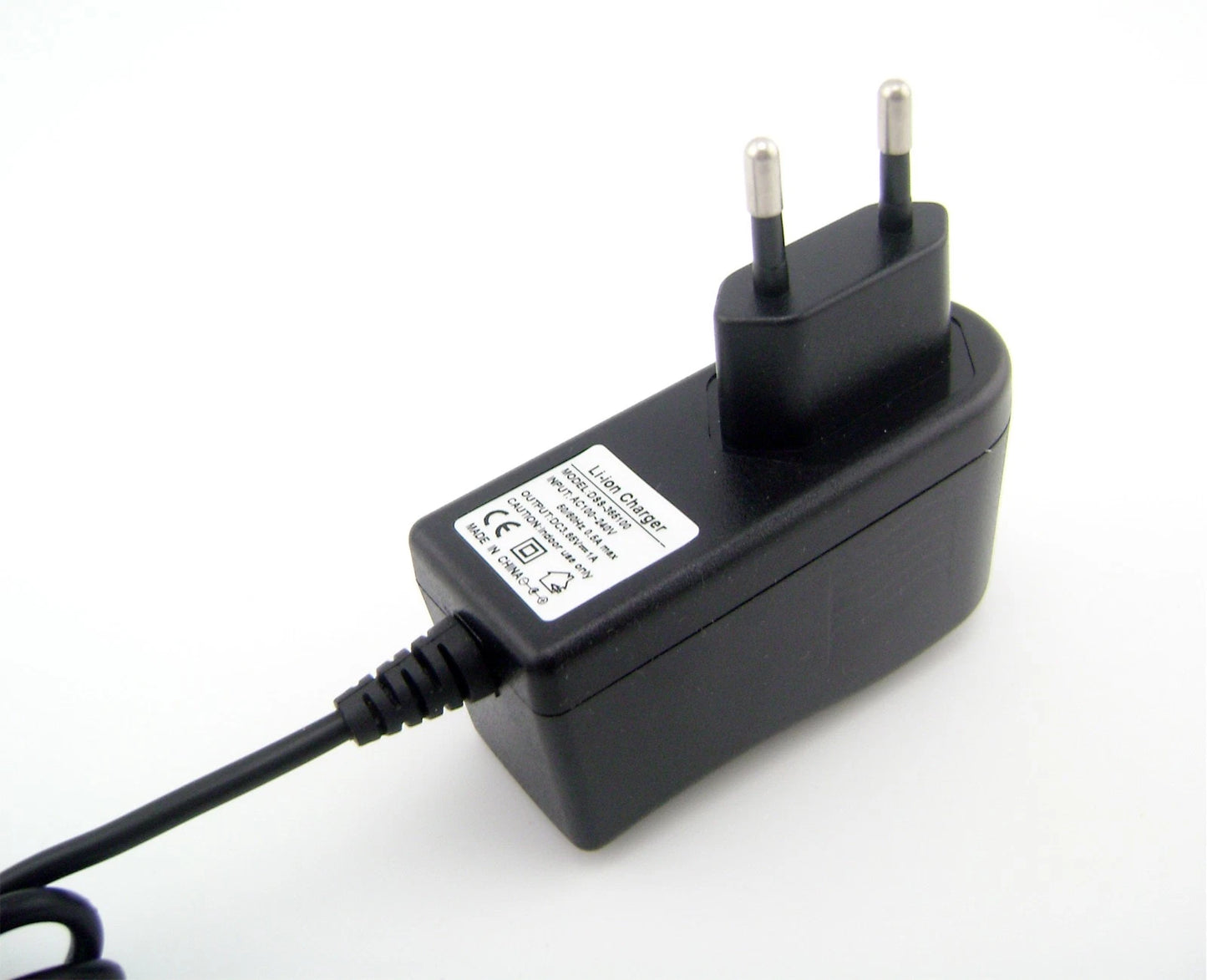

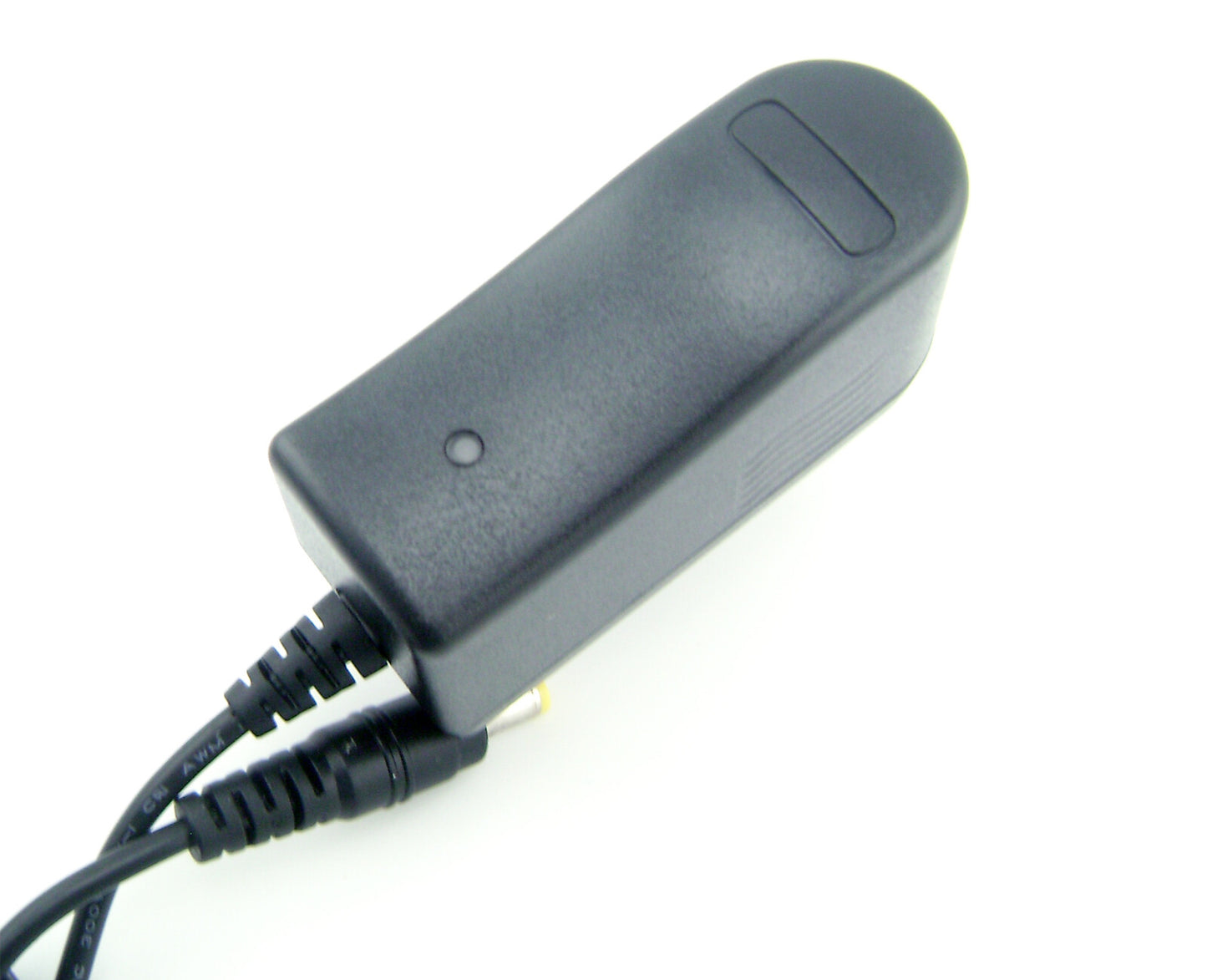

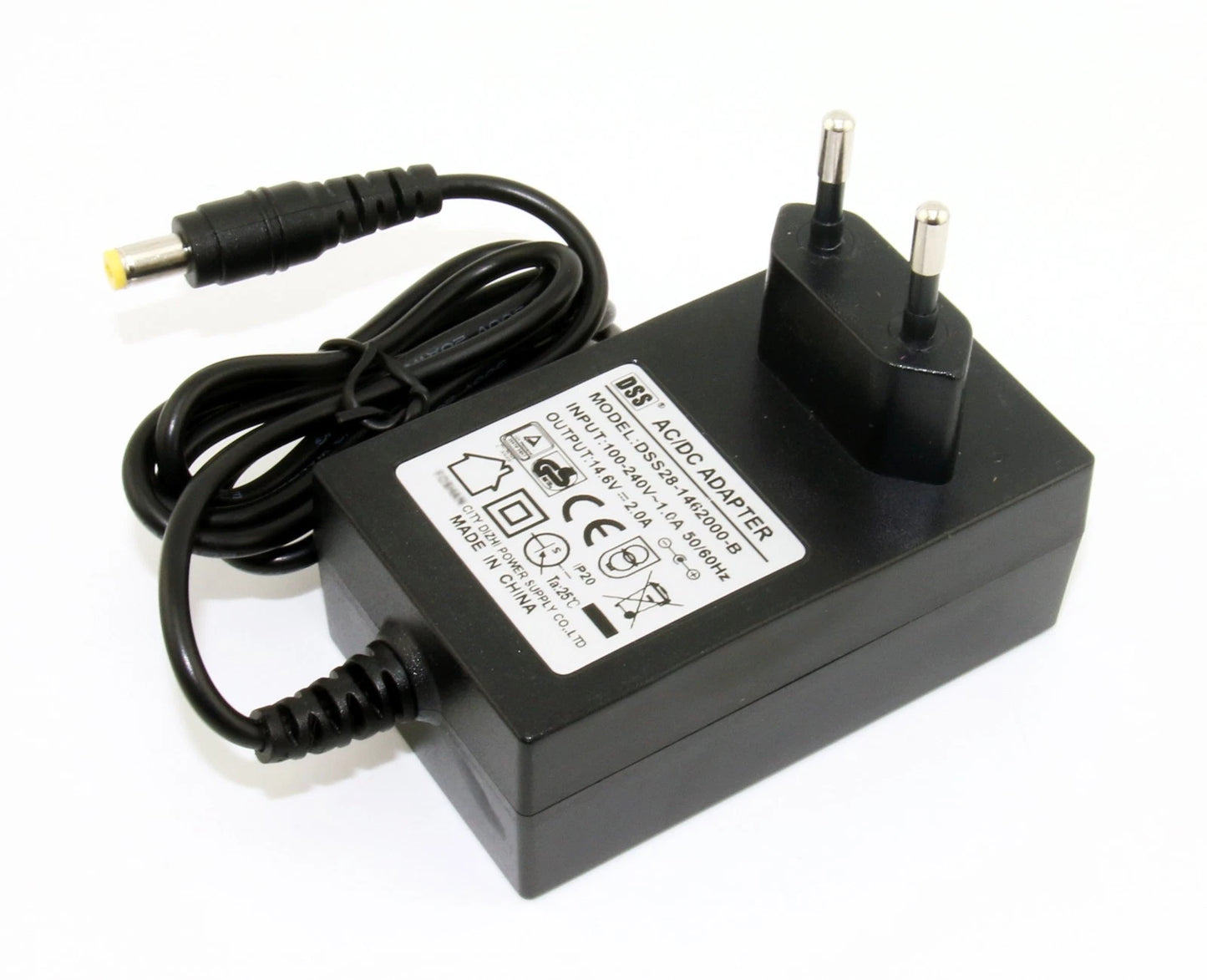

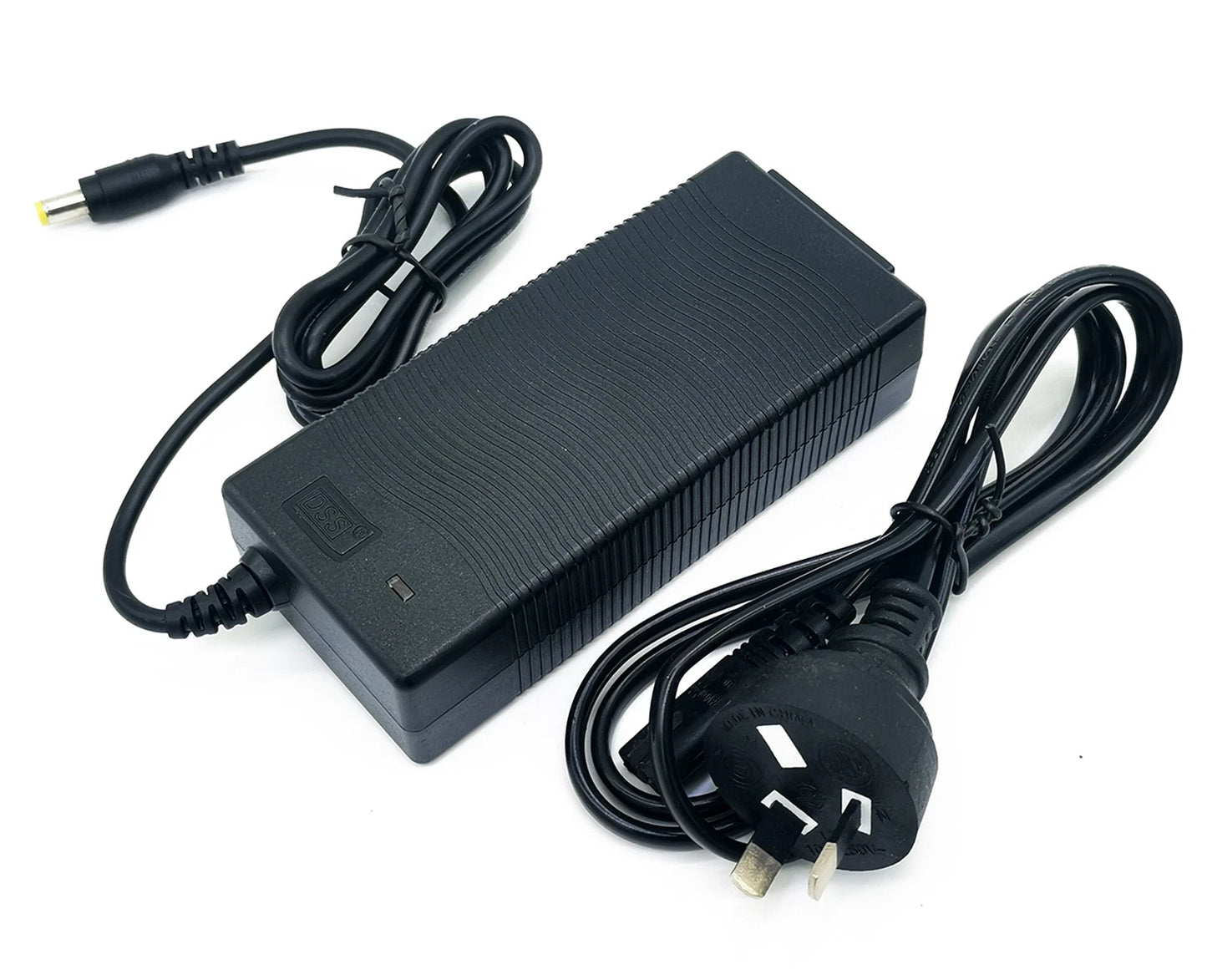

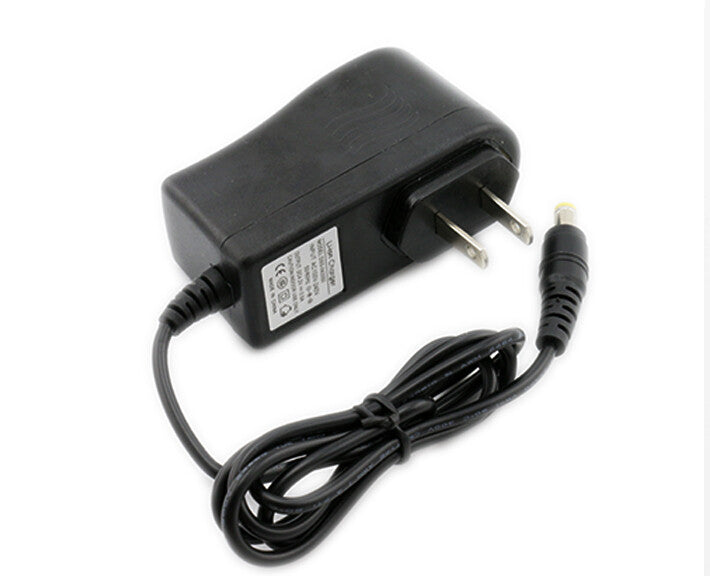

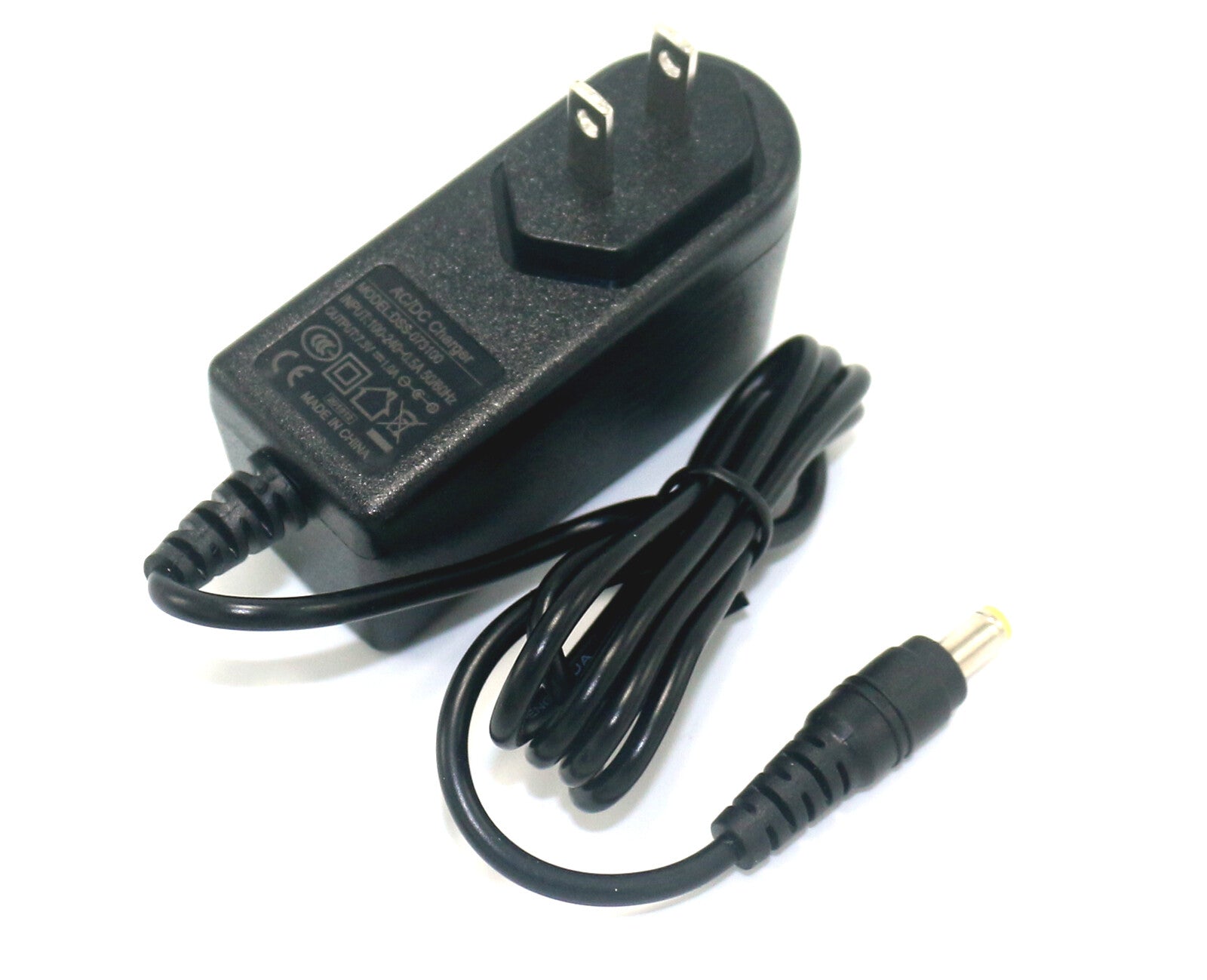

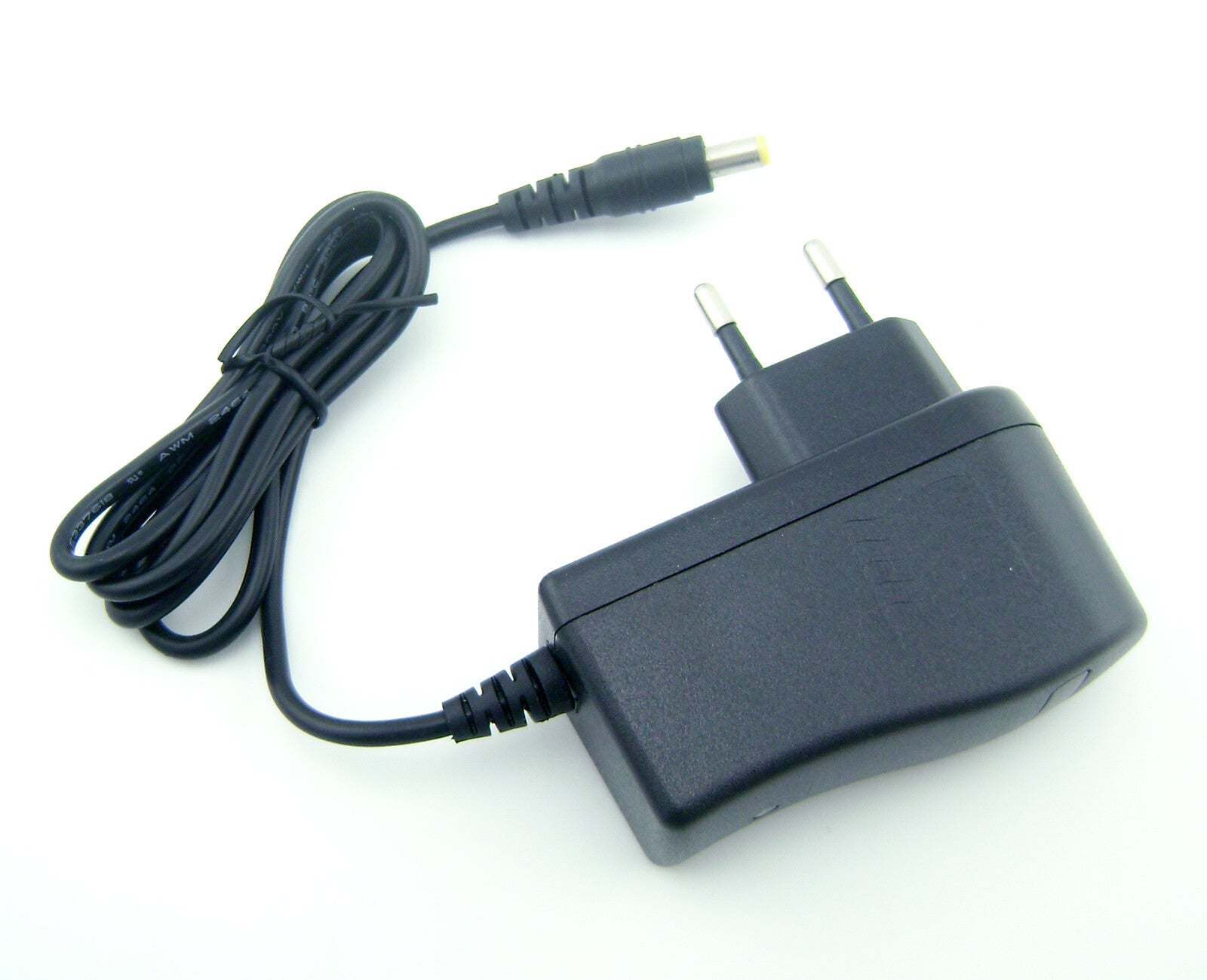

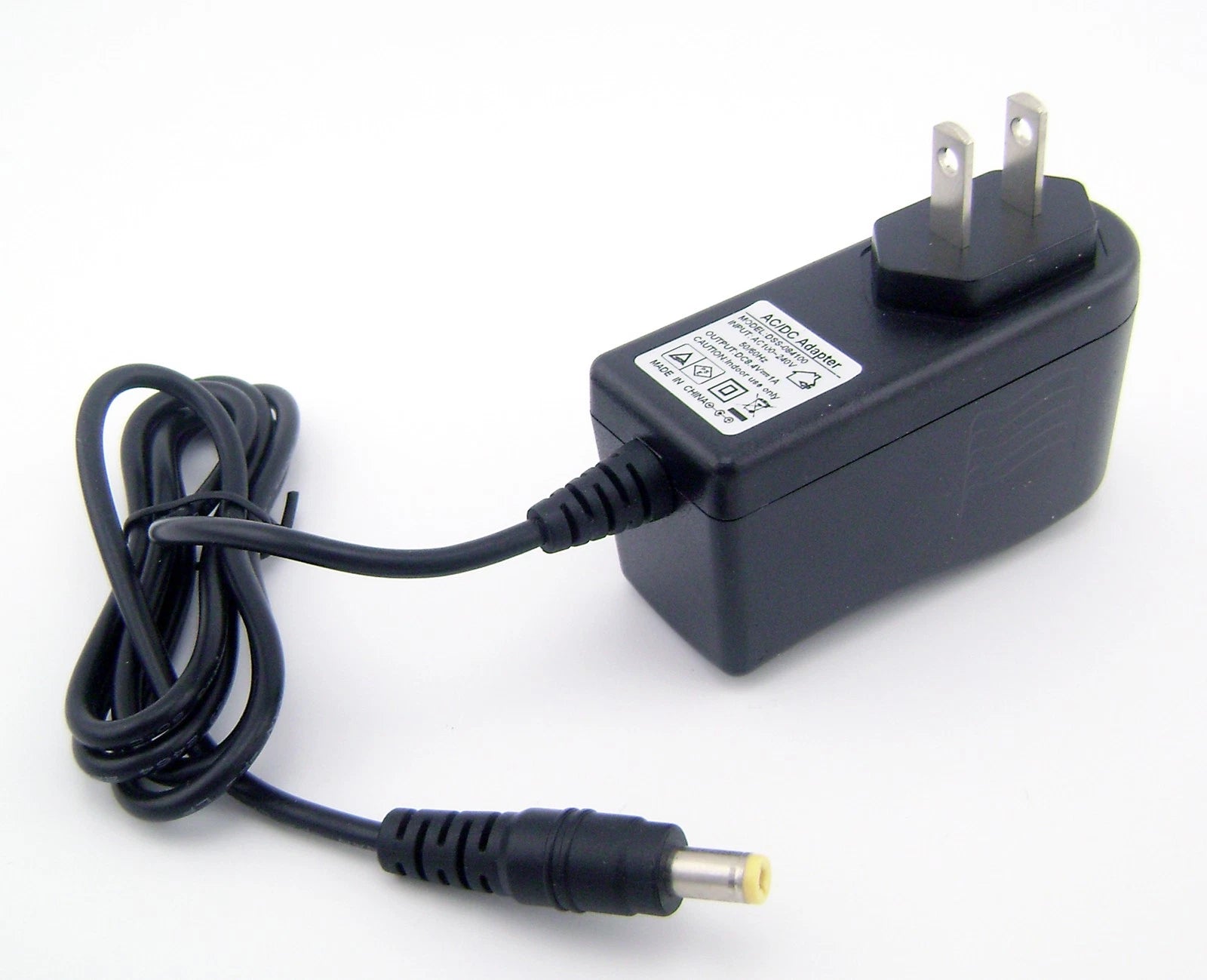

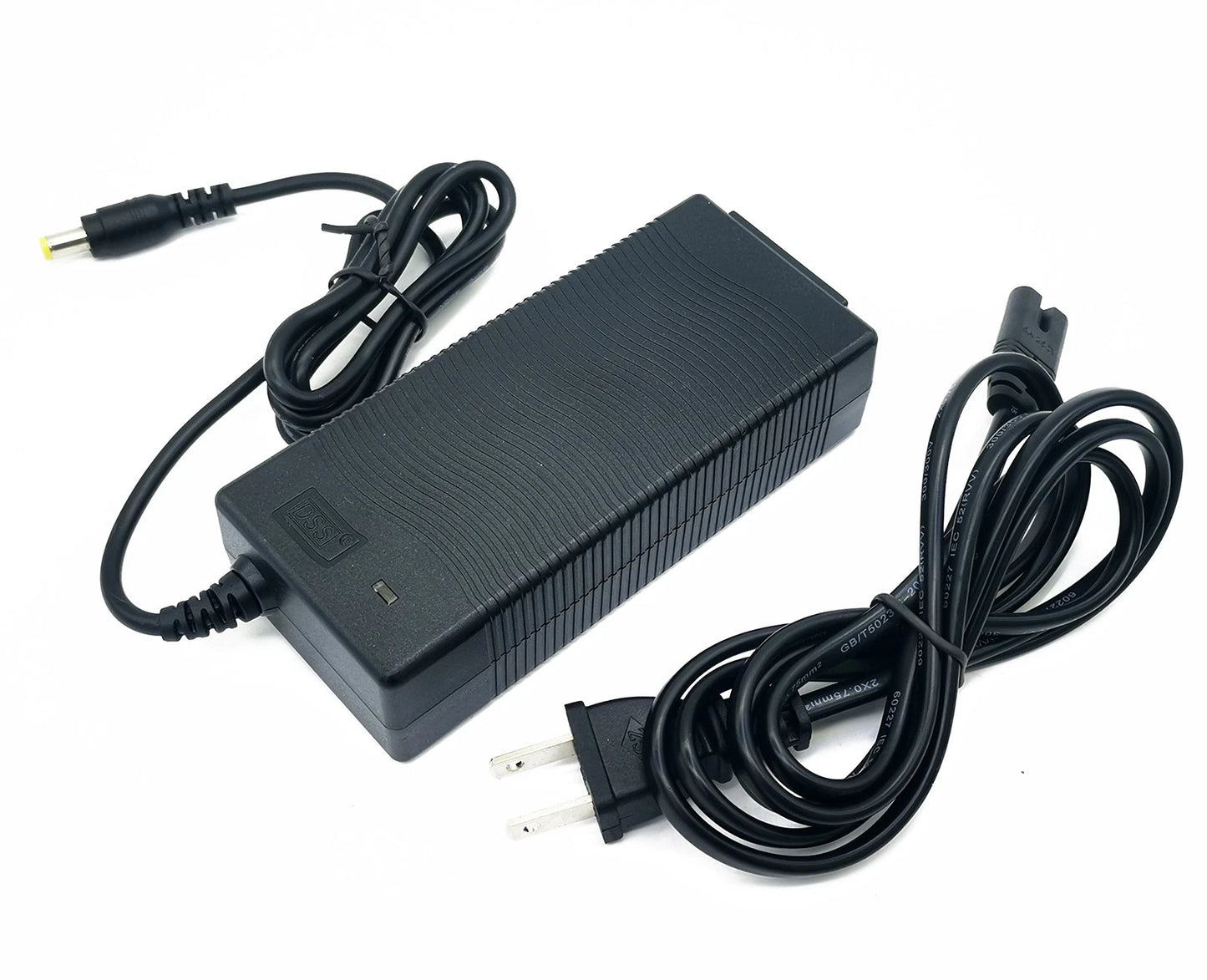

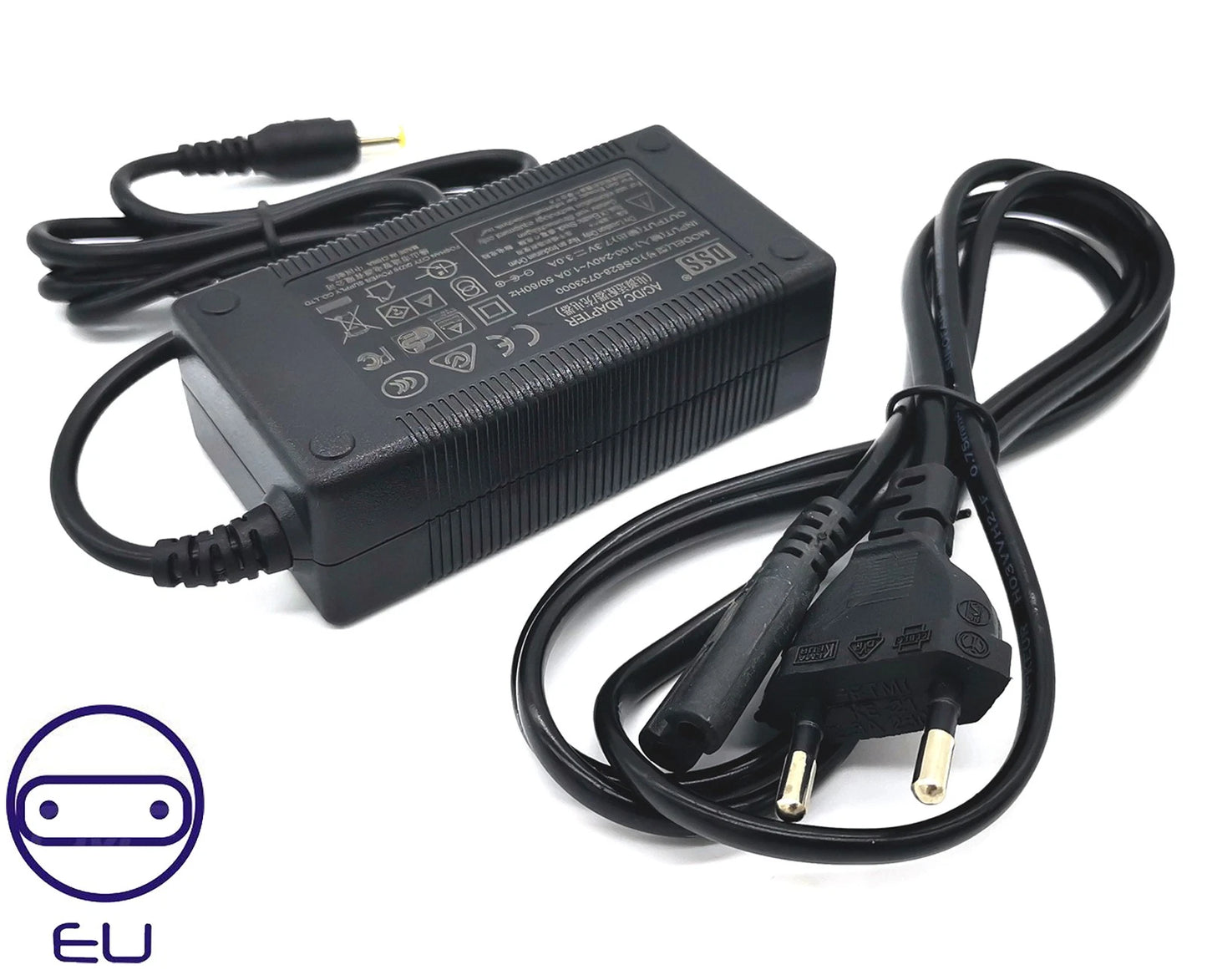

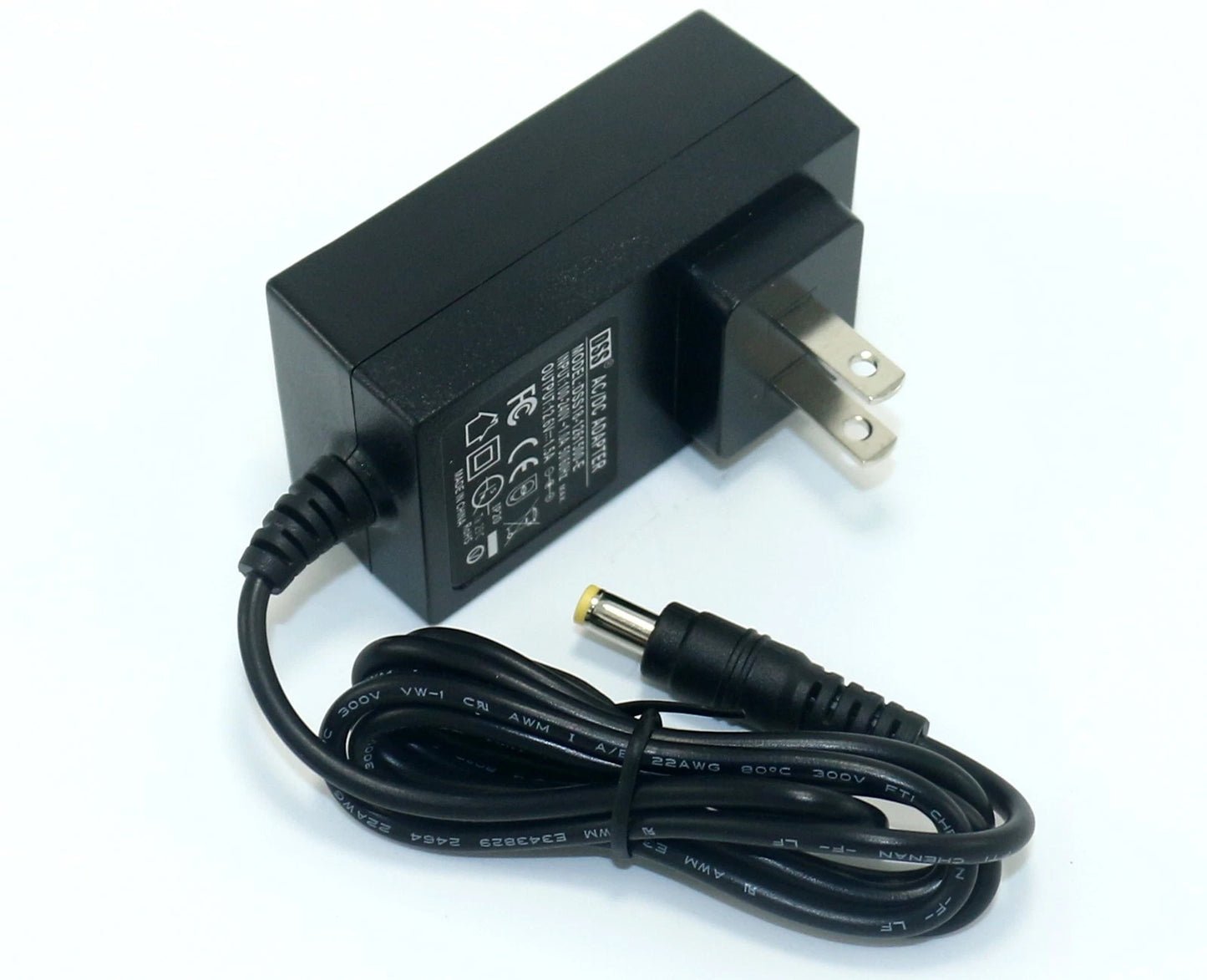

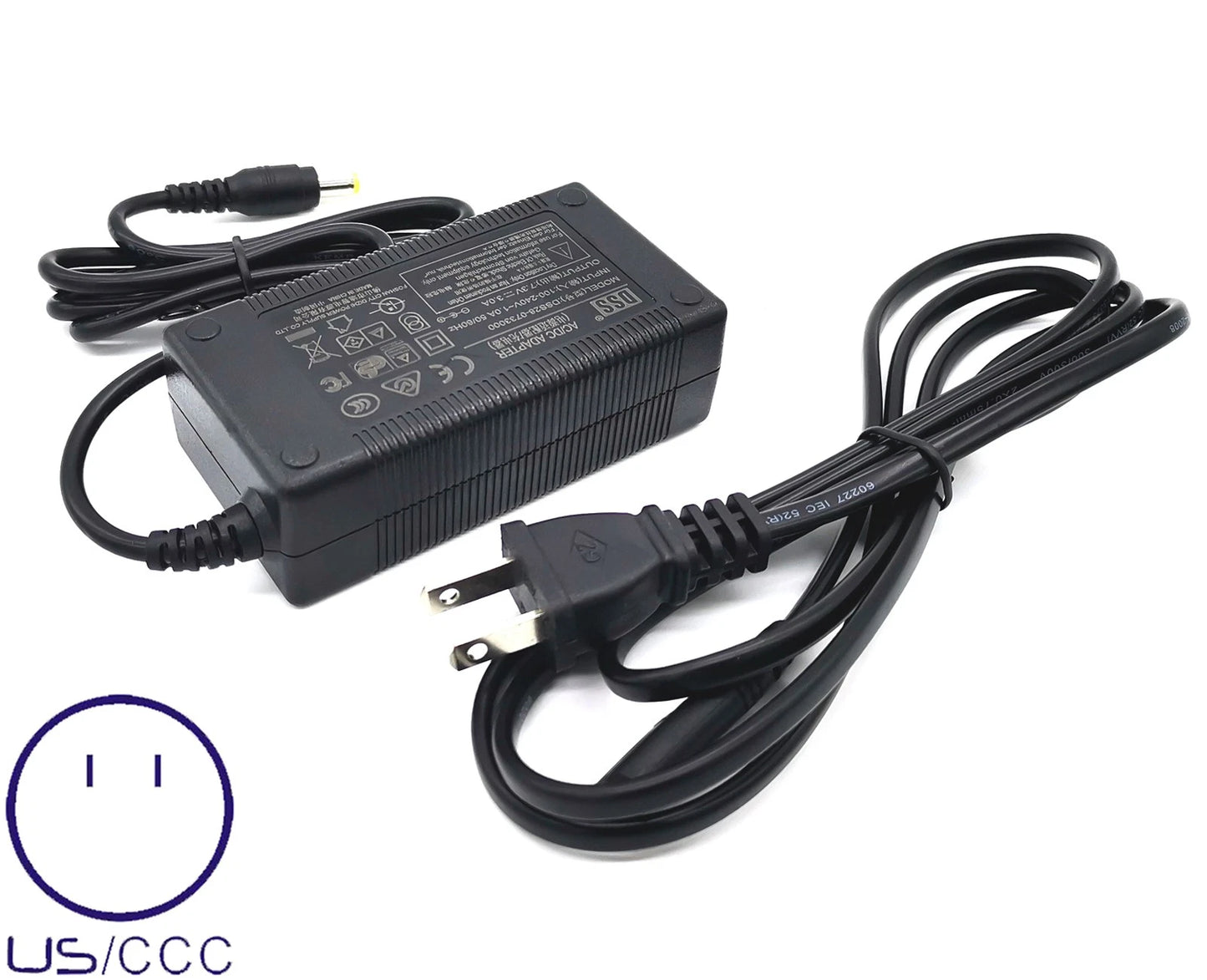

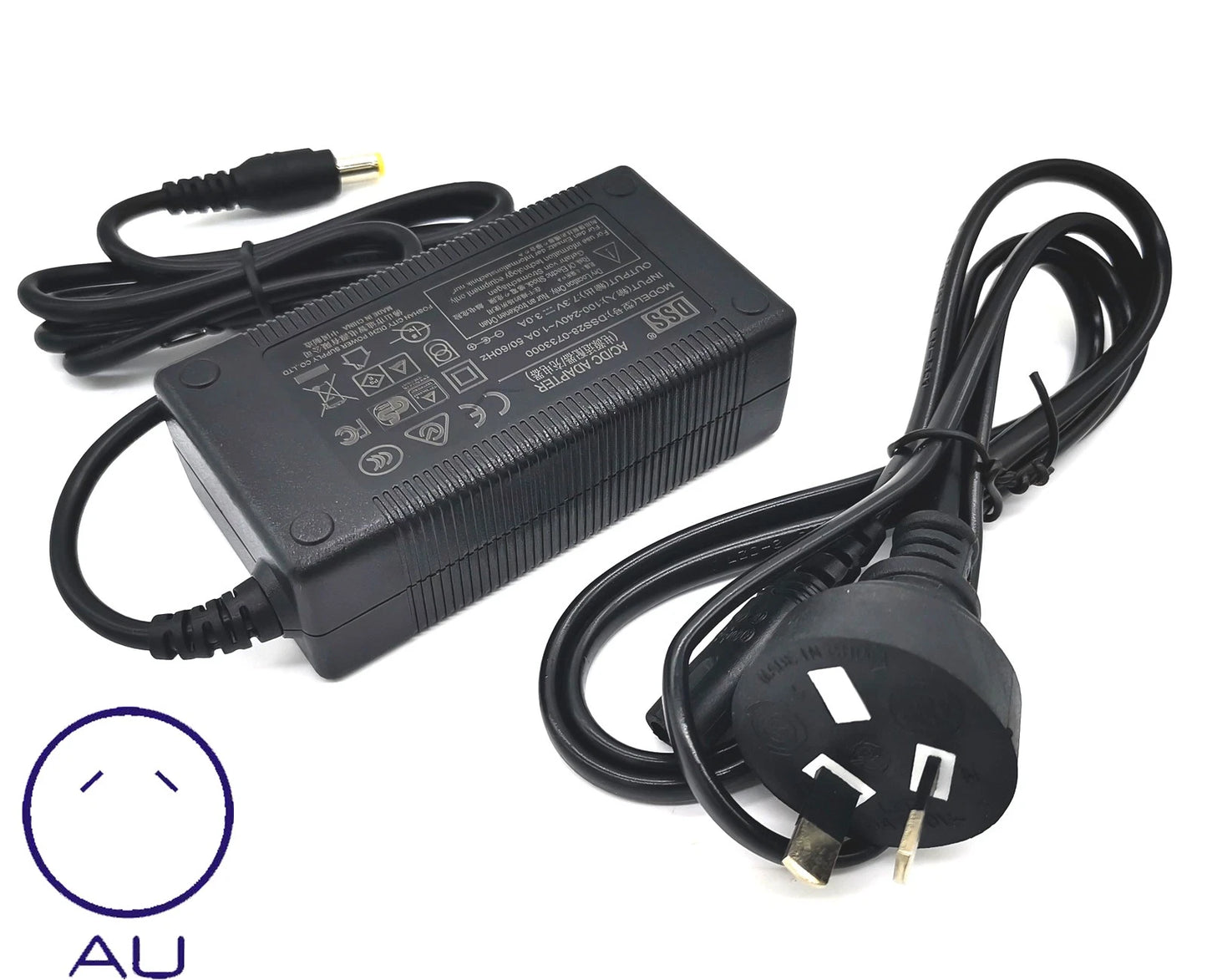

Product Gallery

How to Select the Right Charger

Safety Information

• Charging: Always charge batteries in a well-ventilated area away from flammable materials. Never leave charging batteries unattended, especially LiFePO4 batteries.
• Storage: Store the charger in a cool, dry place away from direct sunlight and moisture.
• Operation: Do not use the charger if the cable or housing is damaged. Ensure proper polarity connection before charging (Inside/Red: +, Outside/Black: -).
• Temperature: Operating temperature: 0°C to 40°C (32°F to 104°F). Do not use in extreme temperatures.
• Handling: Disconnect the charger from power source when not in use. Avoid dropping or subjecting to impact.
• Inspection: Regularly inspect cables and connectors for wear or damage. Replace if any damage is found.
• Battery Compatibility: Only use with LiFePO4 (Li-Fe) batteries. Match the charger voltage to your battery configuration (1S-4S). Do not attempt to charge other battery types.
• Voltage Selection: Ensure you select the correct voltage output for your battery pack. Using incorrect voltage may damage the battery or charger.
• Polarity Warning: Always verify correct polarity before connecting. Inside (red) is positive (+), Outside (black) is negative (-).

Shipping & Transportation Notice

• Hazardous Goods: This charger may be subject to shipping restrictions in certain regions due to battery-related regulations.
• Air Transportation: May have limitations for air freight. Please check with carrier for specific requirements.
• Packaging: Product is packaged according to international shipping standards to ensure safe delivery.
• Delivery Time: Shipping times may vary depending on destination and customs clearance procedures.
• Documentation: All necessary shipping documentation and safety data sheets are included with commercial shipments.
