Ni-MH Ni-Cd Battery Smart Charger for Voltage in 1.2V 2.4V 3.6V 4.8V 6V 7.2V 8.4V 9.6V 10.8V 12V 13.2V 14.4V 15.6V 16.8V 18V

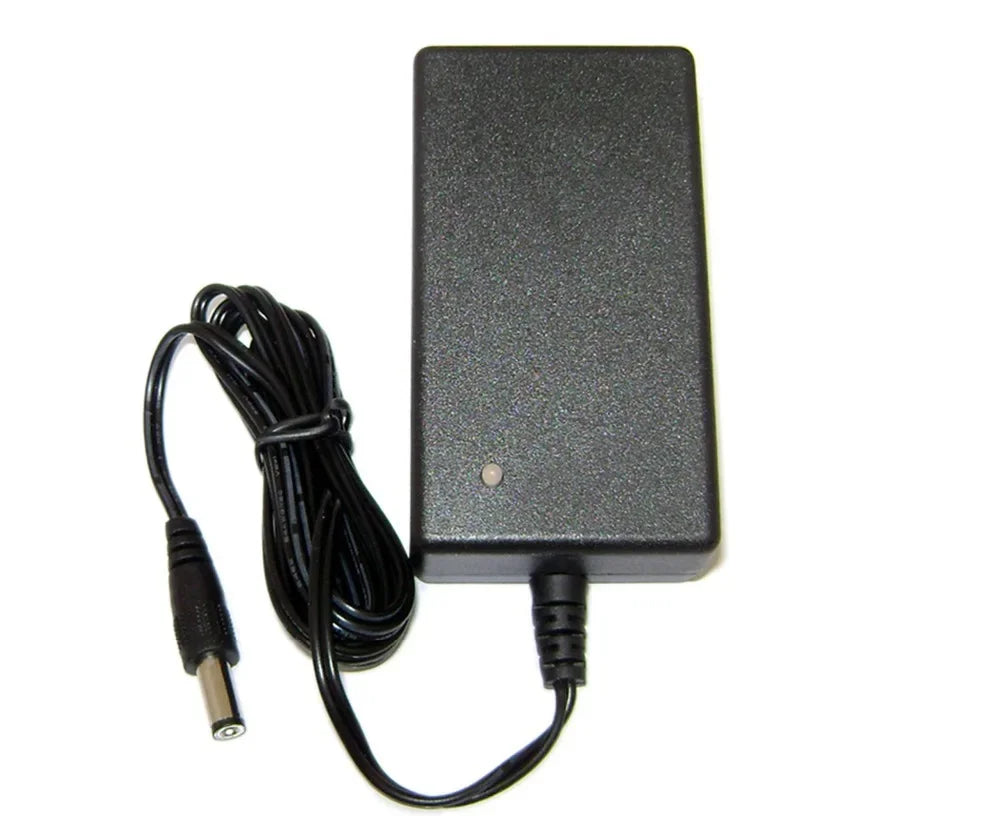

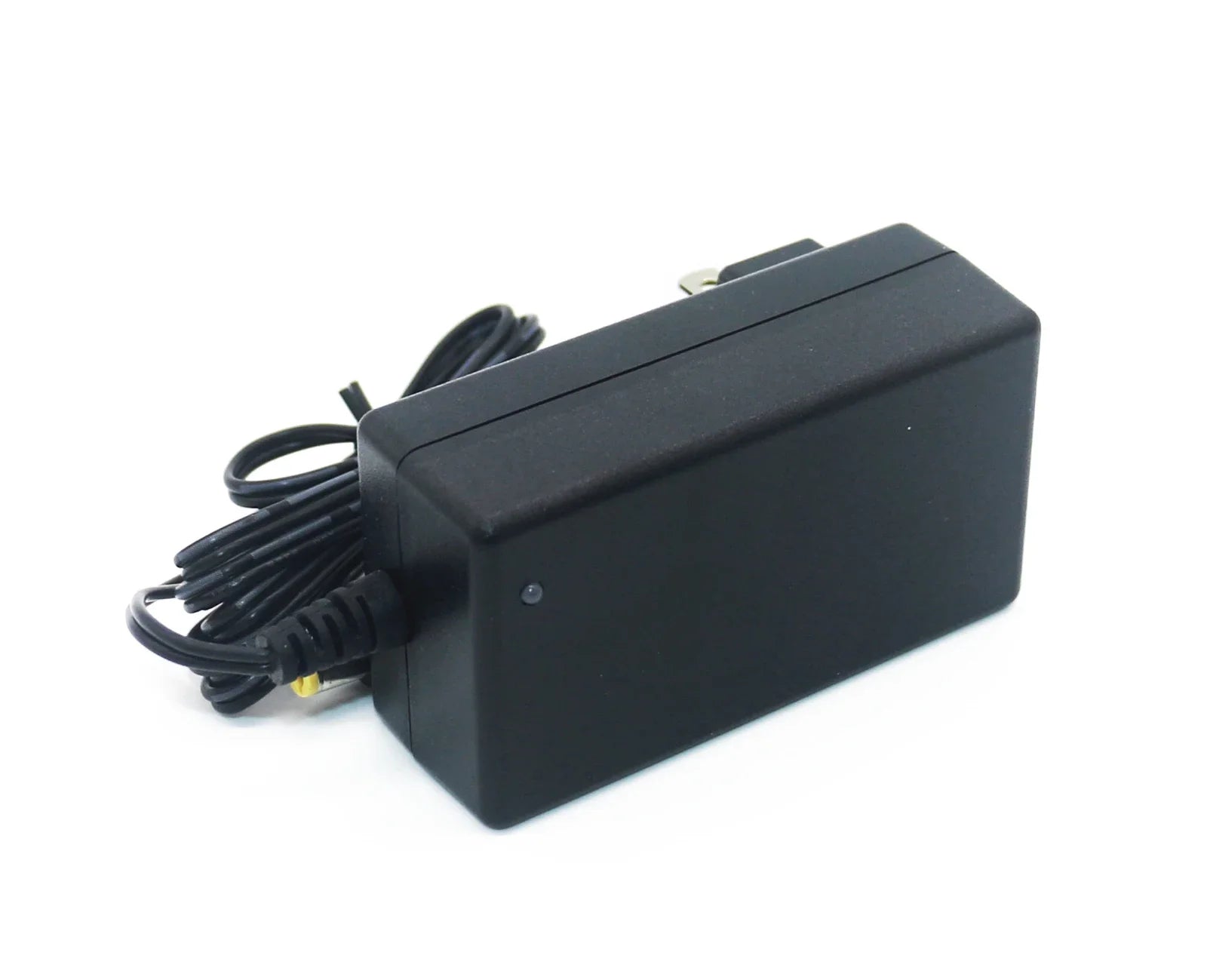

FMA/DSS Universal Smart Charger for Ni-MH / Ni-Cd Battery Packs

Intelligent charger compatible with Ni-MH and Ni-Cd rechargeable battery packs ranging from 1.2V to 18V. Built-in IC automatically detects battery pack voltage and stops charging when full — no manual setting required.

Product Specifications

• Compatible Voltage: 1.2V / 2.4V / 3.6V / 4.8V / 6.0V / 7.2V / 8.4V / 9.6V / 10.8V / 12V / 13.2V / 14.4V / 15.6V / 16.8V / 18V
• Compatible Chemistry: Ni-MH & Ni-Cd battery packs
• Voltage Detection: Automatic (IC-based)
• Charge Termination: Auto-stop at full charge
• Brand: FMA / DSS
• Condition: Brand New

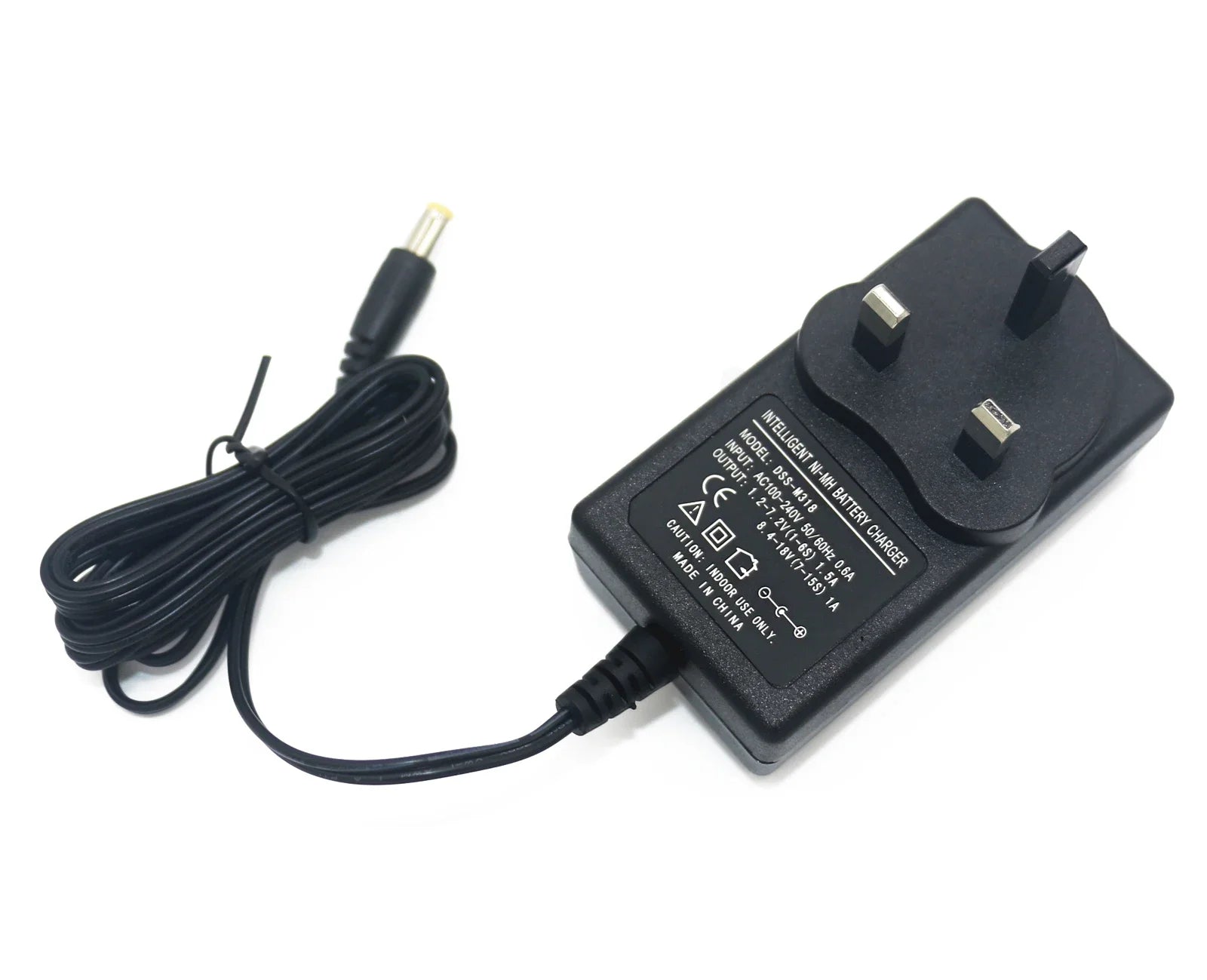

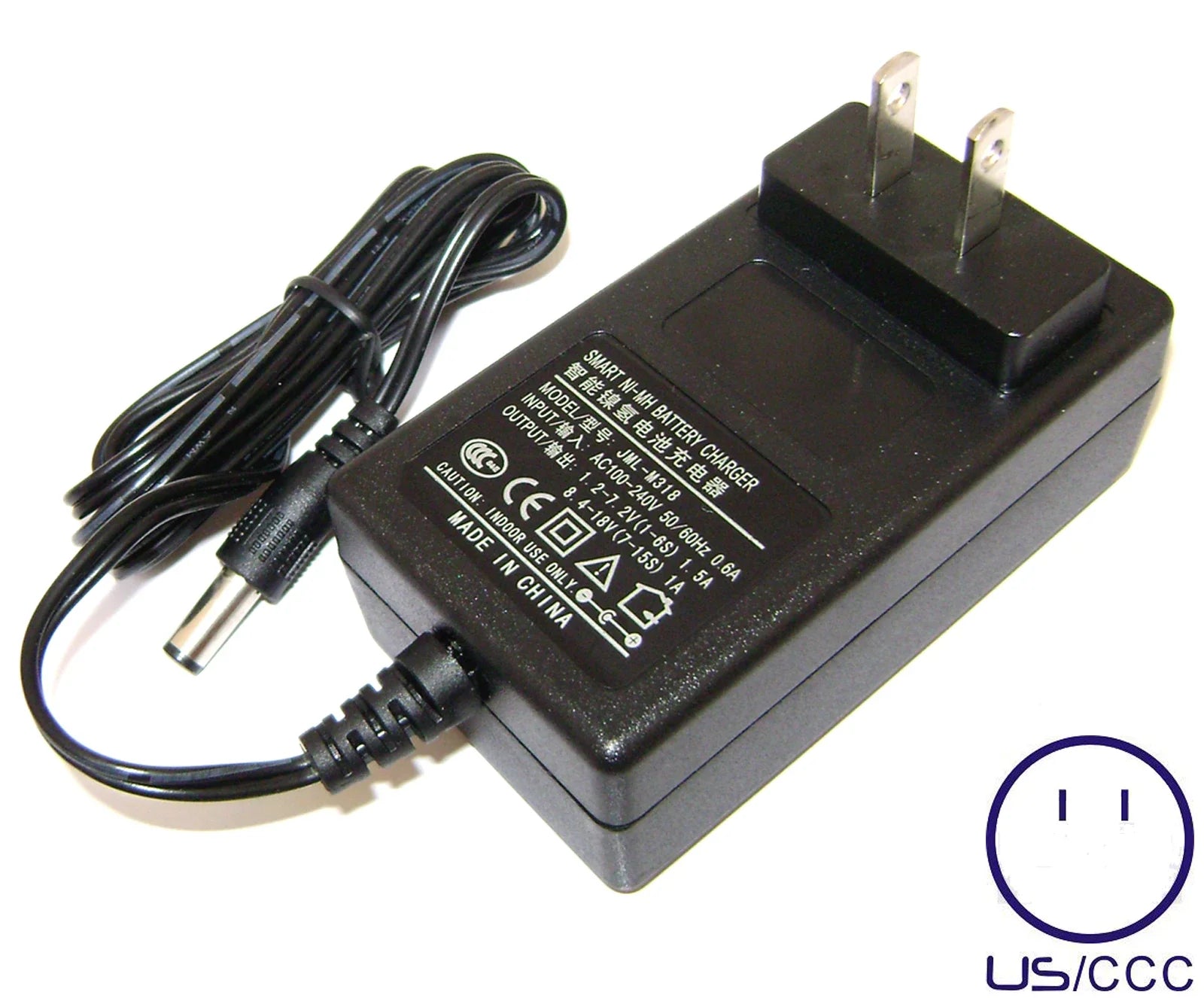

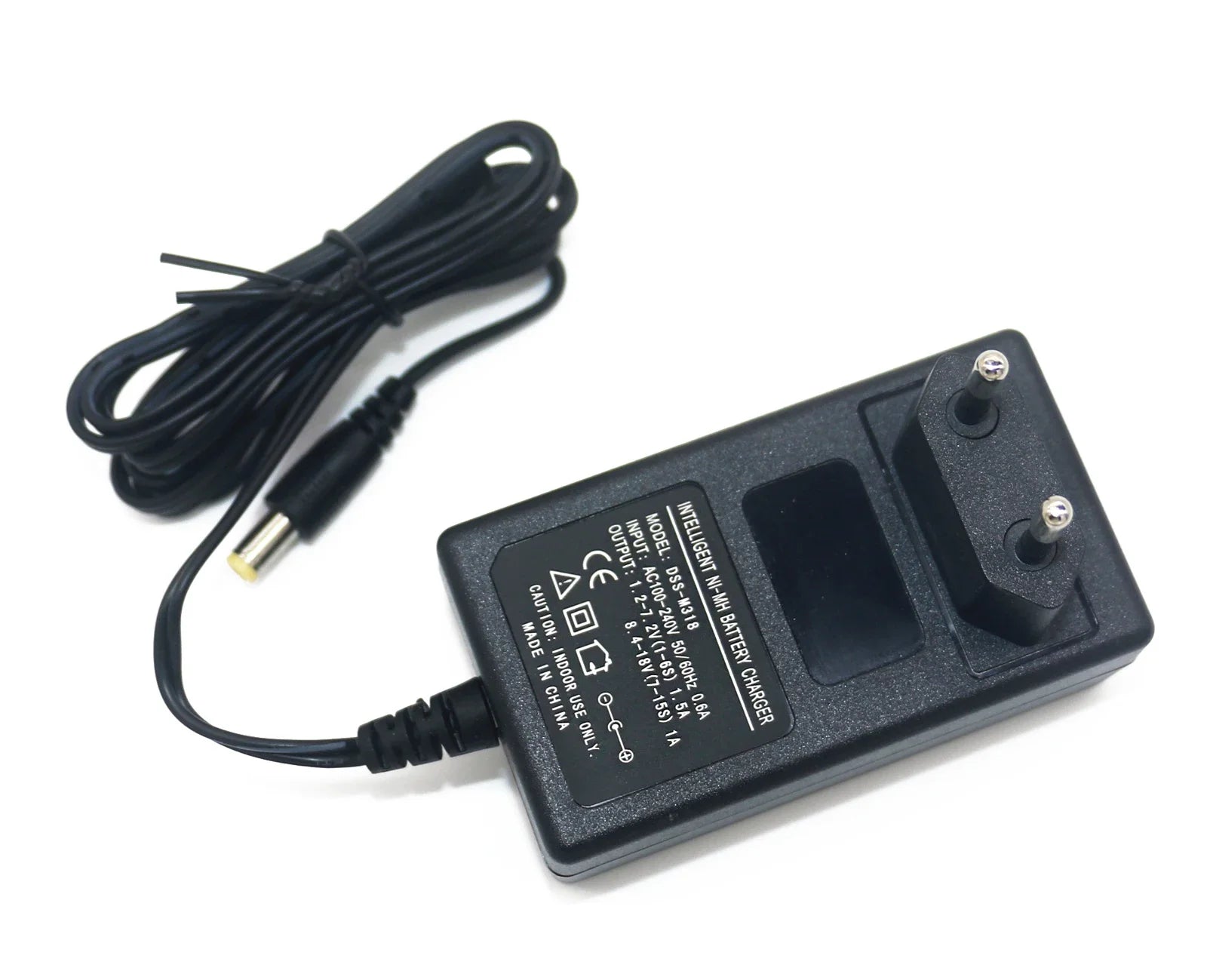

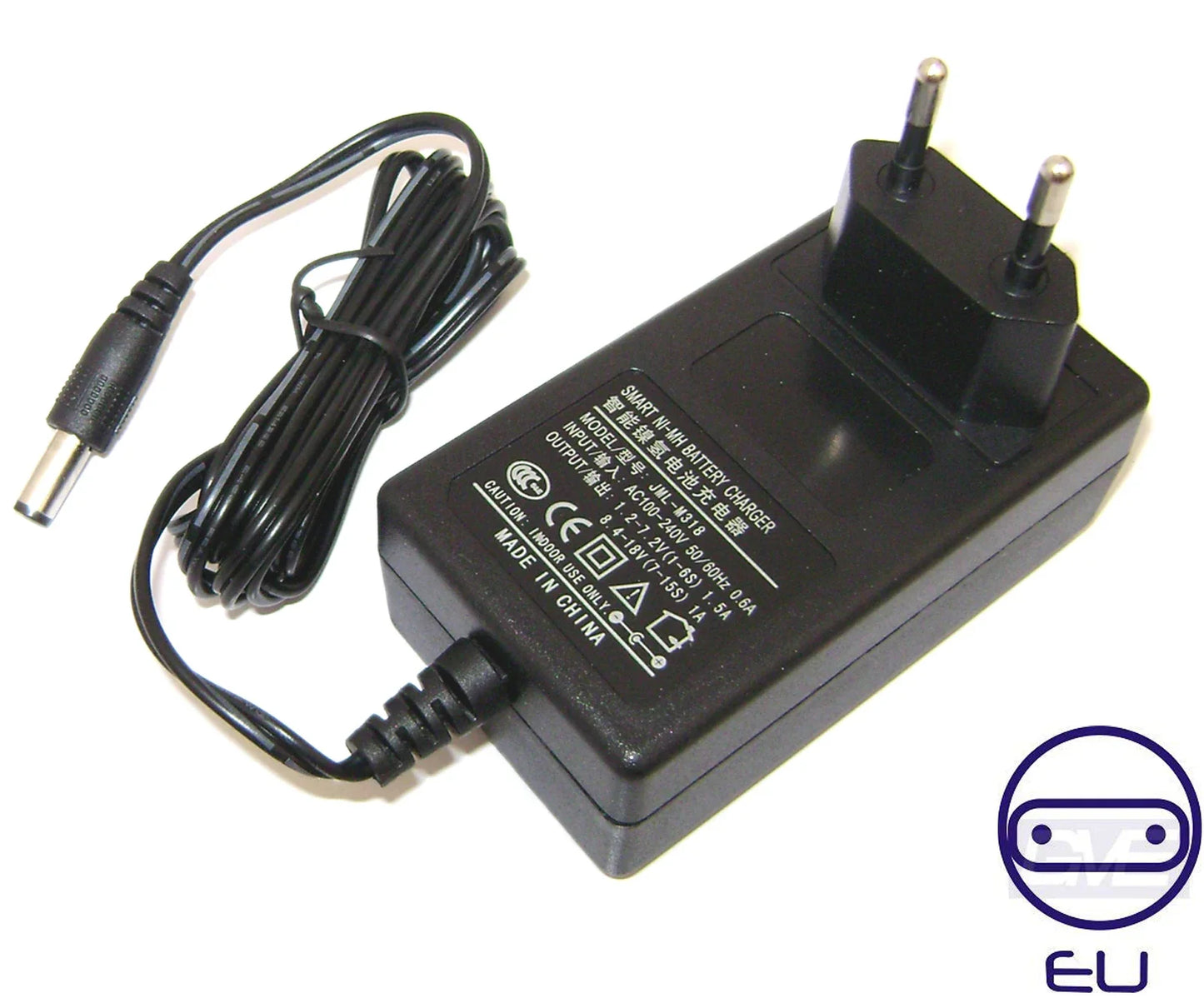

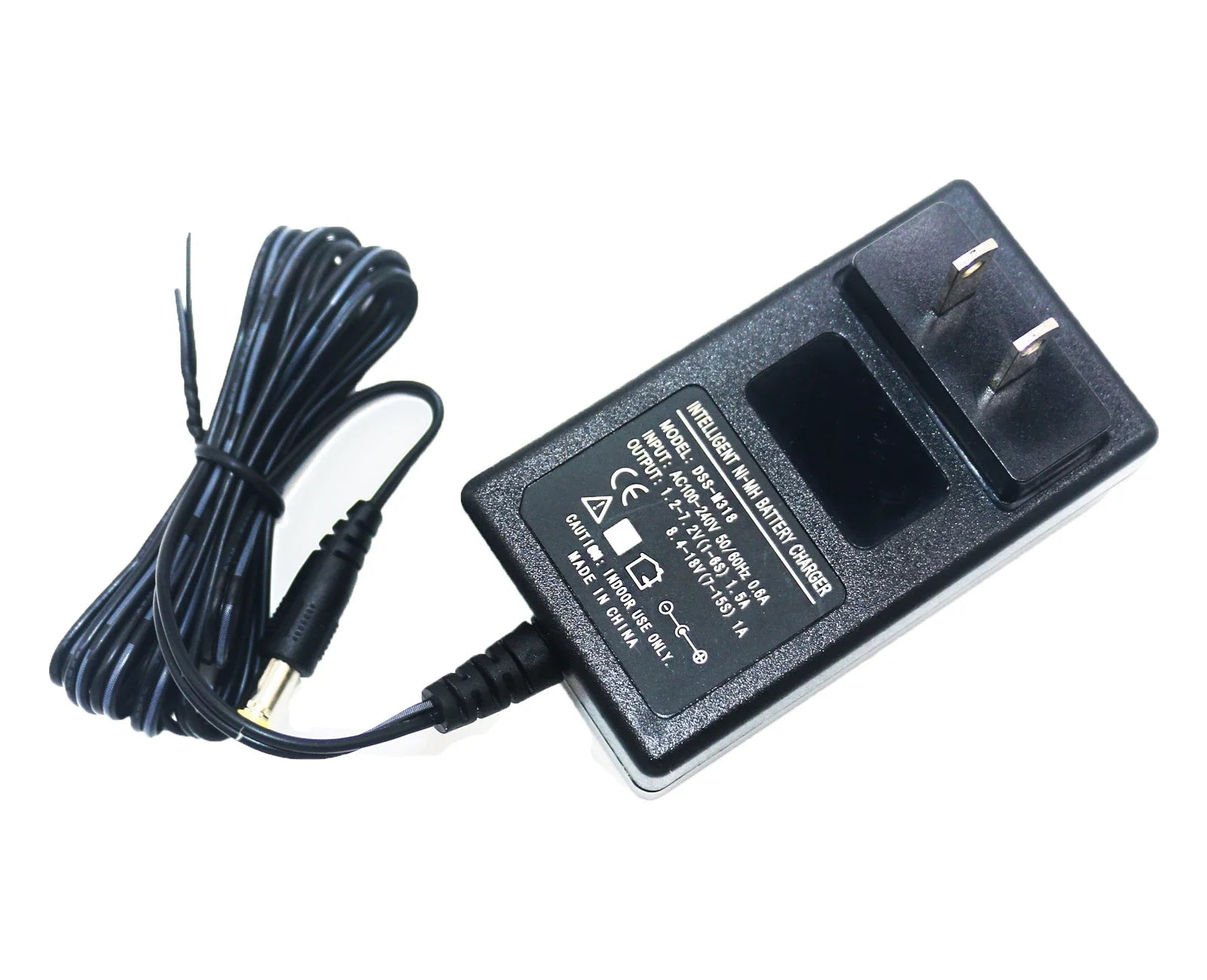

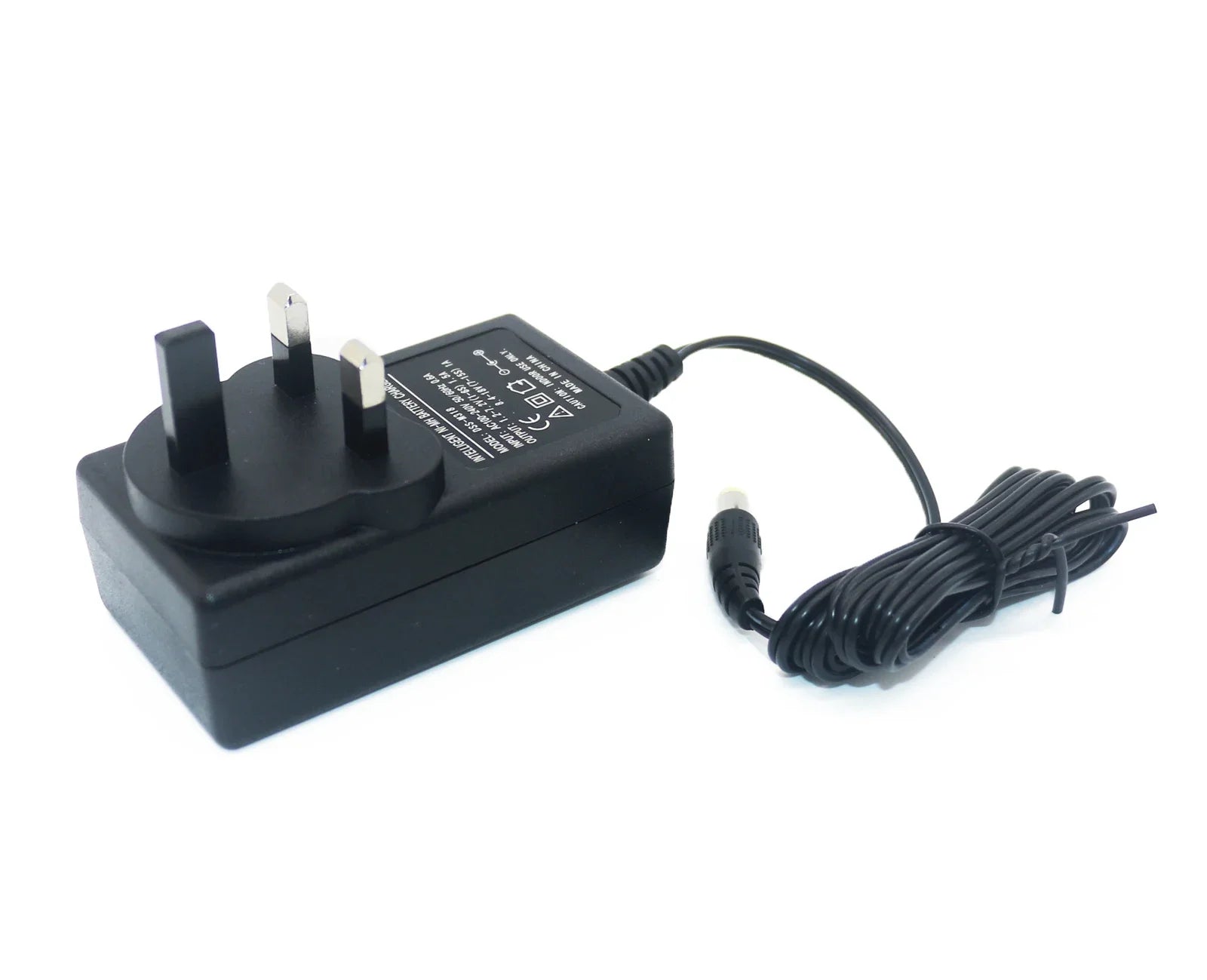

• Plug Options: US / EU / UK

Indicator Light Status

• 🟢 Solid Green: Power on (standby) or fully charged
• 🔴 Solid Red: Charging in progress
• 🟢 Flashing Green: Wrong polarity or battery damaged — disconnect and reconnect

How to Use

1. Connect the charger to an AC power source.
2. Plug the charger connector into your battery pack — ensure correct polarity (match + and −).
3. The indicator turns red — charging has started. The IC automatically detects the battery voltage.
4. When the indicator turns solid green, the battery is fully charged. Disconnect the battery pack.
5. If the indicator flashes green, check polarity or inspect the battery for damage before retrying.

Note: If your battery connector does not match the charger output, use a compatible adapter connector (see Related Products below).

Important Cautions

• ⚠️ Only charge battery packs within the 1.2V–18V range. Do not use with Li-ion or LiPo batteries.
• ⚠️ Ensure the battery pack is in good working condition before charging. Do not charge damaged, swollen, or leaking batteries.
• ⚠️ Always verify correct polarity before connecting. Reverse polarity will trigger the flashing green warning.
• ⚠️ Do not leave charging unattended for extended periods. Disconnect promptly after the green indicator confirms full charge.
• ⚠️ Keep away from flammable materials during charging. Charge in a well-ventilated area.
• ⚠️ Do not expose the charger to water, moisture, or extreme temperatures.

Package Contents

• 1× Smart Charger (with AC cable if required by model)

Certifications

• FCC (USA) — Report No.: 16063326
• CE-LVD / CE-EMC (Europe) — CE Report No.: 16063325 / IEC Report No.: DE 2-018390
• RCM (SAA+C-TICK) (Australia) — Report No.: 16064855
• PSE (Japan) — Report No.: JD 50301812
• CCC (China) — Report No.: 2015010907755103

Safety Information

• Charging: Use only with Ni-MH or Ni-Cd battery packs within the rated voltage range. Never charge Li-ion or LiPo cells.
• Storage: Store in a cool, dry place away from direct sunlight and heat sources.
• Operation: Do not disassemble, modify, or short-circuit the charger.
• Temperature: Operate and store within 0°C–40°C (32°F–104°F).
• Disposal: Dispose of in accordance with local electronic waste regulations.
• Inspection: Inspect the charger and cable before each use. Do not use if damaged.

Shipping & Transportation Notice

• This product is a charger (no built-in battery) and is not classified as dangerous goods for standard shipping.
• Ships via standard international courier. Estimated delivery: 7–20 business days depending on destination.
• Packaged securely to prevent transit damage.
