9.6V 1600mAh LiFePO4 Rechargeable Battery Pack for RC Cars, Boats & Model Planes

Product Overview

High-performance LiFePO4 (Lithium Iron Phosphate) rechargeable battery pack designed for RC racing cars, model planes, boats, and optoelectronic toys. This 9.6V 1600mAh battery delivers reliable power with superior safety characteristics and long cycle life.

Available in Two Versions:

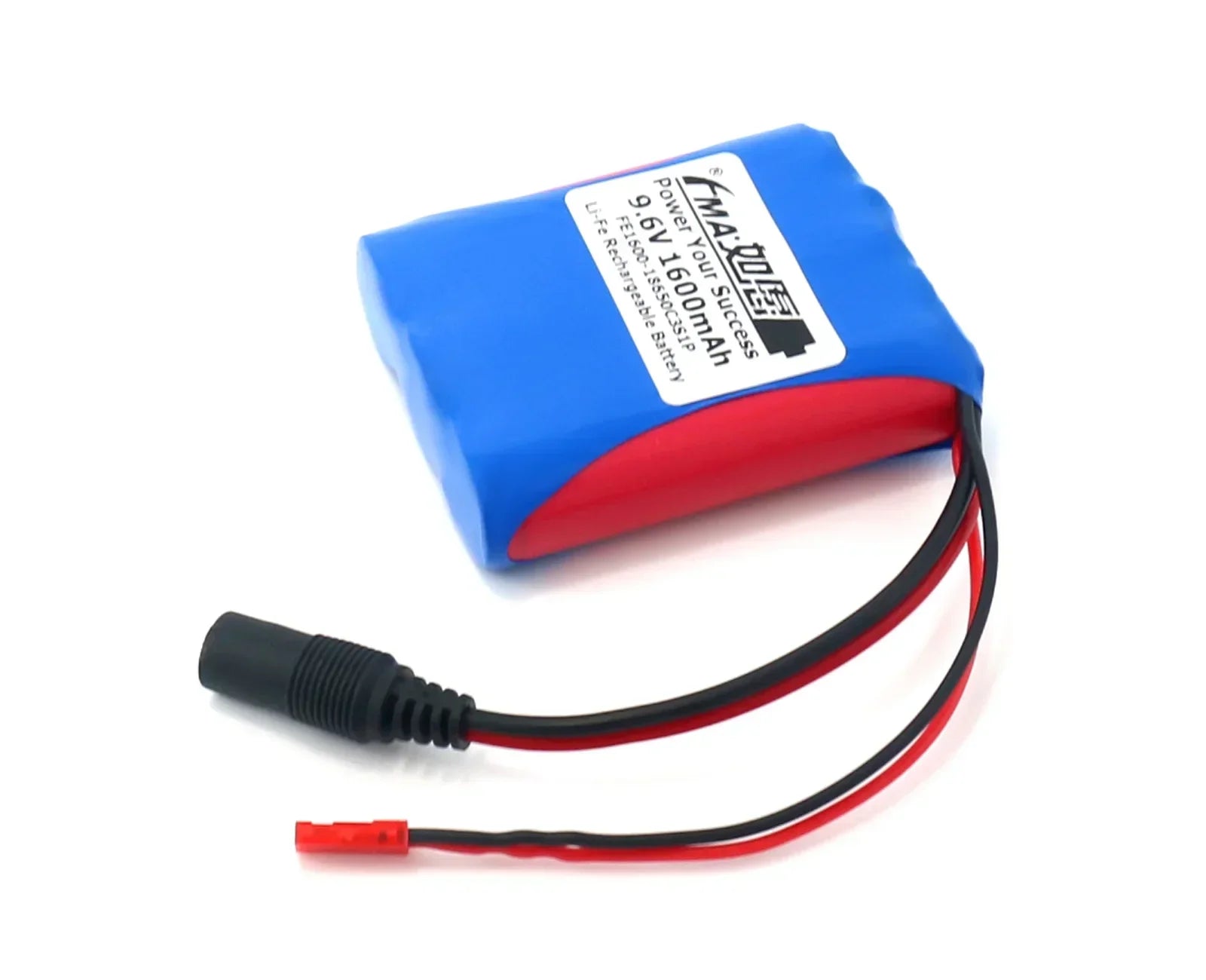

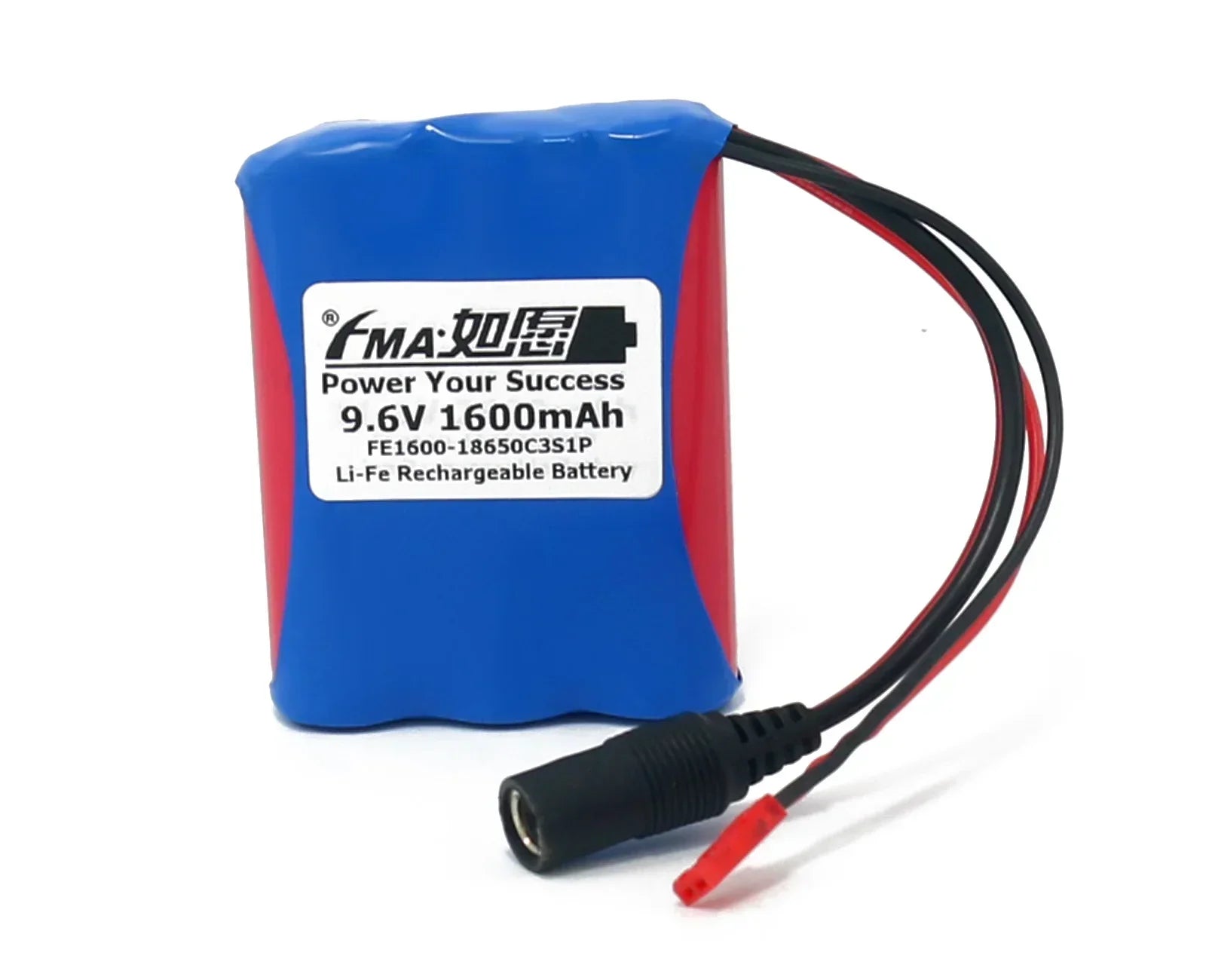

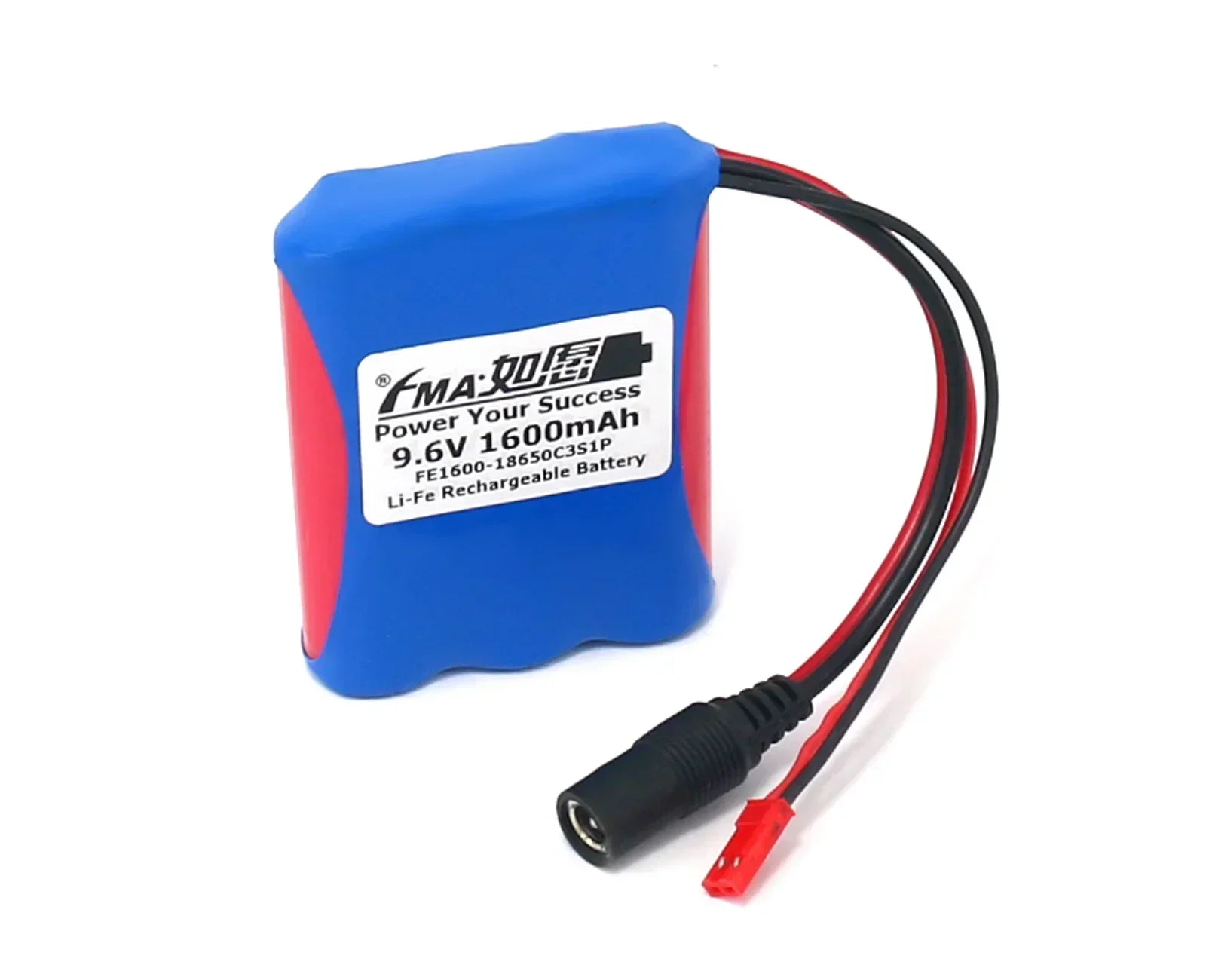

• Protected Version (with PCM): Built-in protection circuit module for safe charging and discharging, suitable for standard applications

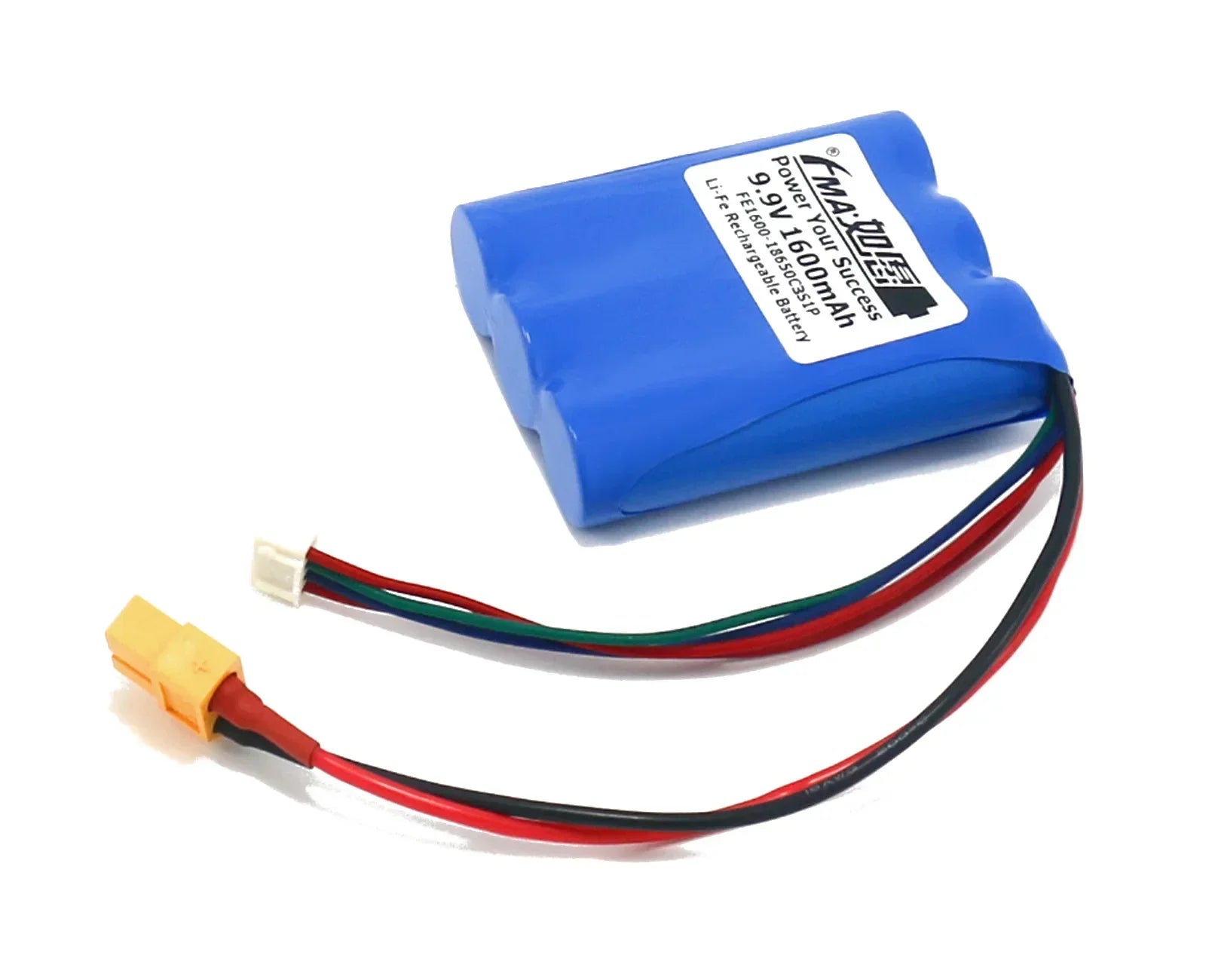

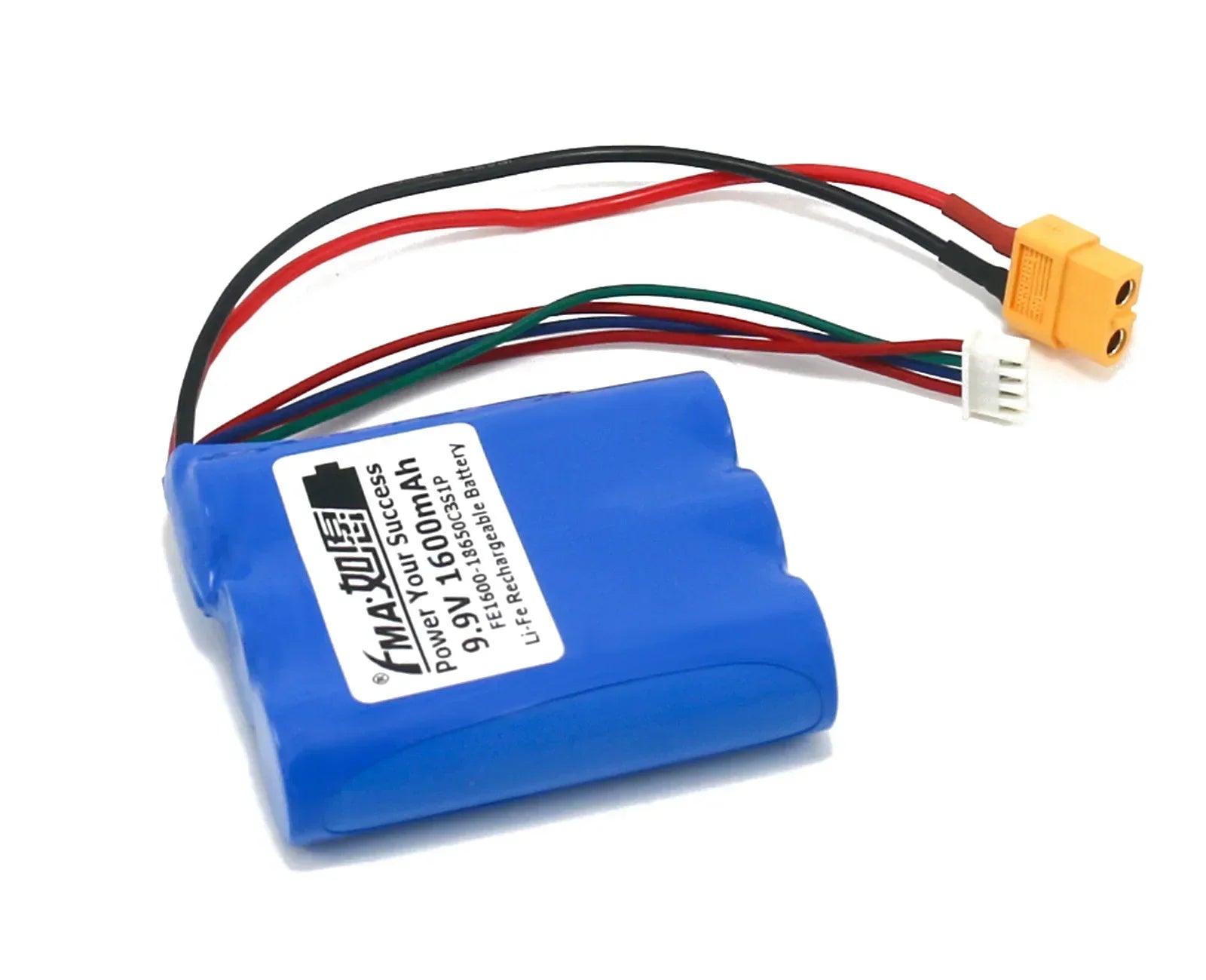

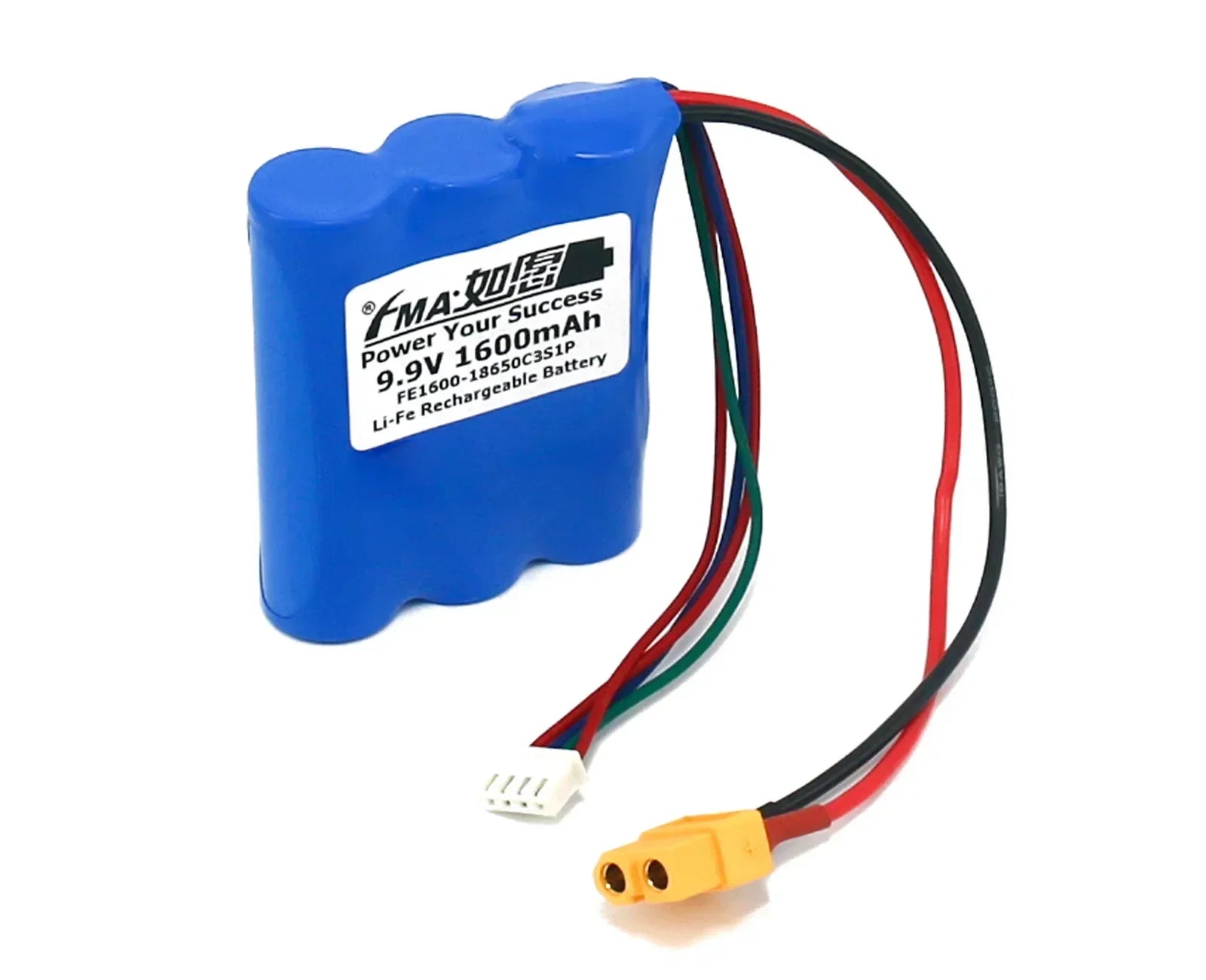

• High-Discharge Version (No PCM): Without protection board for higher discharge current capability, requires balance charger with 4-wire JST-XH connector for charging

Key Features

• Advanced LiFePO4 Chemistry: Safer and more stable than traditional lithium batteries with excellent thermal stability
• High Capacity: 1600mAh provides extended runtime for your RC vehicles and models
• Compact Design: Space-efficient 18×55×68mm dimensions fit most RC applications
• Lightweight: Only 160g (5.6oz) for optimal power-to-weight ratio
• Rechargeable: Cost-effective and environmentally friendly alternative to disposable batteries

Technical Specifications

Version Comparison

Applications

• RC Racing Cars
• Model Airplanes
• RC Boats
• Optoelectronic Toys
• Hobby Electronics

Package Contents

• LiFePO4 Battery Pack × Quantity Ordered

Important Note: We deliver the item as shown in the main product images. If you require a special connector type or battery arrangement, please refer to the connector options image and contact us to specify your requirements before ordering.

Charging Instructions

For Protected Version (with PCM):

• Use a standard LiFePO4 charger with appropriate voltage (9.6V nominal)
• Connect via the main discharge connector
• Built-in protection prevents overcharging

For High-Discharge Version (No PCM):

• MUST use a balance charger
• Connect the 4-wire JST-XH balance connector to your charger
• Set charger to LiFePO4 mode, 3S configuration
• Charge at 1C rate (1.6A) or lower
• Monitor cell voltages during charging (each cell should be 3.65V max)
• Never charge without a balance charger - risk of fire or damage

Safety Information

Charging:

• Use only chargers specifically designed for LiFePO4 batteries
• Never exceed the recommended charging voltage (typically 3.65V per cell)
• Do not leave batteries unattended while charging
• Charge in a fireproof container or on a non-flammable surface
• For No PCM version: Balance charging is mandatory

Storage:

• Store in a cool, dry place away from direct sunlight
• Keep away from flammable materials
• Store at partial charge (40-60%) for long-term storage
• Do not store in extreme temperatures (recommended: 5°C to 25°C)

Operation:

• Do not short circuit the battery terminals
• Discontinue use if battery becomes hot, swollen, or damaged
• Do not disassemble, puncture, or modify the battery
• Keep away from children and pets
• For No PCM version: Monitor voltage during use to prevent over-discharge

Temperature:

• Operating temperature: -20°C to 60°C
• Charging temperature: 0°C to 45°C
• Do not use or charge in extreme temperatures

Disposal:

• Dispose of batteries according to local regulations
• Do not dispose of in regular household waste
• Recycle at designated battery collection points

Inspection:

• Inspect battery regularly for signs of damage, swelling, or leakage
• Replace immediately if any abnormalities are detected

Shipping & Transportation Notice

Hazardous Material Classification:

• This product contains lithium batteries and is classified as dangerous goods for shipping purposes
• Complies with UN3480 or UN3481 regulations for lithium battery transportation

Air Transportation:

• Subject to IATA Dangerous Goods Regulations
• May have shipping restrictions to certain destinations
• Additional shipping fees may apply for air freight

Packaging:

• Batteries are packaged according to international safety standards
• Each battery is individually protected to prevent short circuits

Delivery Time:

• Delivery times may be longer than standard shipments due to transportation regulations
• Remote areas may have additional restrictions or delays

Documentation:

• All shipments include proper dangerous goods documentation
• Customs clearance may require additional time for battery shipments

For specific shipping restrictions to your location, please contact us before placing your order.
