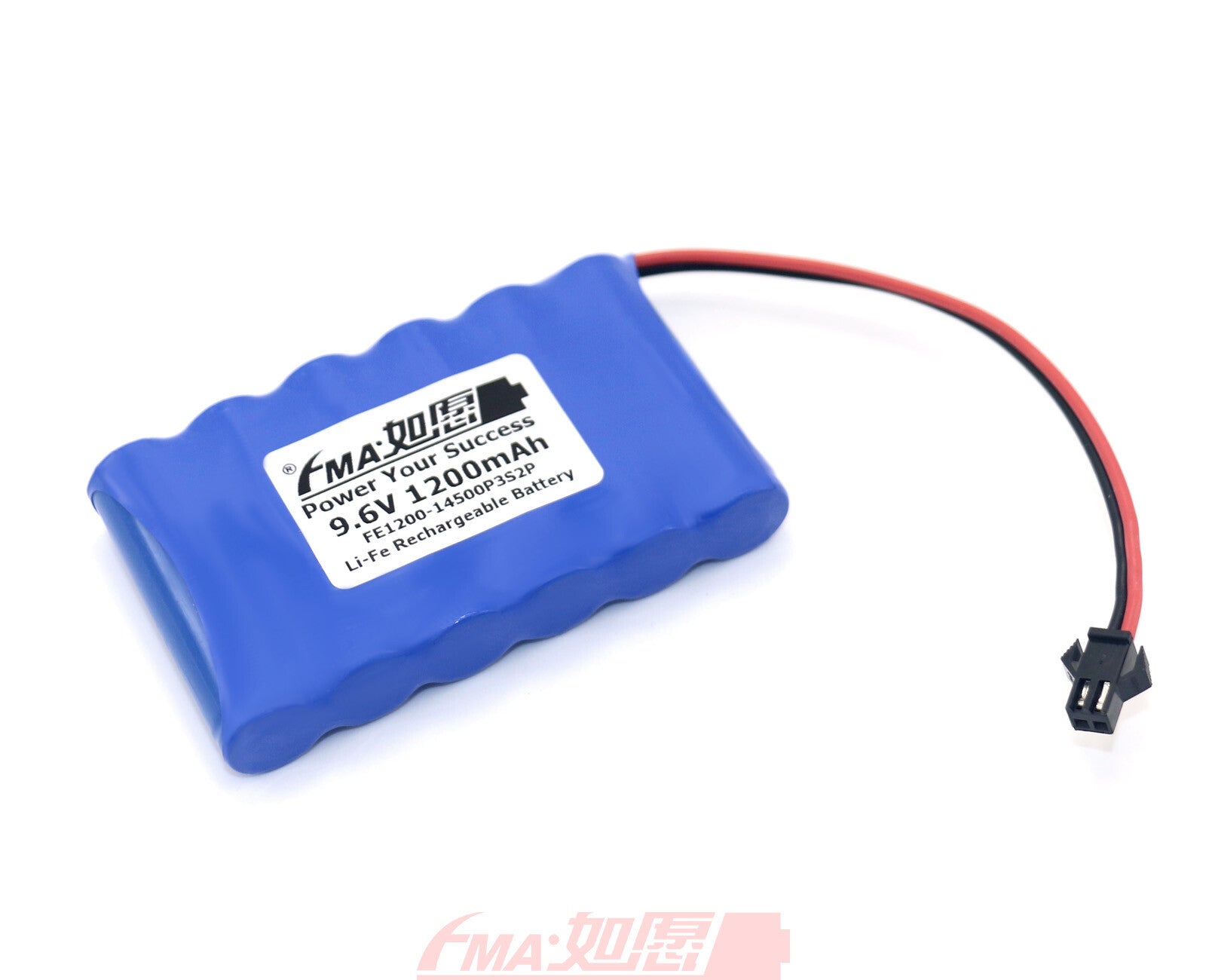

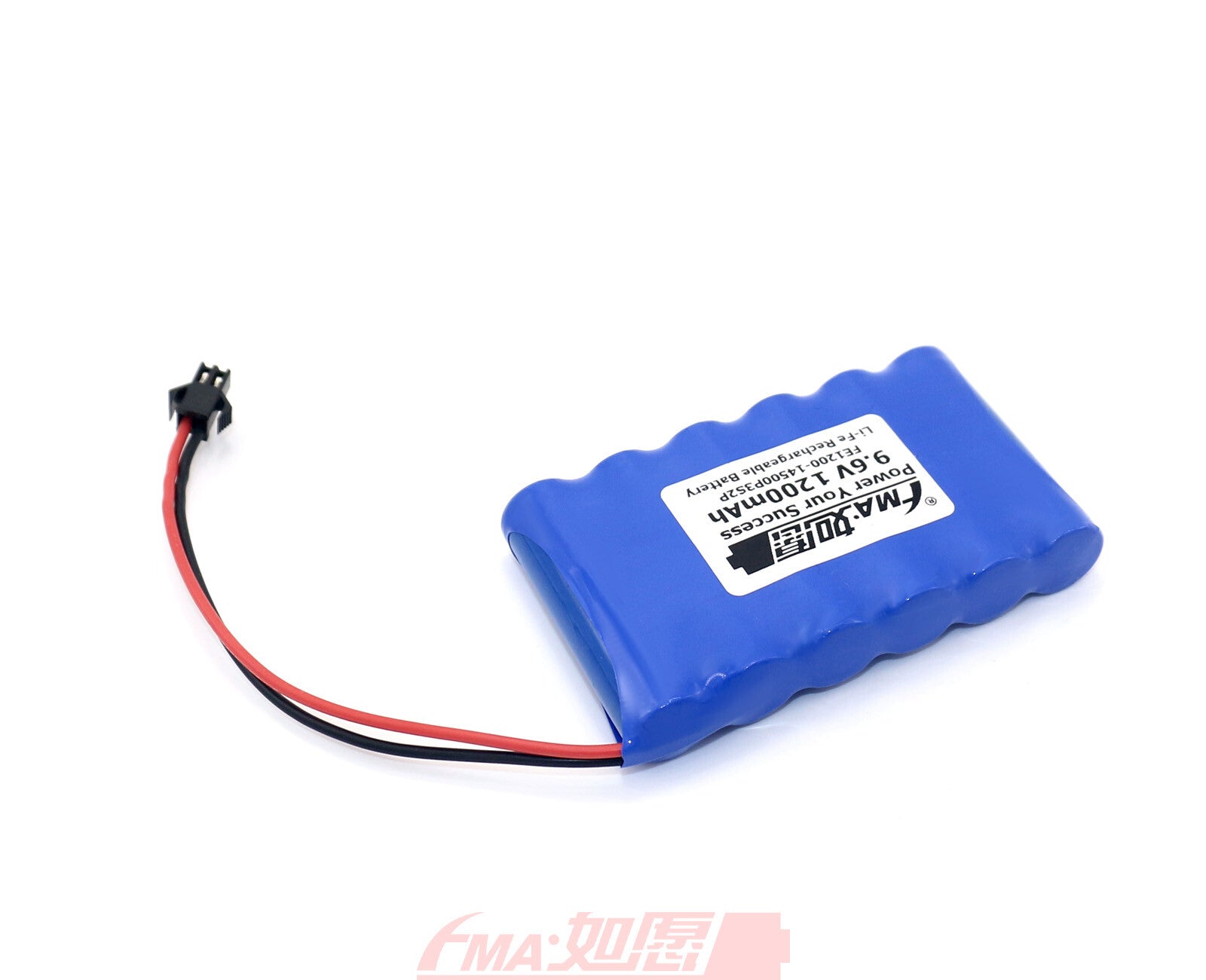

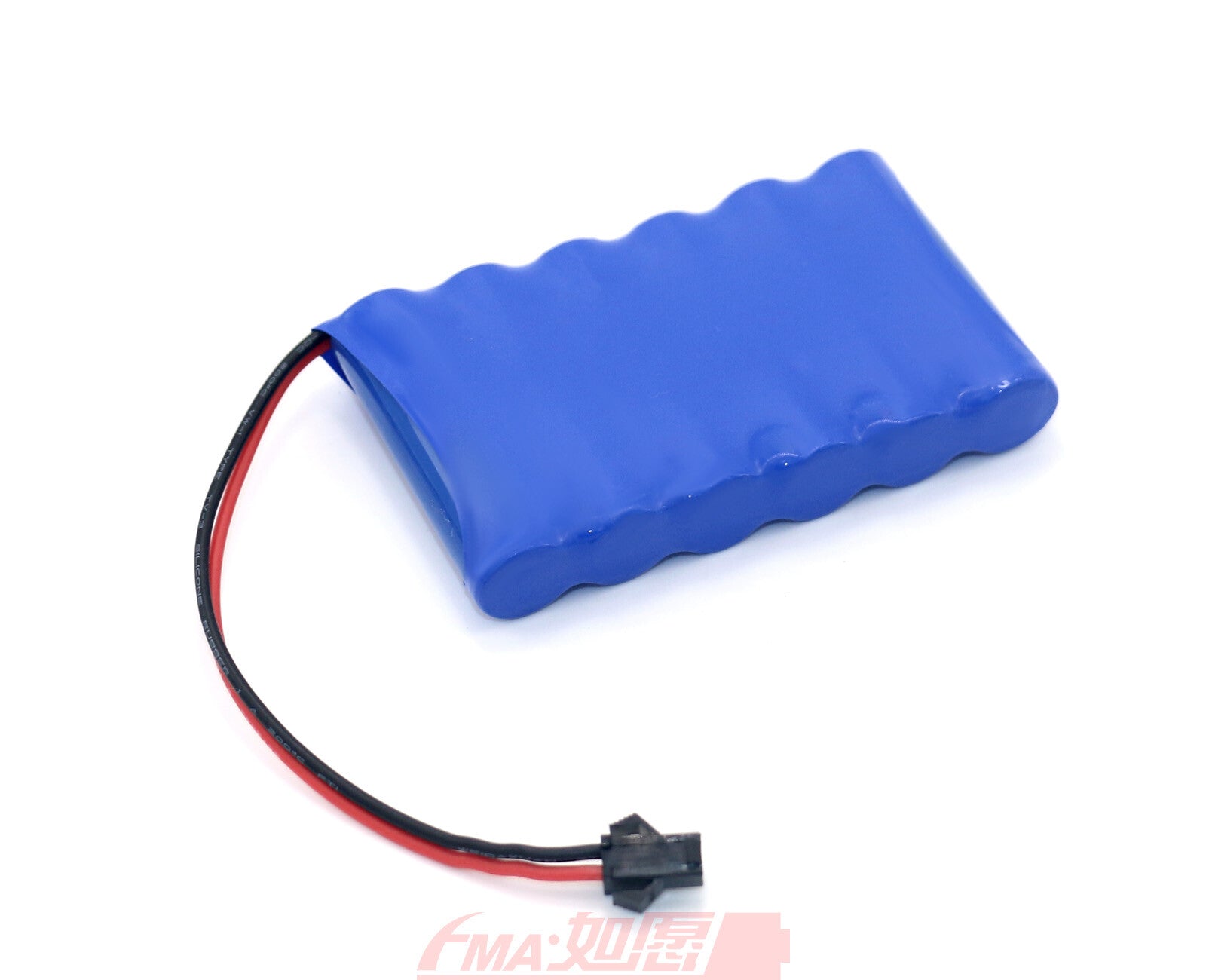

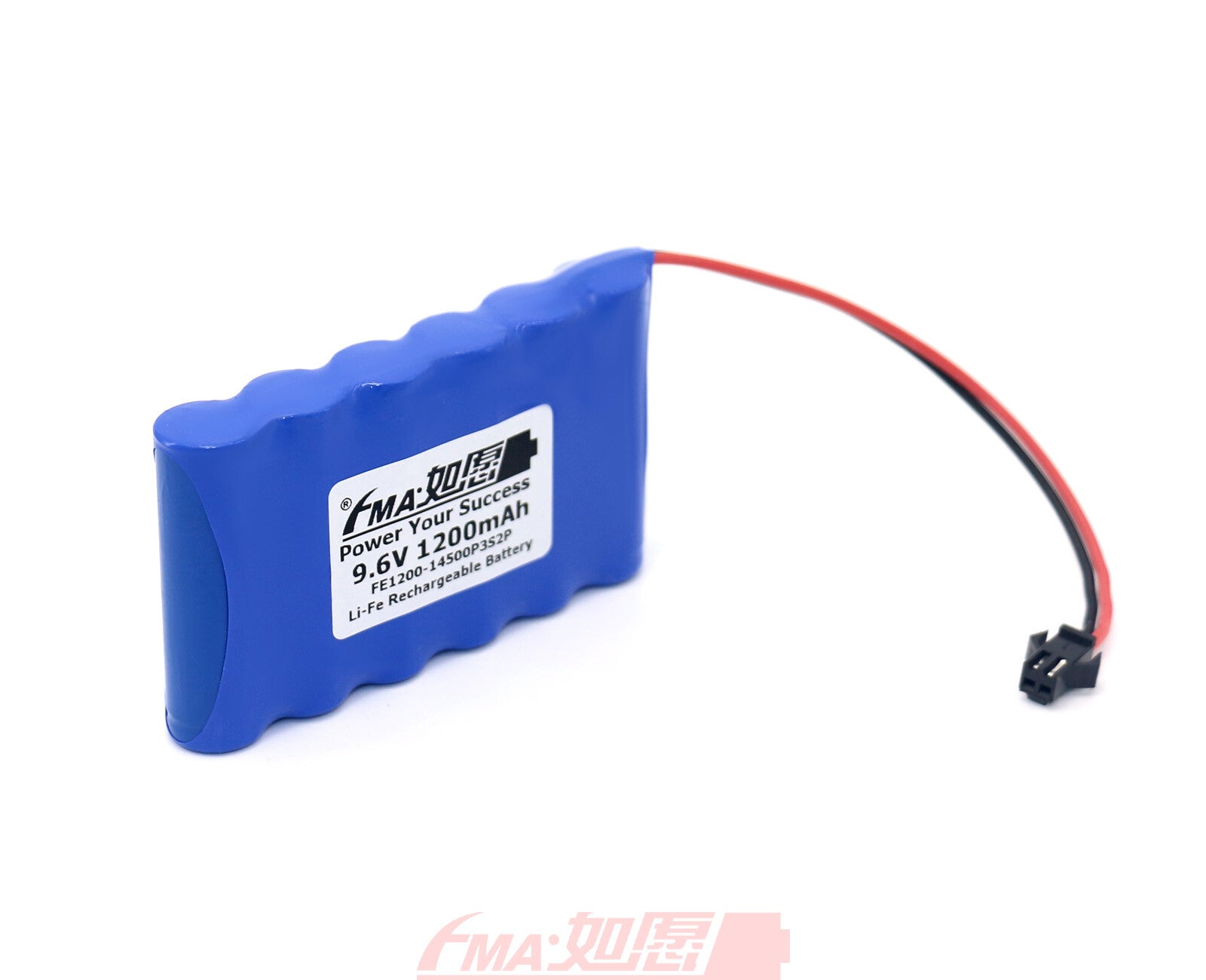

Racing Car Toys Security Alarm System Protected LiFePO4 9.6V 1.2Ah Li-Fe Battery

9.6V 1200mAh LiFePO4 Protected Battery - Racing Car Toys & Alarm System

Professional-grade 9.6V 1200mAh Lithium Iron Phosphate (LiFePO4) rechargeable battery with built-in PCM protection circuit. Available in five connector types (SMP, SYP, Tamiya, Mini Tamiya, Huanqi) for easy plug-and-play installation. Designed for RC racing cars, toys, security alarm systems, and remote control applications. Features compact size, lightweight design, long cycle life, and safe LiFePO4 chemistry.

Key Features

• Five Connector Options: SMP, SYP, Tamiya, Mini Tamiya, Huanqi - choose what fits your device
• PCM Protected: Built-in protection circuit for safe operation
• Plug-and-Play: Pre-installed connectors for easy replacement
• High Capacity: 1200mAh for extended runtime
• 14500 Cells: Premium AA-size cells in 3S2P configuration
• Compact Size: 15mm × 85mm × 52mm
• Lightweight: Only 180g
• Long Cycle Life: 2000+ charge cycles

Package Contents

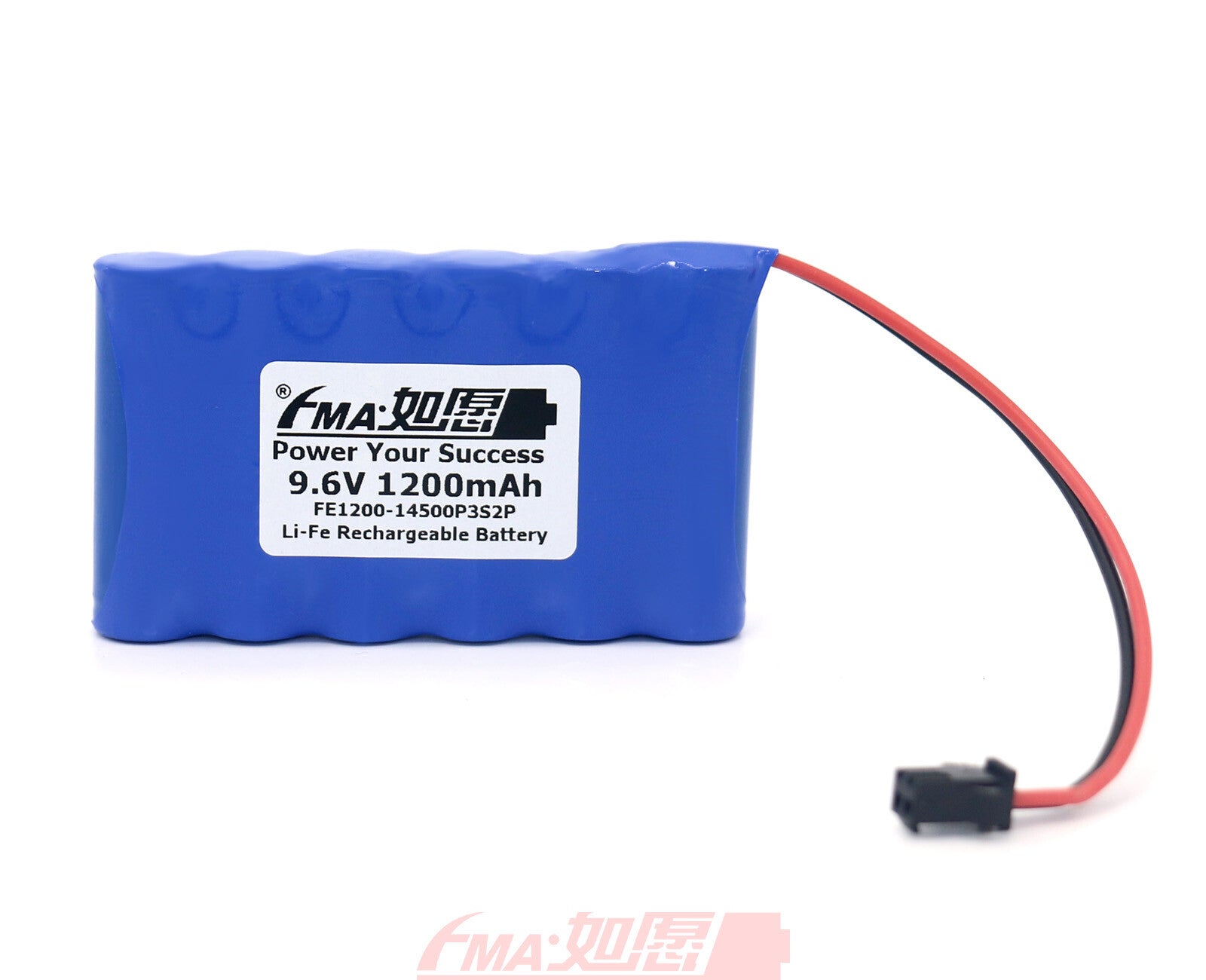

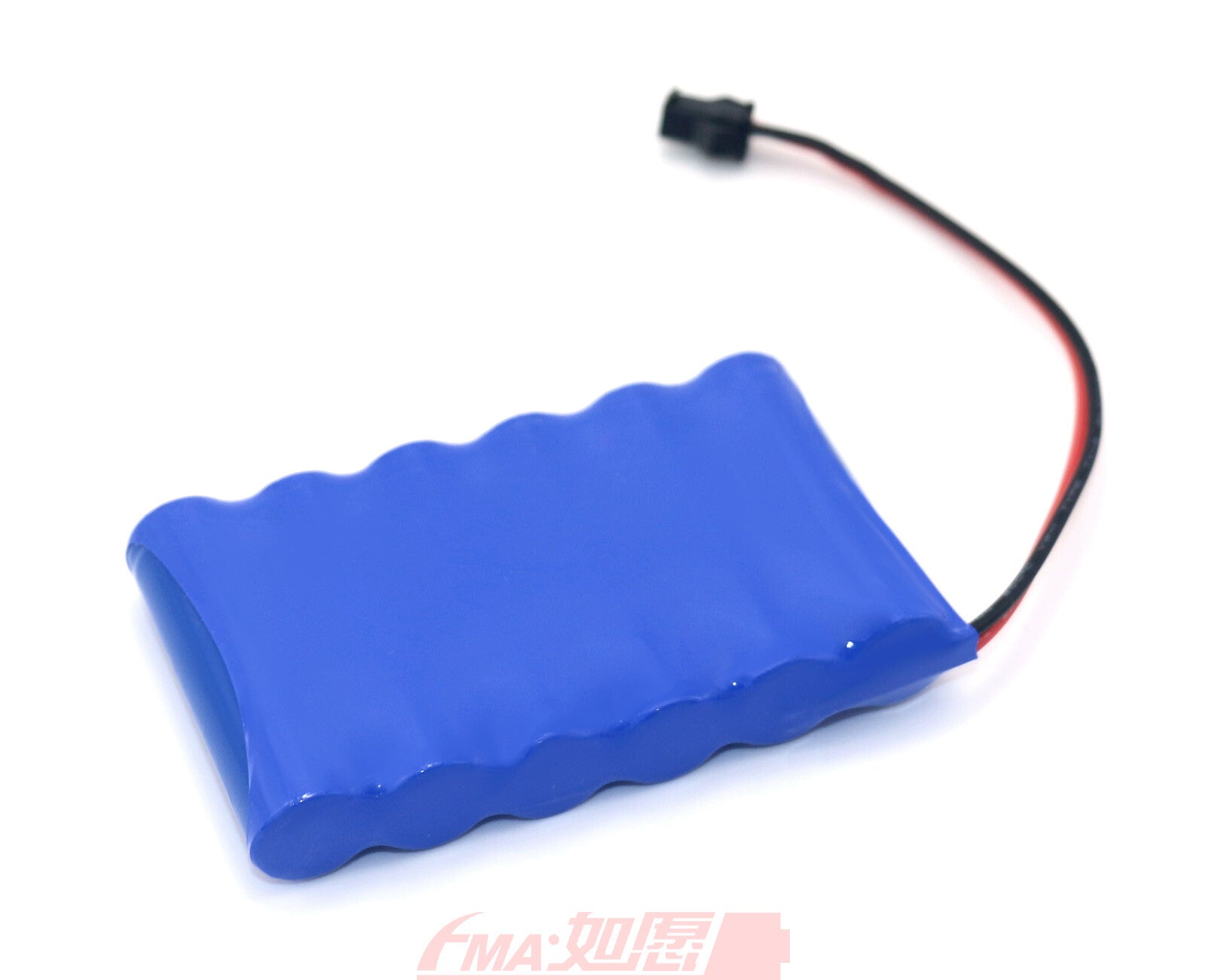

• 1× 9.6V 1200mAh LiFePO4 Battery Pack with connector (connector type as selected)

Connector Types

Connector Type	Description	Common Applications

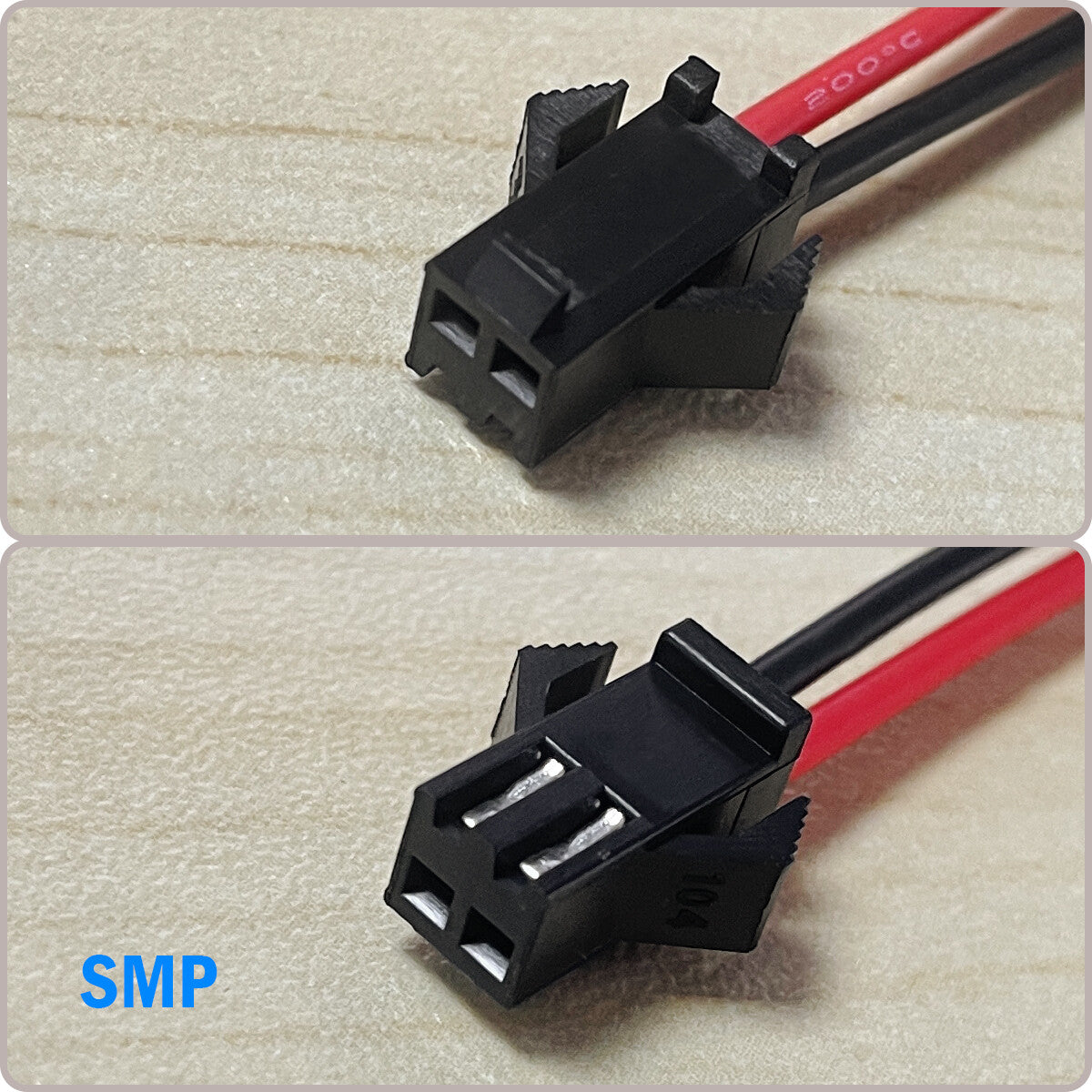

SMP	Standard SMP plug	RC cars, alarm systems, hobby devices

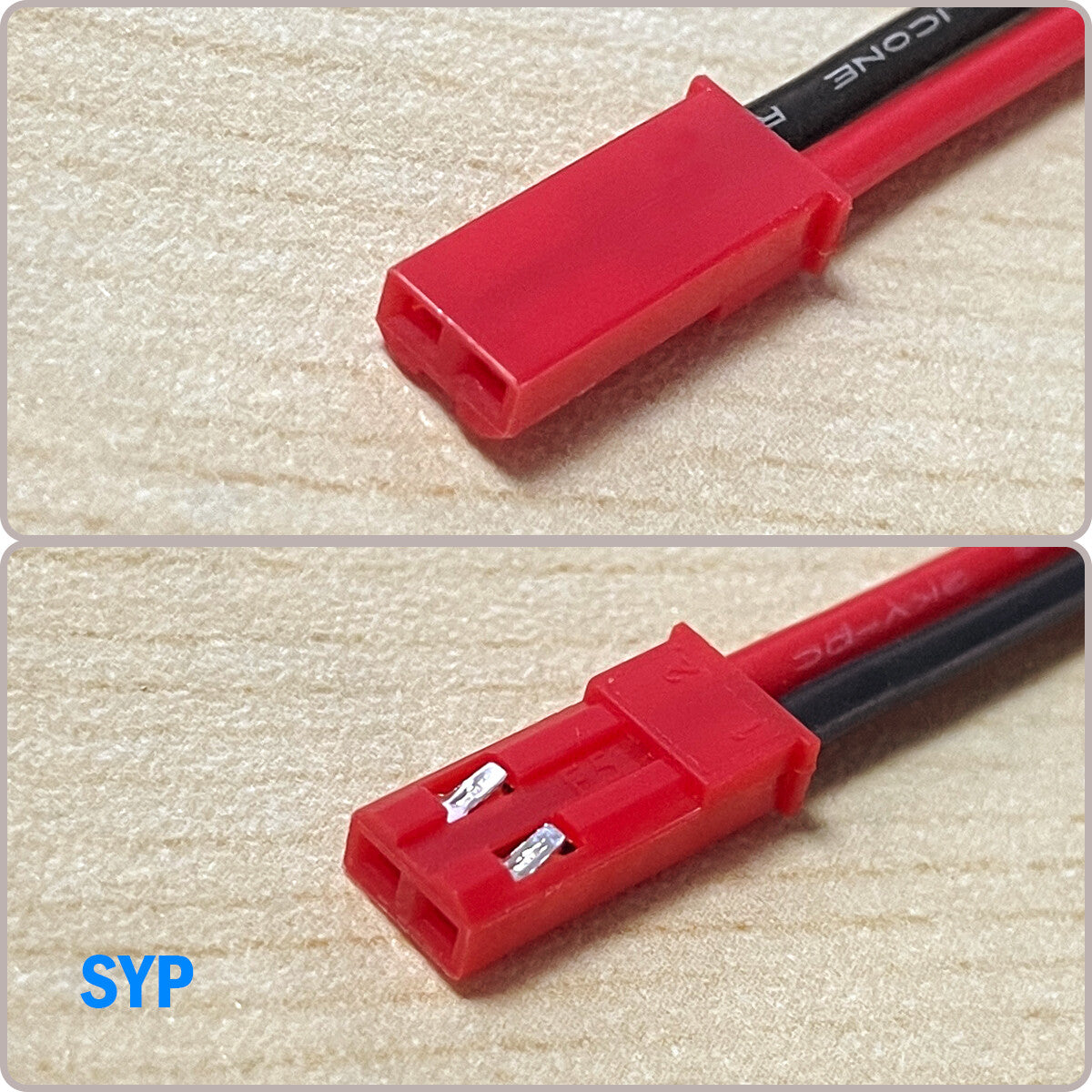

SYP	Standard SYP plug	RC vehicles, toys, security systems

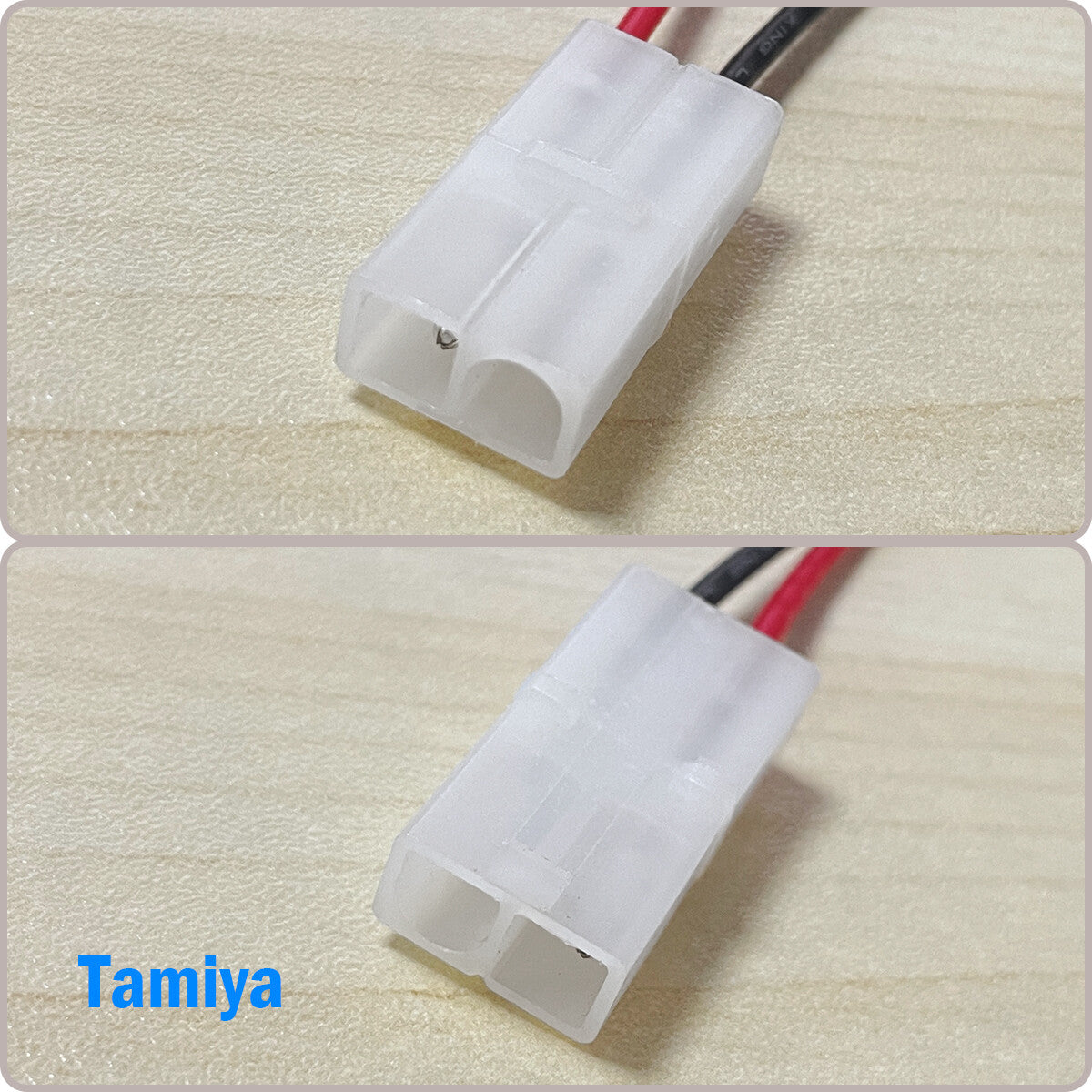

Tamiya	Standard Tamiya plug	RC racing cars, model vehicles, hobby equipment

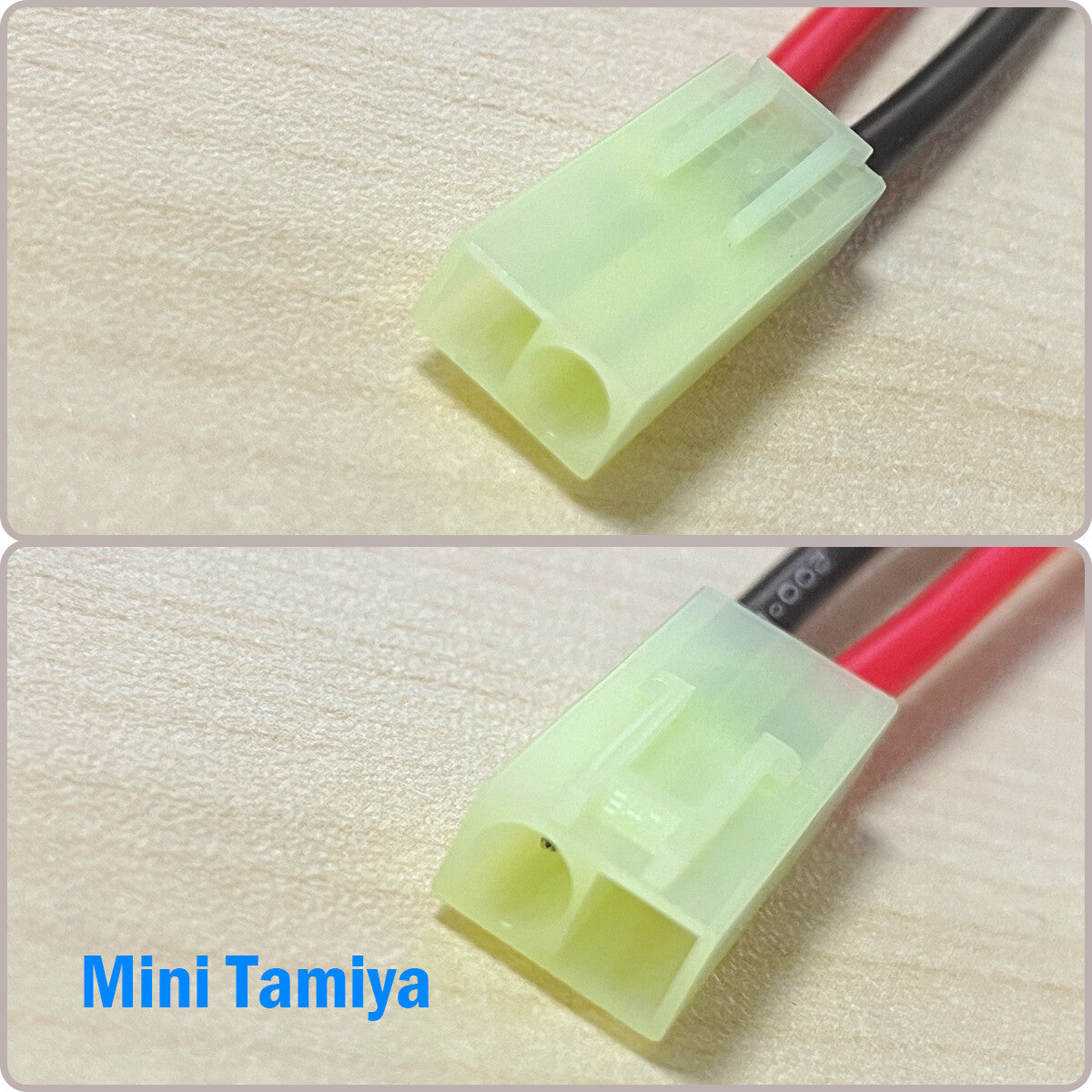

Mini Tamiya	Compact Tamiya plug	Small RC cars, mini vehicles, compact toys
Huanqi	Huanqi connector	Huanqi brand RC toys and vehicles

ℹ️ Need a Different Connector? Contact us with your requirements, and we can customize the connector type for you!

Technical Specifications

Nominal Voltage	9.6V (3S configuration)
Capacity	1200mAh (1.2Ah)
Energy	~11.52Wh
Chemistry	LiFePO4 (Lithium Iron Phosphate)
Cell Type	14500 (AA size)
Configuration	3S2P (3 series, 2 parallel)
Dimensions	15mm × 85mm × 52mm
Weight	~180g
Connector Options	SMP / SYP / Tamiya / Mini Tamiya / Huanqi
Protection	PCM (Protection Circuit Module)
Charge Voltage	10.95V (3.65V per cell)
Discharge Cut-off	7.5V (2.5V per cell)
Cycle Life	2000+ cycles
Brand	FMA
Condition	Brand New

PCM Protection Features

Protection Type	Function
Overcharge Protection	Prevents charging above 10.95V
Over-discharge Protection	Cuts off at 7.5V to protect cells
Overcurrent Protection	Limits excessive current draw
Short Circuit Protection	Instantly cuts power if short detected

Common Applications

• RC Racing Cars: Remote control racing vehicles and drift cars
• RC Toys: Battery-powered RC cars, trucks, and buggies
• Security Alarm Systems: Burglar alarms and security panels
• Electronic Toys: Battery-powered children's toys
• Huanqi Vehicles: Huanqi brand RC toys and vehicles
• Hobby Equipment: Various RC and hobby devices
• Backup Power: Small backup power systems

Why Choose LiFePO4 for RC Cars & Toys?

1. Safest Lithium Chemistry:

• LiFePO4 is the safest lithium battery type
• Excellent thermal stability
• No risk of thermal runaway or fire
• Safe for children's toys and RC vehicles
• PCM adds extra protection layer

2. Long Runtime:

• 1200mAh capacity for extended playtime
• Perfect for race days and long sessions
• Low self-discharge (3% per month)
• Ready to use when needed

3. Lightweight Design:

• Only 180g - improves RC car performance
• Better speed and handling
• Reduces overall vehicle weight
• Compact size fits most RC cars

4. Exceptional Lifespan:

• 2000+ charge cycles
• Lasts years with regular use
• Better value than disposable batteries
• Reduces waste and saves money

5. Stable Performance:

• Consistent voltage throughout discharge
• Better speed and power delivery
• No voltage sag during high-current use
• Improved RC car performance

Simple Battery Replacement Guide

✅ Easy Plug-and-Play Installation - No Soldering Required!

Step 1: Choose the Correct Connector

• Check your RC car or device's existing battery connector
• Select matching connector: SMP, SYP, Tamiya, Mini Tamiya, or Huanqi
• If unsure, take a photo and contact us for help

Step 2: Prepare for Replacement

• Power off device completely
• Open battery compartment (usually on bottom of RC car)
• Take a photo of old battery orientation for reference

Step 3: Remove Old Battery

• Locate the connector inside device
• Gently pull connector straight out (do not twist)
• Remove old battery from compartment

Step 4: Install New Battery

• Place new battery in compartment
• Ensure wires are not pinched or twisted
• Align connector with socket
• Plug in connector - it should fit smoothly

Step 5: Test and Close

• Verify device powers on correctly
• Test all functions (forward, reverse, steering)
• Close battery compartment and secure
• Charge battery fully before first use

Charging Information

Charger Requirements:

• Use LiFePO4-compatible charger (10.95V for 3S)
• Do NOT use standard NiMH/NiCd RC chargers
• Recommended charge current: 0.5-1.2A
• Charging time: 1-2 hours

PCM Protection During Charging:

• PCM automatically stops charging at 10.95V
• Prevents overcharging damage
• Safe to leave connected (PCM will protect)

Charging Tips:

• Charge after each use for RC cars and toys
• Do not leave discharged for extended periods
• Store at 40-60% charge if not using for weeks
• Allow battery to cool between uses

Safety Information

Charging: Use only LiFePO4-compatible chargers (10.95V for 3S). Do not use NiMH/NiCd chargers. PCM provides overcharge protection.

Storage: Store at 40-60% charge in cool, dry place. Keep away from children when not in use.

Operation: Do not short-circuit, puncture, crush, or disassemble the battery.

Temperature: Charge: 0-45°C, Discharge: -20-60°C, Storage: -20-35°C.

Disposal: Dispose according to local regulations. LiFePO4 is non-toxic but should be recycled.

Supervision: Adult supervision recommended for children using RC toys with this battery.

PCM Protection: Built-in Protection Circuit Module guards against overcharge, over-discharge, overcurrent, and short circuit.
